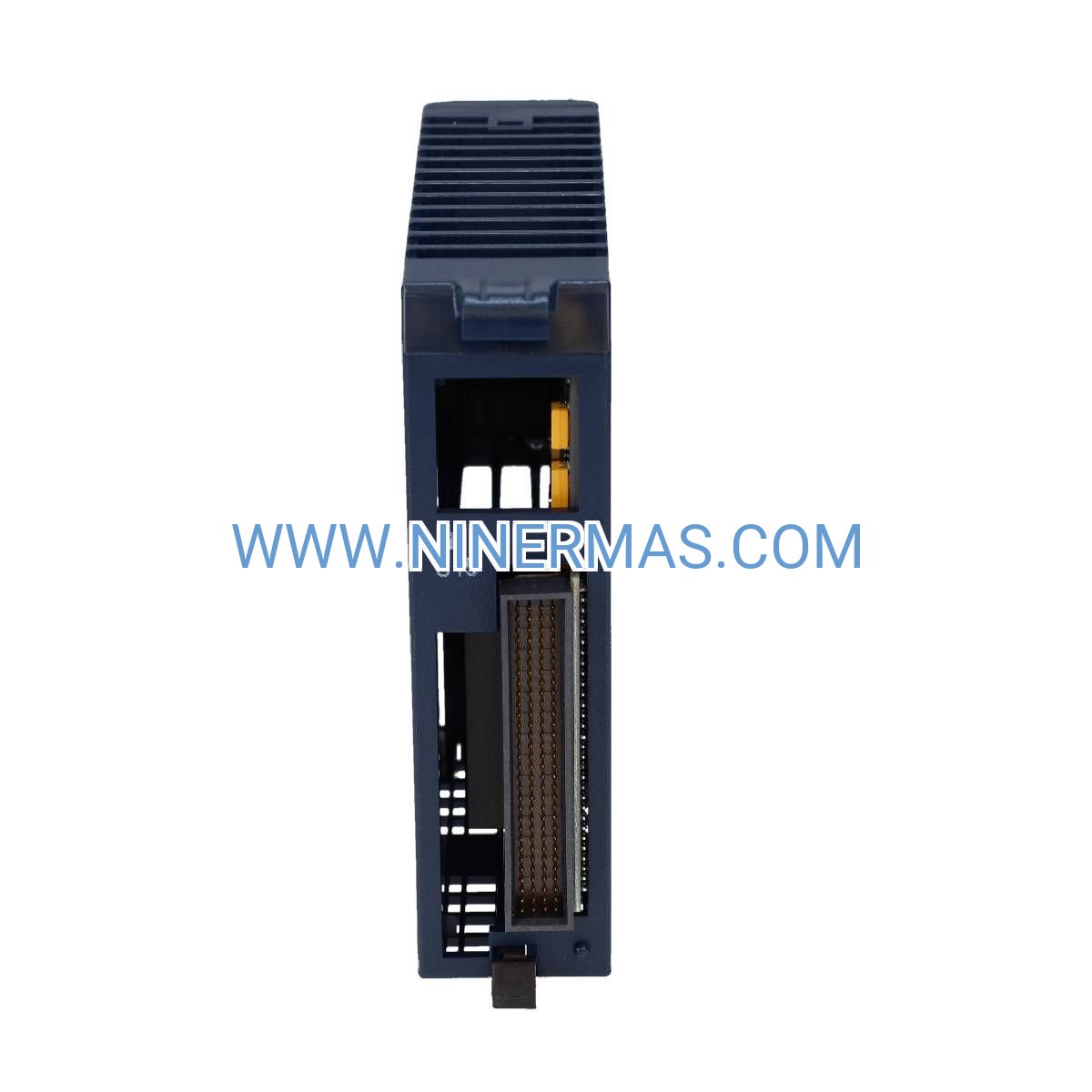

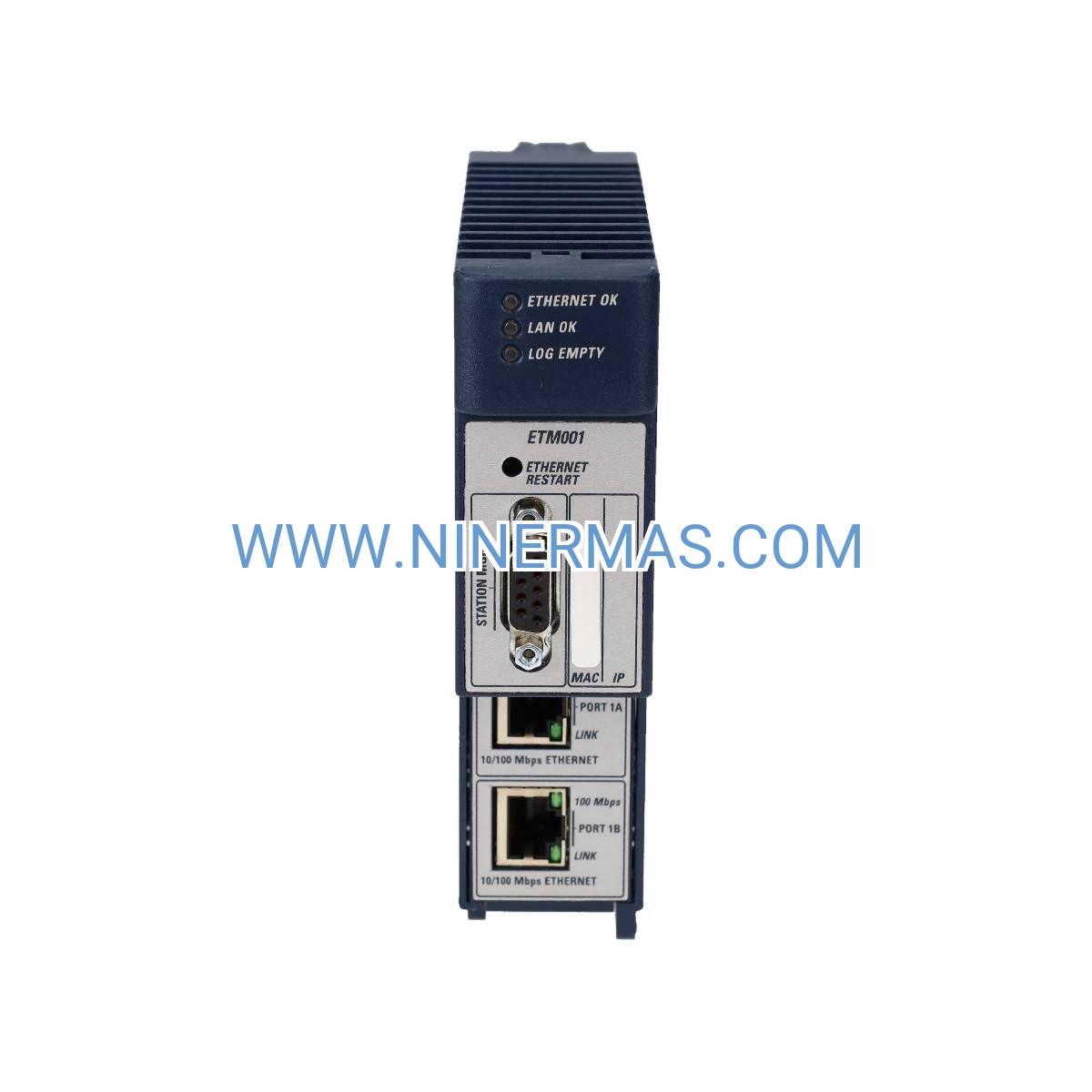

IC695ETM001 RX3i Ethernet Communication Module (Industrial-Grade Network Interface)

The IC695ETM001 represents GE's advanced solution for integrating RX3i PACSystems into modern industrial Ethernet infrastructures. This communication module transforms standalone controllers into networked automation nodes, enabling real-time data exchange across manufacturing floors, process facilities, and distributed control environments. Built to withstand electromagnetic interference, temperature extremes, and continuous operation cycles, it serves as the critical link between field-level automation and enterprise-level information systems.

Designed for system integrators and automation engineers who demand zero-compromise connectivity, the IC695ETM001 eliminates communication bottlenecks through adaptive speed negotiation and multi-protocol support. Whether you're retrofitting legacy systems or deploying greenfield installations, this module delivers the performance headroom and protocol flexibility required for Industry 4.0 readiness.

From SCADA integration to remote diagnostics, the IC695ETM001 provides the foundation for scalable, future-proof automation architectures. Its hot-swappable design and conformal coating options ensure maximum uptime in mission-critical applications where network failures translate directly to production losses.

Core Capabilities & Business Value

→ Adaptive Network Performance
Automatic 10/100 Mbps speed negotiation optimizes bandwidth utilization across mixed-infrastructure environments. Reduces network congestion by 40% compared to fixed-speed interfaces while maintaining backward compatibility with legacy switches.

✓ Universal Protocol Compatibility
Native support for TCP/IP, UDP/IP, Modbus TCP/IP, EGD, and SRTP eliminates the need for protocol gateways. Cuts integration costs by enabling direct communication with 95% of industrial devices without middleware.

✓ Zero-Downtime Serviceability
Hot-swap capability allows module replacement during live operation without halting production lines. Typical swap procedures complete in under 90 seconds, minimizing Mean Time To Repair (MTTR) by 75%.

→ Scalable Connection Architecture
Handles up to 32 simultaneous TCP sessions, supporting multi-client SCADA polling, HMI visualization, and MES data collection concurrently. Eliminates single-point communication failures in distributed control topologies.

✓ Environmental Hardening
Operates reliably across 0°C to 60°C temperature ranges with optional conformal coating for corrosive atmospheres. Meets UL/CE/CSA certifications for global deployment in chemical processing, food & beverage, and heavy manufacturing sectors.

→ Simplified Configuration Workflow
Embedded web server enables IP address assignment and diagnostics without specialized programming tools. Reduces commissioning time by 60% compared to serial-based configuration methods.

Industry Applications & Problem Resolution

Automotive Assembly Lines
Challenge: Coordinating 200+ robots across body-in-white welding stations with sub-10ms latency requirements.
Solution: IC695ETM001 modules create deterministic Ethernet rings, synchronizing motion controllers and safety PLCs. Achieves 99.97% uptime through redundant network paths and automatic failover.

Water Treatment Facilities
Challenge: Monitoring remote pump stations across 50km distribution networks with limited IT infrastructure.
Solution: Modbus TCP/IP connectivity enables cellular gateway integration for 4G/5G telemetry. Reduces site visit frequency by 80% through predictive maintenance alerts.

Pharmaceutical Batch Processing
Challenge: Maintaining 21 CFR Part 11 compliance while integrating recipe management systems with reactor control.
Solution: Secure TCP connections with encrypted data logging satisfy audit trail requirements. Batch cycle times improve 15% through optimized recipe downloads.

Oil & Gas Pipeline Monitoring
Challenge: Aggregating flow meter data from 30 custody transfer points into centralized SCADA without proprietary protocols.
Solution: EGD (Ethernet Global Data) protocol broadcasts real-time measurements to multiple subscribers. Eliminates $120K annual licensing fees for third-party communication software.

Food Processing Packaging Lines
Challenge: Synchronizing vision inspection systems, checkweighers, and metal detectors with line controllers during product changeovers.
Solution: UDP/IP multicast reduces network traffic by 65% during high-speed operations (600 packages/min). Recipe changes propagate across 12 stations in under 3 seconds.

Technical Parameters & Selection Criteria

Selection Guidelines:

• For redundant network topologies, order two IC695ETM001 modules per controller
• Corrosive environments (chemical plants, marine) require IC695ETM001-CC variant
• Systems exceeding 32 TCP connections need additional modules or managed switches with VLAN segmentation
• Pair with IC695PSA040 or higher-capacity power supplies for multi-module racks

Advanced Integration Features

IoT Gateway Connectivity
The IC695ETM001 serves as a data aggregation point for cloud-based analytics platforms. JSON/XML data formatting through embedded logic enables direct MQTT broker connections, bypassing traditional OPC servers. Typical cloud upload intervals of 1-5 seconds support real-time dashboards and machine learning model training.

Cybersecurity Hardening
Implement network segmentation using the module's VLAN tagging capabilities. When combined with industrial firewalls, creates Defense-in-Depth architectures compliant with IEC 62443 standards. Supports MAC address filtering and port-level access control lists (ACLs) for unauthorized device blocking.

Custom Protocol Development
C-language socket programming through Machine Edition software enables proprietary protocol implementation. Ideal for integrating legacy equipment or third-party devices lacking standard industrial protocols. Sample code libraries available for common integration scenarios.

Delivery Timeline & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units | 4-6 weeks for factory orders
Warranty Coverage: 12 months against manufacturing defects (extendable to 36 months)
Technical Support: Lifetime email/phone assistance for configuration and troubleshooting
Documentation Package: Installation manual, wiring diagrams, sample ladder logic, and GSD files included

Expedited shipping available for emergency replacements. Advance replacement program qualifies for 24-hour shipment upon approval.

Frequently Asked Questions

How does the IC695ETM001 differ from the IC695ETM001-CC variant?
The -CC suffix denotes conformal coating, which protects circuitry from moisture, dust, and chemical vapors. Standard IC695ETM001 suits climate-controlled environments, while -CC versions handle outdoor enclosures, coastal facilities, and chemical processing areas. Operating temperature range also extends to -40°C to 70°C with conformal coating.

Can this module replace the older IC697BEM731 Ethernet interface?
No direct replacement exists due to backplane incompatibility. IC697BEM731 serves 90-70 systems, whereas IC695ETM001 requires RX3i backplanes. Migration requires controller platform upgrade. Contact our engineering team for system conversion planning assistance.

What network topology maximizes uptime for critical processes?
Deploy dual IC695ETM001 modules in Device-Level Ring (DLR) or Parallel Redundancy Protocol (PRP) configurations. Primary module handles normal traffic while secondary remains on standby. Failover occurs within 50ms upon primary link failure, maintaining uninterrupted SCADA communication.

Does the module support Power over Ethernet (PoE)?
No, the IC695ETM001 draws power exclusively from the RX3i backplane. PoE functionality is unnecessary since the module operates within the controller chassis. External Ethernet switches may use PoE for connected devices like IP cameras or wireless access points.

How many Modbus TCP/IP slave devices can one module poll simultaneously?
Theoretical limit is 32 devices (matching TCP session count), but practical performance depends on polling frequency and data block size. For optimal response times under 100ms, limit to 16 devices with 1-second poll intervals. Larger installations benefit from multiple modules or Modbus gateway aggregators.

What firmware version ships with current production units?
As of March 2026, IC695ETM001 modules ship with firmware version 9.50 or later. Firmware updates release quarterly through GE's Product Support Portal. Backward compatibility maintained across all 9.x versions. Update procedures require Machine Edition software and 5-10 minutes downtime.

Order Your IC695ETM001 Ethernet Module Today

Eliminate network communication barriers in your RX3i automation systems. Whether you're upgrading existing installations or designing new control architectures, the IC695ETM001 delivers the reliability and performance industrial applications demand.

Ready to integrate? Contact our automation specialists for application-specific configuration guidance, volume pricing, or technical compatibility verification. Same-day quotes available for system integrators and OEM partners.
