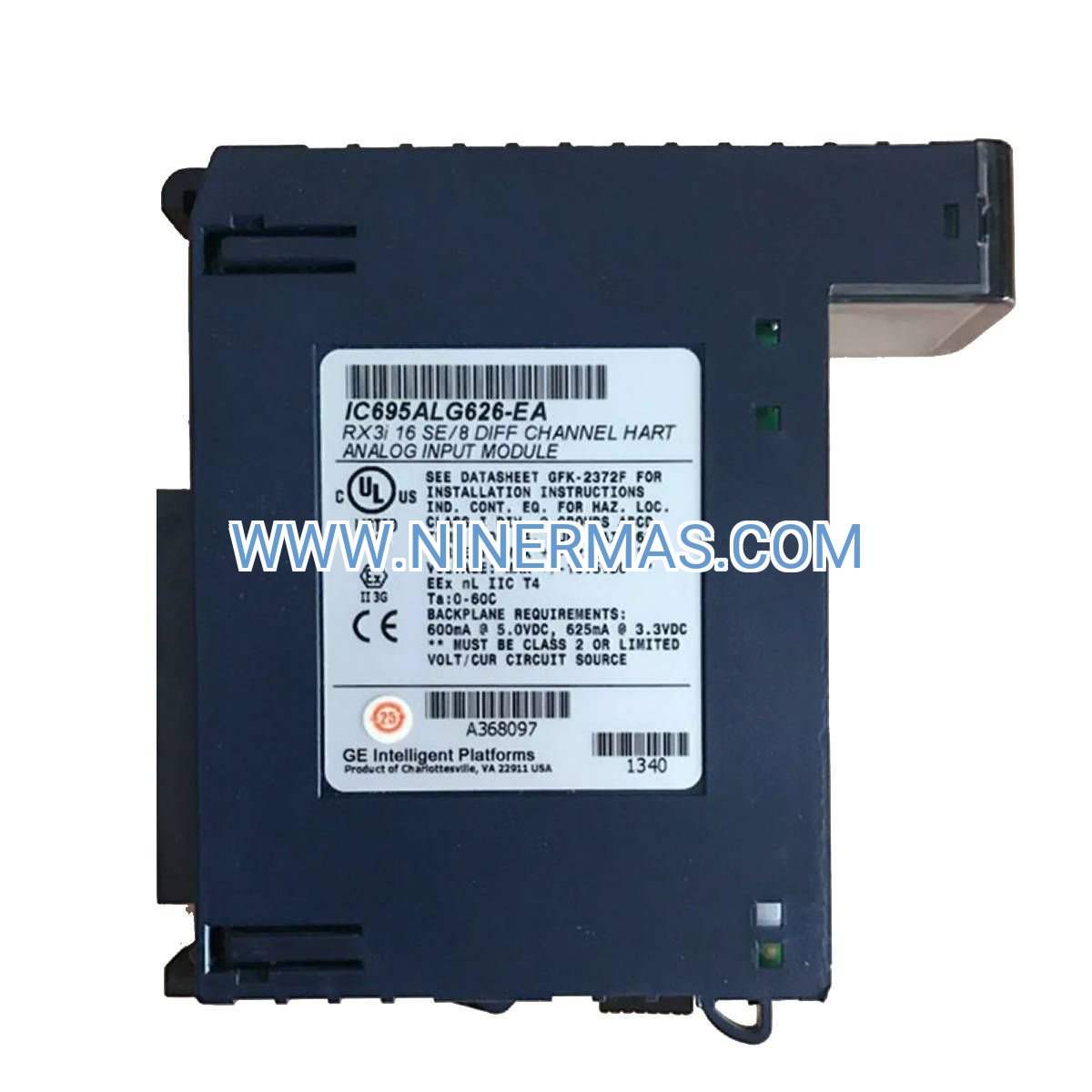

IC695ALG626 Analog Input Module (Industrial-Grade 16-Channel HART Interface)

The IC695ALG626 represents a breakthrough in industrial analog signal acquisition, combining 16 high-density input channels with native HART protocol intelligence in a single-slot form factor. Engineered for mission-critical process control environments, this module delivers laboratory-grade measurement accuracy while maintaining the rugged reliability demanded by continuous manufacturing operations. Whether you're modernizing legacy 4-20mA infrastructure or deploying next-generation smart instrumentation, the IC695ALG626 provides the bridge between field intelligence and control system decision-making.

Designed for automation engineers and system integrators working in process-intensive industries, this module eliminates the traditional compromise between channel count and diagnostic capability. By embedding HART communication directly into each input circuit, operators gain real-time access to sensor health metrics, calibration data, and predictive maintenance indicators without sacrificing analog measurement performance. The result is a 30-40% reduction in unplanned downtime through early fault detection and optimized maintenance scheduling.

Built on the proven RX3i PACSystems architecture, the IC695ALG626 integrates seamlessly with existing control strategies while future-proofing your investment. Hot-swappable operation ensures zero-downtime module replacement, while 500V isolation protects against electrical transients common in heavy industrial settings. From pharmaceutical batch processing to petrochemical continuous operations, this module transforms raw sensor data into actionable intelligence.

Core Capabilities & Technical Advantages

→ Dual-Protocol Intelligence: Simultaneously processes conventional 4-20mA analog signals while extracting HART digital data from smart transmitters, enabling gradual migration from legacy to intelligent instrumentation without system disruption.

→ 16-Bit Measurement Resolution: Captures signal variations down to 0.0015% of full scale, critical for detecting subtle process deviations in pharmaceutical formulation, semiconductor fabrication, and precision chemical dosing applications.

→ Configurable Input Flexibility: Software-selectable ranges (±10V, 0-10V, 0-20mA, 4-20mA) adapt to diverse sensor types without hardware modifications, reducing spare parts inventory and simplifying system design.

✓ Channel-to-Backplane Isolation: 500V galvanic separation prevents ground loop interference and protects control circuitry from field-side electrical faults, essential for multi-building facilities with distributed grounding systems.

✓ Hot-Swap Serviceability: Replace failed modules during live operation without halting production processes, a capability that saves $15,000-$50,000 per avoided shutdown in continuous manufacturing environments.

✓ Adaptive Filtering Technology: Programmable digital filters (10ms to 10-second time constants) suppress electrical noise in high-EMI environments like motor control centers and welding facilities while preserving signal fidelity.

Industry-Specific Deployment Scenarios

Chemical Processing & Refining: Monitor reactor temperatures, distillation column pressures, and flow rates across multi-stage processes. The HART diagnostic layer alerts operators to sensor drift before product quality degrades, while the high channel density reduces rack space requirements in congested control rooms. Typical installations achieve 99.7% uptime through predictive sensor replacement.

Pharmaceutical Manufacturing: Ensure FDA 21 CFR Part 11 compliance through precise measurement of critical process parameters in sterile filling, lyophilization, and fermentation operations. The module's ±0.1% accuracy maintains tight process control bands required for batch consistency, while HART audit trails document sensor calibration history for regulatory inspections.

Water Treatment Infrastructure: Integrate with pH analyzers, turbidity sensors, chlorine residual monitors, and flow transmitters across distributed lift stations and treatment plants. Remote HART configuration eliminates hazardous confined-space entries for sensor adjustments, improving worker safety while reducing maintenance labor costs by 25-35%.

Power Generation Facilities: Withstand the thermal cycling and vibration inherent in combined-cycle gas turbines, coal-fired boilers, and nuclear auxiliary systems. The extended 0-60°C operating range and robust isolation ensure reliable operation in high-temperature equipment rooms and outdoor enclosures.

Food & Beverage Production: Track pasteurization temperatures, CIP (clean-in-place) chemical concentrations, and packaging line pressures with the precision required for HACCP compliance. The module's stainless-steel compatible design supports washdown environments common in dairy, brewing, and meat processing facilities.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the IC695ALG626 when your application requires more than 8 analog inputs per rack slot, HART diagnostics are essential for asset management strategies, or you need to consolidate multiple lower-density modules to free up expansion capacity. For applications with fewer than 8 channels or where HART is unnecessary, consider the IC695ALG616 as a cost-optimized alternative. Differential input mode is recommended for long cable runs (>100m) or high-noise environments to maximize common-mode rejection.

Advanced Integration & Connectivity Options

IoT & Cloud Connectivity: Leverage HART-IP gateways to stream sensor diagnostics to cloud-based analytics platforms like AWS IoT, Azure Industrial IoT, or on-premise historians. This enables machine learning models to predict sensor failures 2-4 weeks before occurrence, transforming reactive maintenance into proactive asset management.

Redundancy Architectures: Deploy in fault-tolerant configurations using RX3i redundant CPU pairs and dual I/O networks. The module's deterministic scan behavior ensures bumpless transfer during controller failover, maintaining process stability in safety-critical applications.

Third-Party System Integration: Export HART data to asset management systems (AMS, PACTware) via OPC UA servers or Modbus TCP gateways. This creates a unified view of field device health across multi-vendor automation ecosystems.

Custom Scaling & Linearization: Implement application-specific engineering unit conversions and non-linear sensor compensation (RTD, thermocouple) within the module's onboard processor, offloading computational burden from the main CPU.

Delivery Timelines & Service Commitments

Standard Lead Time: 3-5 business days for in-stock units | Express shipping available for emergency replacements

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, with optional extended service agreements for critical infrastructure applications

Technical Support: Unlimited phone and email consultation with certified automation engineers | Configuration file review and troubleshooting assistance | Firmware update guidance

Documentation Package: User manual, wiring diagrams, GSD/EDS files, sample ladder logic, and HART device integration guides included with every shipment

Frequently Asked Questions

How does HART communication coexist with the 4-20mA analog signal?
HART uses frequency-shift keying (FSK) to superimpose digital data at 1200 baud onto the 4-20mA current loop. The low-frequency analog signal (DC to ~10Hz) and high-frequency digital signal (1200-2200Hz) occupy different spectral bands, allowing simultaneous transmission without interference. The module's input circuitry separates these signals through analog filtering.

What is the maximum number of HART devices per input channel?
In multidrop mode, up to 15 HART devices can share a single channel, though this configuration sacrifices the analog 4-20mA measurement (all devices operate at fixed 4mA). For applications requiring both analog measurement and HART diagnostics, use point-to-point mode with one device per channel.

Can I mix voltage and current inputs on the same module?
Yes, each channel is independently configurable via software. Channel 1 might monitor a 0-10V pressure transducer while Channel 2 reads a 4-20mA flow transmitter. Configuration is stored in non-volatile memory and persists through power cycles.

What cable specifications are recommended for optimal performance?
Use 18-22 AWG shielded twisted-pair cable with drain wire. For 4-20mA signals, maximum length is 300m (1000ft). Voltage inputs should be limited to 100m to maintain ±0.1% accuracy. Ground the shield at the module end only to prevent ground loops.

Is firmware update required for HART functionality?
HART support is hardware-based and requires no firmware updates. However, ensure your RX3i CPU runs firmware v6.0 or later for full HART configuration access through Proficy Machine Edition. Older firmware versions will still acquire analog data but may not expose HART parameters.

How do I troubleshoot a channel showing erratic readings?
First, verify wiring polarity and shield grounding. Use the module's built-in diagnostics to check for open-circuit or short-circuit faults. Enable HART communication to query the transmitter's internal diagnostics—many issues stem from sensor problems rather than module faults. Check for nearby EMI sources (VFDs, welders) and increase the digital filter time constant if noise is present.

Take the Next Step

Transform your process control infrastructure with the IC695ALG626's combination of high-density analog acquisition and intelligent HART diagnostics. Our automation specialists are ready to assist with module selection, system design consultation, and integration planning. Contact us today to discuss your specific application requirements and receive a detailed technical proposal tailored to your operational needs.
