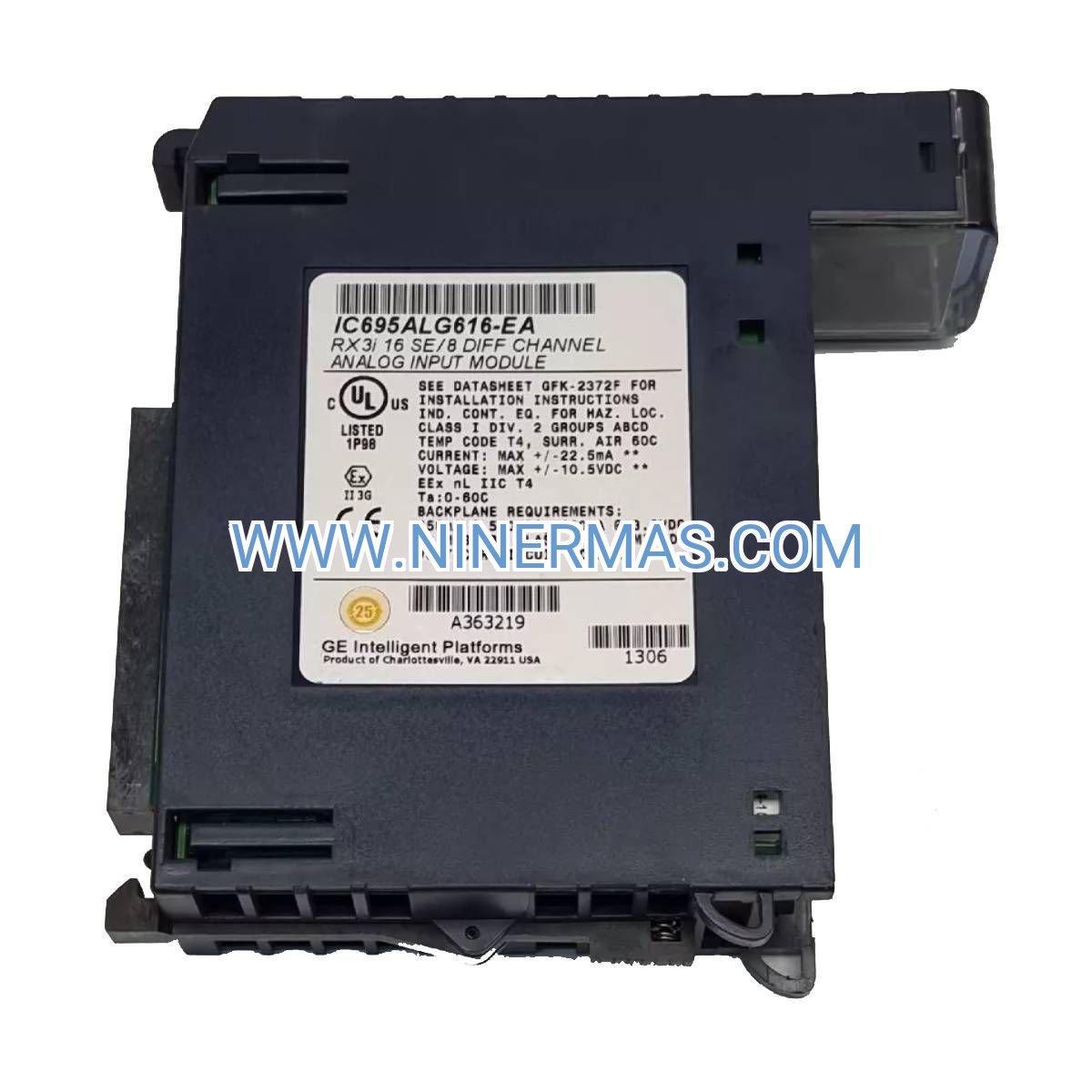

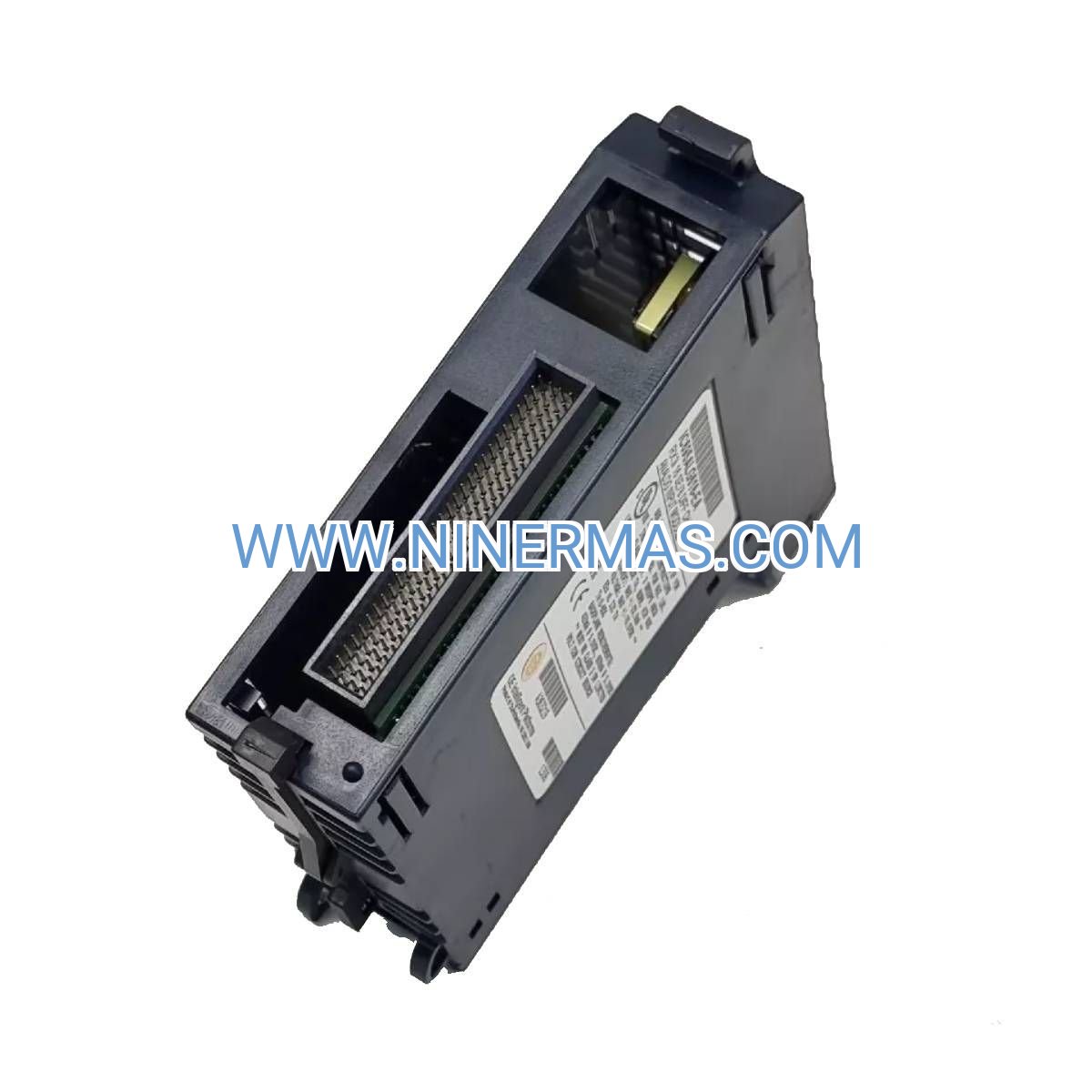

IC695ALG616 Analog Input Module (Industrial-Grade Multi-Channel Acquisition)

The IC695ALG616 represents a proven solution for high-density analog signal acquisition in demanding industrial environments. Designed for seamless integration with GE's RX3i PACSystems architecture, this 16-channel module combines precision measurement capabilities with robust construction, delivering reliable performance across process control, manufacturing automation, and infrastructure monitoring applications.

Built to address the challenges of modern industrial data acquisition, the IC695ALG616 eliminates common pain points including signal noise interference, configuration complexity, and limited I/O density. Whether you're upgrading legacy systems or designing new automation architectures, this module provides the flexibility and accuracy required for critical process variables monitoring.

With software-configurable input ranges, hot-swap capability, and comprehensive diagnostic features, the IC695ALG616 streamlines installation, reduces commissioning time, and minimizes unplanned downtime—making it an essential component for engineers seeking dependable analog input solutions.

Core Capabilities & Technical Advantages

→ Versatile Input Configuration
Software-selectable voltage (±10V, 0-10V, 0-5V) and current (0-20mA, 4-20mA) ranges enable connection to diverse sensor types without hardware modifications, reducing spare parts inventory and simplifying maintenance procedures.

→ High-Density Architecture
Sixteen independent analog inputs occupy a single backplane slot, maximizing I/O capacity in space-constrained control cabinets while reducing overall system cost per channel compared to lower-density alternatives.

→ Measurement Precision
12-bit resolution (1:4096) with ±0.1% full-scale accuracy at 25°C ensures reliable acquisition of critical process parameters, supporting tight control loops and quality assurance requirements in regulated industries.

✓ Electrical Isolation Protection
500V channel-to-backplane isolation safeguards control systems from ground potential differences and electrical transients, enhancing reliability in electrically noisy industrial environments with multiple power sources.

✓ Maintenance-Friendly Design
Hot-swappable construction with automatic configuration recognition allows module replacement during operation without system shutdown, minimizing production interruptions and supporting predictive maintenance strategies.

✓ Integrated Diagnostics
Built-in channel health monitoring detects open circuits, out-of-range conditions, and module faults, enabling proactive troubleshooting and reducing mean time to repair through precise fault localization.

Industry Applications & Use Cases

Chemical & Pharmaceutical Processing
Monitor reactor temperatures, pressure transmitters, flow meters, and level sensors in batch and continuous processes. The IC695ALG616's accuracy and isolation make it suitable for GMP-compliant installations requiring validated measurement systems. Typical deployment: 8-12 modules per process unit controlling critical quality parameters.

Water & Wastewater Treatment
Acquire signals from pH analyzers, turbidity sensors, dissolved oxygen probes, and chlorine monitors across treatment stages. Multi-range capability accommodates mixed sensor types (4-20mA transmitters and 0-10V analyzers) on a single module, simplifying panel design and reducing wiring complexity.

Energy Management Systems
Interface with power meters, current transformers, temperature sensors, and environmental monitoring equipment in building automation and industrial energy monitoring applications. Fast conversion time (≤10ms/channel) supports real-time energy analytics and demand response programs.

Manufacturing Automation
Integrate analog feedback from servo drives, pressure regulators, position transducers, and quality inspection sensors on production lines. High channel density reduces cabinet space requirements in machine control panels while maintaining measurement integrity.

Oil & Gas Operations
Connect to field transmitters monitoring pipeline pressure, tank levels, flow rates, and environmental conditions in upstream, midstream, and downstream facilities. Robust isolation and wide operating temperature range ensure reliable operation in harsh field environments.

Technical Specifications & Selection Guide

Selection Criteria: Choose the IC695ALG616 when your application requires high channel density with moderate resolution (12-bit). For higher precision requirements (16-bit), consider the IC695ALG628. For HART protocol support with analog input, the IC695ALG626 provides dual functionality. Ensure your RX3i power supply can accommodate the 4.2W maximum draw per module.

Advanced Integration Options

Distributed I/O Expansion: Deploy the IC695ALG616 in remote I/O racks using the IC695LRE001 Serial Bus Transmitter, enabling distributed architecture that reduces field wiring costs and improves system modularity in large installations.

Redundancy Configurations: Implement dual-channel redundancy by connecting critical sensors to two separate IC695ALG616 modules in redundant RX3i systems, ensuring continuous monitoring even during module failure or maintenance.

IoT Connectivity: Combine with IC695ETM001 Ethernet modules to publish analog data to cloud platforms, SCADA systems, or MES applications via OPC UA, Modbus TCP, or EtherNet/IP protocols for Industry 4.0 initiatives.

Custom Scaling & Linearization: Utilize Proficy Machine Edition software to implement custom scaling algorithms, square-root extraction for flow calculations, and multi-point linearization for non-linear sensor characteristics.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock modules ship within 1-2 business days via express courier. Custom-configured systems with pre-programmed settings available with 5-7 day lead time.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and performance deviations from published specifications. Extended warranty programs available for critical applications.

Technical Assistance: Pre-sales application engineering support for system design, I/O sizing, and configuration planning. Post-sales troubleshooting assistance, firmware updates, and configuration file backup services included.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and configuration templates. Complete user manual, CAD drawings, and sample ladder logic available for download.

Frequently Asked Questions

Can I mix voltage and current inputs on the same IC695ALG616 module?
Yes, each of the 16 channels is independently configurable for either voltage or current input through software settings in Proficy Machine Edition. This flexibility allows connection of mixed sensor types (e.g., 4-20mA pressure transmitters and 0-10V temperature sensors) on a single module without external signal conditioning.

What maximum cable distance is supported for analog signals?
Voltage inputs: up to 300 meters (1000 feet) using shielded twisted-pair cable with proper grounding. Current inputs: up to 750 meters (2500 feet) due to superior noise immunity of current loops. For longer distances, consider using 4-20mA transmitters or remote I/O solutions.

Does the IC695ALG616 provide power for field transmitters?
The module supplies internal loop power for 4-20mA two-wire transmitters, eliminating the need for external power supplies in many applications. Maximum loop resistance is 600Ω at 24VDC. Voltage-output sensors require separate power sources.

How do I configure input filtering to reduce noise?
Proficy Machine Edition software provides adjustable digital filtering with time constants from 0 to 10 seconds. For applications with high electrical noise, enable the 60Hz notch filter and increase the integration time. Hardware RC filters are not required for most installations.

Is this module compatible with legacy Series 90-30 systems?
No, the IC695ALG616 is designed exclusively for RX3i PACSystems and is not backward-compatible with Series 90-30 or 90-70 platforms. For Series 90-30 applications, use the IC693ALG220 or IC693ALG222 analog input modules.

What diagnostic capabilities help troubleshoot sensor problems?
The module provides channel-level diagnostics including open-circuit detection, over-range/under-range alarms, and wire-break detection for current inputs. Diagnostic status is accessible through CPU fault tables and can trigger alarms or email notifications via configured logic.

Order Your IC695ALG616 Today

Enhance your industrial automation infrastructure with proven analog input technology trusted by engineers worldwide. Whether you're instrumenting a new process line, upgrading aging control systems, or expanding existing RX3i installations, the IC695ALG616 delivers the performance, reliability, and flexibility your application demands.

Contact our automation specialists for: Application-specific configuration assistance, volume pricing for multi-module projects, system integration support, or technical consultation on sensor selection and wiring best practices.
