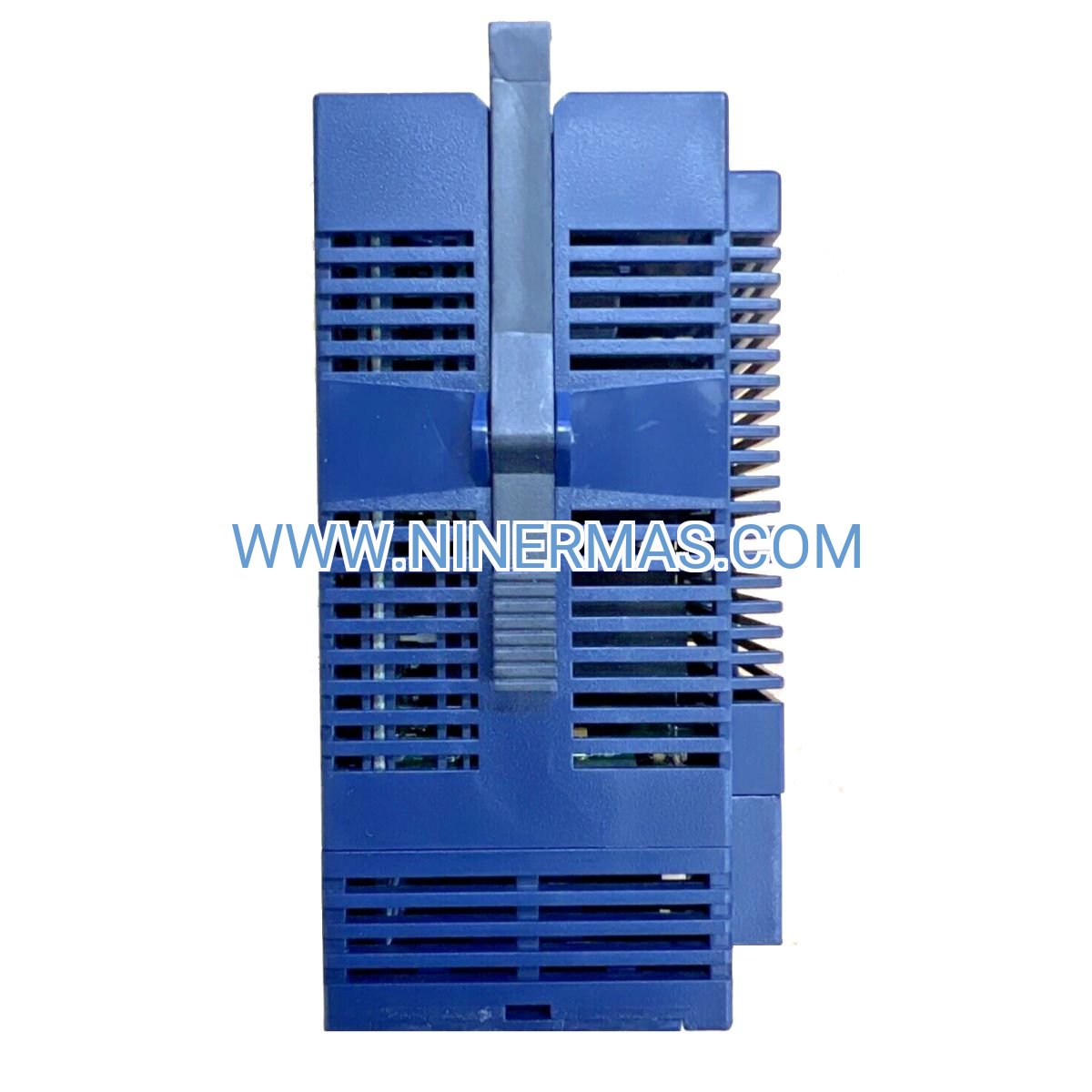

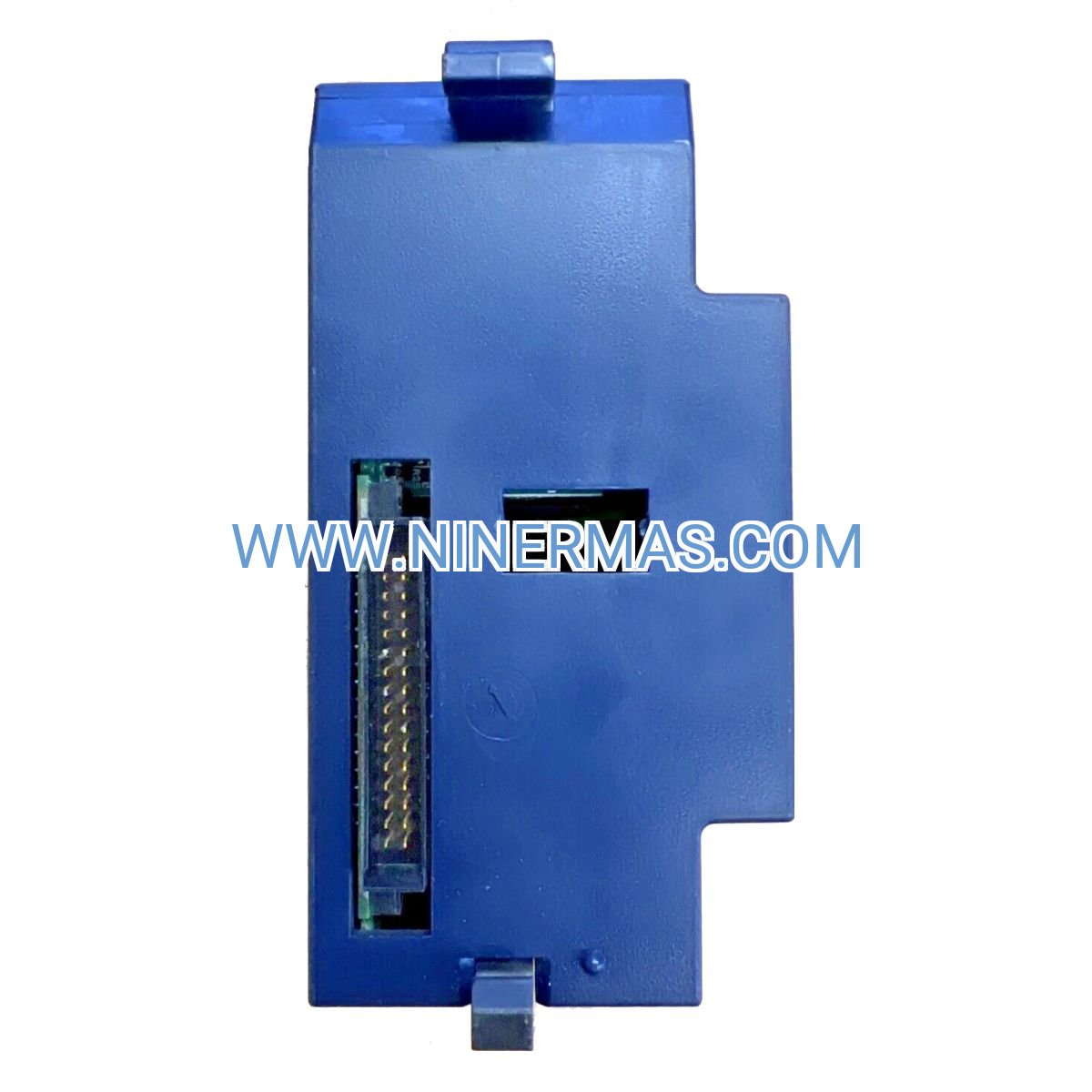

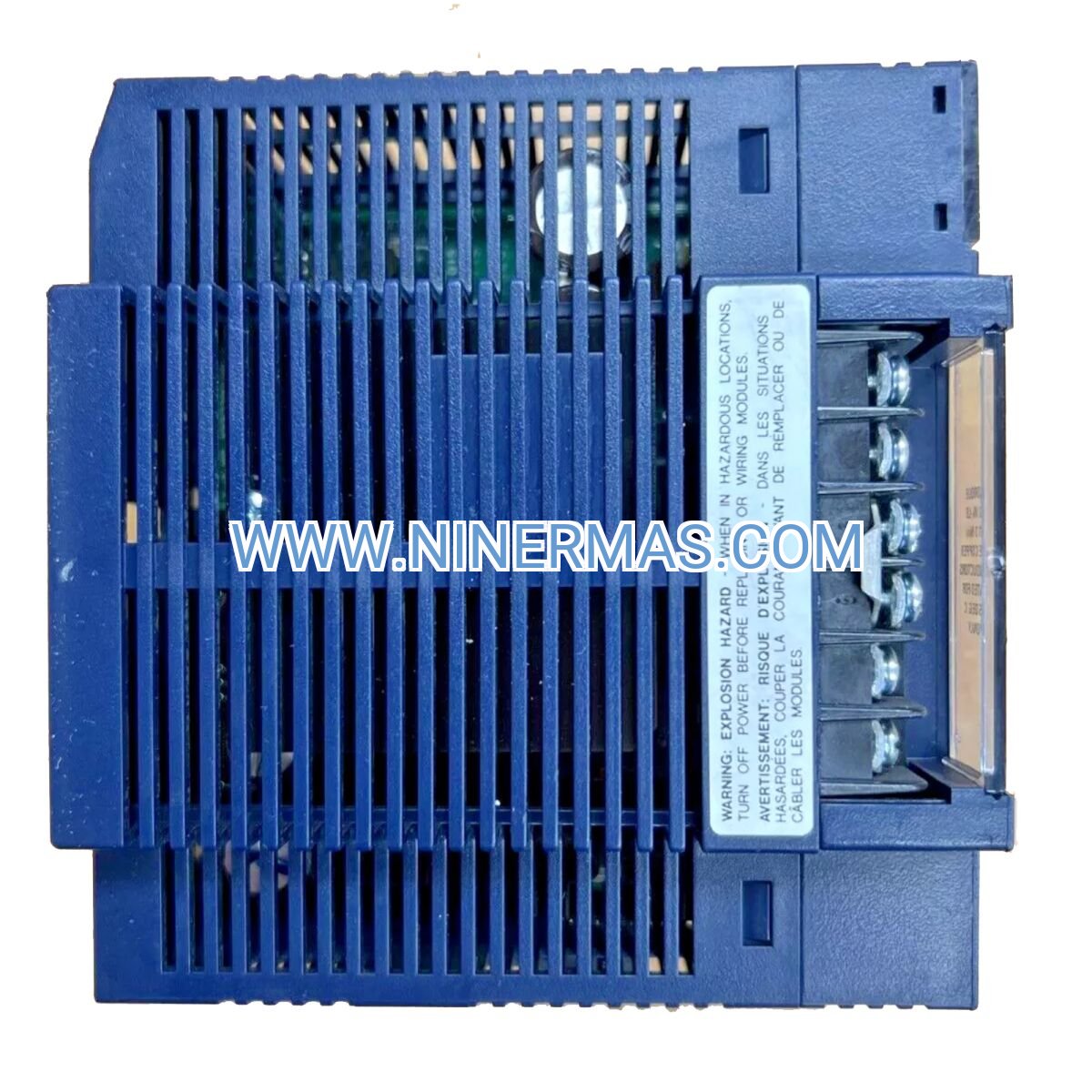

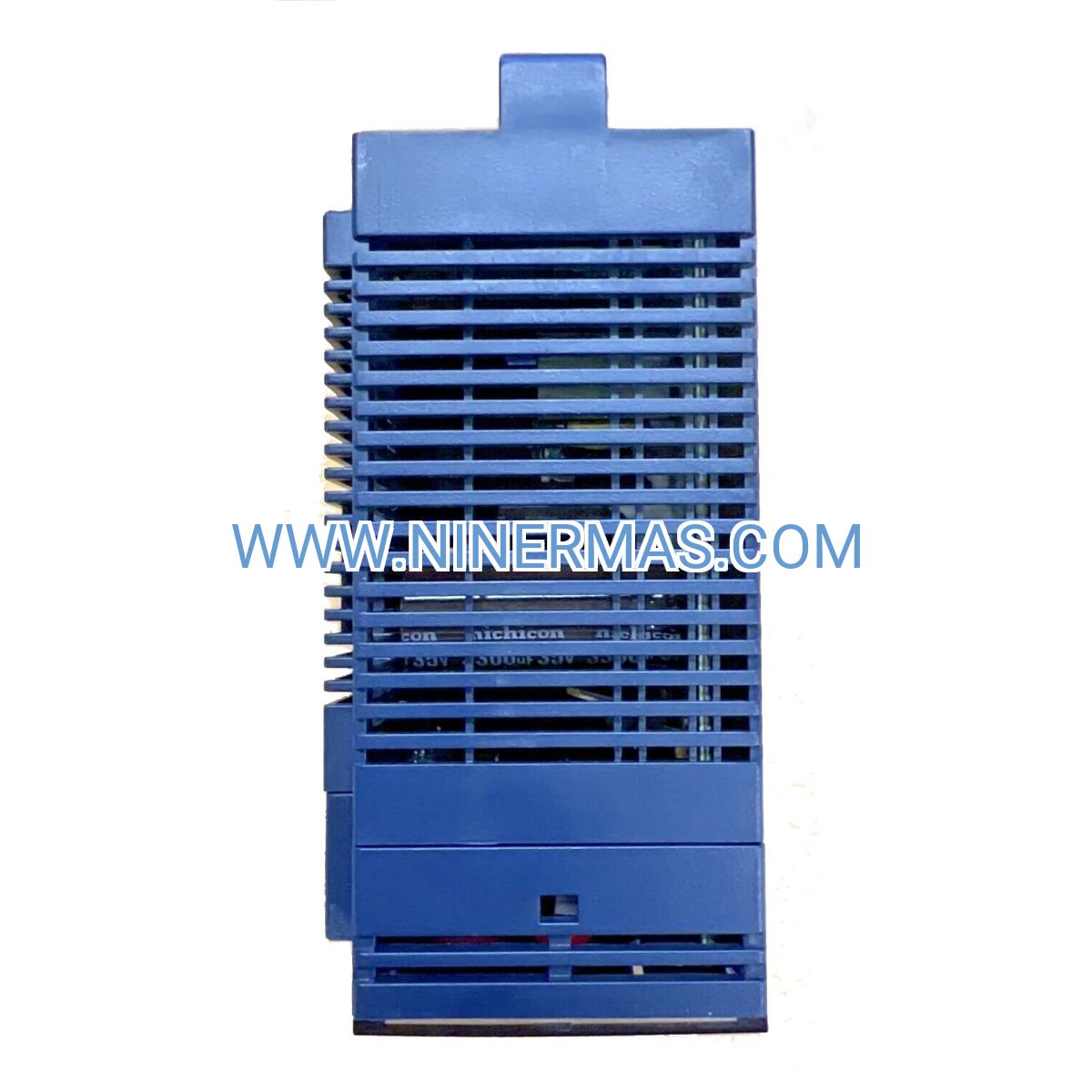

IC694PWR331 Power Supply Module (Industrial-Grade 24VDC Solution for RX3i PACSystems)

The IC694PWR331 is a compact 30-watt power supply module designed for GE Automation RX3i PACSystems platforms. Through precision voltage regulation and multi-rail output architecture (5VDC/3.3VDC), it delivers stable, continuous power to CPU controllers, I/O modules, and communication interfaces in demanding industrial environments.

Suitable for manufacturing automation, process control systems, building management networks, and distributed I/O architectures, this module addresses challenges including voltage fluctuations, thermal stress, space constraints, and unplanned downtime caused by power instability or component failure.

Featuring standardized DIN-rail mounting, hot-swap capability in redundant configurations, and comprehensive protection circuits, the IC694PWR331 offers reliable operation, simplified maintenance, and compatibility with global automation standards. Ideal for system integrators, OEM equipment manufacturers, plant engineers, and maintenance teams requiring certified, field-proven power solutions. Contact our application engineers for system sizing, redundancy planning, and technical documentation.

Core Functions & Advantages

Precision Multi-Rail Output
Delivers regulated 5VDC and 3.3VDC rails with ±2% tolerance, ensuring stable logic-level power for microprocessor-based modules. Minimizes voltage droop during load transients, protecting sensitive CPU and FPGA circuits from reset conditions.

Wide Input Voltage Range
Accepts 18-30VDC input with built-in brownout protection, accommodating voltage sag during motor starts or grid disturbances. Reduces dependency on tightly regulated external supplies, simplifying panel design and lowering installation costs.

High Conversion Efficiency
Achieves ≥85% power conversion efficiency through synchronous rectification topology, reducing heat dissipation by approximately 40% compared to linear regulators. Lowers cooling requirements and extends component lifespan in enclosed cabinets.

Hot-Swap & Redundancy Support
Enables live replacement in dual-supply configurations without system shutdown, maintaining process continuity during maintenance. Supports N+1 redundancy architectures for critical applications requiring 99.9%+ uptime.

Comprehensive Protection Suite
Integrates overcurrent limiting (120% rated load), reverse polarity protection, thermal shutdown (85°C junction), and short-circuit auto-recovery. Prevents cascading failures and protects downstream modules from electrical faults.

Visual Diagnostics & Monitoring
Dual-color LED indicators display power status (green), fault conditions (red), and output voltage health. Accelerates troubleshooting during commissioning and reduces mean-time-to-repair (MTTR) by 30-50% in field service scenarios.

Typical Application Scenarios

This power supply module serves industries and systems demanding reliable, compact power distribution with minimal maintenance overhead:

Discrete Manufacturing & Assembly Lines
Powers RX3i CPU modules controlling robotic welding cells, conveyor sequencing, and quality inspection stations. Pairs with high-speed digital I/O for motion control and safety interlock circuits in automotive, electronics, and packaging facilities.

Process Industries & Continuous Production
Supports analog I/O modules monitoring temperature, pressure, and flow in chemical reactors, pharmaceutical batch systems, and food processing lines. Ensures stable 4-20mA loop power and HART communication integrity in hazardous area (Class I Div 2) installations.

Water & Wastewater Treatment
Enables distributed control of pump stations, filtration systems, and chemical dosing units across municipal and industrial facilities. Operates in high-humidity environments (95% RH non-condensing) with extended temperature ratings for outdoor enclosures.

Building Automation & HVAC Control
Drives BACnet/IP and Modbus TCP gateways managing chiller plants, air handling units, and energy metering in commercial buildings. Integrates with BMS platforms for centralized monitoring and demand-response programs.

Oil & Gas Upstream/Midstream
Provides power for remote terminal units (RTUs) controlling wellhead automation, pipeline SCADA, and tank farm monitoring. Withstands vibration (IEC 60068-2-6) and wide temperature swings (-40°C to +70°C with derating) in unmanned field installations.

Technical Parameters & Selection Guide

To ensure optimal system performance and compliance, reference the following specifications during design and procurement:

Selection Considerations
When specifying the IC694PWR331, evaluate total system power budget by summing CPU base consumption (typically 8-12W), I/O module draw (1-3W per module), and communication interface requirements (2-5W). For configurations exceeding 25W sustained load, implement dual-supply redundancy or upgrade to 40W/140W models. Verify ambient temperature does not exceed 50°C for continuous 30W operation; derate by 2.5% per °C above this threshold. Confirm input supply can deliver 2A minimum with <5% ripple to prevent nuisance shutdowns during transient loading.

Extended Capabilities

Redundant Power Architectures
Deploy two IC694PWR331 modules in parallel using diode-OR configurations for automatic failover. Each supply operates at 50% capacity during normal conditions, providing 100% backup if one unit fails. Supports online replacement without process interruption in critical infrastructure applications.

Remote Monitoring Integration
When paired with RX3i CPU modules featuring embedded web servers or SNMP agents, power supply status can be polled via Modbus TCP registers. Enables predictive maintenance alerts based on output voltage drift, thermal derating, or cumulative operating hours tracked in controller memory.

Harsh Environment Adaptations
Conformal coating options (available through factory customization) protect against salt spray, chemical vapors, and fungal growth in marine, mining, and tropical installations. Consult application engineering for IP65-rated enclosure recommendations and thermal management strategies.

Delivery, Service & Quality Assurance

Lead Times & Logistics
Factory-sealed units ship within 24-48 hours from regional distribution centers for standard orders. Custom configurations (extended temperature, conformal coating, or agency certifications) require 10-15 business days. All shipments include anti-static packaging, handling instructions, and certificate of conformity.

Warranty Coverage
Every IC694PWR331 module is backed by a 12-month manufacturer warranty covering defects in materials and workmanship. Warranty includes advance replacement service (subject to credit approval) and return freight reimbursement for verified failures. Extended warranty plans (24/36 months) available for volume purchases.

Technical Support Services
Our certified automation engineers provide pre-sales system sizing, CAD drawing integration, and thermal analysis support. Post-installation assistance includes remote diagnostics, firmware compatibility verification, and on-site commissioning (available in select regions). Access to online knowledge base with wiring diagrams, troubleshooting flowcharts, and interoperability matrices.

Documentation Package
Each module ships with quick-start guide, detailed installation manual (PDF), electrical schematics, and dimensional drawings in DXF/STEP formats. Compliance declarations (CE, UL, RoHS) and material safety data sheets (MSDS) available for download via product portal.

Frequently Asked Questions (FAQ)

Q: How many RX3i I/O modules can the IC694PWR331 support simultaneously?
A: Power capacity supports one CPU module (8-12W) plus 3-5 standard I/O modules (2-3W each), depending on module types. High-power modules like analog outputs or relay banks may reduce total slot count. Use the RX3i Power Calculator tool (available from technical support) for precise load analysis based on your specific configuration.

Q: Can this power supply operate in redundant hot-swap mode?
A: Yes, when installed in dual-supply configurations with appropriate backplane support. The RX3i universal backplane automatically load-shares between supplies. During replacement, the remaining unit carries full load without interruption. Ensure each supply is rated for 100% system load to maintain N+1 redundancy.

Q: What input voltage tolerance does the module provide?
A: The IC694PWR331 operates across 18-30VDC input range, providing ±25% tolerance around the 24VDC nominal rating. This accommodates voltage drop in long cable runs, battery backup systems during discharge, and industrial power distribution networks with poor regulation.

Q: Does the module include short-circuit and overload protection?
A: Yes, integrated protection includes automatic current limiting at 120% rated load, thermal shutdown at 85°C junction temperature, and auto-recovery short-circuit protection. Output fuses are not required, though input fusing (3A fast-blow recommended) provides additional system-level protection.

Q: Is the IC694PWR331 compatible with legacy Series 90-30 systems?
A: No, this module is engineered exclusively for RX3i PACSystems backplanes with 3.3V/5V power distribution. Series 90-30 platforms require dedicated power supplies with different pinouts and voltage specifications. Cross-platform compatibility is not supported due to electrical and mechanical interface differences.

Q: What certifications does this power supply carry for global deployment?
A: The IC694PWR331 holds UL508 listing (North America), CE marking per Low Voltage Directive 2014/35/EU (Europe), and RoHS compliance for hazardous substance restrictions. Additional certifications (EAC, CCC, KC) available through regional distributors for specific market requirements.

Q: How do I monitor power supply health in real-time?
A: The front-panel LED provides immediate visual status (green=normal, red=fault). For remote monitoring, configure the RX3i CPU to read backplane power status via system variables, then map to SCADA/HMI displays or send SNMP traps on voltage anomalies or thermal warnings.

Contact & Ordering Information

To obtain detailed application notes, system integration proposals, or volume pricing, please provide the following project details: application type (discrete/process/hybrid), environmental conditions (temperature/humidity/vibration), total I/O count and module types, redundancy requirements (N+1/2N), and preferred delivery timeline. Our application engineering team will respond within 4 business hours with tailored recommendations and formal quotations.
