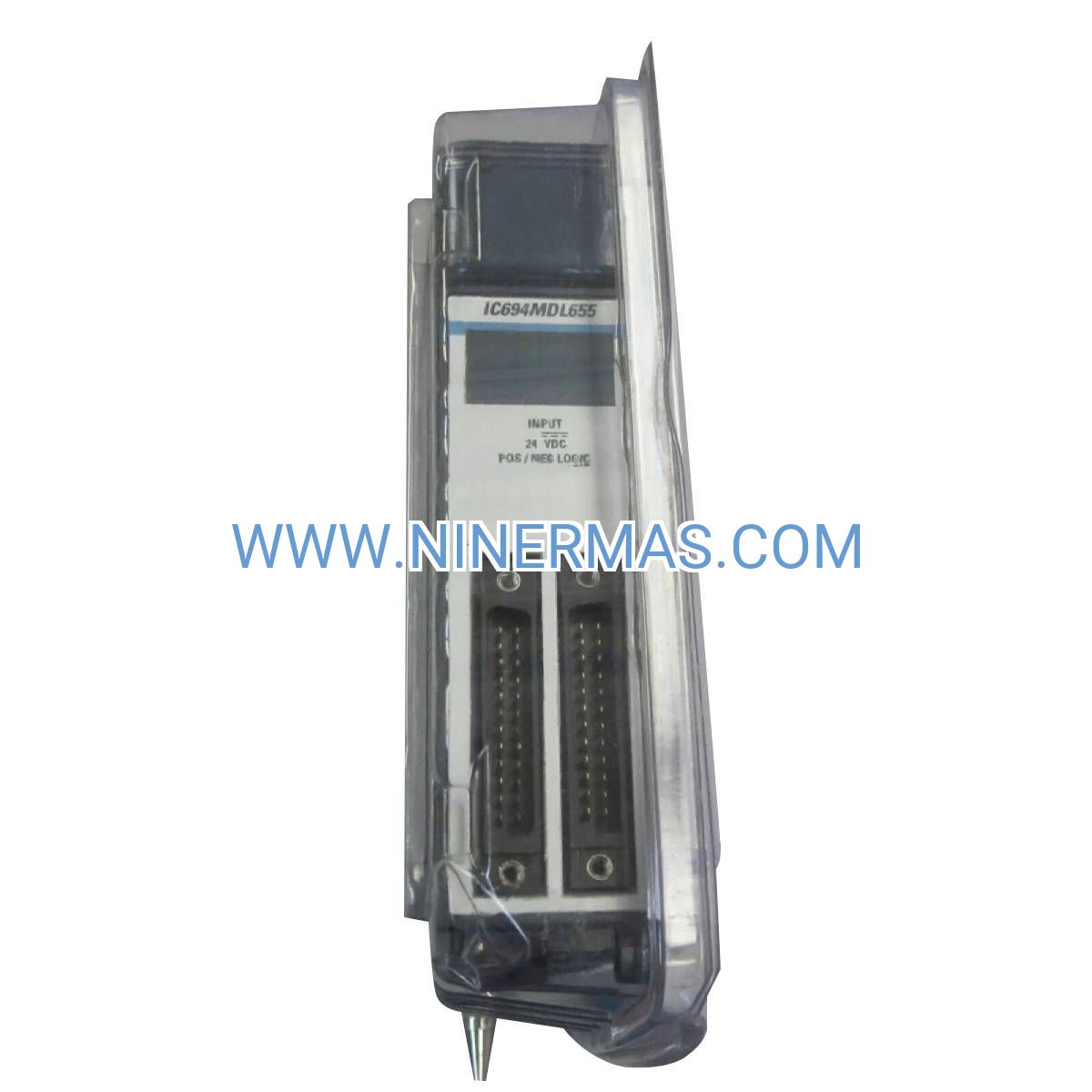

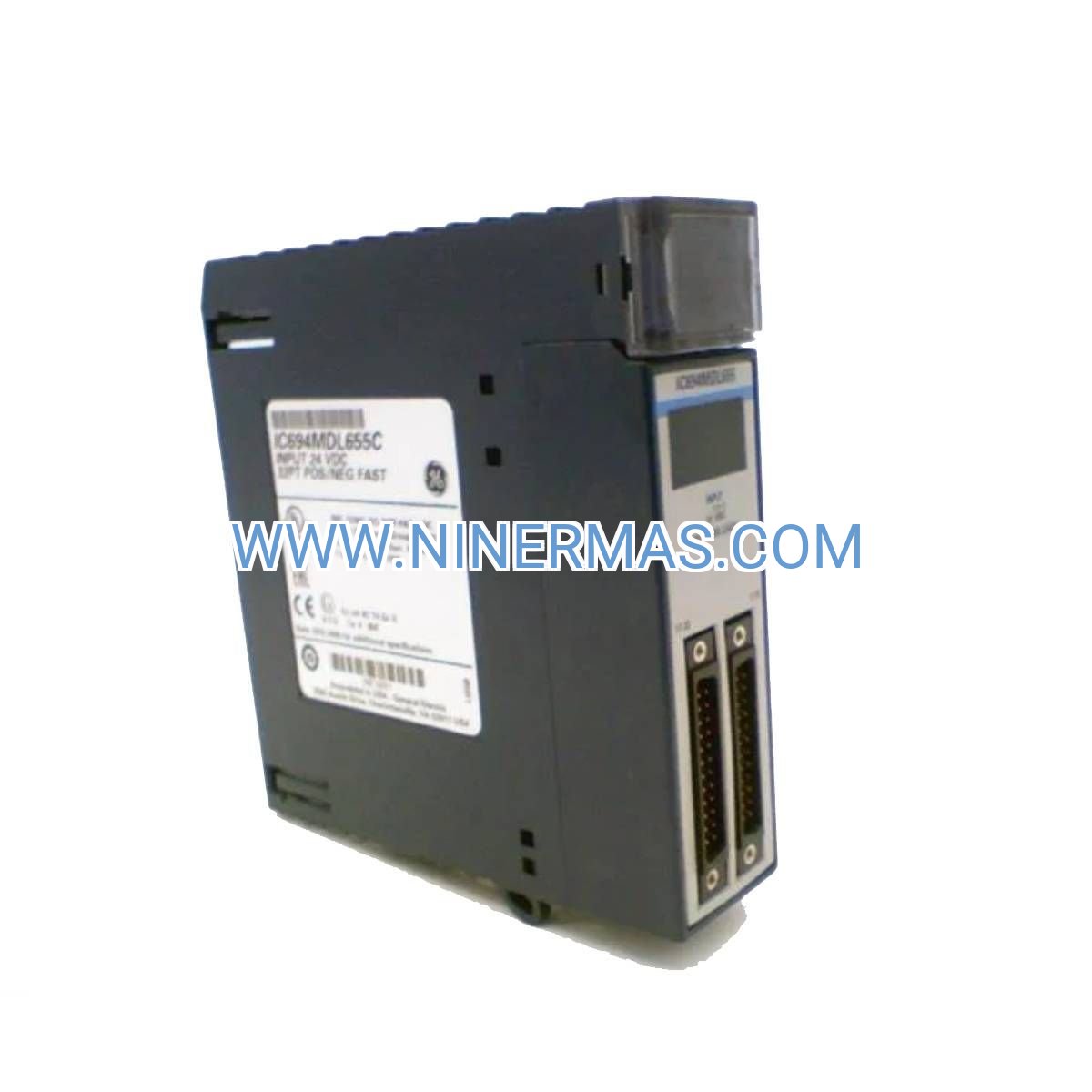

IC694MDL655 Industrial-Grade Digital Input Module (32-Channel DC Signal Acquisition)

The IC694MDL655 is a high-performance digital input module engineered for demanding industrial environments where reliable signal acquisition is mission-critical. Featuring 32 discrete DC input channels with optical isolation and configurable filtering, this module serves as the sensory backbone for automated manufacturing systems, process control installations, and material handling networks operating within GE RX3i PACSystems platforms.

Designed for system integrators and plant engineers who demand precision, this input module transforms field signals from sensors, limit switches, and proximity detectors into actionable data for your control logic. With 500 VAC isolation protecting your controller from electrical disturbances and individual LED diagnostics accelerating fault identification, the IC694MDL655 minimizes downtime while maximizing operational visibility.

Whether you're retrofitting legacy systems or designing greenfield installations, this module's hot-swap capability and flexible voltage tolerance (10-30 VDC) ensure seamless integration without production interruptions. Ready to enhance your control system reliability? Contact our automation specialists for application-specific guidance.

Core Capabilities & Business Value

→ Space-Efficient Architecture: Consolidate 32 input points into a single backplane slot, reducing cabinet footprint by up to 60% compared to traditional 8-point modules while lowering installation labor costs.

→ Dual-Mode Input Flexibility: Software-selectable sinking/sourcing configuration eliminates the need for multiple module variants, simplifying inventory management and enabling rapid field device changes without hardware replacement.

→ Industrial-Grade Noise Immunity: 500 VAC optical isolation between field circuits and logic ground prevents ground loop interference, ensuring signal integrity in electrically harsh environments with VFDs, welders, and high-power switching equipment.

→ Real-Time Visual Diagnostics: 32 individual channel LEDs plus module health indicator provide instant troubleshooting capability, reducing mean time to repair (MTTR) by enabling technicians to identify faulty sensors or wiring without programming software.

→ Configurable Response Speed: Adjustable input filtering (1ms typical) balances noise rejection with event detection speed, optimizing performance for applications ranging from high-speed packaging lines to slower process monitoring.

→ Hot-Swap Serviceability: Replace failed modules under power without halting production, maintaining uptime in 24/7 operations where scheduled maintenance windows are limited.

Proven Industrial Applications

✓ Automotive Assembly & Robotics: Monitor robotic cell safety gates, part presence sensors, and tool position feedback across multi-station assembly lines. The module's fast 1ms response captures high-speed events from pneumatic actuators and servo-driven pick-and-place systems, while optical isolation protects against EMI from spot welders and motor drives.

✓ Packaging & Material Handling: Track package flow through conveyor networks using photoelectric sensors and proximity switches. Integrate emergency stop circuits, safety light curtains, and jam detection sensors into a centralized control architecture that scales from single-line operations to warehouse-wide distribution systems.

✓ Water Treatment & Chemical Processing: Acquire digital status signals from valve limit switches, pump run confirmations, and alarm dry contacts in municipal water facilities and batch processing plants. The module's wide operating temperature range (0-60°C) and conformal coating option ensure reliability in humid, corrosive environments.

✓ Energy & Utilities: Monitor circuit breaker positions, transformer alarm contacts, and generator status indicators in substations and power distribution networks. Optical isolation provides critical protection against transient voltages in high-energy electrical environments.

✓ Food & Beverage Production: Interface with sanitary sensors, CIP system status indicators, and metal detector outputs in FDA-regulated manufacturing. The module's RoHS compliance and washdown-compatible mounting support hygienic design requirements.

Technical Specifications & Selection Criteria

Selection Guidance: Choose the IC694MDL655 when your application requires high I/O density in limited panel space, or when monitoring large quantities of discrete sensors across distributed control points. For applications with fewer than 16 inputs, consider the IC694MDL340 (16-point) to optimize cost. For AC voltage monitoring, specify the IC694MDL240 AC input module instead.

Advanced Integration Features

Remote I/O Expansion: Extend your control system across multiple cabinets using RX3i remote I/O capabilities. Deploy the IC694MDL655 in satellite control panels connected via serial bus or Ethernet, reducing field wiring costs by up to 40% in large facilities while maintaining centralized programming and diagnostics.

Redundant System Architecture: Integrate with RX3i redundant CPU configurations for high-availability applications in critical infrastructure. The module's deterministic scan time and diagnostic feedback support seamless failover without loss of input state data.

Industrial IoT Connectivity: Combine with RX3i Ethernet modules to publish input status data to cloud-based analytics platforms, enabling predictive maintenance algorithms that identify sensor degradation patterns before failures occur.

Custom Filtering Profiles: Configure input filter time constants through programming software to match specific sensor characteristics—fast filtering for high-speed counters, extended filtering for mechanically noisy contacts or vibration-prone environments.

Delivery, Warranty & Technical Services

Lead Time: In-stock units ship within 1-2 business days via express courier. Custom configurations (conformal coating, extended temperature testing) require 2-3 weeks for factory preparation.

Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects, component failures, and workmanship issues. Advance replacement available for critical applications to minimize downtime.

Technical Support: Pre-sales application engineering, installation guidance, configuration assistance, and troubleshooting support from certified GE automation specialists. Remote diagnostic services available for complex system integration challenges.

Documentation Package: Each module includes installation manual, wiring diagrams, configuration software examples, and dimensional drawings. CAD files and 3D models available for panel design integration.

Frequently Asked Questions

How do I determine whether to use sinking or sourcing input configuration?
The choice depends on your field device wiring. If sensors have NPN (sinking) outputs, configure the module for sourcing mode (module provides +24V common). For PNP (sourcing) sensors, use sinking mode (module provides 0V common). Most modern sensors support both; check device datasheets for output type specifications.

What backplane power supply capacity do I need for a fully populated rack?
Calculate total module power consumption (CPU + I/O + communications) and add 20% safety margin. Each IC694MDL655 draws 350 mW. For example, a system with one CPU (5W), eight IC694MDL655 modules (2.8W), and two communication modules (3W) requires approximately 13W—select a 15W or larger power supply.

Can this module interface with 12-volt automotive sensors?
While the module's minimum input range is 10 VDC, the guaranteed ON threshold is 15 VDC. Automotive sensors operating at 12V nominal may not reliably trigger the input, especially under voltage drop conditions. For 12V applications, verify sensor output exceeds 15V under load or use a signal conditioning module.

Is hot-swapping supported in all RX3i configurations?
Hot-swap capability requires proper system configuration in the CPU programming. Enable "I/O Module Replacement" in the hardware configuration and ensure the replacement module has identical catalog number and firmware revision. Always follow lockout/tagout procedures even when hot-swapping is enabled.

What diagnostic information is accessible through the CPU?
The module provides comprehensive diagnostics including individual input state, module health status, backplane communication errors, and power supply voltage monitoring. Advanced diagnostics track input transition counts for predictive maintenance of mechanical switches and sensors.

Are there special considerations for use in hazardous locations?
The standard IC694MDL655 is not rated for Class I Division 1 hazardous locations. For explosive atmospheres, use intrinsically safe barriers between field devices and the module, or specify Division 2-rated enclosures. Consult NFPA 70 (NEC) Article 500 for specific installation requirements.

Order Your IC694MDL655 Today

Upgrade your industrial control system with genuine GE IC694MDL655 modules backed by factory traceability and expert technical support. Our automation specialists are ready to assist with:

• Application-specific module selection and system sizing
• Custom panel integration and pre-wired assemblies
• Volume pricing for OEMs and system integrators
• Expedited shipping for emergency replacements
• Training on RX3i programming and diagnostics

Contact our engineering team now for a detailed quotation and technical consultation.
