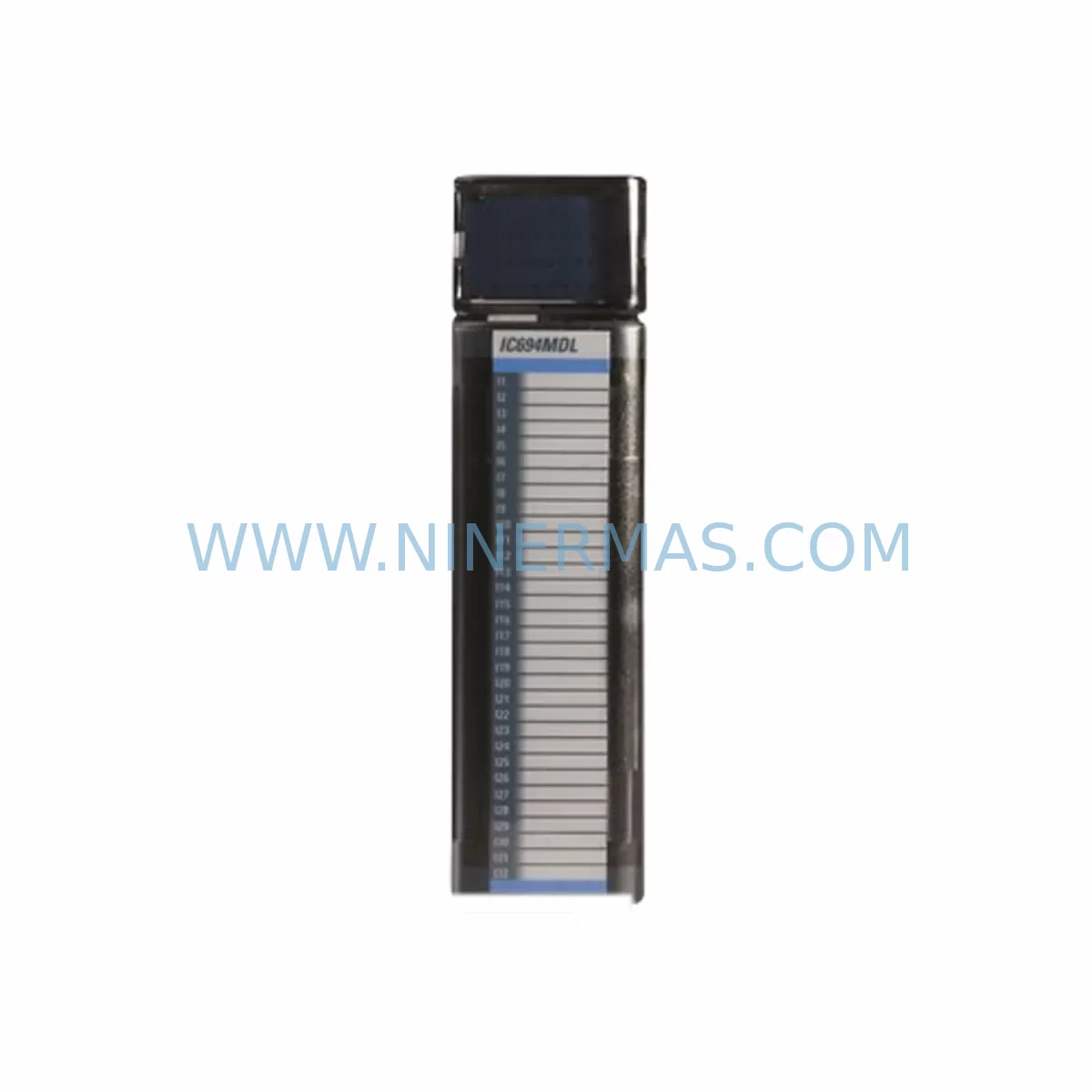

The GE IC694MDL645C is a 32-point 24VDC discrete input module designed for the GE Series 90-30 PLC platform. As production lines age and original spare parts become increasingly difficult to source, the IC694MDL645C has become a critical component in retrofit projects, legacy system restorations, and control cabinet upgrades across manufacturing, utilities, oil & gas, and process automation industries. Whether you are replacing a failed module in an existing rack or executing a planned migration away from discontinued hardware, this module delivers the I/O compatibility and signal integrity required to maintain uninterrupted plant operations.

The IC694MDL645C accepts 24VDC discrete input signals and is fully compatible with the IC694 rack family, including the 5-slot IC694CHS392, 10-slot IC694CHS397, and 12-slot IC694CHS398 baseplate configurations. When planning a retrofit, engineers must verify the rack slot assignment and module address configuration within the GE Proficy Machine Edition programming environment to ensure the replacement module is recognized correctly by the CPU — typically an IC694CPU364, IC694CPU374, or IC694CPU392 controller. Incorrect slot addressing is one of the most common causes of extended commissioning time during module swap-outs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful IC694MDL645C retrofit begins well before the module arrives on site. Maintenance engineers should first export the current PLC program from the IC694CPU364 or IC694CPU392 using a GE Proficy Machine Edition programming cable (IC690ACC901 or USB-to-serial adapter) and archive it to a secure backup location. This step is non-negotiable — program loss during a hot-swap attempt is one of the most costly and time-consuming retrofit failures in the field.

Next, review the rack layout and confirm the physical slot position of the failed or aging IC694MDL645C. The module address is determined by its slot number within the IC694 rack, and this address must match the I/O configuration table in the PLC program. If the original module was an earlier revision such as the IC694MDL645A or IC694MDL645B, the IC694MDL645C is a direct functional replacement, but engineers should cross-reference the CPU firmware version to confirm compatibility.

Field wiring is another critical checkpoint. The IC694MDL645C uses a removable terminal block that connects up to 32 discrete input signals from field devices such as proximity sensors, limit switches, and pushbuttons. Before removing the old module, photograph or document the terminal block wiring layout. If the terminal block shows signs of corrosion, heat damage, or loose connections, replace it as part of the retrofit rather than reusing it — a faulty terminal block is a common source of intermittent input faults that are difficult to diagnose after reassembly.

For control cabinets that also include analog I/O, engineers should simultaneously inspect adjacent modules such as the IC694ALG220 analog input module or IC694ALG390 analog output module for signs of aging. In many legacy Series 90-30 installations, discrete and analog modules share the same rack and power supply — typically an IC694PWR321 or IC694PWR330 power supply unit. Confirm that the existing power supply has sufficient current capacity to support the full rack load after the retrofit, particularly if additional I/O modules are being added as part of a broader system expansion.

If the retrofit involves migrating from a standalone Series 90-30 system to a networked architecture, consider the role of communication modules such as the IC694CMM321 (Ethernet interface) or IC694DNM200 (DeviceNet master) in the upgraded control cabinet. These modules enable the retrofitted system to integrate with modern SCADA platforms, MES systems, and remote I/O networks without requiring a full CPU replacement. Signal isolators may also be required at the field wiring level if the new input sources operate at different voltage levels or have different common ground configurations than the original installation.

HMI screens connected to the Series 90-30 system — whether legacy IC640 operator panels or modern SCADA workstations running iFIX or CIMPLICITY — should be reviewed to confirm that all input status displays, alarm triggers, and interlock logic referencing the IC694MDL645C’s input addresses remain valid after the module swap. In most direct replacement scenarios, no HMI reprogramming is required, but this should be verified during the commissioning phase rather than assumed.

Downtime Control During System Migration

Minimizing production downtime during an IC694MDL645C replacement requires a structured approach that begins with pre-staging the replacement module and all associated tools before the maintenance window opens. Confirm that the replacement IC694MDL645C has been functionally tested prior to shipment — all units supplied by NINERMAS undergo pre-shipment functional verification to reduce the risk of installing a defective replacement module.

During the maintenance window, follow this sequence to protect program logic and maintain control continuity: first, place the PLC in STOP mode via the IC694CPU programming port or Proficy Machine Edition; second, remove power from the rack using the IC694PWR321 or IC694PWR330 power supply; third, disconnect the terminal block from the failed module without disturbing field wiring; fourth, remove the old module and install the IC694MDL645C in the same slot; fifth, reconnect the terminal block; sixth, restore rack power and return the CPU to RUN mode; seventh, perform a full I/O force test on all 32 input channels to confirm signal integrity before releasing the system to production.

For systems where a cold shutdown is not acceptable, consult with your controls engineer about the feasibility of using the IC694MDL645C in a hot-standby or redundant rack configuration. Some Series 90-30 installations support redundant CPU and I/O configurations using the IC694RMX128 redundancy module, which can allow module replacement without a full system shutdown. This approach requires careful pre-planning and is typically reserved for critical process applications where even a brief loss of control is unacceptable.

Throughout the migration, maintain a detailed commissioning log that records the slot address, terminal block wiring verification, I/O force test results, and CPU RUN mode confirmation. This documentation supports future maintenance activities and provides evidence of due diligence for regulatory compliance in industries such as pharmaceuticals, food processing, and utilities.

Retrofit Support FAQ

Q: Is the IC694MDL645C a direct replacement for the IC694MDL645A and IC694MDL645B?
A: Yes. The IC694MDL645C is the current production revision and is functionally compatible with earlier revisions IC694MDL645A and IC694MDL645B. It installs in the same rack slot, uses the same terminal block, and requires no program changes in most applications. Always verify CPU firmware compatibility if your system is running an older firmware version.

Q: What wiring checks should I perform before installing the IC694MDL645C?
A: Inspect the removable terminal block for corrosion, loose screws, and heat damage. Verify that all 32 field wiring connections are correctly documented before removal. Confirm that field device voltage levels (24VDC) match the module’s input specifications. If in doubt, use a multimeter to verify signal levels at the terminal block before powering up the new module.

Q: Does NINERMAS test the IC694MDL645C before shipment?
A: Yes. All IC694MDL645C units are functionally tested prior to shipment. Each unit is supplied with a test certificate confirming that all input channels have been verified. Units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability for the IC694MDL645C?
A: NINERMAS maintains inventory of the IC694MDL645C to support urgent retrofit and emergency replacement requirements. Standard orders are processed and shipped within 1-3 business days. For large-quantity orders or long-term supply agreements, contact our sales team to discuss dedicated stock allocation and scheduled delivery arrangements.
