GE IC694DNM200-BB Retrofit-Compatible DeviceNet Master for Legacy Systems

GE IC694DNM200-BB Retrofit-Compatible DeviceNet Master for Legacy Systems

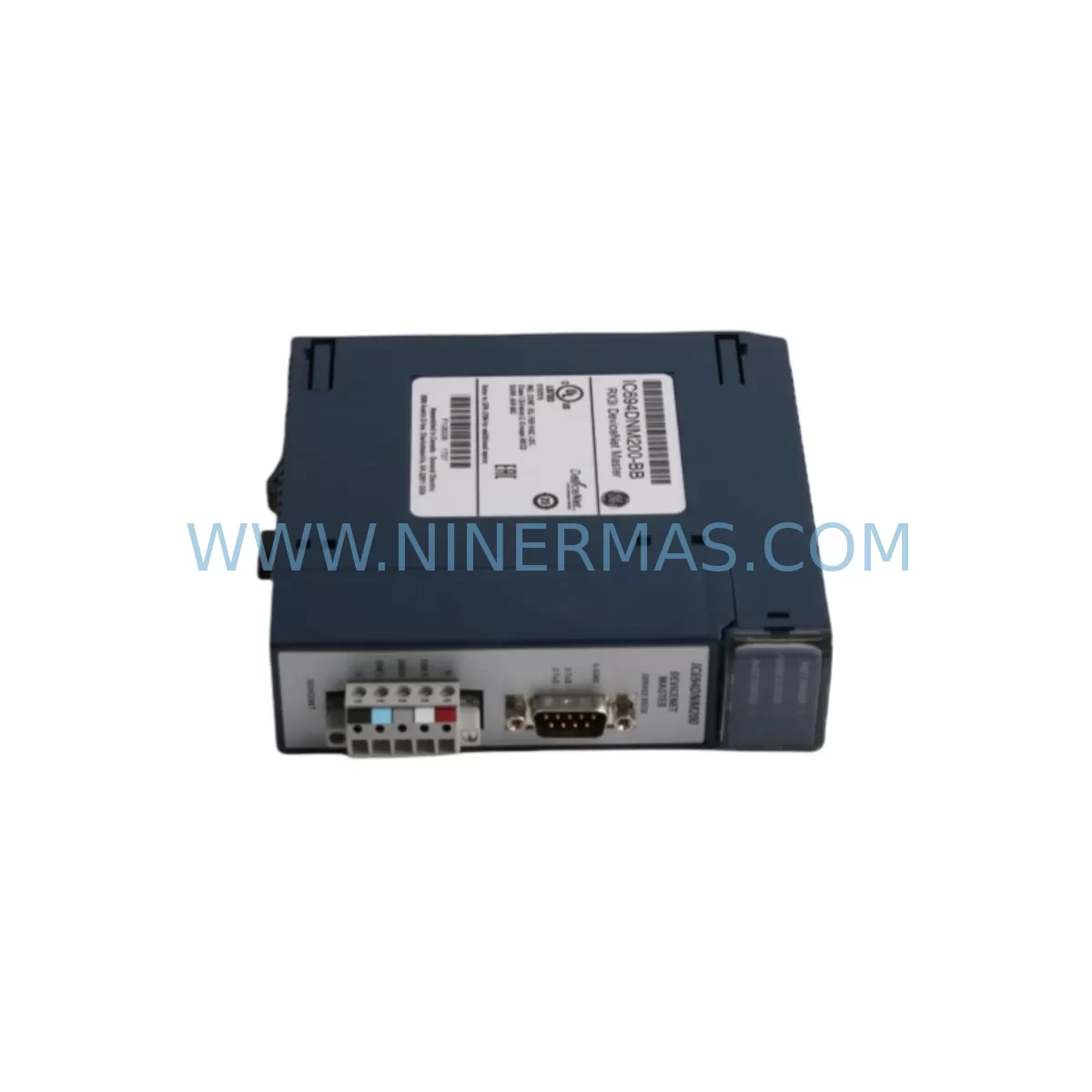

The GE IC694DNM200-BB is a DeviceNet Master Module designed for the GE PACSystems RX3i control platform, providing high-speed, deterministic communication across DeviceNet field bus networks in legacy and modernized automation environments. As industrial facilities face increasing pressure to extend the operational life of aging control infrastructure, the IC694DNM200-BB has become a critical spare part for maintenance engineers managing distributed I/O networks, motor drives, valve actuators, and smart field devices connected via DeviceNet protocol.

NINERMAS supplies the IC694DNM200-BB as a retrofit-compatible replacement for facilities operating legacy PACSystems RX3i racks where the original DeviceNet master has failed, reached end-of-life, or is no longer available through standard OEM channels. Each unit undergoes pre-shipment functional testing and is backed by a 12-month warranty, ensuring confidence for critical production environments where unplanned downtime carries significant operational cost.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the IC694DNM200-BB in an active production environment requires careful pre-migration planning to avoid configuration loss and extended downtime. Before removing the existing module, engineers should document the current DeviceNet node map, including all slave device MAC IDs, EDS file assignments, and polled I/O sizes. This data is typically stored within the Proficy Machine Edition project file and should be backed up to a secure location prior to any hardware swap.

The IC694DNM200-BB occupies a single slot in the IC694CHS392 or IC694CHS398 universal backplane. When planning the retrofit, confirm that the target slot is not adjacent to high-heat modules such as the IC694ALG220 analog input module or high-density discrete I/O modules like the IC694MDL645, as thermal management affects long-term module reliability. The backplane power budget should also be reviewed — the IC694PWR321 or IC694PWR330 power supply must have sufficient 3.3V and 5V capacity to support the DeviceNet master alongside co-installed modules.

On the DeviceNet network side, the IC694DNM200-BB connects via a standard 5-pin DeviceNet connector (V+, CAN_H, Shield, CAN_L, V−). Verify that the network termination resistors (120Ω) are correctly placed at both ends of the trunk cable, and that all slave devices — including Allen-Bradley 1769-SDN-class scanners being migrated away from, or third-party DeviceNet I/O blocks, variable frequency drives, and smart valve positioners — retain their original MAC ID assignments to prevent address conflicts during restart.

For facilities also managing IC694BEM331 Ethernet modules or IC694CMM002 serial communication modules within the same RX3i rack, the slot addressing and I/O map must be reviewed in PME to ensure the DeviceNet master’s I/O data table does not overlap with other communication module memory assignments. The IC694CPU315 or IC694CPU320 controller’s reference table should be audited before the new module is commissioned.

Where the retrofit involves migrating from an older Series 90-30 DeviceNet master (IC693DNM200) to the RX3i IC694DNM200-BB, program logic conversion is required. The I/O data structures and status bits differ between platforms, and HMI screens built in CIMPLICITY or third-party SCADA systems referencing DeviceNet device status tags will need to be updated to reflect the new memory map. Signal isolators may also be required at field terminal blocks where legacy wiring uses unshielded cable runs exceeding recommended DeviceNet trunk lengths.

Downtime Control During System Migration

Minimizing production interruption during a DeviceNet master replacement begins with a structured pre-outage checklist. Before the planned maintenance window, use RSNetWorx for DeviceNet to export the full network configuration, including all slave EDS parameters, polled I/O sizes, and explicit messaging connections. Store this export alongside the PME project backup so that recommissioning can proceed without relying on live network scanning.

During the physical swap, the IC694DNM200-BB can be installed in the same backplane slot without rack removal. Power down the RX3i rack using the controlled shutdown sequence via the IC694CPU315 or IC694CPU320 controller stop command, then remove the failed module and seat the replacement unit. On power-up, the CPU will detect the new module and load the stored hardware configuration from the PME project — provided the slot assignment and module type match exactly.

After power restoration, verify that all DeviceNet slave devices return to the expected operational state. Check the IC694DNM200-BB status LEDs: the Network Status (NS) LED should display solid green for normal operation, and the Module Status (MS) LED should confirm healthy backplane communication. Any slave devices showing fault status should be individually interrogated via RSNetWorx to confirm EDS parameter integrity and I/O size alignment.

For facilities where continuous process control is mandatory, consider staging a parallel RX3i rack with a pre-configured IC694DNM200-BB as a hot-standby solution. This approach, combined with a IC694BEM331 Ethernet module for SRTP-based controller redundancy, can reduce effective switchover time to under two minutes, protecting critical loop control and preserving HMI display continuity throughout the migration window.

Retrofit Support FAQ

Q1: Is the IC694DNM200-BB a direct replacement for the IC693DNM200 used in Series 90-30 systems?
No — the IC694DNM200-BB is designed exclusively for the PACSystems RX3i (IC694) platform and is not physically or electrically compatible with the Series 90-30 (IC693) backplane. Migrating from a Series 90-30 to an RX3i platform requires a full rack and CPU upgrade, including replacement of the IC693CPU374 or similar controller with an IC694CPU315 or IC694CPU320, along with program conversion in Proficy Machine Edition.

Q2: What wiring changes are required when replacing a failed IC694DNM200-BB?
The DeviceNet trunk cable connects to the module via a standard 5-pin open-style connector. No wiring changes to the field network are required for a like-for-like replacement. Confirm that the trunk termination resistors remain in place and that the network power supply (typically a separate 24VDC DeviceNet power tap) is functioning correctly before powering up the replacement module.

Q3: Does NINERMAS provide pre-shipment testing for the IC694DNM200-BB?
Yes. Every IC694DNM200-BB unit supplied by NINERMAS undergoes functional verification prior to dispatch, including backplane communication checks and DeviceNet port integrity testing. Units are shipped with a test report and are covered by a 12-month warranty from the date of delivery. Expedited shipping options are available for urgent maintenance requirements.

Q4: Can NINERMAS support long-term spare parts inventory planning for IC694DNM200-BB?
Yes. NINERMAS offers structured spare parts programs for discontinued and end-of-life GE PACSystems modules, including the IC694DNM200-BB. Customers managing multiple RX3i installations across facilities can arrange consignment stock, scheduled delivery agreements, or bulk procurement to ensure availability throughout their planned maintenance cycles. Contact our team to discuss inventory arrangements aligned with your maintenance schedule.
