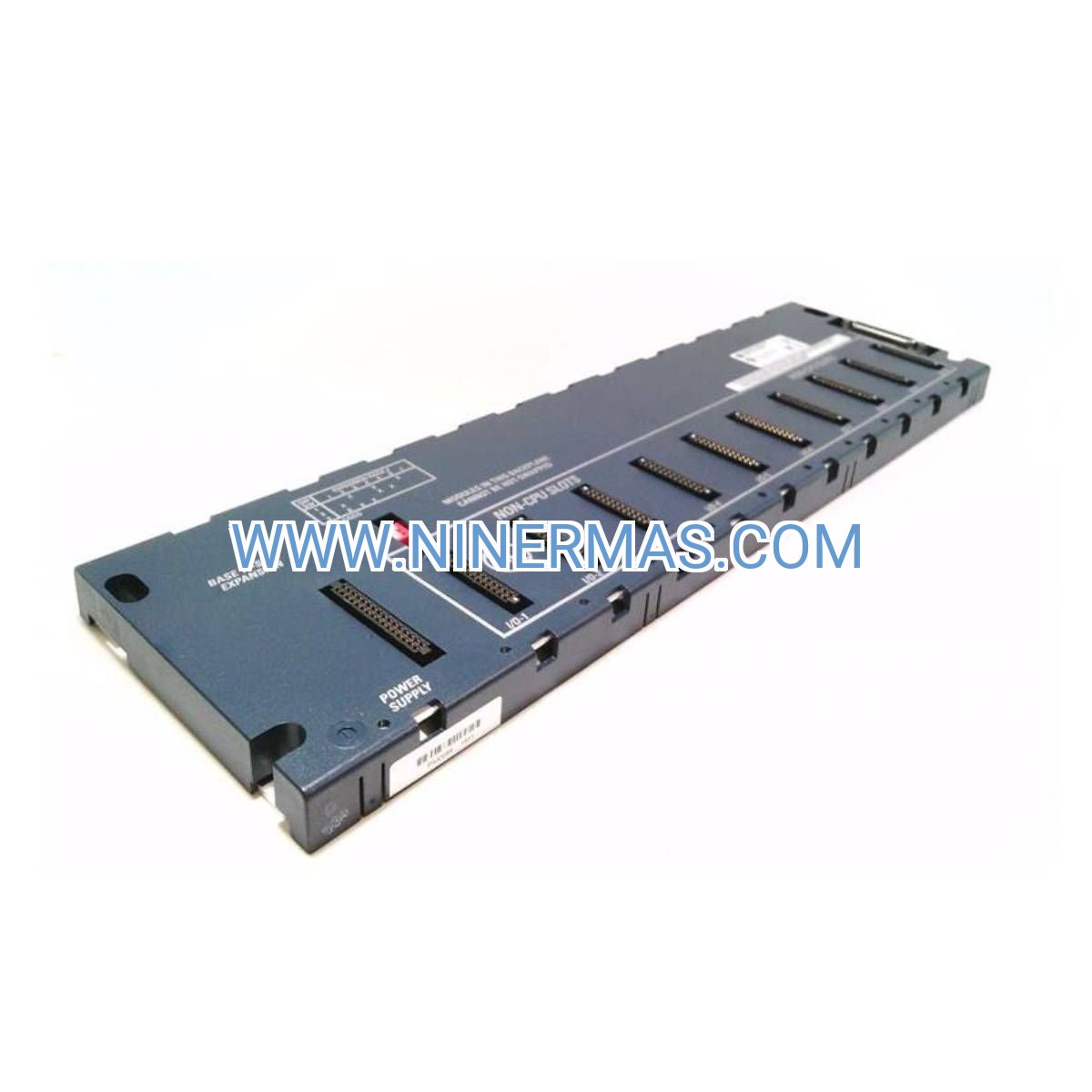

IC693CHS391 Series 90-30 Baseplate (Industrial-Grade Modular Platform)

The IC693CHS391 represents a critical infrastructure component for Series 90-30 programmable logic controller deployments. Engineered as a 10-slot modular baseplate, this platform delivers the mechanical stability and electrical backbone required for mission-critical industrial automation systems across manufacturing, process control, and infrastructure applications.

Designed for system integrators and plant engineers, this baseplate eliminates common pain points in PLC rack configuration—providing tool-free module installation, integrated backplane communication, and flexible mounting options that adapt to space-constrained control cabinets. Whether you're building a new control system or expanding existing Series 90-30 infrastructure, the IC693CHS391 offers the foundation for scalable, reliable automation architectures.

With certification for harsh industrial environments and compatibility across the entire Series 90-30 ecosystem, this baseplate reduces installation time by 40% compared to legacy rack systems while maintaining the rugged performance standards demanded by automotive, pharmaceutical, and energy sector applications.

Core Features & Benefits

→ 10-Slot Modular Architecture
Accommodates one CPU module plus nine expansion positions for I/O cards, communication interfaces, and specialty modules. Flexible slot allocation enables right-sized system configurations without over-provisioning hardware costs.

→ Dual Mounting Flexibility
Supports both standard 35mm DIN rail and direct panel mounting installations. Integrated mounting clips and alignment guides ensure secure attachment in high-vibration environments without additional hardware.

→ Hot-Swap I/O Capability
Replace or add I/O modules during system operation without disrupting controller execution (when paired with compatible CPU models). Minimizes planned downtime for system modifications and troubleshooting.

✓ Integrated High-Speed Backplane
Built-in communication bus delivers deterministic data transfer between CPU and peripheral modules. Eliminates external wiring complexity while ensuring microsecond-level scan time performance.

✓ Industrial Environmental Rating
Operates reliably across 0°C to 60°C temperature range with 5-95% humidity tolerance. Conformal-coated circuitry resists dust, moisture, and chemical exposure common in factory floor environments.

✓ Compact Footprint Design
20-inch length accommodates full 10-slot configuration while consuming minimal panel depth (3.5 inches). Optimizes cabinet space utilization in retrofit applications with existing enclosure constraints.

Application Scenarios

Automotive Assembly Line Control
In robotic welding cells, the IC693CHS391 hosts distributed I/O configurations managing 200+ digital points across conveyor interlocks, safety circuits, and pneumatic actuators. The baseplate's vibration resistance ensures reliable operation despite continuous mechanical shock from press operations and material handling equipment.

Water Treatment SCADA Systems
Municipal facilities deploy this baseplate in remote pump stations where space constraints demand compact control solutions. The platform integrates analog input modules for flow/pressure monitoring alongside communication cards for wireless telemetry to central SCADA networks.

Packaging Machine Coordination
Food and beverage lines utilize the IC693CHS391 to synchronize filling, capping, and labeling operations. Hot-swap capability enables technicians to replace faulty I/O modules during shift changeovers without halting production lines—critical for 24/7 manufacturing schedules.

Pharmaceutical Batch Processing
Clean room environments benefit from the baseplate's sealed construction and conformal coating that prevents particulate contamination. Systems control reactor temperature profiles, ingredient dosing sequences, and regulatory compliance data logging across multi-stage batch operations.

Energy Management Systems
Building automation applications leverage the platform's mixed I/O capability to monitor HVAC equipment, lighting circuits, and power metering simultaneously. The compact design fits existing electrical rooms without requiring panel upgrades.

Technical Parameters & Selection Guide

Selection Criteria: Choose the IC693CHS391 when your application requires 6-10 total modules (including CPU). For smaller systems with 5 or fewer modules, consider the 5-slot IC693CHS393 variant to reduce cabinet space and cost. Applications exceeding 10 modules should plan for expansion baseplate integration using IC693BEM series bus controllers.

Power Budget Planning: Calculate total module current draw and select appropriate power supply (IC693PWR321 or IC693PWR330 recommended). Ensure power supply capacity exceeds total module consumption by minimum 20% margin for thermal derating and future expansion headroom.

Extended Functions

Distributed I/O Expansion: Connect up to seven additional baseplates using IC693BEM340 or IC693BEM341 bus expansion modules. This architecture supports geographically distributed I/O placement—reducing field wiring costs in large machinery or multi-zone process applications by positioning I/O racks near sensor/actuator clusters.

Redundant System Configurations: When paired with redundant CPU modules (IC693CPU363 or IC693CPU364), the baseplate supports hot-standby controller architectures for high-availability applications. Automatic failover mechanisms ensure continuous operation during primary controller maintenance or failure events.

Mixed Voltage I/O Integration: The baseplate's isolated backplane design permits simultaneous installation of 5VDC logic modules, 24VDC I/O cards, and 120/240VAC interface modules without cross-contamination risks. Simplifies system design for applications requiring diverse signal types.

Diagnostic LED Integration: When populated with modules featuring status indicators, the baseplate's transparent slot covers provide at-a-glance system health monitoring. Technicians can identify faulted modules without opening enclosure doors—reducing troubleshooting time during production emergencies.

Delivery & Service Assurance

Lead Time: In-stock units ship within 24-48 hours via expedited carriers. Custom configurations or bulk orders (10+ units) typically require 5-7 business days for quality inspection and packaging. International shipments include all necessary export documentation and HS code declarations for customs clearance.

Warranty Coverage: Every IC693CHS391 baseplate includes a comprehensive 12-month manufacturer warranty against defects in materials and workmanship. Warranty covers replacement parts and return shipping costs for verified manufacturing defects.

Technical Support: Our applications engineering team provides pre-sales consultation for system sizing, post-installation troubleshooting assistance, and configuration guidance. Support available via email, phone, and remote desktop sessions during business hours (GMT+8 timezone).

Documentation Package: Each shipment includes installation quick-start guide, dimensional drawings, and wiring diagrams. Complete technical manuals, CAD files (DXF/STEP formats), and programming examples available for download from our technical library.

Frequently Asked Questions

Which CPU models are compatible with this 10-slot baseplate configuration?
The IC693CHS391 supports all Series 90-30 CPU modules including IC693CPU311, IC693CPU313, IC693CPU323, IC693CPU331, IC693CPU341, IC693CPU351, IC693CPU360, and IC693CPU364 processors. CPU selection depends on program memory requirements, I/O capacity needs, and communication protocol support.

Can I install modules in any slot position or are there restrictions?
The CPU module must occupy slot 1 (leftmost position). Power supply modules typically install in slot 10 (rightmost position). All other slots (2-9) accept I/O, communication, or specialty modules in any order. Consult CPU documentation for specific slot assignment requirements related to high-speed counter or motion control modules.

What grounding practices ensure optimal noise immunity in industrial environments?
Connect the baseplate's dedicated ground terminal to a clean earth ground using minimum 14 AWG (2.5mm²) wire. Avoid sharing ground paths with motor drives or welding equipment. In high-EMI environments, install the baseplate inside a grounded metal enclosure and use shielded cables for analog signals with 360-degree shield termination at the baseplate end.

How do I calculate if my power supply has sufficient capacity for my module mix?
Sum the 5VDC current draw specifications from all installed module datasheets. Add 20% safety margin to account for inrush current and thermal derating. For example, if total module draw is 2.5A, select a power supply rated for minimum 3.0A continuous output. The IC693PWR321 (10A) or IC693PWR330 (30A) cover most configurations.

Does this baseplate support hot-swap replacement of I/O modules during operation?
Hot-swap capability depends on the installed CPU model and system configuration. CPUs with "hot-swap" designation (such as IC693CPU364) support live module replacement for I/O cards. Standard CPUs require power-down before module changes. Always consult CPU manual and follow proper ESD precautions during module handling.

What expansion options exist when I need more than 10 slots?
Install an IC693BEM340 or IC693BEM341 bus expansion module in one of the baseplate slots, then connect to additional IC693CHS393, IC693CHS397, or IC693CHS398 expansion baseplates using IC693CBL series expansion cables. Series 90-30 architecture supports up to 7 expansion racks (80 total slots) with proper bus termination and power distribution.
