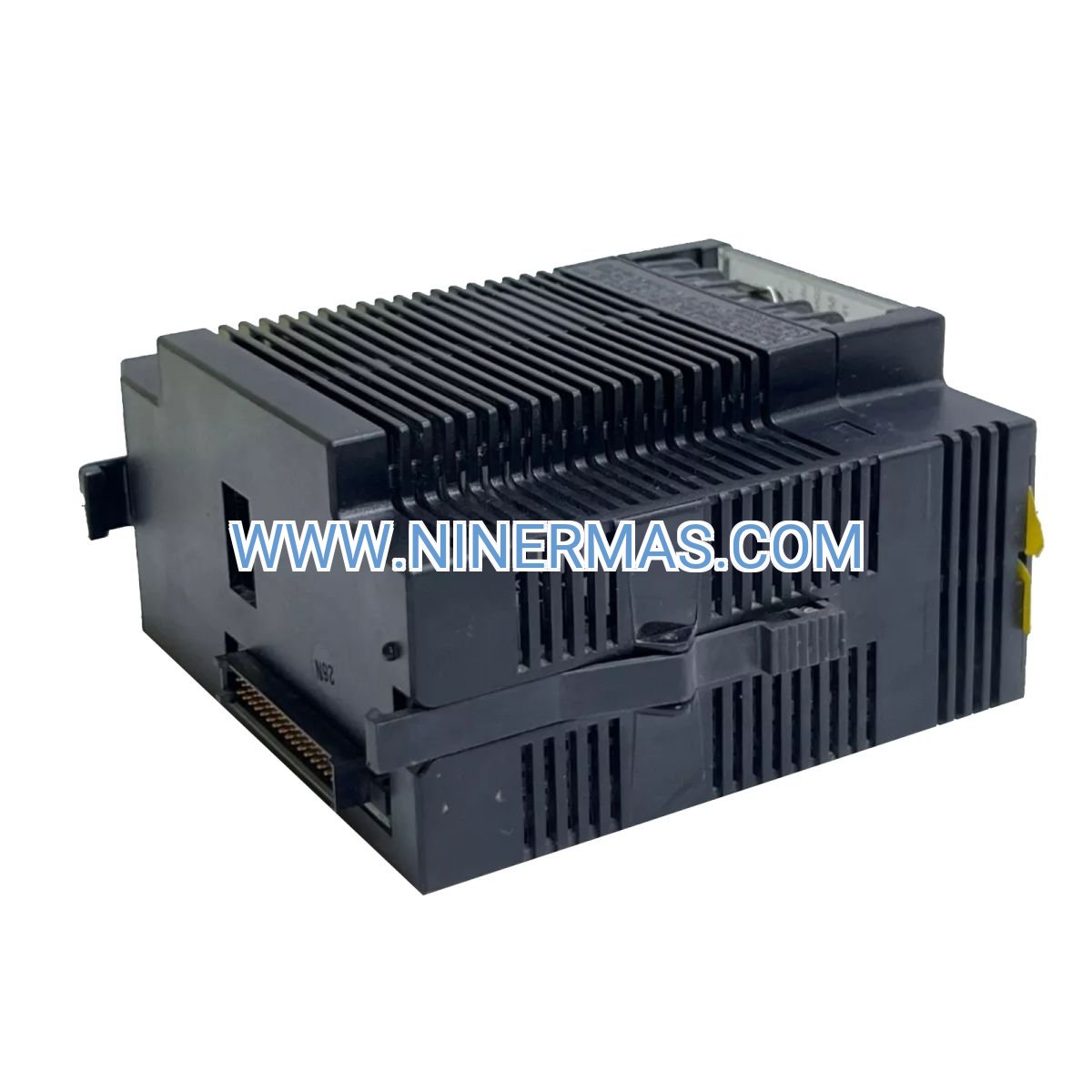

IC693PWR324Z Industrial-Grade Power Supply Module (Series 90-30 Platform)

The IC693PWR324Z is a high-performance 240-watt power supply module engineered specifically for GE Series 90-30 programmable logic controller ecosystems. Delivering a robust 10-ampere continuous output at 24V DC, this industrial PSU provides the energy backbone for medium to large-scale automation configurations—supporting extensive I/O arrays, communication coprocessors, and specialty function modules in demanding manufacturing environments.

Built with auto-sensing universal input (120/240V AC), advanced thermal management, and multi-layer protection circuitry, the IC693PWR324Z ensures uninterrupted operation in electrically harsh industrial settings where power quality fluctuates and uptime is non-negotiable.

Core Capabilities & Business Value

→ Universal Voltage Compatibility
Auto-sensing 120/240V AC input eliminates manual voltage selection switches, reducing installation errors and enabling seamless deployment across global facilities with different electrical standards.

→ High-Capacity Current Delivery
10-ampere continuous output supports configurations with 8-12 I/O modules, multiple communication interfaces, and analog cards—providing 40% more power headroom than standard 7A models for future system expansion.

→ Extended Power Hold-Up
20-millisecond minimum hold-up time maintains PLC operation through brief utility interruptions and voltage sags, preventing costly production stoppages and data loss in critical control applications.

→ Comprehensive Fault Protection
Integrated overcurrent limiting, overvoltage shutdown, thermal monitoring, and short-circuit protection safeguard both the PSU and downstream equipment—reducing maintenance costs and extending system lifespan.

→ Low Electrical Noise Output
Advanced filtering delivers <50mV ripple on DC output, ensuring stable operation of precision analog modules, high-speed counters, and sensitive communication interfaces without signal degradation.

→ Redundancy-Ready Architecture
Supports hot-swap configurations with dual PSU setups using diode isolation, enabling zero-downtime maintenance in pharmaceutical, semiconductor, and continuous process industries.

Industrial Application Scenarios

Automotive Assembly & Material Handling
Powers large-scale Series 90-30 systems controlling robotic welding cells, conveyor networks, and automated guided vehicles (AGVs). The IC693PWR324Z's high current capacity supports configurations with 128+ I/O points, motion control modules, and Ethernet/IP communication processors—critical for synchronized multi-station operations.

Water Treatment & Municipal Infrastructure
Deploy in SCADA-controlled pumping stations, filtration plants, and distribution networks where reliable power is mission-critical. The extended hold-up time bridges momentary power disturbances common in remote facilities, while the wide operating temperature range (-40°C to 60°C) handles outdoor enclosure installations.

Food & Beverage Processing
Supports Series 90-30 PLCs managing packaging lines, batch mixing systems, and CIP (clean-in-place) operations. The PSU's RoHS compliance and sealed construction meet sanitary design requirements, while redundant power configurations ensure continuous operation during scheduled maintenance windows.

Chemical & Petrochemical Control
Provides stable power for distributed control systems monitoring reactors, distillation columns, and pipeline networks. Pair with explosion-proof enclosures and intrinsically safe I/O modules for hazardous area installations requiring Class I Division 2 compliance.

Building Automation & HVAC
Energizes Series 90-30 controllers managing chiller plants, air handling units, and energy management systems in commercial facilities. The auto-sensing input simplifies retrofit projects where existing voltage standards vary across building zones.

Technical Parameters & Selection Guide

Selection Criteria:

✓ Choose IC693PWR324Z for systems with 5-10 I/O modules, 1-2 communication processors, and standard CPU models
✓ Calculate total current draw: sum all module currents (from datasheets) + 20% safety margin
✓ Upgrade to IC693PWR330 (30A) if total load exceeds 8A or system requires future expansion beyond 12 modules
✓ Implement redundant dual-PSU configuration for applications requiring >99.9% uptime

Extended Functions & Integration Options

Redundant Power Architecture
Deploy dual IC693PWR324Z modules with diode isolation for N+1 redundancy. Each PSU operates at 50% capacity during normal operation; if one fails, the remaining unit automatically assumes full load without system interruption—ideal for pharmaceutical batch control and semiconductor fabrication.

UPS Integration
The PSU's low inrush current and wide input tolerance make it compatible with industrial uninterruptible power supplies. Connect through appropriately rated UPS systems (minimum 500VA for single PSU, 1000VA for redundant pairs) to bridge extended utility outages in critical infrastructure applications.

Remote Monitoring
While the IC693PWR324Z provides local LED status indicators, integrate with Series 90-30 CPUs featuring embedded web servers or SCADA systems to monitor power supply health remotely. Track output voltage, current draw, and fault conditions through Modbus TCP or Ethernet/IP protocols.

Energy Management
The PSU's >85% efficiency reduces energy consumption compared to older linear power supplies. In large installations with 20+ control panels, upgrading to IC693PWR324Z modules can reduce annual electricity costs by 15-20% while lowering cooling requirements.

Delivery Timeline & Service Guarantee

Standard Delivery: 3-5 business days for in-stock units via express courier (DHL, FedEx, UPS)
Custom Configuration: 7-10 business days for pre-tested redundant PSU assemblies with mounting hardware
Warranty Period: 12 months comprehensive coverage including parts, labor, and return shipping
Technical Support: Lifetime application engineering assistance via email, phone, and remote diagnostics
Documentation Included: Installation manual, wiring diagrams, certification documents, and HS code declarations

All shipments include anti-static packaging, shock-absorbing materials, and complete customs documentation for international orders. We provide proactive tracking updates and coordinate with your receiving team to ensure on-time delivery.

Frequently Asked Questions

How does IC693PWR324Z compare to the IC693PWR321 power supply module?
The IC693PWR324Z delivers 10A continuous output versus 7A for the IC693PWR321, providing 43% more current capacity. Both share identical form factors and mounting, making the IC693PWR324Z a direct upgrade path for systems requiring additional power headroom without chassis modifications.

What's the maximum number of I/O modules supported by this power supply?
Typical configurations support 8-12 standard I/O modules depending on module types. Digital I/O modules draw 50-150mA each, analog modules 150-300mA, and communication processors 300-500mA. Calculate your specific configuration by summing individual module currents and maintaining 20% reserve capacity.

Can I use IC693PWR324Z with Series 90-70 or VersaMax systems?
No, the IC693PWR324Z is designed exclusively for Series 90-30 platforms with compatible backplane power distribution. For Series 90-70 systems, use IC697PWR series modules; for VersaMax, use IC200PWR series power supplies with appropriate voltage and current ratings.

What causes the fault LED to illuminate on this power supply?
Fault indicators activate during overcurrent conditions (>10A sustained load), overvoltage events (>28V DC output), thermal shutdown (>85°C internal temperature), or input voltage outside the 108-264V AC range. Disconnect modules sequentially to identify components drawing excessive current.

Is forced air cooling required for this power supply module?
Forced cooling is not required for ambient temperatures below 50°C with proper ventilation (50mm clearance above/below). For enclosures operating at 50-60°C ambient, install cooling fans to maintain airflow across the PSU heatsink and prevent thermal derating.

How do I size circuit breakers for IC693PWR324Z installations?
Use 4A circuit breakers for 120V AC installations and 2A breakers for 240V AC installations. These ratings accommodate the PSU's inrush current while providing adequate short-circuit protection. For redundant dual-PSU configurations, size breakers individually for each power supply.

Ready to Power Your Automation System?

Secure reliable, industrial-grade power for your Series 90-30 PLC with the IC693PWR324Z high-capacity power supply module. Whether you're building new control systems, expanding existing installations, or replacing aging components, this proven PSU delivers the performance and reliability your operations demand.

Contact our automation specialists today: Share your system configuration, I/O count, and application requirements for personalized power supply recommendations and volume pricing. We'll help you design robust, scalable power architectures that support your current needs and future growth.
