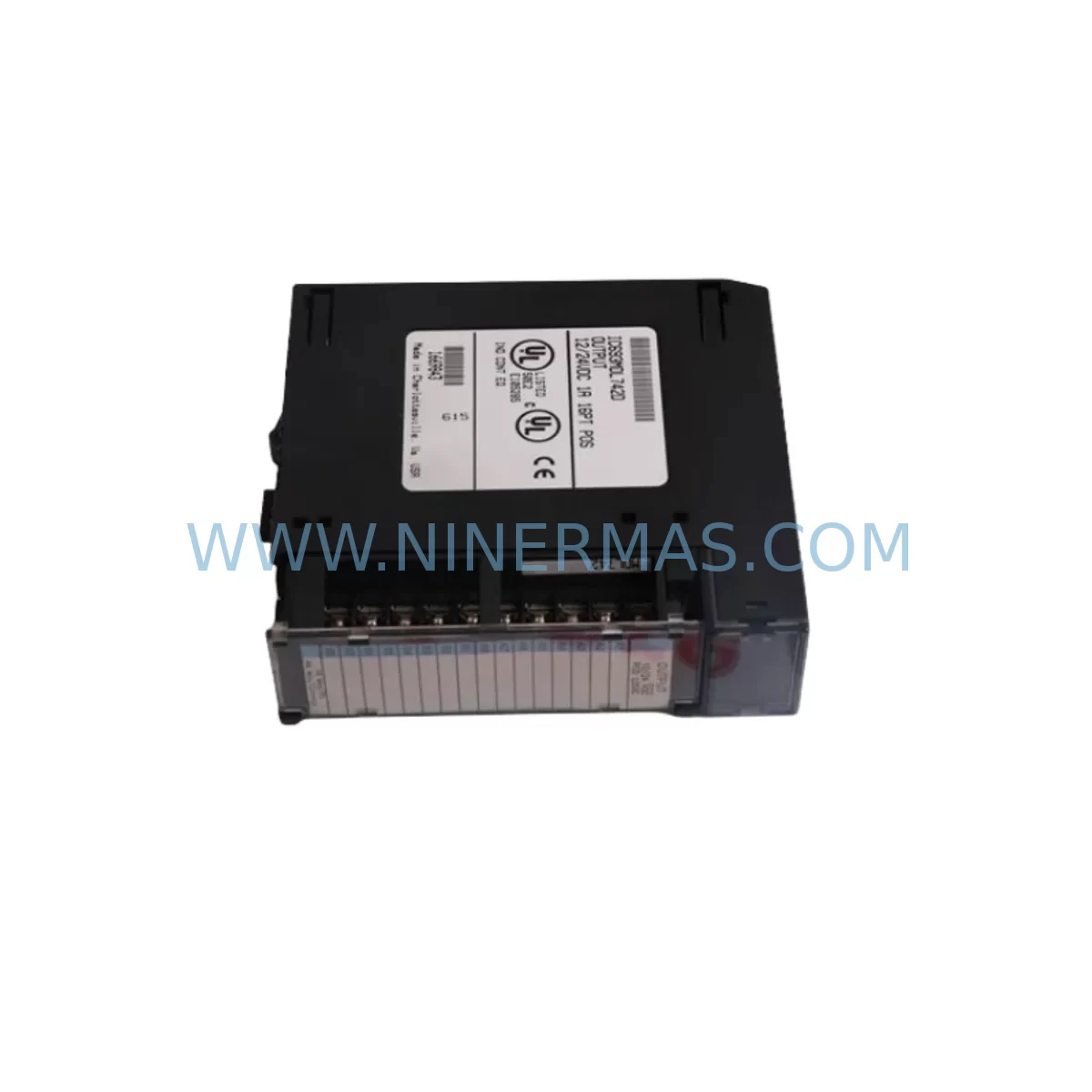

GE IC693MDL742J Retrofit-Compatible Output Module

GE IC693MDL742J Retrofit-Compatible Output Module for Legacy System Modernization

The GE IC693MDL742J is a ruggedized discrete output module designed for the GE Series 90-30 PLC platform, one of the most widely deployed programmable logic controller families in process and discrete manufacturing environments worldwide. As original equipment manufacturers phase out production support for legacy Series 90-30 hardware, plant engineers and maintenance teams face increasing pressure to source verified replacement modules that maintain full backward compatibility with existing rack configurations, I/O addressing schemes, and ladder logic programs. The IC693MDL742J addresses this challenge directly — offering a proven, field-tested output solution that integrates seamlessly into existing control cabinets without requiring program rewrites, rack modifications, or HMI screen redesigns.

This module is engineered for harsh industrial environments, featuring reinforced conformal coating and extended operating temperature tolerance, making it suitable for applications in oil and gas processing, chemical plants, automotive assembly lines, water treatment facilities, and heavy manufacturing cells where ambient conditions routinely exceed standard module ratings. Whether you are executing a planned lifecycle extension, responding to an unplanned module failure, or executing a phased control system upgrade, the IC693MDL742J provides the output switching reliability and installation simplicity that minimizes production downtime and reduces retrofit risk.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IC693MDL742J into a legacy control system begins well before the module arrives on-site. A structured retrofit plan reduces the risk of extended downtime and ensures that the replacement module performs identically to the original in all operating modes.

Power Budget Verification: Before installing any replacement output module, engineers should audit the total power draw of all modules installed in the affected rack. The IC693PWR321 and IC693PWR330 power supply modules each carry defined current budgets for the 5 VDC backplane bus and the 24 VDC field power rail. Adding a ruggedized module variant may marginally increase backplane current draw compared to a standard-grade predecessor. If the existing power supply is already operating near capacity, consider upgrading to the higher-output IC693PWR330 before completing the module swap.

CPU and Program Compatibility: The IC693MDL742J is fully compatible with the complete range of Series 90-30 CPUs, including the IC693CPU364, IC693CPU374, and IC693CPU375. No hardware configuration changes are required in the CPU’s I/O table when performing a like-for-like module replacement. Engineers using Proficy Machine Edition (formerly Logicmaster 90) should verify that the hardware configuration file reflects the correct module type in the target slot. In most direct-replacement scenarios, the existing configuration file requires no modification.

Terminal Block and Field Wiring: One of the most significant time-saving features of the IC693MDL742J is its removable terminal block design. Field wiring connected to the original module’s terminal block can be transferred directly to the replacement module without disconnecting individual conductors. This eliminates the risk of miswiring during the swap and dramatically reduces the time required to complete the physical installation. Before transferring the terminal block, photograph or document the existing wiring layout as a reference for post-installation verification.

I/O Addressing and HMI Screens: Because the IC693MDL742J occupies the same rack slot and uses the same I/O point count as its predecessor, the I/O address assignments in the PLC program remain unchanged. HMI screens built on platforms such as GE QuickPanel or third-party SCADA systems referencing these I/O addresses will continue to function without modification. This is a critical advantage in facilities where HMI screen redesign would require significant engineering hours and operator retraining.

Communication Link Integrity: In systems where the Series 90-30 rack communicates with upstream SCADA or DCS platforms via IC693CMM321 (Ethernet) or IC693CMM311 (serial communications) modules installed in adjacent slots, the output module replacement does not affect the communication link. The CMM modules operate independently on the backplane and will continue to pass data to and from the CPU without interruption during the module swap, provided the CPU remains powered and the program continues to execute.

Signal Isolation and Analog Coordination: In mixed I/O racks that include analog input modules such as the IC693ALG221 or signal isolators for thermocouple and RTD inputs, care should be taken to avoid introducing electrical noise during the swap procedure. Discrete output switching transients can couple into adjacent analog signal paths if proper grounding and shielding practices are not observed. Use shielded cables on analog field wiring and verify analog signal integrity after the output module is installed and energized.

Expansion and I/O Growth: For facilities planning to expand I/O capacity as part of a broader modernization initiative, the Series 90-30 platform supports remote I/O expansion via IC693BEM331 bus expansion modules. The IC693MDL742J can be deployed in both local and remote expansion racks, providing flexibility for distributed control architectures where output points need to be located closer to field devices.

Downtime Control During System Migration

Minimizing production downtime during a control system module replacement requires a combination of advance preparation, disciplined execution, and post-installation verification. The following approach has been validated across multiple industrial retrofit projects involving Series 90-30 hardware.

Pre-Shutdown Preparation: Complete all documentation, spare parts staging, and tool preparation before the planned maintenance window begins. Confirm that the replacement IC693MDL742J has been received, inspected, and verified against the purchase order. Review the existing ladder logic program to identify all rungs that reference output coils assigned to the module being replaced. Note any interlocks, safety outputs, or time-critical sequences that will be affected during the swap.

Controlled Shutdown Sequence: Place the CPU in STOP mode using the keyswitch or the programming software before removing the output module. This prevents spurious output activation during the physical swap. If the system includes a GE IC693MDL940 or similar relay output module controlling safety-critical loads in an adjacent slot, confirm that those outputs are also in a safe state before proceeding.

Module Swap and Terminal Transfer: Remove the original module by releasing the top and bottom retaining clips and sliding it out of the rack. Transfer the terminal block directly to the replacement IC693MDL742J. Seat the new module firmly into the rack slot, ensuring that the backplane connector is fully engaged. Restore power to the rack and observe the module’s status LEDs to confirm that the backplane communication link is established and that no fault indicators are active.

Program Verification and Recommissioning: Return the CPU to RUN mode and monitor the first scan for any I/O fault messages. Use the programming software to force individual output points and verify that the corresponding field devices respond correctly. Check all interlocks and safety sequences before releasing the system to normal production operation. Document the completed swap in the facility’s maintenance management system, including the module serial number, installation date, and technician sign-off.

Inventory and Supply Continuity: For facilities operating multiple Series 90-30 racks, maintaining a small buffer stock of IC693MDL742J modules reduces the risk of extended downtime caused by future unplanned failures. NINERMAS maintains in-stock inventory of IC693MDL742J and related Series 90-30 components to support rapid dispatch requirements. All units are covered by a 12-month warranty and are dispatched with pre-shipment test documentation.

Retrofit Support FAQ

Q1: Is the IC693MDL742J a direct drop-in replacement for the standard IC693MDL742?
Yes. The IC693MDL742J is the ruggedized variant of the IC693MDL742 and is fully backward compatible with all Series 90-30 racks and CPUs. The “J” suffix denotes enhanced conformal coating and extended temperature rating. No program changes, hardware configuration updates, or wiring modifications are required when replacing a standard IC693MDL742 with the IC693MDL742J.

Q2: What pre-shipment testing is performed on each unit?
Every IC693MDL742J dispatched by NINERMAS undergoes 100% functional output verification prior to shipment. Each output point is tested under load to confirm switching performance, leakage current compliance, and backplane communication integrity. Test results are documented and available upon request. All units are covered by a 12-month warranty from the date of dispatch.

Q3: Can this module be used in a remote I/O expansion rack?
Yes. The IC693MDL742J is compatible with both local and remote Series 90-30 I/O racks. When deployed in a remote rack connected via an IC693BEM331 bus expansion module, the output module operates identically to a locally installed unit. I/O addressing in the CPU program follows the standard Series 90-30 remote rack addressing convention and requires no special configuration beyond the standard hardware setup.

Q4: What is the lead time and stock availability?
NINERMAS maintains in-stock inventory of IC693MDL742J to support urgent replacement requirements. Standard orders are dispatched within 1–3 business days. For bulk procurement or long-term supply agreements supporting lifecycle extension programs, please contact our sales team to discuss committed stock arrangements and fixed lead-time contracts.
