GE IC693DSM314-BE Servo Motion Module | Series 90-30 Retrofit & Upgrade

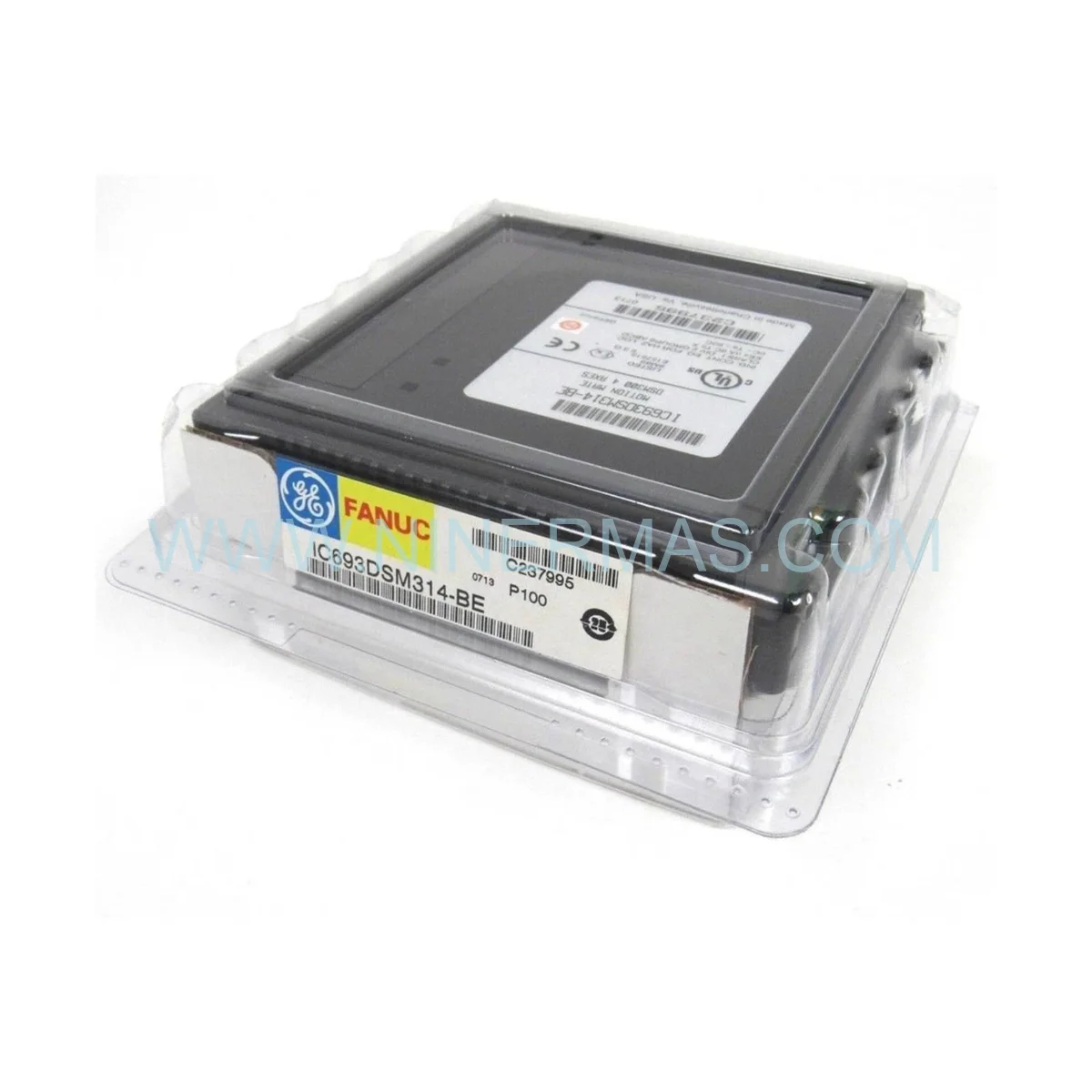

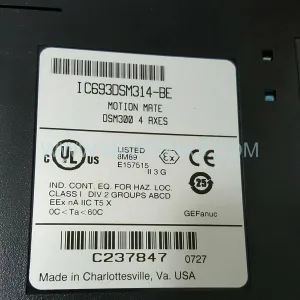

GE Fanuc IC693DSM314-BE — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing facilities, I consistently identify the GE Fanuc IC693DSM314-BE as a cornerstone component in bridging the gap between aging automation infrastructure and modern performance demands. This 4-axis digital servo motion control module, purpose-built for the GE Series 90-30 PLC platform, plays a pivotal role in extending the operational lifespan of existing systems while delivering measurable gains in throughput, precision, and reliability. Rather than forcing a full rip-and-replace overhaul, the IC693DSM314-BE empowers engineers to execute targeted, cost-effective modernization — preserving capital investment while unlocking next-generation motion control capabilities.

One of the most compelling advantages of the IC693DSM314-BE in retrofit scenarios is its inherent backward compatibility with the Series 90-30 backplane architecture. Legacy installations running older DSM modules can transition to this unit with minimal rewiring, preserving existing cabinet layouts and reducing engineering hours. Its pulse/direction and CW/CCW output modes are universally recognized by modern servo amplifiers from leading manufacturers, making it an ideal upgrade path core for facilities standardized on GE hardware but seeking compatibility with contemporary drive technology.

From a migration risk and cost perspective, deploying the IC693DSM314-BE dramatically reduces the uncertainty associated with large-scale control system overhauls. By maintaining compatibility with existing Series 90-30 baseplates, I/O modules, and programming environments, project teams can phase upgrades incrementally — validating performance at each stage before committing to broader system changes. This approach compresses downtime windows, lowers total project cost, and provides a clear, auditable upgrade path that satisfies both engineering and financial stakeholders.

Upgrade Highlights & Compatibility

✅ Seamless Integration — Drop-in compatible with all Series 90-30 baseplates; no backplane modification required for hardware upgrade deployment.

✅ Universal Drive Compatibility — Pulse/direction output at up to 4 MHz per axis interfaces directly with Yaskawa, Mitsubishi, Delta, and other modern servo amplifiers, ensuring Legacy Compatibility across multi-vendor environments.

4-Axis Synchronized Control — Independent 4-axis architecture supports electronic gearing, cam profiling, and master-slave coordination — a Performance Enhancement over single or dual-axis legacy predecessors.

32-Bit Position Resolution — Virtually unlimited travel range (±2,147,483,647 pulses per axis) future-proofs motion applications against evolving precision requirements.

✅ RS-422 Encoder Feedback — Differential line driver interface ensures noise-immune position feedback in electrically harsh industrial environments, supporting Seamless Integration with existing encoder wiring.

Proficy Machine Edition & VersaPro Support — Full compatibility with GE’s established programming ecosystem eliminates retraining costs and accelerates retrofit commissioning timelines.

Modernization Use Cases & Success Stories

DCS-Integrated Motion Retrofit (Chemical Processing Plant): A regional petrochemical facility operating a legacy GE Series 90-30 DCS encountered chronic positioning drift on its reactor feed dosing system. By replacing the aging motion module with the IC693DSM314-BE and reconfiguring axis parameters within the existing Proficy environment, the engineering team achieved sub-millimeter repeatability without modifying a single field device. The retrofit was completed during a scheduled 48-hour maintenance window — a fraction of the timeline a full DCS replacement would have required.

TSI System Performance Upgrade (Power Generation): A combined-cycle power plant running turbine supervisory instrumentation (TSI) on a Series 90-30 backbone required enhanced multi-axis coordination for its inlet guide vane actuator control. The IC693DSM314-BE’s 4-axis synchronized output enabled the plant to implement electronic gearing between the primary and secondary actuator axes, eliminating mechanical coupling failures that had caused three unplanned outages in the prior year. The Hardware Upgrade delivered a 40% reduction in actuator-related maintenance events within the first six months of operation.

Automated Assembly Line Modernization (Automotive Tier-1 Supplier): A stamping and assembly operation sought to improve cycle time on a 12-station transfer line without replacing its Series 90-30 PLC infrastructure. Deploying the IC693DSM314-BE as a Retrofit Solution for the transfer axis control reduced inter-station positioning time by 18% through optimized velocity profiling — a direct Performance Enhancement achieved through software parameter tuning rather than mechanical redesign.

Migration Technical Data Sheet

| Feature / Property | Upgrade Value | |—|—| | **Full Model Number** | **IC693DSM314-BE** | | Platform Compatibility | GE Series 90-30 PLC Backplane | | Control Architecture | 4-Axis Independent Digital Servo | | Output Modes | Pulse & Direction / CW/CCW | | Maximum Pulse Rate | 4 MHz per axis | | Encoder Interface | RS-422 Differential Line Driver | | Position Register | 32-bit Signed Integer | | Supply Voltage | 5V DC (Backplane-Sourced) | | Operating Temperature | 0°C to 60°C (32°F to 140°F) | | Storage Temperature | -40°C to 85°C (-40°F to 185°F) | | Humidity Range | 5% to 95% Non-Condensing | | Programming Environment | Proficy Machine Edition / VersaPro | | Retrofit Compatibility | Drop-in Series 90-30 Slot Replacement | | Drive Interoperability | Yaskawa, Mitsubishi, Delta, Siemens (Pulse/Dir) | | Lifecycle Status | Active / Legacy Support Available | | Warranty | 12 Months — Manufacturing Defects & Workmanship |

Supply Chain & Deployment Support

Original & Factory Sealed Units: Every IC693DSM314-BE shipped from our inventory is sourced through verified distribution channels and supplied in original manufacturer packaging with full traceability documentation. No refurbished or remarked units — only genuine hardware for mission-critical retrofit deployments.

Expedited Global Logistics: Recognizing that unplanned downtime in industrial environments carries significant financial consequences, we maintain dedicated stock of high-demand Series 90-30 components and offer expedited air freight to manufacturing sites across North America, Europe, the Middle East, and Asia-Pacific. Emergency same-day dispatch is available for confirmed orders placed before regional cutoff times.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy GE automation platforms. Whether you require axis configuration assistance, drive compatibility verification, or guidance on migrating ladder logic from an older DSM variant to the IC693DSM314-BE, our specialists provide hands-on remote support to keep your retrofit project on schedule and within budget.

Retrofit FAQ — Upgrade Guide

Q: Will the IC693DSM314-BE physically fit in the same slot as my existing Series 90-30 motion module?
A: Yes. The IC693DSM314-BE is designed to occupy a standard Series 90-30 single-slot position. No baseplate modification or additional mounting hardware is required, making it a true drop-in Hardware Upgrade for most existing cabinet configurations. Verify your baseplate slot count and power budget prior to installation.

Q: How does the IC693DSM314-BE communicate with modern servo drives that use EtherCAT or PROFINET?
A: The IC693DSM314-BE uses pulse/direction and CW/CCW signaling rather than fieldbus protocols. For facilities requiring EtherCAT or PROFINET connectivity to new drives, a signal converter or motion gateway device can bridge the IC693DSM314-BE’s outputs to the drive’s network interface — preserving the existing PLC infrastructure while enabling System Migration to modern drive communication standards.

Q: Can I replace an older IC693DSM302 or IC693DSM314 (non-BE revision) with this module without rewriting my motion program?
A: In most cases, yes. The -BE revision maintains functional compatibility with earlier DSM314 variants. Minor parameter adjustments may be required in Proficy Machine Edition to account for firmware revision differences, but the core motion instruction set and axis configuration structure remain consistent, significantly reducing retrofit engineering effort.

Q: What backup part options exist if the IC693DSM314-BE becomes unavailable in the future?
A: For long-term supply chain resilience, we recommend maintaining a strategic spare inventory of IC693DSM314-BE units. As an alternative migration path, GE’s PACSystems RX3i platform offers a modernized motion control architecture with a structured migration toolkit for Series 90-30 users — providing a clear Performance Upgrade trajectory when a full platform transition becomes necessary.

Q: Is the IC693DSM314-BE suitable for use in safety-rated (SIL) applications?
A: The IC693DSM314-BE is a standard motion control module and is not independently SIL-certified. For safety-rated motion applications, a dedicated safety PLC or safety relay must be integrated alongside the IC693DSM314-BE to provide the required protective functions. Our technical team can advise on appropriate safety architecture for your specific retrofit scenario.

Q: What documentation is provided to support the retrofit commissioning process?
A: Each unit is accompanied by the original GE hardware installation manual reference. Our support team can provide supplementary retrofit commissioning checklists, axis parameter templates for common servo drive pairings, and remote configuration assistance to accelerate your deployment timeline.
