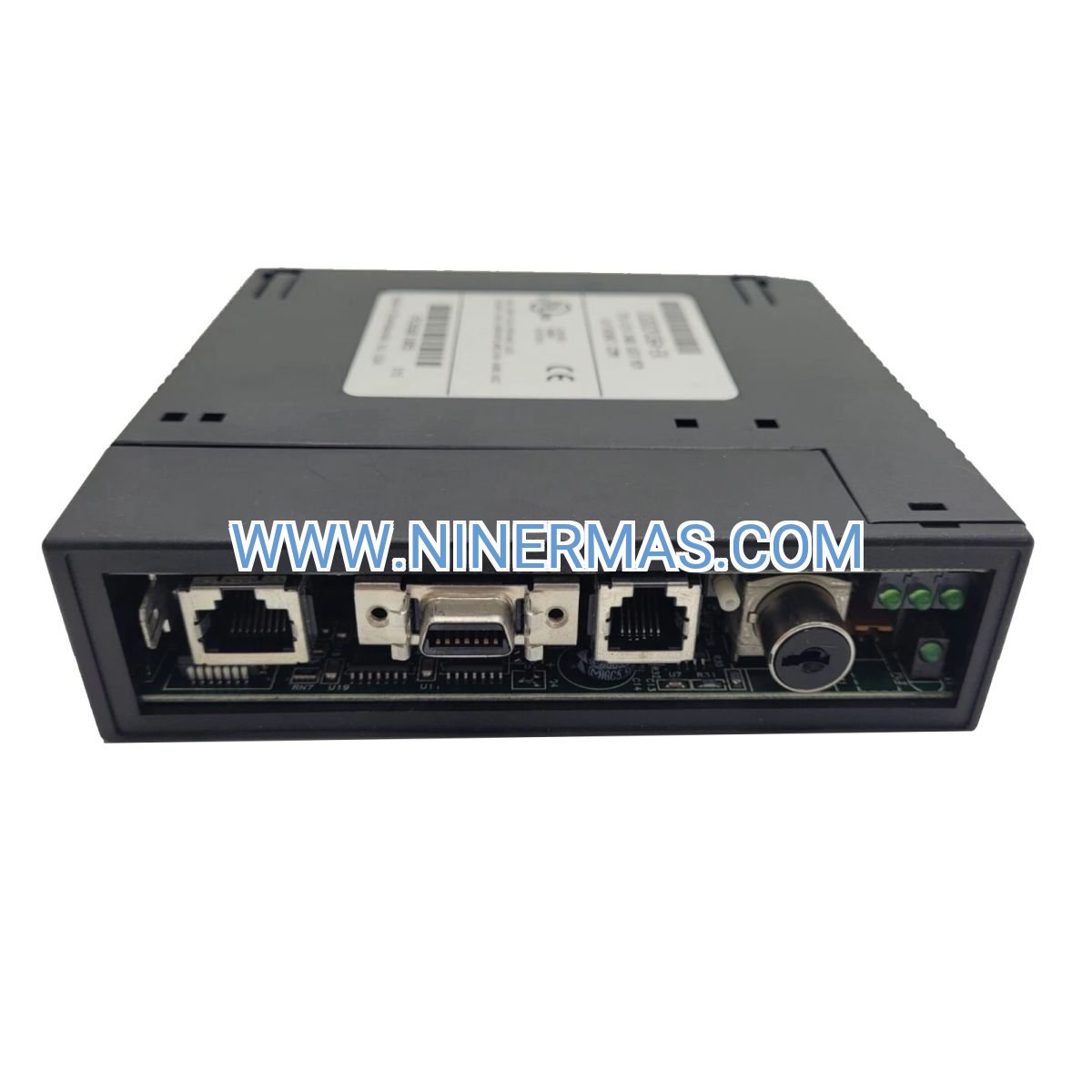

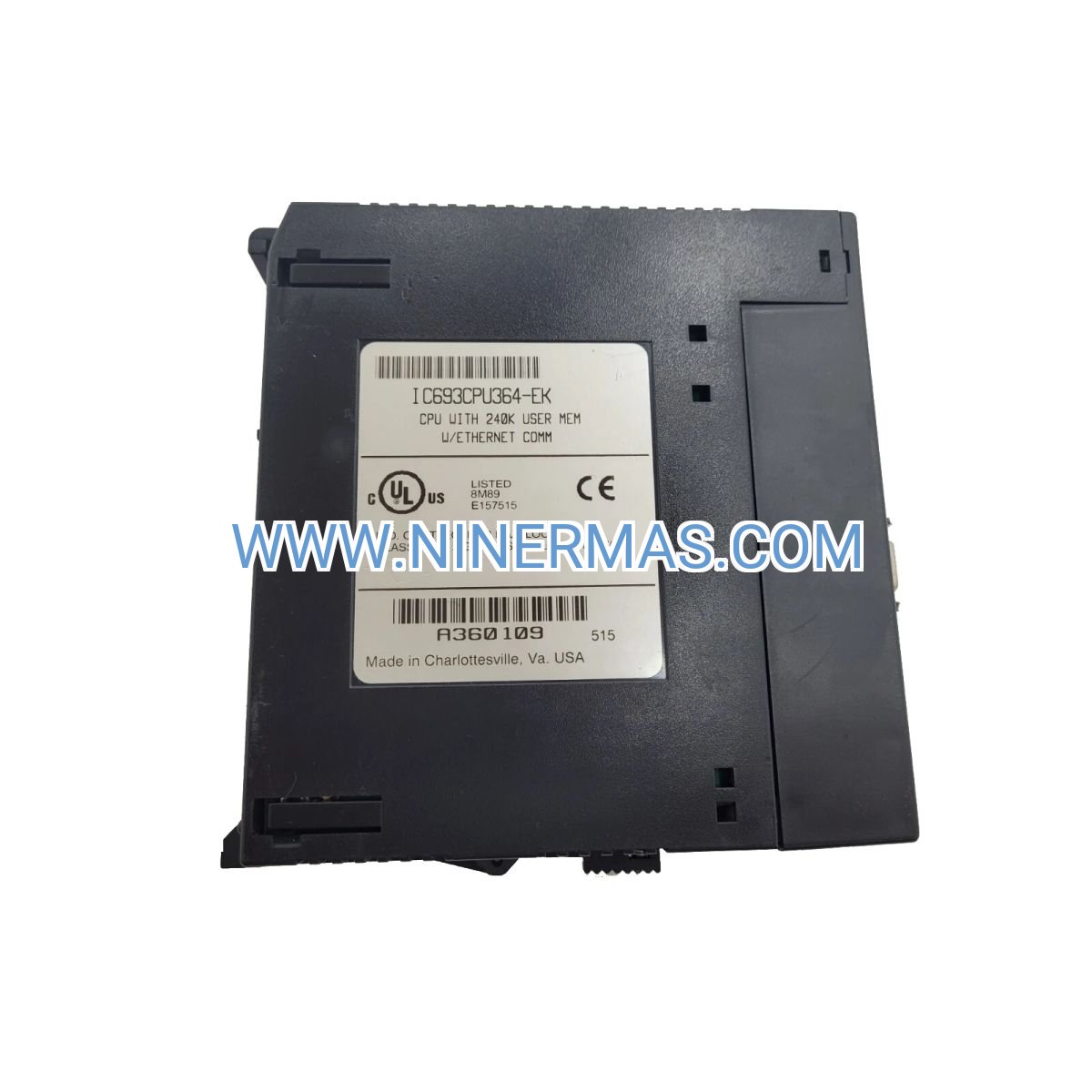

GE IC693CPU364-EK Series 90-30 CPU Module – Industrial-Grade Ethernet PLC Controller

The GE IC693CPU364-EK is an advanced programmable logic controller designed for mission-critical industrial automation environments. Powered by an 80386EX microprocessor with integrated 10/100 Mbps Ethernet connectivity, this Series 90-30 CPU module delivers deterministic control, seamless network integration, and exceptional computational performance for complex manufacturing, process optimization, and infrastructure management applications.

Engineered for high-reliability installations across manufacturing plants, water treatment facilities, and building automation systems, the IC693CPU364-EK addresses common challenges including network latency, limited I/O scalability, inadequate memory for data-intensive applications, and costly downtime from communication failures. With 240 KB of user-programmable memory and support for 2048 discrete or 512 analog I/O points, this controller handles multi-protocol communication, real-time data logging, and sophisticated control algorithms simultaneously.

Through standardized hardware architecture and flexible configuration options, the IC693CPU364-EK offers rapid commissioning, simplified maintenance, and long-term system expandability. Ideal for design engineers, system integrators, OEM manufacturers, and plant maintenance teams seeking proven automation technology. Contact our application engineers for customized system design, technical specifications, and competitive quotations.

Core Capabilities & Technical Advantages

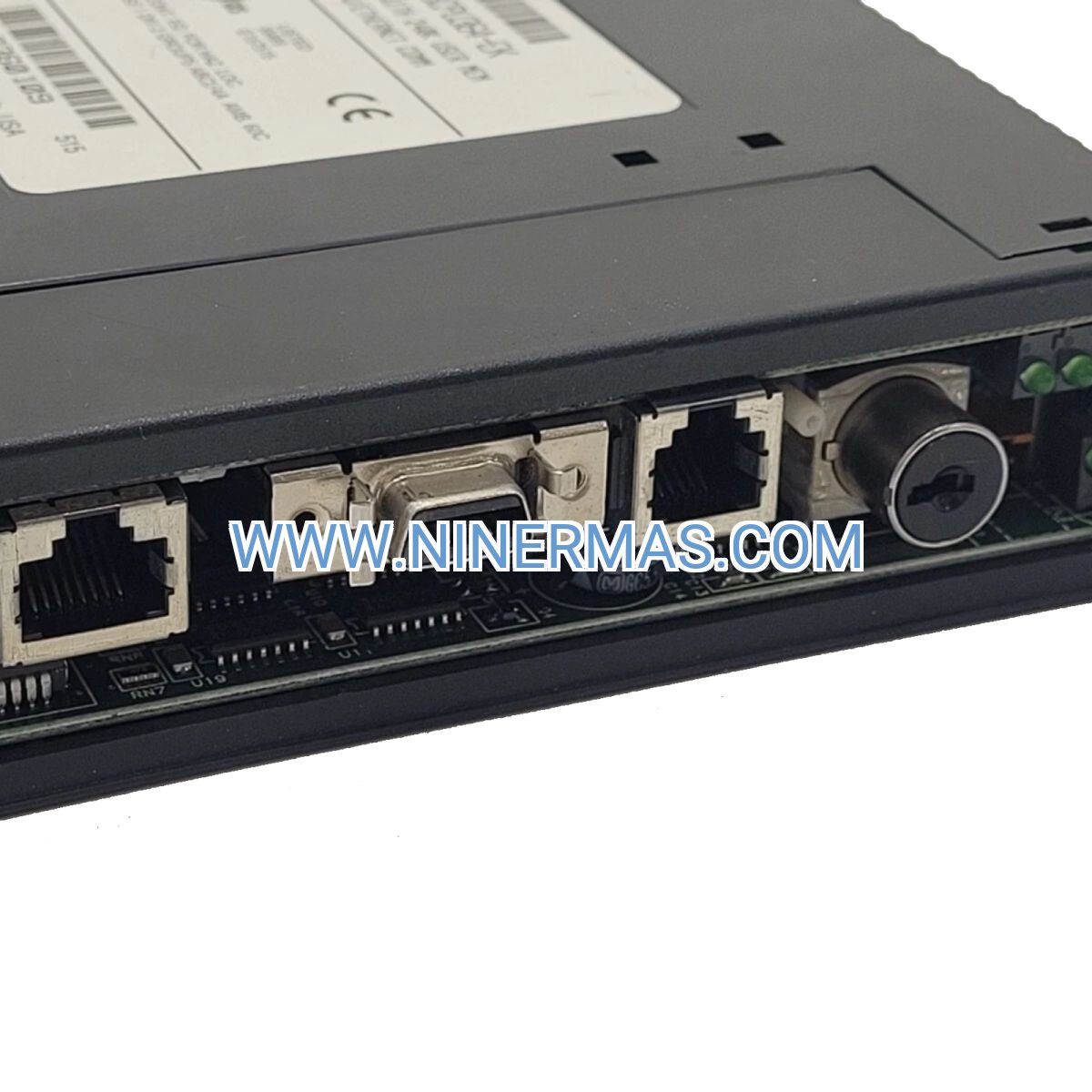

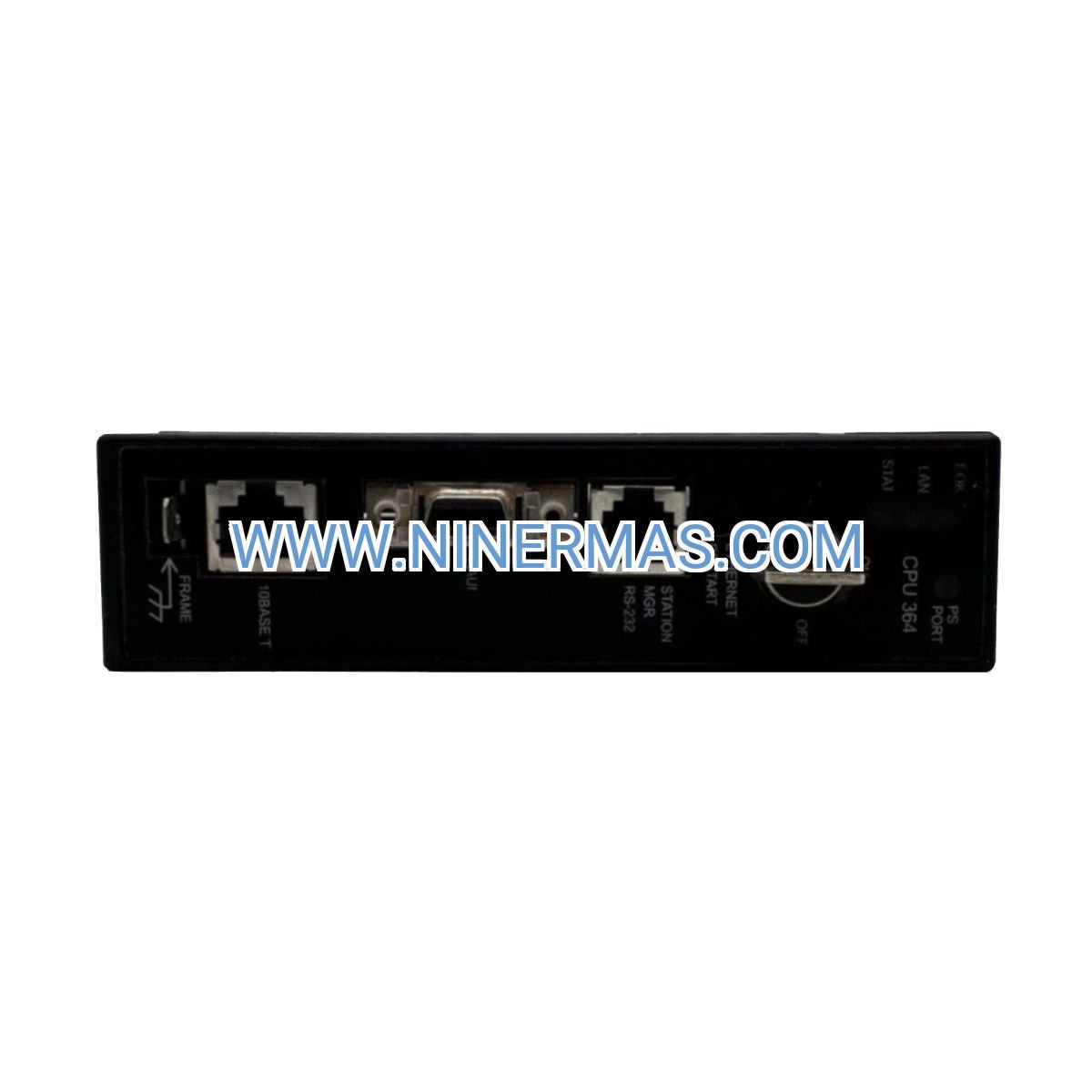

Embedded Ethernet Connectivity
Integrated 10/100 Mbps Ethernet port eliminates external communication adapters, reducing cabinet space requirements and wiring complexity. Supports Ethernet/IP, Modbus TCP, and SRTP protocols for seamless integration with SCADA platforms, HMI terminals, and enterprise MES systems. Enables up to 16 concurrent TCP/IP connections for distributed control architectures.

High-Performance Processing Architecture
Utilizes 80386EX microprocessor delivering 0.22 ms scan time per 1K Boolean operations. Floating-point math coprocessor accelerates PID calculations, recipe management, and statistical process control algorithms. Executes ladder logic, structured text, function blocks, and sequential function charts per IEC 61131-3 programming standards.

Extensive Memory & I/O Capacity
Provides 240 KB user memory for application programs, data tables, and communication buffers. Supports 2048 discrete input/output points or 512 analog channels through modular I/O expansion. Battery-backed RAM ensures program and data retention during power interruptions or maintenance activities.

Hot-Swappable Modular Design
Compatible with entire Series 90-30 I/O family including discrete, analog, specialty, and communication modules. Allows online I/O replacement without halting production processes. DIN rail or panel mounting options accommodate diverse installation environments from compact enclosures to large control cabinets.

Comprehensive Diagnostic Framework
Multi-color LED indicators provide instant visual feedback on CPU status, communication health, and fault conditions. Built-in self-diagnostics monitor power supply voltage, battery condition, memory integrity, and I/O module connectivity. Supports remote troubleshooting via Ethernet interface using GE Proficy Machine Edition software.

Industrial Environmental Resilience
Operates reliably across 0°C to 60°C ambient temperature range with conformal coating protection against moisture, dust, and chemical exposure. UL, CE, CSA, and FM certifications validate compliance with international safety and electromagnetic compatibility standards for hazardous location installations.

Typical Application Scenarios

The IC693CPU364-EK excels in environments demanding high availability, precise control, and network-centric automation strategies:

Discrete Manufacturing & Assembly Automation
Orchestrates multi-station assembly lines, robotic work cells, and material handling conveyors in automotive, electronics, and consumer goods production. Synchronizes motion control sequences with vision inspection systems and barcode tracking. Interfaces with servo drives, pneumatic actuators, and safety relay modules for coordinated machine operation. Ethernet connectivity enables real-time production monitoring, OEE calculation, and predictive maintenance analytics.

Process Industries & Continuous Control
Regulates temperature, pressure, flow, and level parameters in chemical processing, pharmaceutical manufacturing, food & beverage production, and pulp & paper mills. Executes cascade control loops, ratio control strategies, and batch sequencing logic. Integrates with smart transmitters via analog I/O modules for 4-20mA signal conditioning and HART protocol communication. Supports recipe management and audit trail logging for regulatory compliance.

Water & Wastewater Treatment Systems
Manages pump stations, filtration processes, chemical dosing systems, and effluent monitoring in municipal water treatment plants and industrial wastewater facilities. Coordinates variable frequency drives for energy-efficient pump control based on demand patterns. Communicates with remote telemetry units via Modbus TCP for distributed SCADA architectures. Implements alarm prioritization and automatic failover sequences for critical infrastructure protection.

Building Automation & Energy Management
Controls HVAC systems, lighting networks, access control, and fire safety equipment in commercial buildings, hospitals, and data centers. Optimizes chiller sequencing, air handler scheduling, and thermal storage strategies for peak demand reduction. Integrates with BACnet gateways and LON networks through protocol conversion modules. Provides trend logging and energy consumption reporting for sustainability initiatives.

Infrastructure & Utility Monitoring
Supervises electrical substations, natural gas compression stations, and renewable energy installations including solar farms and wind turbine arrays. Acquires data from protective relays, power meters, and environmental sensors. Executes load shedding algorithms and automatic transfer switch logic during grid disturbances. Supports DNP3 and IEC 61850 protocols for utility-grade communication requirements.

Technical Parameters & Selection Guidelines

To facilitate accurate system design and component selection, reference the following specifications:

Selection Considerations for Optimal Performance

When specifying the IC693CPU364-EK for your application, evaluate these critical factors: maximum simultaneous I/O point count (discrete vs. analog ratio), network traffic volume and protocol requirements, program complexity and memory utilization, environmental conditions including temperature extremes and vibration exposure, power supply capacity and redundancy needs, and physical space constraints within control enclosures.

For applications requiring more than 240 KB memory or faster scan times, consider the IC693CPU374 model with 512 KB capacity. If Ethernet connectivity is unnecessary, the IC693CPU363 offers equivalent processing power with serial-only communication. Consult our application engineering team with your system architecture diagram, I/O schedule, communication matrix, and environmental specifications for validated component recommendations and bill of materials.

System Integration & Expansion Modules

Power Supply Compatibility
Pair with IC693PWR321 (10W), IC693PWR330 (30W), or IC693PWR331 (30W high-capacity) power modules based on total I/O load and communication module requirements. Implement redundant power configurations using dual supplies with OR-ing diodes for critical applications.

Discrete I/O Expansion
Connect IC693MDL645 (16-point 24V DC input), IC693MDL330G (16-point relay output), IC693MDL940 (32-point high-density input), or IC693MDL930 (32-point transistor output) modules for sensor interfacing and actuator control. Mix input/output types on single baseplate for flexible wiring.

Analog Signal Processing
Integrate IC693ALG221 (4-channel voltage/current input), IC693ALG391 (4-channel current output), IC693ALG222 (8-channel voltage input), or IC693PTM101 (6-channel RTD/thermocouple) modules for process variable measurement and control valve positioning.

Communication & Networking
Add IC693CMM321 (Ethernet interface), IC693CMM311S (serial coprocessor), IC693BEM331 (bus controller), or IC693DNM200 (DeviceNet master) modules for multi-protocol gateway functionality and fieldbus integration.

Motion & Positioning Control
Deploy IC693APU302P (2-axis positioning), IC693ACC307 (encoder interface), or third-party servo drive modules for coordinated motion applications including pick-and-place, conveyor tracking, and CNC machine tool control.

Specialty Function Modules
Utilize IC693ACC300 (high-speed counter), IC693ACC301 (analog potentiometer simulator), IC693ACC302 (battery pack), or IC693ACC350 (memory expansion) accessories for application-specific requirements.

Frequently Asked Questions

Q: How does the IC693CPU364-EK integrate with existing Series 90-30 installations?
A: This CPU maintains 100% backward compatibility with all Series 90-30 I/O modules, power supplies, and baseplates manufactured since 1990. Simply replace the existing CPU module, download your application program via Ethernet or serial connection, and verify I/O configuration. No hardware modifications required for drop-in upgrades from older CPU models like IC693CPU331 or IC693CPU340.

Q: What programming languages and development tools are supported?
A: The module is programmed using GE Proficy Machine Edition (current platform) or legacy VersaPro software. Both environments support ladder diagram (LD), structured text (ST), function block diagram (FBD), sequential function chart (SFC), and instruction list (IL) per IEC 61131-3 standards. Online editing, forcing, and simulation capabilities accelerate commissioning and troubleshooting.

Q: Can multiple Ethernet devices communicate with the CPU simultaneously?
A: Yes, the embedded Ethernet port supports up to 16 concurrent TCP/IP connections. This enables simultaneous communication with multiple HMI panels, SCADA servers, programming workstations, and peer PLCs on the same network segment. Implement switched Ethernet topology with managed switches for optimal performance in large installations.

Q: Does the controller support remote programming and diagnostics over Ethernet?
A: Absolutely. Configure the CPU's IP address, subnet mask, and gateway settings, then connect from any network-accessible workstation running Proficy Machine Edition. Perform program uploads/downloads, online monitoring, variable forcing, and diagnostic data retrieval without physical access to the control cabinet. Implement VPN tunneling for secure remote access across WAN connections.

Q: What is the expected battery life and replacement procedure?
A: The IC693ACC302 lithium battery provides 5+ years of memory retention under typical operating conditions (25°C ambient, continuous power). Battery status is monitored via CPU diagnostics with low-battery warnings appearing 30-60 days before depletion. Replacement is hot-swappable: remove front cover, disconnect old battery, install new unit, and acknowledge alarm. No program loss occurs during replacement if main power remains applied.

Q: How do I calculate required power supply capacity for my system?
A: Sum the current draw of the CPU module (1.0A @ 5V + 0.5A @ 3.3V) plus all installed I/O modules and communication cards. Add 20% safety margin and select appropriate power supply: IC693PWR321 for systems under 8W total, IC693PWR330 for 8-25W, or IC693PWR331 for 25-30W. For systems exceeding 30W, distribute loads across multiple baseplates with dedicated power modules.

Q: What cybersecurity features protect against unauthorized access?
A: Implement password protection for program uploads/downloads, configure IP address filtering to restrict Ethernet access to authorized devices, disable unused communication ports, and employ network segmentation with industrial firewalls. The CPU supports encrypted communication when paired with compatible SCADA systems. Regular firmware updates address emerging vulnerabilities.

Delivery, Warranty & Technical Support

Inventory & Lead Times
Standard IC693CPU364-EK modules ship from stock within 24-48 hours for orders placed before 3:00 PM local time. Custom-configured systems with pre-installed firmware or tested I/O assemblies require 5-7 business days for quality assurance and documentation preparation. Expedited shipping options available for emergency replacements and critical project deadlines.

Quality Assurance & Testing
Every unit undergoes multi-stage inspection including visual examination for physical damage, firmware version verification, Ethernet connectivity testing, memory diagnostic routines, and I/O communication validation. Modules are shipped in anti-static packaging with protective foam inserts to prevent transit damage. Certificate of conformity and test reports available upon request.

Warranty Coverage
All GE IC693CPU364-EK CPU modules include a comprehensive 12-month warranty covering manufacturing defects, component failures, and firmware issues. Warranty service includes advance replacement shipment (credit card hold required), prepaid return shipping labels, and root cause failure analysis. Extended warranty programs available for mission-critical installations.

Technical Support Services
Our application engineering team provides complimentary pre-sales consultation including system architecture review, I/O point budgeting, network topology design, and software licensing guidance. Post-sales support covers installation assistance, programming troubleshooting, communication protocol configuration, and performance optimization. Remote diagnostic sessions available via screen sharing and VPN connectivity.

Documentation & Resources
Complete technical documentation package includes installation quick-start guide, hardware reference manual, programming software user guide, communication protocol specifications, wiring diagrams, and dimensional drawings in PDF format. Sample ladder logic programs, function block libraries, and HMI screen templates accelerate application development. Access to online knowledge base with troubleshooting flowcharts and firmware update archives.

Request Custom System Design & Quotation

To receive tailored component recommendations, validated system architecture, and competitive pricing for your automation project, please provide the following information to our engineering team:

• Project name and application description (manufacturing process, facility type, control objectives)
• Total I/O point count (discrete inputs/outputs, analog inputs/outputs, specialty modules)
• Communication requirements (Ethernet devices, serial protocols, fieldbus networks)
• Environmental conditions (temperature range, enclosure type, hazardous area classification)
• Power supply specifications (voltage, frequency, redundancy requirements)
• Timeline and budget constraints (project milestones, delivery deadlines, cost targets)

Our team will respond within 24 hours with preliminary system design, bill of materials, pricing quotation, and delivery schedule. For complex applications, we offer on-site consultation, factory acceptance testing, and commissioning support services.
