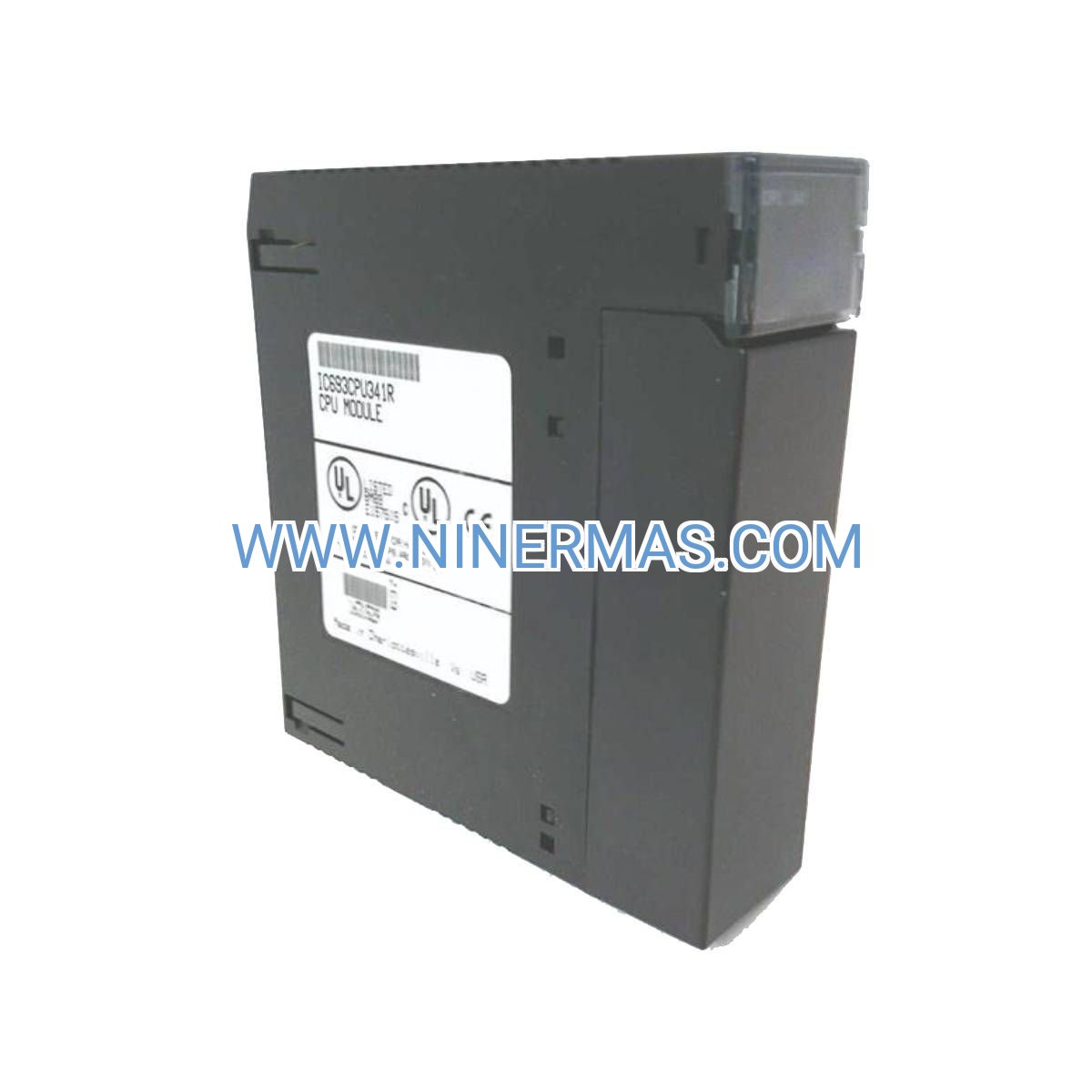

IC693CPU341 CPU Module – Industrial-Grade Control Processor

The IC693CPU341 represents a proven solution for mid-scale industrial automation, combining robust 16MHz processing power with 80KB user memory in a compact Series 90-30 platform. Engineered by General Electric for demanding manufacturing environments, this CPU module delivers deterministic control performance across 512 discrete I/O points while maintaining exceptional reliability in temperature extremes from 0°C to +60°C.

Designed for system integrators and plant engineers managing small to medium-sized control architectures, the IC693CPU341 solves critical challenges in process synchronization, data handling, and real-time decision-making. Whether you're retrofitting legacy systems or building new automation cells, this CPU provides the computational backbone for precise machine control, batch processing, and supervisory operations.

Key advantages include field-proven stability with 80C188XL processor architecture, seamless integration with existing GE I/O families, and straightforward programming via industry-standard ladder logic. The module's RS-485 serial port enables flexible network topologies using SNP/SNPX protocols, while its low 670mA power draw simplifies backplane design and thermal management.

Core Features & Benefits

→ 80KB Total Memory Architecture
32KB dedicated user program space ensures complex logic execution without performance degradation, supporting up to 2,048 ladder rungs for sophisticated control strategies and recipe management.

→ 16MHz 80C188XL Processor
Delivers sub-millisecond scan times for time-critical applications, enabling precise motion control, high-speed counting, and synchronized multi-axis operations with deterministic response.

→ 512 I/O Point Capacity
Balanced 256-input/256-output configuration accommodates diverse sensor arrays and actuator networks, reducing the need for distributed processing in compact installations.

✓ Single RS-485 Communication Port
Native SNP/SNPX protocol support facilitates peer-to-peer messaging, HMI connectivity, and SCADA integration without requiring external gateways or protocol converters.

✓ Industrial Temperature Rating (0°C to +60°C)
Operates reliably in non-climate-controlled enclosures, foundries, and outdoor installations where ambient conditions fluctuate seasonally or during production cycles.

✓ Compact Backplane Integration
Single-slot footprint and 5VDC power requirement (670mA) maximize rack density, allowing more I/O modules per chassis while simplifying power supply sizing.

Typical Application Scenarios

Packaging Line Control
Coordinates filling stations, capping machines, and labeling systems in food & beverage operations. The CPU's 512 I/O capacity handles multiple conveyor zones, product sensors, and reject mechanisms while maintaining FDA-compliant batch traceability through recipe-based programming.

Water Treatment Automation
Manages pump sequencing, chemical dosing, and filtration cycles in municipal and industrial facilities. Real-time analog processing ensures precise pH control and flow balancing, while alarm handling protects equipment from dry-run conditions and overflow events.

Material Handling Systems
Orchestrates sortation conveyors, diverters, and accumulation zones in distribution centers. High-speed discrete I/O processing tracks package positions across merge points and transfer stations, optimizing throughput while preventing collisions.

HVAC Plant Management
Regulates boilers, chillers, and air handling units in commercial buildings. The CPU's memory capacity supports complex scheduling algorithms and demand-based optimization, reducing energy consumption by 15-25% compared to fixed-speed operation.

Assembly Cell Coordination
Synchronizes robotic pick-and-place operations, torque tools, and vision inspection in automotive component manufacturing. Deterministic scan times ensure repeatable cycle performance and quality gate enforcement.

Technical Parameters & Selection Guide

Selection Guidance: Choose the IC693CPU341 when your application requires 200-500 I/O points with moderate processing demands. For systems exceeding 512 I/O or requiring Ethernet connectivity, consider the IC693CPU350 series. If memory-intensive data logging is needed, evaluate models with expanded SRAM or battery-backed retention.

Extended Functions

Advanced Math & Data Handling: Built-in floating-point operations support PID loop calculations, statistical process control, and unit conversions without external function blocks. Array manipulation instructions enable efficient recipe storage and batch reporting.

Diagnostic Capabilities: Onboard fault detection monitors backplane communication, I/O module health, and battery status. LED indicators provide at-a-glance system status, while detailed error logs assist troubleshooting during commissioning and maintenance.

Customization Options: Field-configurable watchdog timers, scan mode selection (normal/constant sweep), and password protection levels adapt the CPU to specific security and performance requirements. Optional battery backup (IC693ACC300) preserves program and data during power interruptions.

Delivery & Service

Lead Time: Standard stock items ship within 2-5 business days. Custom-configured systems with pre-loaded programs require 7-10 business days for testing and documentation.

Warranty: 12-month manufacturer's warranty covering defects in materials and workmanship. Extended coverage plans available for critical infrastructure applications.

Technical Support: Lifetime access to application engineers for programming assistance, troubleshooting guidance, and system optimization recommendations. Remote diagnostic services available via secure VPN connection.

Documentation Package: Includes installation manual, wiring diagrams, programming reference guide, and sample ladder logic for common control patterns. CAD files and 3D models provided for panel layout design.

Frequently Asked Questions

Q: What communication protocols does the IC693CPU341 serial port support?
A: The RS-485 port natively supports SNP (Serial Network Protocol) and SNPX (Extended Serial Network Protocol) for peer-to-peer messaging and HMI connectivity. Third-party gateways enable Modbus RTU and other industrial protocols.

Q: How many analog I/O modules can this CPU handle effectively?
A: The 512-point capacity accommodates approximately 30-40 analog channels (combination of 4-20mA inputs and voltage outputs) when using standard 8-channel or 16-channel analog modules, depending on scan time requirements.

Q: Does the IC693CPU341 offer energy monitoring or power consumption tracking?
A: While the CPU itself draws only 670mA, energy monitoring requires external power meters interfaced via analog inputs or communication modules. The CPU can log and analyze this data for demand-based control strategies.

Q: What are the physical installation requirements for panel mounting?
A: The module mounts on standard GE Series 90-30 backplanes with 35mm DIN rail compatibility. Ensure 50mm clearance above and below for ventilation, and maintain ambient temperatures within the 0-60°C operating range.

Q: Can I integrate this CPU with modern SCADA systems or cloud platforms?
A: Yes, through Ethernet communication modules (IC693CMM302) or protocol gateways that bridge SNP to Modbus TCP, OPC UA, or MQTT for cloud connectivity. This enables remote monitoring and predictive maintenance integration.

Q: How does the IC693CPU341 compare to newer CPU models in terms of programming compatibility?
A: Programs developed for the IC693CPU341 using Proficy Machine Edition or VersaPro software are forward-compatible with higher-performance 90-30 CPUs, allowing seamless upgrades as system requirements grow without complete reprogramming.

Get Started with Industrial-Grade Control

Ready to enhance your automation infrastructure with proven GE technology? Contact our application specialists to discuss your I/O requirements, communication needs, and system architecture. We'll provide tailored recommendations, competitive pricing, and technical documentation to accelerate your project timeline.

Request a quote today or speak with our team at +0086 187 5021 5667 to explore how the IC693CPU341 fits your control strategy.
