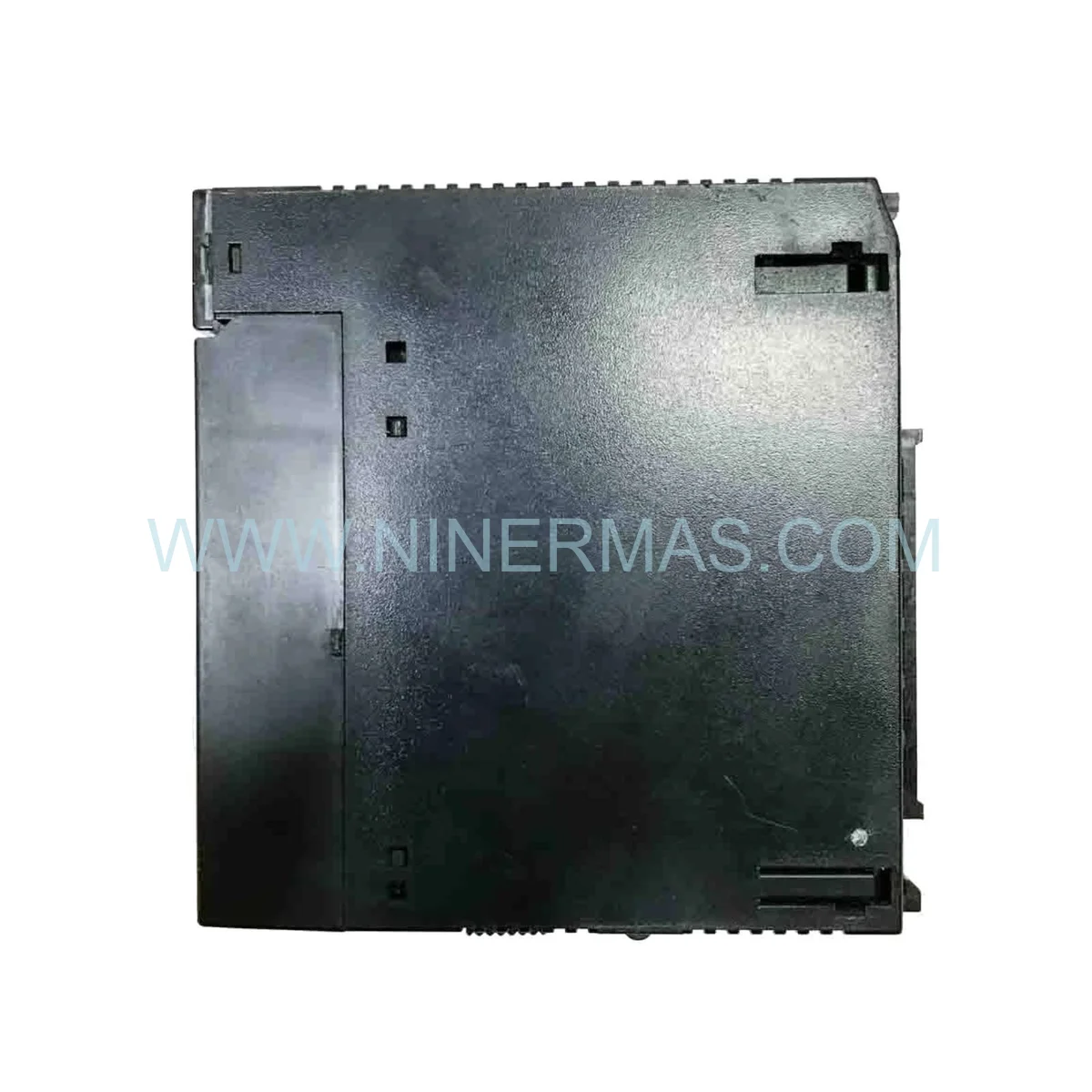

GE IC693CPU331E – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control infrastructure across global manufacturing and power generation facilities, the GE IC693CPU331E stands as a cornerstone component in any Series 90-30 modernization initiative. Whether your objective is to extend the operational lifespan of an aging DCS backbone or to serve as a transitional processing unit during a phased migration to next-generation platforms, the IC693CPU331E delivers the processing headroom and architectural stability that retrofit engineers demand. Its 16MHz processor and 16K user memory provide a reliable performance baseline that keeps legacy lines running without costly full-system overhauls.

One of the most compelling advantages of the IC693CPU331E in a retrofit context is its backward compatibility with the entire Series 90-30 I/O ecosystem. Existing discrete and analog modules, power supplies, and expansion racks slot in without hardware modification — a critical factor when minimizing downtime during live-system upgrades. This native compatibility eliminates the need for costly signal converters or protocol bridges, making it the preferred upgrade path for facilities that cannot afford extended production halts.

From a migration risk and cost perspective, deploying the IC693CPU331E as a like-for-like or performance-enhanced replacement dramatically reduces engineering hours, re-commissioning complexity, and spare-parts inventory overhead. Facilities that adopt this component as part of a structured Hardware Upgrade strategy consistently report faster return-to-production timelines and lower total cost of ownership compared to full platform replacements.

Upgrade Highlights & Compatibility

Drop-In Legacy Compatibility: Fully interoperable with all Series 90-30 I/O modules, baseplates, and power supplies — zero hardware rework required.

✅ Performance Enhancement: 16MHz processing speed with 0.22ms scan time per 1K Boolean logic — a measurable step up from slower legacy CPU variants.

Seamless Integration: Supports Proficy Machine Edition and VersaPro programming environments, preserving existing ladder logic and function block programs.

✅ Future-Proofing via Phased Migration: Acts as a stable bridge CPU during multi-stage system migrations, allowing incremental upgrades without full-line shutdowns.

Expanded I/O Headroom: Handles up to 2048 discrete and 512 analog I/O points — sufficient for most mid-scale retrofit expansions without additional CPU hardware.

✅ Retrofit-Ready Supply: Available as Original & Factory Sealed stock, ensuring firmware integrity and eliminating counterfeit risk in critical upgrade projects.

Modernization Use Cases & Success Stories

DCS Backbone Refresh — Chemical Processing Plant: A regional chemical facility operating a 15-year-old Series 90-30 DCS network faced escalating CPU failure rates. By deploying IC693CPU331E units as direct replacements across 12 control nodes, the engineering team restored system stability within a single planned maintenance window. The 0.22ms scan time improvement over the previous CPU variant reduced loop response latency by 18%, directly improving batch consistency metrics.

Turbine Supervisory Instrumentation (TSI) Upgrade — Power Generation: A combined-cycle power plant integrated IC693CPU331E modules into its TSI architecture to handle expanded vibration and temperature monitoring channels added during a turbine overhaul. The CPU’s 2048-point discrete I/O capacity absorbed the new sensor array without requiring rack expansion, and its Seamless Integration with existing Profibus slave modules preserved the plant’s established SCADA communication topology.

Automotive Assembly Line — Phased Migration Project: An automotive OEM executing a multi-year migration from Series 90-30 to a modern PAC platform used IC693CPU331E as the interim processing unit across 8 assembly stations. This Retrofit Solution allowed production to continue uninterrupted while new control cabinets were built and tested in parallel — a textbook System Migration strategy that avoided an estimated $2.3M in lost production costs.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every IC693CPU331E unit is sourced as genuine OEM hardware, factory sealed and fully tested. Firmware version integrity is preserved, eliminating the compatibility risks associated with refurbished or remarked components — a non-negotiable requirement for safety-critical retrofit deployments.

Expedited Global Logistics: We maintain dedicated inventory buffers for high-demand legacy components to support urgent retrofit timelines. Express shipping to manufacturing hubs across Asia, Europe, and the Americas ensures your project schedule is not held hostage by supply chain delays.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in Series 90-30 architecture, providing pre-shipment configuration consultation, installation guidance, and post-deployment troubleshooting. Whether you are executing a like-for-like swap or a Performance Upgrade involving expanded I/O, our team provides the technical depth that generalist distributors cannot match.

Retrofit FAQ (Upgrade Guide)

Q: Will the IC693CPU331E physically fit into my existing Series 90-30 rack without modification?
A: Yes. The IC693CPU331E is designed to occupy the standard CPU slot in any Series 90-30 baseplate. No mechanical modification, bracket adaptation, or slot reconfiguration is required — it is a direct physical fit for all standard and expanded rack configurations.

Q: Can the IC693CPU331E communicate with newer Ethernet-based SCADA systems during a phased migration?
A: The IC693CPU331E’s native serial programming port can be bridged to Ethernet-based supervisory systems using Series 90-30 compatible Ethernet interface modules. This approach enables Legacy Compatibility with existing field devices while establishing upstream connectivity to modern HMI and SCADA platforms during the transition period.

Q: Is it possible to transfer existing ladder logic programs from an older Series 90-30 CPU to the IC693CPU331E without rewriting?
A: In most cases, yes. Programs developed in VersaPro or Proficy Machine Edition can be uploaded from the existing CPU and downloaded directly to the IC693CPU331E. Minor revision may be required if the source CPU used firmware-specific instructions not supported in this variant — our technical team can perform a pre-migration compatibility audit on request.

Q: What are the recommended spare-part alternatives if IC693CPU331E stock is temporarily unavailable?
A: Within the Series 90-30 CPU family, the IC693CPU340 and IC693CPU341 offer upward-compatible performance profiles with expanded memory. These variants accept the same I/O modules and baseplates, making them viable Retrofit Solution alternatives with minimal re-engineering effort.

Q: How does the IC693CPU331E perform in high-vibration or thermally demanding retrofit environments such as turbine halls or press shops?
A: The module is rated for continuous operation between 0°C and 60°C and is built to IEC industrial vibration and shock standards. For extreme environments, additional thermal management measures such as cabinet cooling units are recommended — our support team can advise on enclosure specifications based on your site conditions.

Q: What documentation is provided to support the retrofit installation and commissioning process?
A: Each unit ships with access to the GE Series 90-30 CPU Reference Manual and Hardware Installation Guide. Our team can additionally provide application-specific wiring diagrams, I/O mapping templates, and commissioning checklists tailored to your retrofit project scope.
