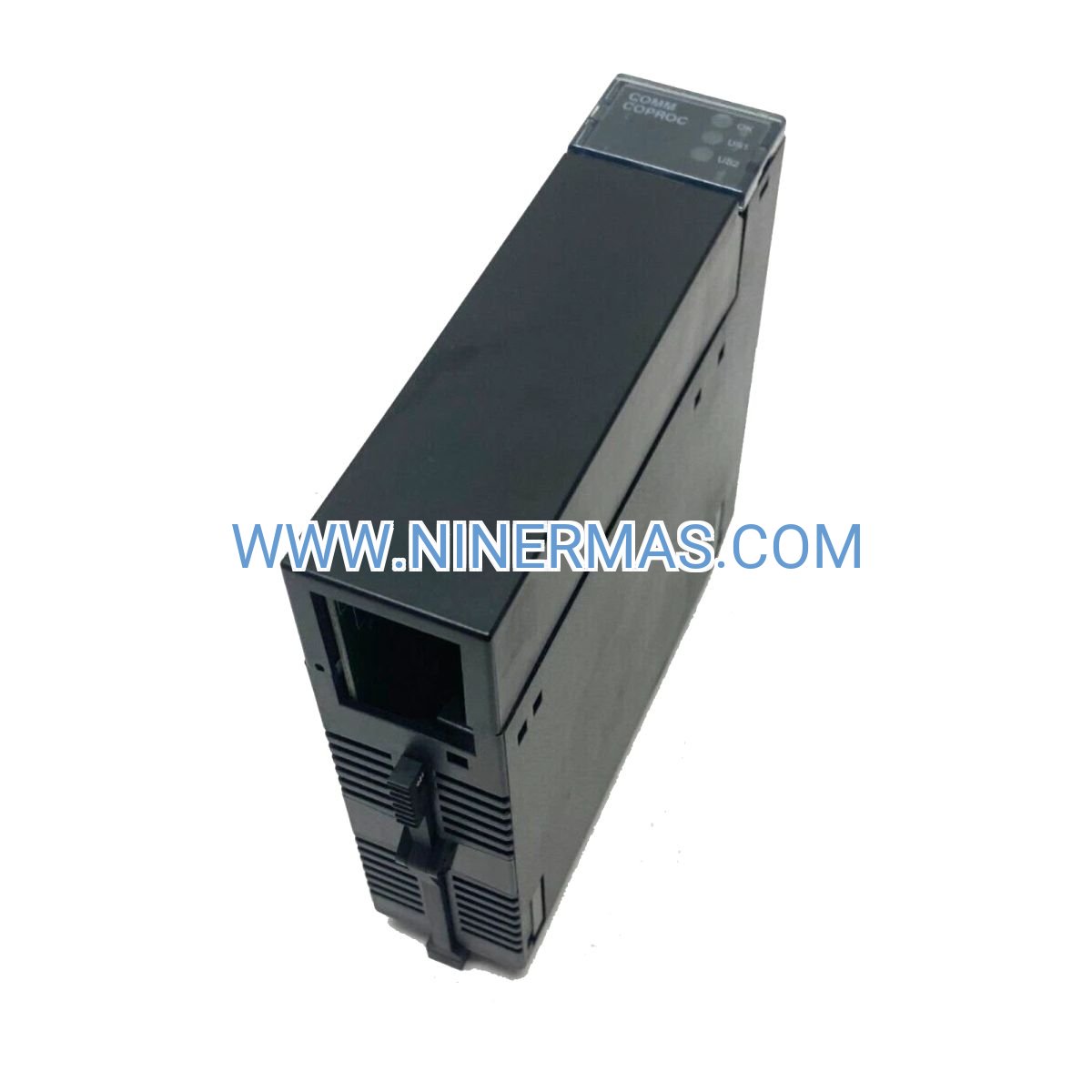

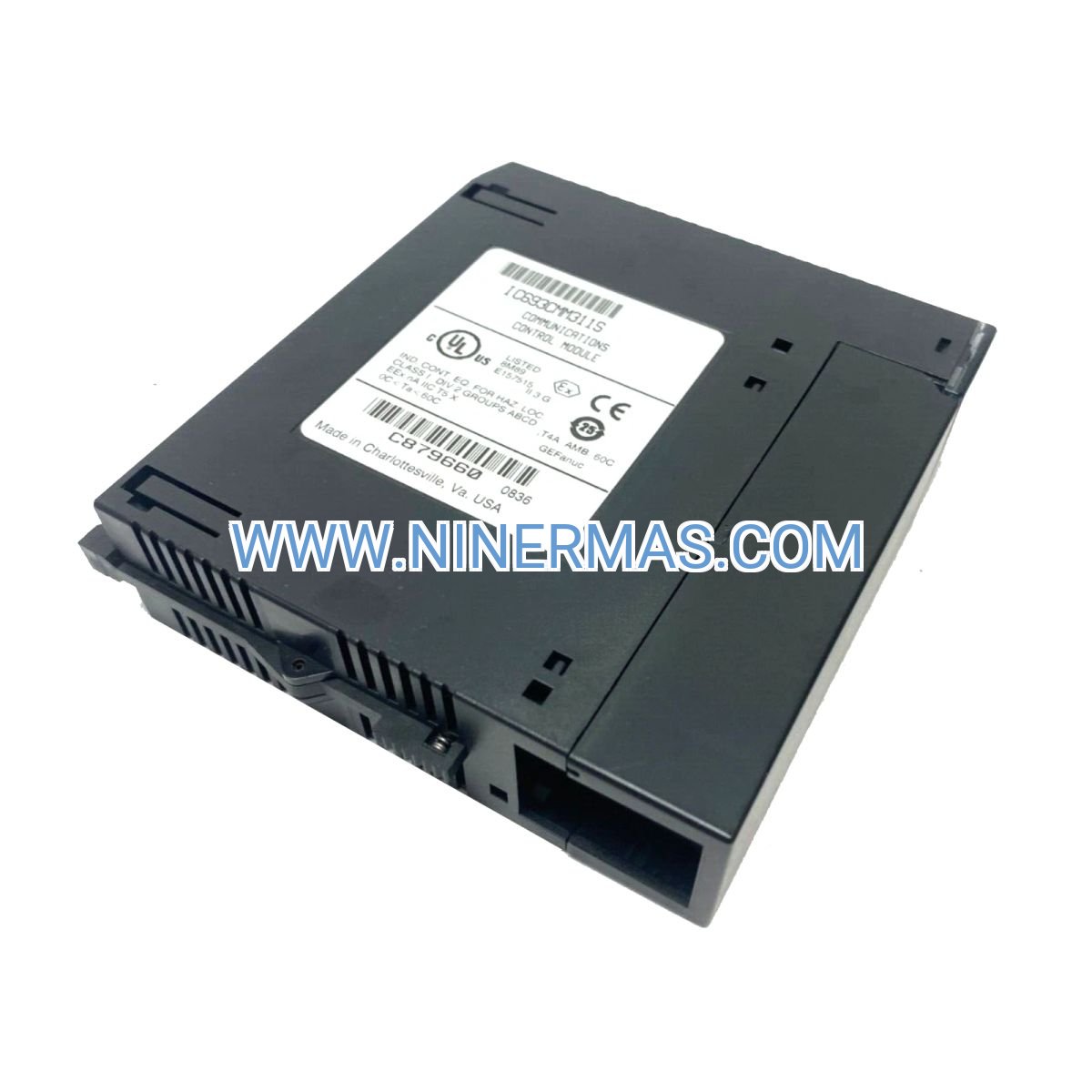

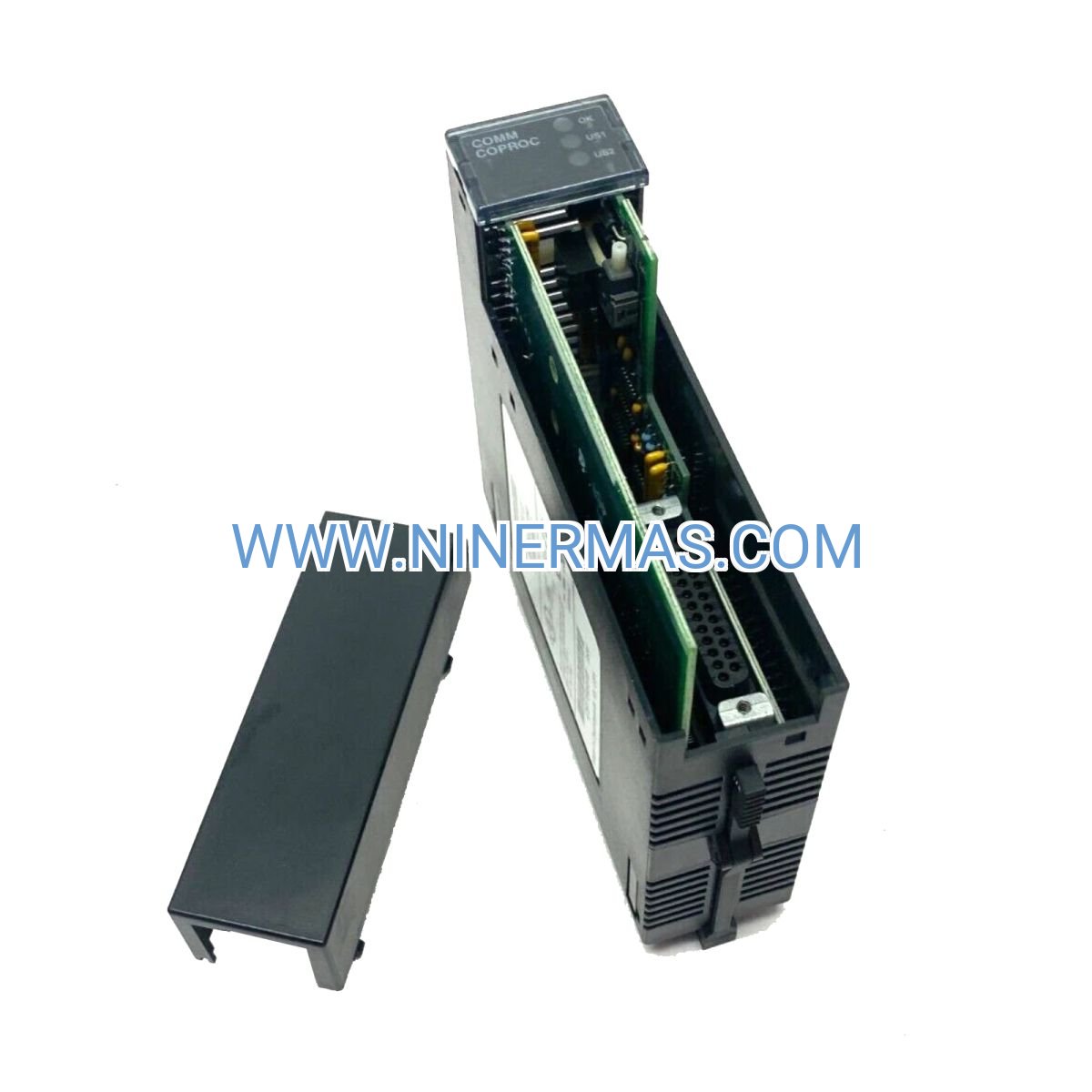

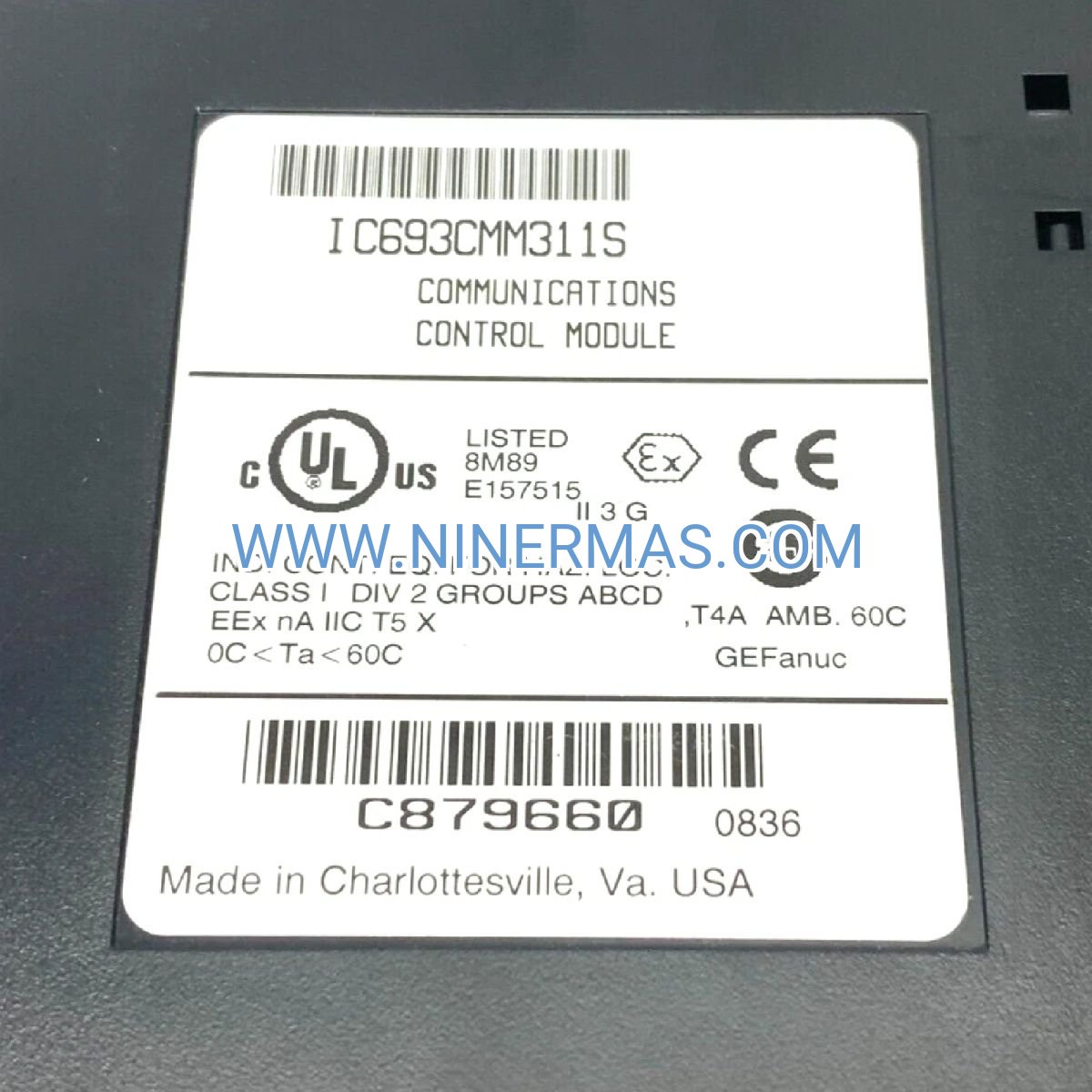

IC693CMM311S Communications Coprocessor Module (Industrial-Grade Serial Gateway for Series 90-30 PLC)

The IC693CMM311S Communications Coprocessor Module is an industrial communication interface designed for GE Series 90-30 programmable logic controller systems. Through dedicated dual-port serial architecture and embedded protocol processing, it enables reliable data exchange between field controllers and supervisory networks, SCADA platforms, HMI terminals, and third-party devices—while offloading communication overhead from the main CPU to preserve control loop performance.

Ideal for manufacturing plants, process industries, water treatment facilities, and distributed control applications where multi-protocol connectivity, real-time data acquisition, and system scalability are critical. This module addresses common challenges including limited CPU communication bandwidth, protocol incompatibility, network congestion, and the need for simultaneous connections to multiple supervisory systems.

Built on proven GE Fanuc technology with standardized form factor and field-replaceable design, the IC693CMM311S offers seamless integration, diagnostic transparency, and long-term availability—making it suitable for design engineers, system integrators, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for configuration guidance, protocol selection assistance, and system architecture recommendations.

Core Functions & Advantages

Dual Independent Serial Ports
Equipped with two configurable RS-232/RS-485 serial interfaces, each port operates independently with separate protocol stacks and baud rate settings. This architecture enables simultaneous connections—such as Port 1 serving an HMI panel while Port 2 streams data to a SCADA historian—without communication conflicts or CPU intervention.

Dedicated Protocol Processing Engine
The onboard coprocessor handles SNP (Serial Network Protocol), SNPX (Extended Serial Network Protocol), and Serial I/O operations autonomously. By managing frame assembly, error checking, and message routing internally, the module reduces main CPU scan time by up to 15-25%, preserving processing capacity for time-critical control logic.

Multi-Device Network Capability
Supports multi-drop RS-485 networks with up to 32 devices per port at distances reaching 1,200 meters. Automatic address recognition and collision detection ensure reliable communication in noisy industrial environments, suitable for distributed sensor networks and remote I/O expansion.

Hot-Swappable Field Replacement

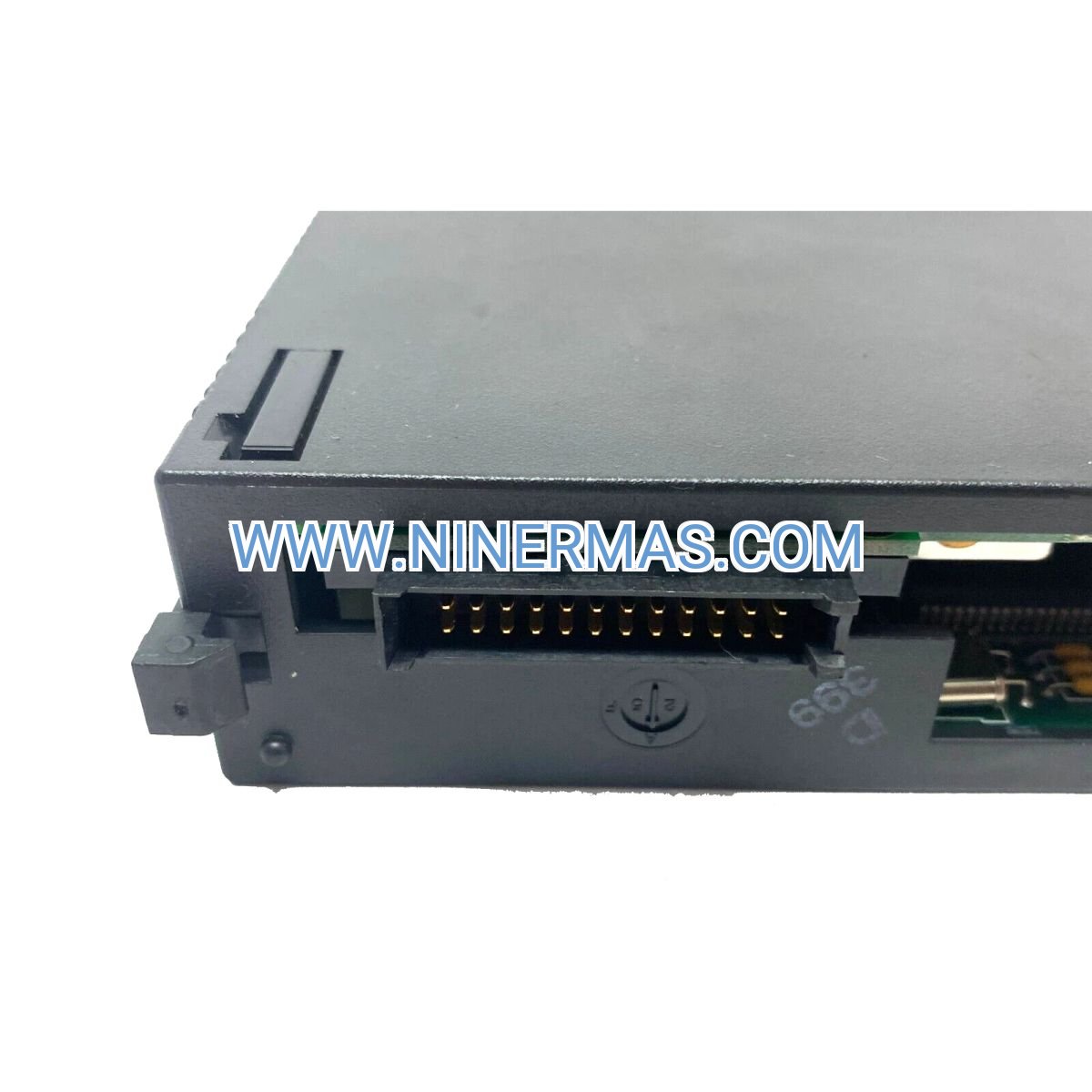

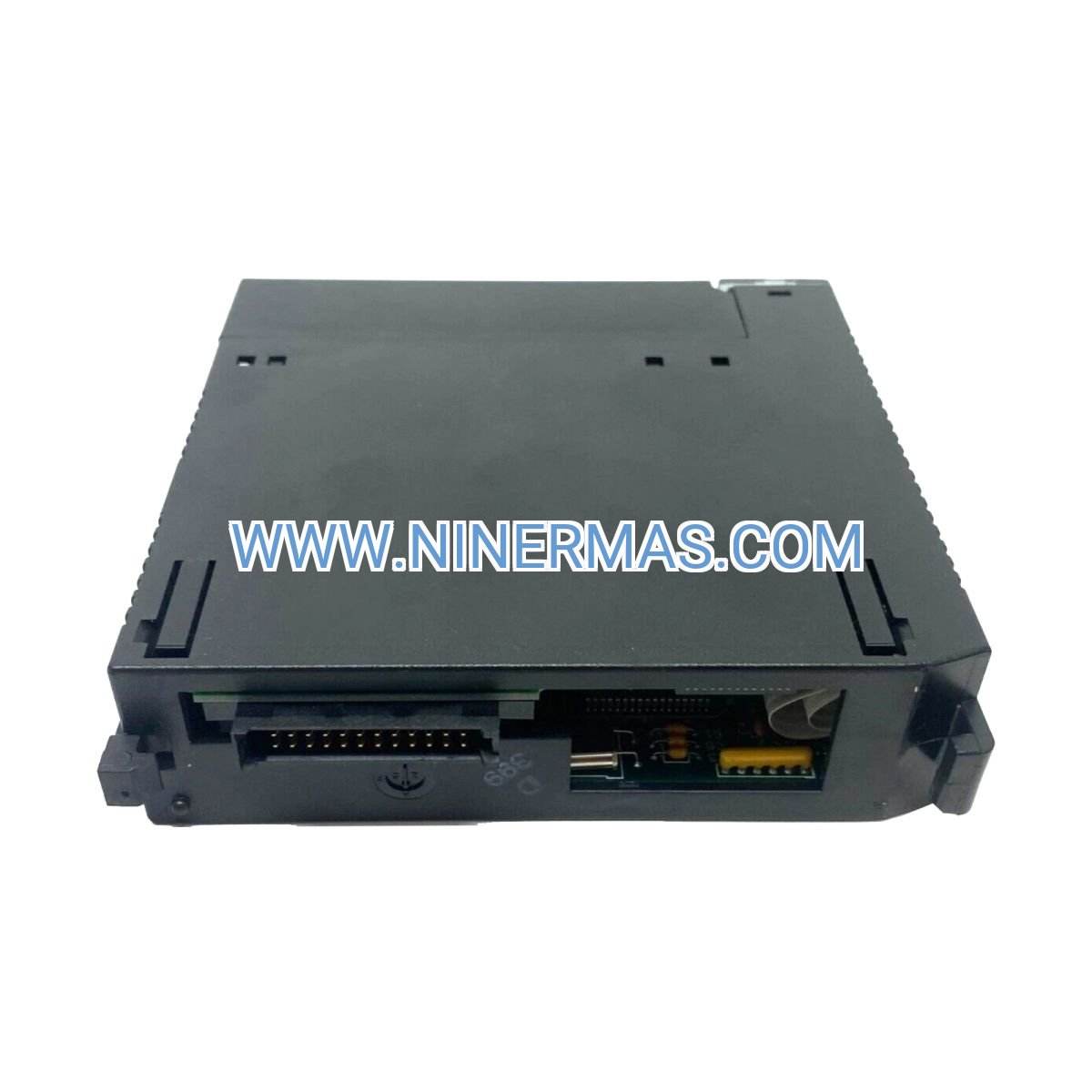

Conforms to Series 90-30 rack standards with keyed backplane connectors and retention clips. Modules can be replaced during system operation without powering down the entire rack, minimizing production interruptions during maintenance or upgrades—critical for 24/7 continuous process operations.

Comprehensive Diagnostic Feedback
Front-panel LED indicators display power status, transmit/receive activity, and fault conditions in real time. Diagnostic registers accessible via programming software provide detailed error codes, message counters, and port status—accelerating troubleshooting and reducing mean time to repair (MTTR).

Industrial Environmental Ratings
Designed for harsh manufacturing environments with operating temperature range of 0°C to 60°C, 5-95% humidity tolerance (non-condensing), and immunity to electrical noise per IEC 61000-4 standards. Conformal-coated circuit boards resist moisture, dust, and chemical exposure common in process industries.

Typical Application Scenarios

This module is engineered for industrial control systems requiring stable serial communication, multi-protocol support, and high availability—particularly in:

Manufacturing Execution System (MES) Integration
Connect Series 90-30 controllers to plant-level MES platforms for real-time production tracking, quality data collection, and equipment effectiveness monitoring. The coprocessor handles continuous polling from MES servers while the CPU maintains production sequencing, reducing communication-induced scan time variations that can affect process synchronization.

SCADA & Remote Monitoring Networks
Establish reliable links between field PLCs and central SCADA systems in water treatment plants, oil & gas facilities, and utility substations. Supports alarm notification, trend data transmission, and remote setpoint adjustment over long-distance RS-485 networks—ideal for geographically distributed assets requiring centralized supervision.

Multi-Vendor Equipment Integration
Bridge GE Series 90-30 systems with third-party instruments, variable frequency drives, barcode scanners, and legacy controllers using standard serial protocols. The module's Serial I/O mode enables custom protocol implementation through ladder logic, accommodating proprietary communication formats without specialized gateways.

Distributed Control Architecture
Build peer-to-peer networks linking multiple Series 90-30 racks for coordinated control across production lines or process units. The SNP/SNPX protocols support master-slave and peer communication topologies, enabling data sharing, synchronized sequencing, and redundant control strategies without requiring dedicated network processors.

HMI & Operator Interface Connectivity
Provide local visualization through touchscreen panels, text displays, or PC-based HMI software. The coprocessor manages screen updates and operator commands independently, ensuring responsive interface performance even during high CPU loading from complex control algorithms or batch recipe execution.

Technical Parameters & Selection Guide

To facilitate system design and component selection, key specifications are summarized below. Custom configurations are available for specialized applications—consult with our engineering team for project-specific requirements.

Selection Considerations
When specifying the IC693CMM311S for your application, evaluate the following factors: required communication protocols (SNP for GE networks, Modbus RTU for third-party devices), number of simultaneous connections needed, maximum network distance and node count, environmental conditions at installation site, and available backplane power budget. For systems requiring Ethernet connectivity, consider pairing with the IC693CMM321 Ethernet Interface Module for hybrid serial-Ethernet architectures. Our application engineers can review your system topology and recommend optimal module placement and configuration settings.

Extended Capabilities

Custom Protocol Implementation
Serial I/O mode provides low-level access to transmit and receive buffers, enabling implementation of proprietary protocols through ladder logic or structured text programming. This flexibility supports integration with legacy equipment, specialized instruments, and custom-built machinery without requiring protocol conversion gateways.

Network Redundancy Support
Deploy multiple coprocessor modules in redundant configurations for high-availability applications. Automatic failover logic can be programmed to switch communication paths upon primary link failure, maintaining supervisory connectivity during network disruptions or module faults.

Data Buffering & Flow Control
Internal message buffers accommodate burst data transmission and compensate for temporary network congestion. Hardware and software flow control (RTS/CTS, XON/XOFF) prevent data loss during high-traffic conditions, ensuring message integrity in demanding industrial environments.

Delivery, Service & Quality Assurance

Standard catalog modules ship from stock within 2-5 business days; custom-configured units or bulk orders typically require 7-14 days lead time. All IC693CMM311S modules include a 12-month manufacturer warranty covering defects in materials and workmanship. Technical support services include pre-sales application consultation, configuration file review, commissioning assistance, and post-installation troubleshooting via phone, email, or remote desktop support (subject to regional availability).

Each module ships with complete technical documentation including installation instructions, wiring diagrams, configuration examples, and programming reference guides. Dimensional drawings and 3D CAD models are available upon request for panel layout design. Our engineering team provides complimentary configuration file templates for common SCADA platforms and HMI software packages to accelerate system integration.

Frequently Asked Questions (FAQ)

Q: How does the IC693CMM311S coprocessor module integrate with existing Series 90-30 PLC systems?
A: The module installs directly into any available slot on a Series 90-30 rack and draws power from the backplane—no external wiring required. Configuration is performed through GE Proficy Machine Edition or Logicmaster 90-30 software using standard configuration blocks. The module appears as a communication interface in the I/O configuration table, with register addresses automatically assigned based on slot position.

Q: What is the maximum number of devices that can be connected to a single coprocessor module?
A: Each RS-485 port supports up to 32 addressable devices in a multi-drop network configuration. For applications requiring more connections, multiple coprocessor modules can be installed in the same rack, or network architecture can be segmented using RS-485 repeaters and hubs to extend node capacity while maintaining signal integrity.

Q: Can this module achieve energy savings compared to alternative communication methods?
A: While the module itself does not directly reduce energy consumption, offloading communication tasks from the main CPU can improve overall system efficiency by 10-20% in communication-intensive applications. Faster CPU scan times enable more responsive control algorithms, potentially reducing process variability and associated energy waste in motor control, HVAC, and fluid handling systems.

Q: What are the environmental requirements for installing the IC693CMM311S module?
A: The module operates reliably in ambient temperatures from 0°C to 60°C with 5-95% relative humidity (non-condensing). Installation enclosures should provide adequate ventilation to prevent heat buildup, especially in racks with high module density. For outdoor or extreme-environment applications, NEMA 4/4X or IP65-rated enclosures with climate control are recommended.

Q: Does the module support remote monitoring and diagnostic data collection?
A: Yes, diagnostic registers accessible via the CPU provide real-time status information including message counts, error rates, buffer utilization, and port configuration. This data can be transmitted to SCADA systems or data historians for trend analysis, predictive maintenance, and network performance optimization. Integration with GE Proficy software enables centralized monitoring across multiple controllers.

Q: Is the IC693CMM311S compatible with Modbus RTU protocol for third-party device integration?
A: Modbus RTU can be implemented using the Serial I/O operating mode, which provides direct access to transmit and receive buffers. Sample ladder logic and function block programs for Modbus master and slave operation are available in the programming manual and through GE technical support. For turnkey Modbus connectivity, consider dedicated Modbus interface modules from the IC693 product family.

Complementary System Components

Optimize your Series 90-30 control system with these compatible modules:

• IC693CPU374 CPU Module – High-performance processor with built-in Ethernet for advanced control applications
• IC693PWR321 Power Supply – 10W backplane power supply for standard rack configurations
• IC693PWR330 High-Capacity Power Supply – 30W supply for expanded I/O and communication module installations
• IC693CMM321 Ethernet Interface Module – TCP/IP connectivity for modern industrial networks and cloud integration
• IC693MDL645 Discrete Input Module – 16-point 24V DC input for field signal acquisition
• IC693ALG221 Analog Input Module – 4-channel voltage/current input for process variable measurement
• IC693ALG391 Analog Output Module – 4-channel current output for valve and drive control

For motion control applications, explore the IC693APU302P Axis Positioning Module; for compact installations, consider the IC693CPU313 5-Slot Embedded CPU Baseplate with integrated processor and I/O.

Contact & Technical Support

For detailed selection assistance, custom configuration support, or technical inquiries, please provide the following information: application description, required communication protocols, number of connected devices, network topology diagram, environmental conditions, and any specific integration requirements. Our application engineers will respond with tailored recommendations, configuration examples, and project quotations within one business day.
