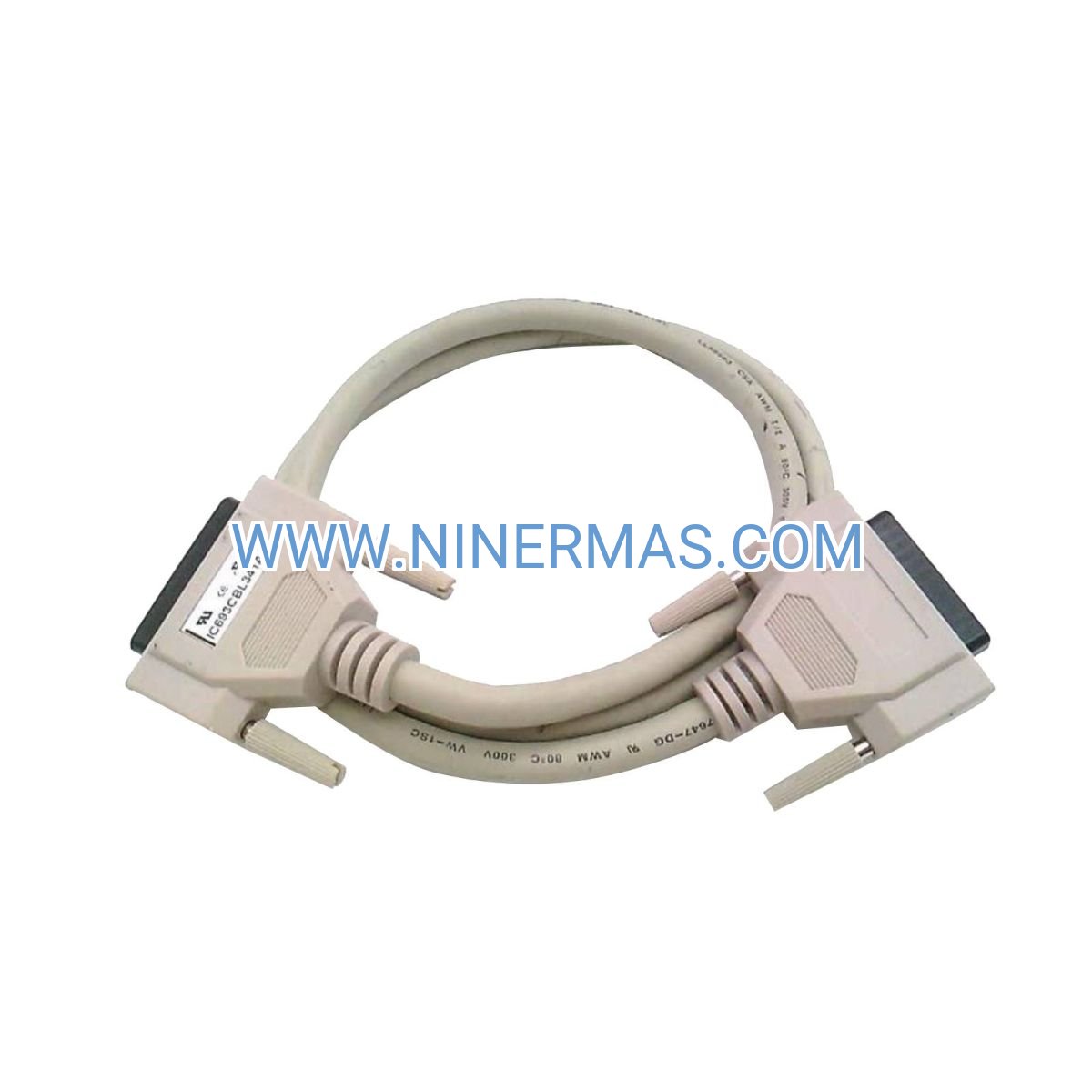

IC693CBL341 Industrial-Grade I/O Expansion Cable for GE Series 90-30 PLC Systems

The IC693CBL341 represents a mission-critical interconnect component engineered to extend I/O capacity across GE Fanuc Series 90-30 programmable logic controller architectures. Designed for industrial environments demanding uncompromising signal integrity, this expansion cable bridges CPU baseplates with remote I/O racks, enabling distributed control topologies that optimize panel real estate while maintaining deterministic communication performance.

Manufacturing facilities, process automation plants, and infrastructure control systems rely on the IC693CBL341 to solve a fundamental challenge: how to position I/O modules near field devices without sacrificing centralized processing power. By decoupling physical I/O placement from CPU location, this cable transforms rigid single-rack configurations into flexible multi-zone architectures that reduce wiring costs, simplify troubleshooting, and accelerate commissioning timelines.

Whether you're retrofitting legacy systems with additional I/O points, designing greenfield installations with distributed control zones, or replacing aging interconnects in critical production lines, the IC693CBL341 delivers the proven reliability that keeps industrial operations running 24/7/365.

Core Capabilities & Business Value

→ Distributed I/O Architecture
Deploy I/O modules across multiple baseplates positioned throughout your control panel or machine enclosure. This spatial flexibility reduces wire run lengths by up to 60%, cutting material costs and installation labor while improving signal quality through shorter analog input paths.

✓ Full-Speed Bus Communication
Maintains native Series 90-30 backplane data rates without introducing latency or throughput degradation. Your distributed I/O responds with the same deterministic timing as locally-mounted modules, preserving critical control loop performance in high-speed packaging, motion control, and batch processing applications.

✓ Industrial Environmental Resilience
Engineered with heavy-duty shielding and ruggedized connectors to withstand continuous vibration, temperature cycling from 0°C to 60°C, and electrical noise from VFDs, welders, and high-current switching devices. UL and CE certifications validate compliance with global industrial safety standards.

✓ Zero-Configuration Integration
Proprietary keyed connectors eliminate wiring errors and polarity reversals. Simply connect cable ends to source and destination baseplates—the Series 90-30 CPU automatically discovers and maps remote I/O during power-up sequencing, reducing commissioning time by hours compared to field-wired alternatives.

✓ EMI/RFI Noise Immunity
Multi-layer shielding architecture rejects electromagnetic interference from adjacent power cables, motor drives, and RF transmitters. This protection ensures clean data transmission even in electrically hostile environments like steel mills, automotive assembly plants, and chemical processing facilities.

✓ Scalable Expansion Economics
Add I/O capacity incrementally without purchasing additional CPU modules or upgrading to larger processor families. A single IC693CBL341 cable can support dozens of additional I/O points at a fraction of the cost of a new PLC rack, maximizing ROI on existing automation investments.

Industrial Application Scenarios

Automotive Assembly Lines
Distribute discrete output modules controlling pneumatic actuators, solenoids, and indicator lights across 15-meter conveyor systems. Position input modules adjacent to proximity sensors and limit switches to minimize noise pickup. The IC693CBL341 enables zone-based control architectures that isolate faults and simplify diagnostics during model changeovers.

Water Treatment Facilities
Separate analog input modules monitoring pH, flow, and level transmitters from high-voltage pump and valve output modules. By placing sensitive measurement circuits on dedicated expansion racks, operators achieve cleaner 4-20mA signals and reduce ground loop interference that can corrupt process data.

Food & Beverage Packaging
Create modular machine control panels where each packaging station has its own I/O baseplate connected via IC693CBL341 cables to a central CPU rack. This architecture supports rapid line reconfiguration, allows technicians to troubleshoot individual zones without shutting down entire lines, and simplifies spare parts inventory management.

Material Handling Systems
Extend I/O across multi-level conveyor networks in warehouses and distribution centers. Mount input modules near barcode scanners and photo eyes on upper mezzanines while keeping CPU and communication modules in ground-level control rooms. The cable's industrial shielding maintains signal integrity despite proximity to VFD-controlled conveyor motors.

Legacy System Upgrades
Add modern I/O capabilities to 15-20 year old Series 90-30 installations without forklift replacements. Integrate new Ethernet-enabled I/O modules, high-resolution analog inputs, or specialty function blocks by simply adding expansion racks connected via IC693CBL341 cables to existing CPU baseplates running proven application code.

Technical Parameters & Selection Guide

Selection Criteria: When planning Series 90-30 expansion architectures, calculate total I/O point count across all racks and verify that your CPU model supports the intended configuration. Consult GE technical documentation for maximum cable length specifications and I/O density limits. For applications requiring longer distances between racks, consider remote I/O solutions using Genius or Profibus network modules instead of direct bus expansion.

Extended Integration Capabilities

Hybrid Local/Remote I/O Topologies
Combine IC693CBL341 bus expansion with network-based remote I/O for ultimate flexibility. Use the cable to connect high-speed discrete I/O racks near the CPU while deploying Genius or Profibus remote drops for distant field devices. This hybrid approach optimizes communication bandwidth and minimizes network loading.

Redundant Power Distribution
When creating multi-rack configurations, equip each expansion baseplate with dedicated power supplies to isolate electrical faults. If one rack experiences a power supply failure, the IC693CBL341 allows the CPU to continue communicating with healthy racks, maintaining partial system operation during component replacement.

Hot-Swap I/O Module Support
Series 90-30 systems with appropriate CPU firmware allow technicians to replace I/O modules on expansion racks without shutting down the entire PLC. The IC693CBL341 maintains bus communication during module extraction and insertion, enabling maintenance activities during production windows.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock IC693CBL341 cables ship within 24-48 hours via express courier services. Most North American and European destinations receive orders within 3-5 business days.

Warranty Coverage: Every cable includes a comprehensive 12-month warranty against manufacturing defects, material failures, and workmanship issues. Warranty service includes advance replacement shipping to minimize downtime.

Technical Support: Our automation specialists provide pre-sales application engineering, installation guidance, and post-sales troubleshooting assistance. Contact our team for cable routing recommendations, system capacity calculations, and compatibility verification.

Documentation Package: Each order includes installation instructions, connector pinout diagrams, and links to GE technical manuals covering Series 90-30 expansion best practices.

Common Implementation Questions

How many expansion racks can I connect using IC693CBL341 cables?
Series 90-30 systems support multiple expansion racks in daisy-chain configurations. The exact number depends on your CPU model, total I/O count, and power budget. Most CPU modules support 3-7 expansion racks. Consult your CPU's technical specifications or contact our engineering team for configuration validation.

What happens if the expansion cable fails during operation?
A cable failure will cause the CPU to lose communication with all I/O modules on downstream expansion racks. The CPU typically enters a fault state and halts outputs for safety. Implementing redundant I/O architectures or keeping spare cables on-site minimizes recovery time.

Can I mix different I/O module types on expansion racks?
Yes, expansion racks connected via IC693CBL341 cables support the full range of Series 90-30 I/O modules including discrete inputs/outputs, analog I/O, specialty modules, and communication interfaces. The only limitation is total power consumption and I/O point count supported by your CPU.

Is special programming required to use expansion racks?
No software configuration is needed. The Series 90-30 CPU automatically detects I/O modules on expansion racks during power-up and assigns them to the I/O address space. Your ladder logic references I/O points using standard addressing regardless of physical rack location.

How do I troubleshoot communication errors on expansion racks?
Start by verifying secure cable connections at both ends—loose connectors are the most common failure mode. Check diagnostic LEDs on the CPU and I/O modules for fault indications. Verify that total I/O count doesn't exceed CPU capacity. Inspect cables for physical damage, especially near bend points and connector strain reliefs.

Can I use IC693CBL341 with other GE PLC platforms?
No, this cable is exclusively designed for Series 90-30 systems. VersaMax platforms require IC200CBL-series cables, while RX3i systems use different expansion mechanisms. Using incompatible cables will result in connection failures and potential equipment damage.

Request Technical Consultation

Designing distributed I/O architectures requires careful consideration of I/O density, power budgets, cable routing, and future expansion needs. Our automation engineers provide complimentary application reviews to help you select the right combination of baseplates, power supplies, I/O modules, and expansion cables for your specific requirements.

Contact us with your project details including I/O point counts, environmental conditions, panel layout constraints, and control objectives. We'll recommend optimized configurations that balance performance, cost, and maintainability.
