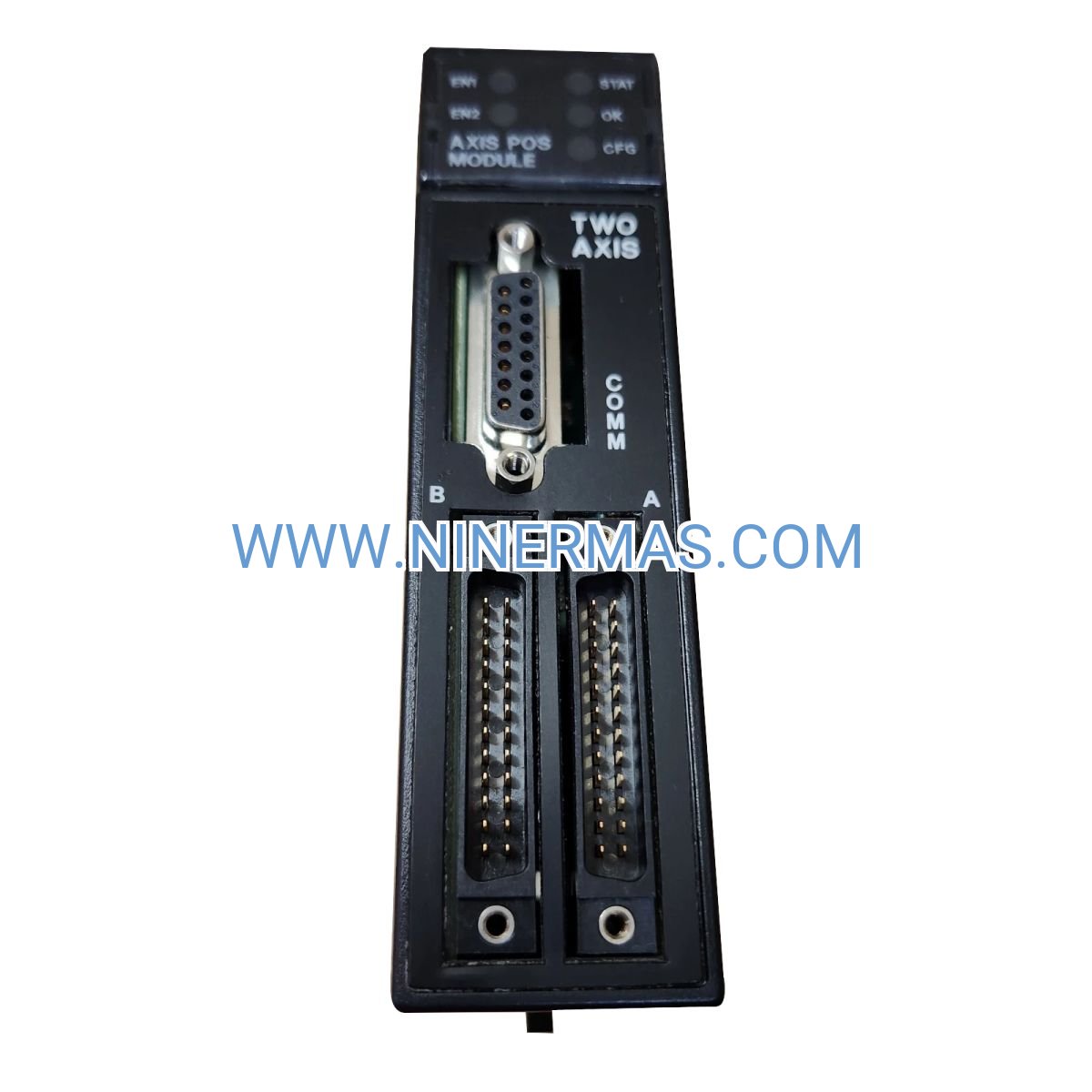

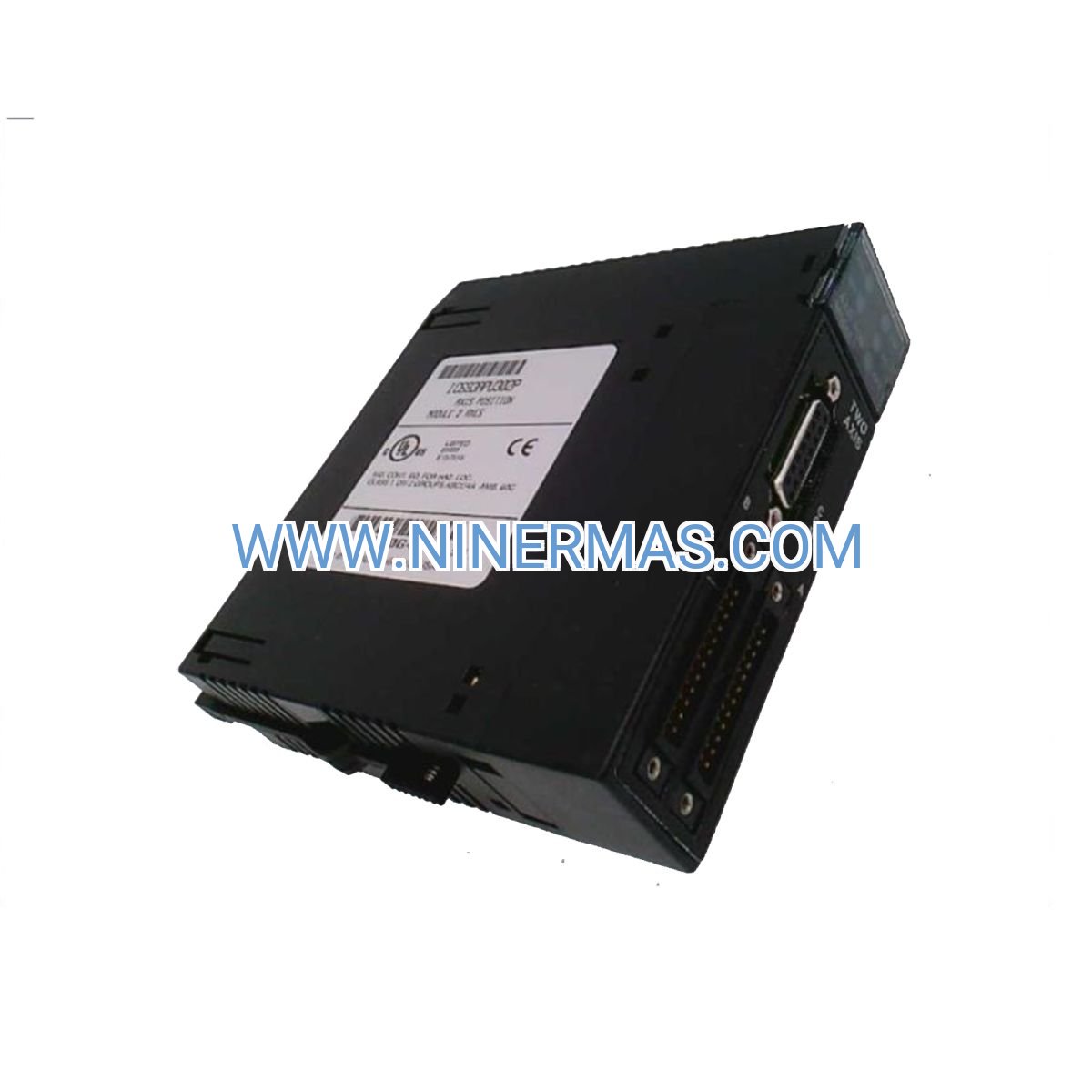

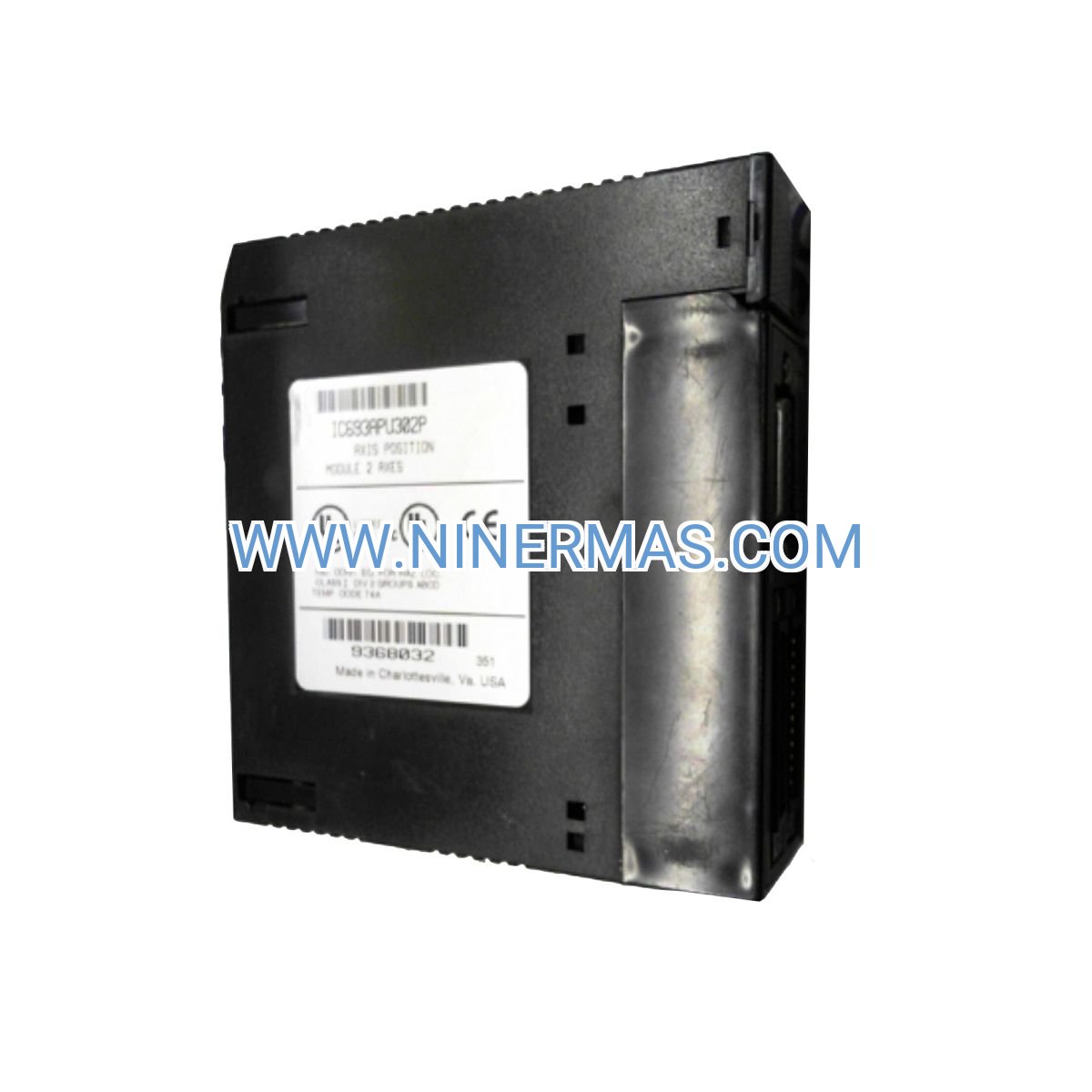

IC693APU302P Dual-Axis Positioning Module – Industrial Motion Control Solution

The IC693APU302P is an industrial-grade dual-axis positioning module (APM) engineered for precision motion control in automated manufacturing environments. Leveraging closed-loop servo control and programmable motion profiles, this module delivers synchronized multi-axis positioning for CNC machining, packaging lines, material handling systems, and robotic assembly applications.

Designed for integration with GE Series 90-30 PLC platforms, the IC693APU302P addresses critical challenges in industrial motion systems: eliminating position drift, reducing cycle time variability, minimizing mechanical wear through optimized acceleration profiles, and enabling real-time synchronization between multiple motion axes. Ideal for design engineers, system integrators, OEM equipment manufacturers, and plant automation teams requiring deterministic motion performance.

Built on proven GE Fanuc architecture with field-tested reliability, this module supports standard point-to-point positioning, electronic gearing (follower mode), and programmable motion sequences. Compatible with industry-standard servo drives and stepper systems, it offers flexible deployment options with comprehensive diagnostic capabilities. Contact our application engineers for system configuration assistance, motion profile optimization, and technical specifications tailored to your automation requirements.

Core Capabilities & Performance Advantages

Precision Dual-Axis Synchronization
Independent control of two motion axes with microsecond-level coordination accuracy. Closed-loop feedback from encoder or resolver inputs ensures position accuracy within ±0.001° or ±1 pulse (configurable resolution), eliminating cumulative positioning errors common in open-loop systems. Ideal for applications requiring coordinated XY gantry motion, pick-and-place operations, or synchronized cutting/welding paths.

Programmable Motion Intelligence
Store up to 10 motion programs directly in module memory, enabling complex multi-segment trajectories without continuous PLC intervention. Supports trapezoidal and S-curve velocity profiles to minimize mechanical shock, extend equipment lifespan, and reduce settling time by up to 40% compared to linear acceleration profiles. Program execution triggered via ladder logic or discrete I/O for seamless integration with production sequencing.

Electronic Gearing & Follower Mode
Implement master-slave axis relationships with configurable gear ratios (1:1 to 1000:1) for applications like web handling, rotary knife cutting, or conveyor synchronization. Follower mode maintains precise phase relationship between axes even during speed changes, ensuring consistent product registration in high-speed packaging and printing operations.

Robust Industrial Protection
Built-in safeguards include over-travel limit monitoring, following error detection (configurable threshold), emergency stop integration, and 1500 VAC field-to-logic isolation to protect control circuitry from electrical noise and ground potential differences. Diagnostic LEDs and status registers provide real-time fault identification, reducing troubleshooting time and unplanned downtime.

Flexible Drive Compatibility
Interfaces with AC servo drives, DC servo amplifiers, and stepper motor controllers via industry-standard pulse/direction or analog ±10V command signals. Configurable I/O mapping accommodates various feedback devices (incremental encoders, absolute encoders, resolvers) and drive enable/fault signals, simplifying integration with existing motion infrastructure.

Seamless PLC Integration
Plugs directly into Series 90-30 baseplate with hot-swap capability (on compatible CPUs), consuming 800mA from 5VDC backplane supply. Accessed via standard %I/%Q addressing in ladder logic or through dedicated motion function blocks in VersaPro/Logic Developer software. No external power supply or special wiring harnesses required for basic operation.

Typical Application Scenarios

This module excels in industrial environments demanding repeatable positioning accuracy, coordinated multi-axis motion, and integration with existing PLC-based control architectures:

CNC Machining & Metal Fabrication
Control XY table positioning for milling, drilling, or plasma cutting operations. Execute complex tool paths with sub-millimeter accuracy while maintaining synchronization with spindle speed and coolant systems via PLC I/O. Supports incremental jogging for manual setup and automatic homing sequences for consistent work coordinate establishment.

Packaging & Material Handling
Drive conveyor positioning systems, pick-and-place gantries, or rotary indexing tables in food processing, pharmaceutical packaging, or electronics assembly lines. Electronic gearing enables precise product registration during label application, filling operations, or quality inspection stations, even at variable line speeds up to 600 PPM (product-dependent).

Automated Assembly & Robotics
Coordinate linear actuators, rotary tables, or SCARA robot axes in automotive component assembly, consumer electronics manufacturing, or medical device production. Programmable motion profiles optimize cycle time while maintaining gentle handling of delicate components, reducing scrap rates and improving first-pass yield.

Textile & Web Processing
Synchronize unwind/rewind tension control, edge guiding systems, or rotary knife cutters in printing, laminating, or converting machinery. Follower mode maintains precise web registration across multiple process zones, minimizing waste and ensuring consistent product quality in continuous web applications.

Test & Measurement Equipment
Position sensors, probes, or test fixtures in automated inspection systems, material testing machines, or calibration benches. Programmable motion sequences enable repeatable test protocols with data logging integration via PLC communication to SCADA or MES systems.

Technical Specifications & Selection Guide

To ensure optimal system performance, review the following specifications and consult with our engineering team regarding your specific motion requirements:

Selection Considerations:
When specifying the IC693APU302P for your application, provide the following parameters to our engineering team for optimal configuration recommendations:

• Motion Requirements: Maximum travel distance, positioning accuracy tolerance, maximum velocity, acceleration/deceleration rates
• Mechanical System: Load inertia, gear ratios, lead screw pitch (for linear axes), friction characteristics
• Motor & Drive: Servo or stepper type, drive model/manufacturer, feedback device specifications (encoder PPR, resolver poles)
• PLC Configuration: CPU model, available backplane slots, existing I/O modules, software version
• Environmental Factors: Ambient temperature range, shock/vibration levels, electrical noise sources, panel enclosure type

Our application engineers can assist with motion profile calculations, drive parameter tuning, and PLC program templates to accelerate commissioning and optimize system performance.

Advanced Configuration Options

Multi-Module Coordination
Deploy up to 8 IC693APU302P modules in a single Series 90-30 system (requires CPU 331 or higher) to control up to 16 independent axes. Coordinate complex multi-axis machines such as 4-axis CNC routers, 6-axis robotic arms, or multi-station assembly systems through synchronized motion programs and inter-module communication via PLC global memory.

Custom Motion Profiles
Utilize Motion Programmer software to develop application-specific velocity profiles, cam tables, or electronic gear ratios. Import CAD-generated tool paths or create parametric motion sequences with conditional branching based on sensor inputs or process variables.

SCADA/HMI Integration
Expose motion status, position feedback, and diagnostic data to operator interfaces via Modbus RTU/TCP, Ethernet/IP, or Profibus-DP gateways. Enable remote monitoring, recipe management, and production data logging for Industry 4.0 compliance and predictive maintenance programs.

Safety System Integration
Interface with safety-rated PLCs (e.g., GE PACSystems RX3i with safety modules) or standalone safety controllers to implement SIL-rated safe motion functions: Safe Torque Off (STO), Safe Stop 1 (SS1), Safely Limited Speed (SLS). Coordinate emergency stop circuits with motion disable outputs for machinery directive compliance.

Delivery, Support & Quality Assurance

Availability & Lead Time
Factory-sealed IC693APU302P modules typically ship within 3–5 business days from our certified distribution center. Custom-configured systems (pre-programmed modules, tested with customer-supplied drives) require 10–15 business days for integration and validation testing. Expedited shipping options available for urgent project requirements.

Warranty & Service Coverage
All modules include a comprehensive 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty plans (24/36 months) available for critical production equipment. Warranty includes advance replacement service to minimize downtime.

Technical Support Services
Complimentary pre-sales application engineering consultation to verify compatibility and optimize system design. Post-purchase support includes remote diagnostics via TeamViewer/AnyDesk, PLC program review, and motion tuning assistance. On-site commissioning services available in major industrial regions (quoted separately based on location and scope).

Documentation Package
Each module ships with complete technical documentation: hardware installation manual, wiring diagrams (9-pin and 24-pin connector pinouts), Motion Programmer software user guide, sample ladder logic programs, and troubleshooting flowcharts. Digital copies provided in PDF format; printed manuals available upon request.

Quality Certifications

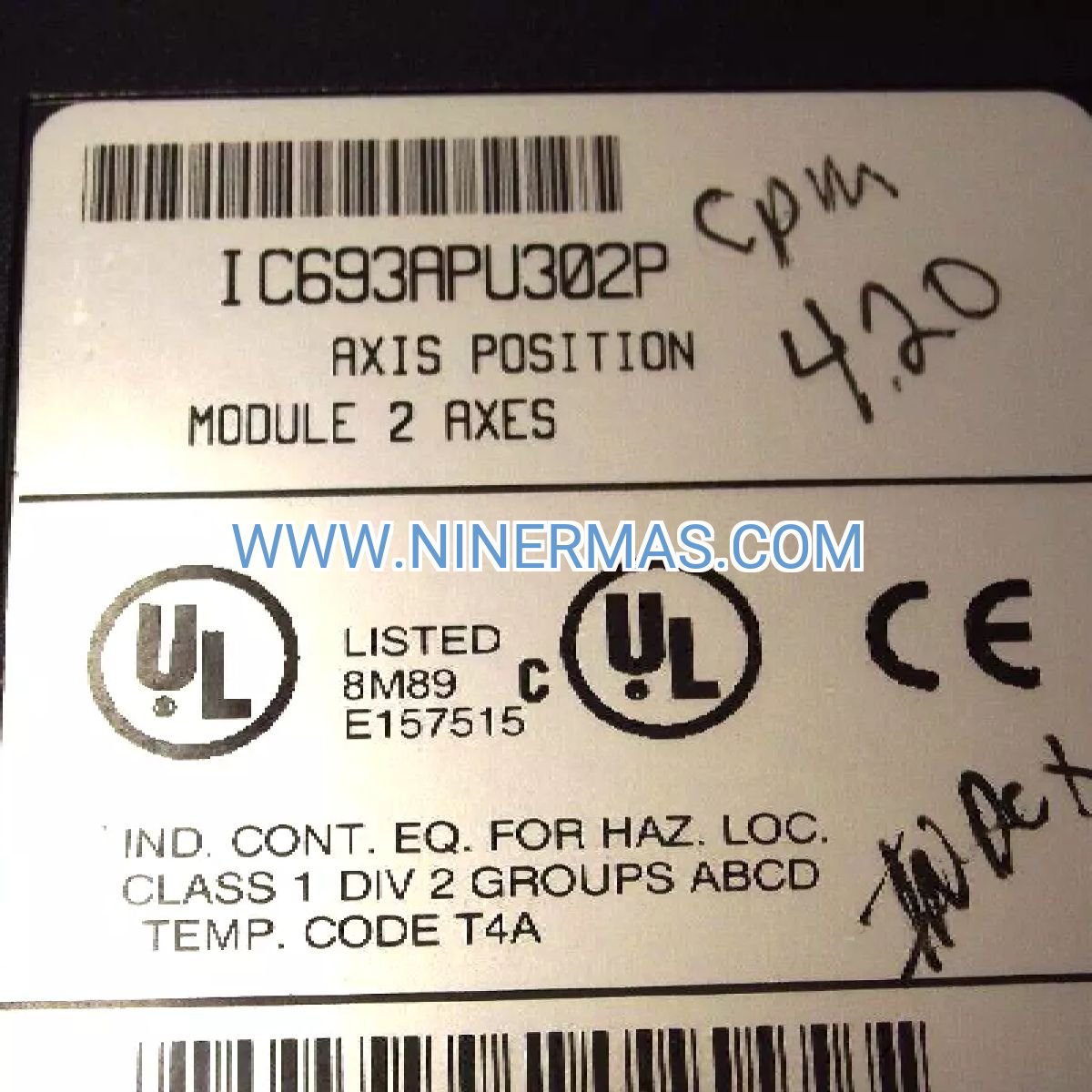

All units undergo factory acceptance testing (FAT) including power-on diagnostics, I/O verification, and motion profile validation. Supplied with Certificate of Conformity (CoC) documenting compliance with CE, UL, and Class I Div 2 standards. Traceability documentation available for aerospace/defense applications requiring serialized component tracking.

Frequently Asked Questions

Q: How does the IC693APU302P integrate with existing Series 90-30 PLC systems?
A: The module plugs directly into any available slot on a Series 90-30 5-slot or 10-slot baseplate. It communicates with the CPU via the backplane bus and is addressed through standard %I (input) and %Q (output) registers in your ladder logic program. Configuration is performed using VersaPro or Logic Developer software with the Motion Programmer add-on utility. No external power supply or special communication cables required—simply install the module, configure axis parameters, and download your motion program.

Q: What is the maximum number of axes I can control in a single PLC system?
A: Each IC693APU302P module controls 2 axes. You can install up to 8 modules in a system equipped with CPU 331 or higher (16 total axes). Physical slot availability depends on your baseplate configuration—maximum 3 APM modules per baseplate due to backplane current limitations. For systems requiring more than 16 axes, consider distributed control architectures using multiple PLC racks with coordinated motion via Ethernet communication.

Q: What level of energy savings or performance improvement can I expect?
A: Performance gains depend on your specific application. Typical benefits include: 20–40% reduction in cycle time through optimized S-curve acceleration profiles (vs. linear ramps), 15–30% decrease in mechanical wear due to reduced shock loading, and improved positioning repeatability (±0.001° vs. ±0.01° for open-loop systems). Energy savings are application-dependent but can reach 10–25% in applications with frequent start/stop cycles, as servo systems consume power proportional to load rather than running continuously at full speed.

Q: What are the environmental requirements for installation?
A: The module operates reliably in ambient temperatures from 0°C to 60°C (32°F to 140°F) and humidity levels up to 95% RH non-condensing. Install in a NEMA 12 or IP54-rated enclosure to protect from dust and moisture. Ensure adequate ventilation—maintain 50mm (2") clearance above and below the PLC rack for convection cooling. For harsh environments (foundries, chemical plants), consider NEMA 4X enclosures with air conditioning or heat exchangers. The module's 1500 VAC isolation protects against electrical noise, but proper grounding and shielded cables are recommended in high-EMI environments.

Q: Can I monitor and control motion remotely or integrate with SCADA systems?
A: Yes. Motion status, position feedback, and diagnostic data are accessible via PLC registers and can be exposed to SCADA/HMI systems through standard industrial protocols. The Series 90-30 CPU supports Ethernet/IP, Modbus TCP, or serial Modbus RTU communication. Use third-party gateways for Profibus-DP or other fieldbus protocols. Remote access is possible via VPN-connected HMI panels or cloud-based SCADA platforms, enabling real-time monitoring, recipe changes, and diagnostic troubleshooting from any location. Ensure cybersecurity best practices (firewalls, authentication) when enabling remote connectivity.

Q: What motor and drive types are compatible with this module?
A: The IC693APU302P interfaces with AC servo drives (pulse/direction or ±10V analog command), DC servo amplifiers, and stepper motor controllers. Compatible with major drive manufacturers including Allen-Bradley Kinetix, Siemens Sinamics, Yaskawa Sigma, Delta ASDA, and Leadshine stepper drives. Feedback compatibility includes incremental encoders (single-ended or differential), absolute encoders (SSI, BiSS), and resolvers (with appropriate signal conditioning). Consult our compatibility matrix or provide your drive model for verification—our engineers can supply pre-tested wiring diagrams and parameter settings for common drive families.

Request Technical Consultation & Quotation

To receive a customized motion control solution proposal, detailed system configuration recommendations, or pricing for the IC693APU302P module and related components, please provide the following information to our application engineering team:

• Project Overview: Application type (CNC, packaging, assembly, etc.), production volume, timeline
• Motion Specifications: Number of axes, travel distances, positioning accuracy requirements, maximum velocity/acceleration
• Mechanical Details: Load mass/inertia, transmission type (belt, screw, rack-pinion), gear ratios
• Existing Equipment: Current PLC model/CPU, motor and drive specifications, feedback devices
• Environmental Conditions: Operating temperature range, enclosure type, electrical noise considerations
• Support Requirements: Programming assistance, commissioning services, training needs

Our engineers will respond within 24 business hours with a comprehensive proposal including component selection, wiring schematics, estimated commissioning time, and total project cost. For urgent inquiries, contact our technical hotline for immediate assistance.
