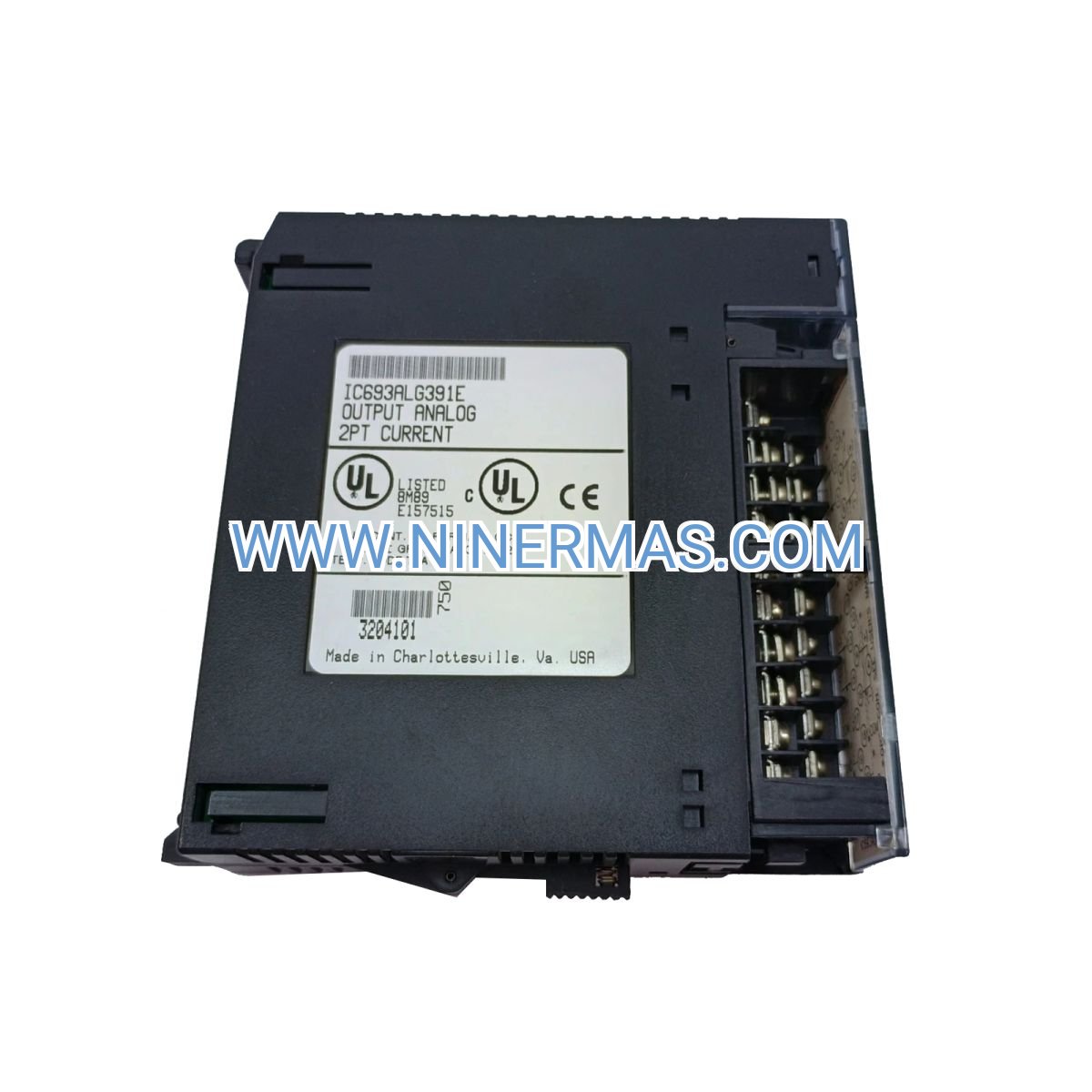

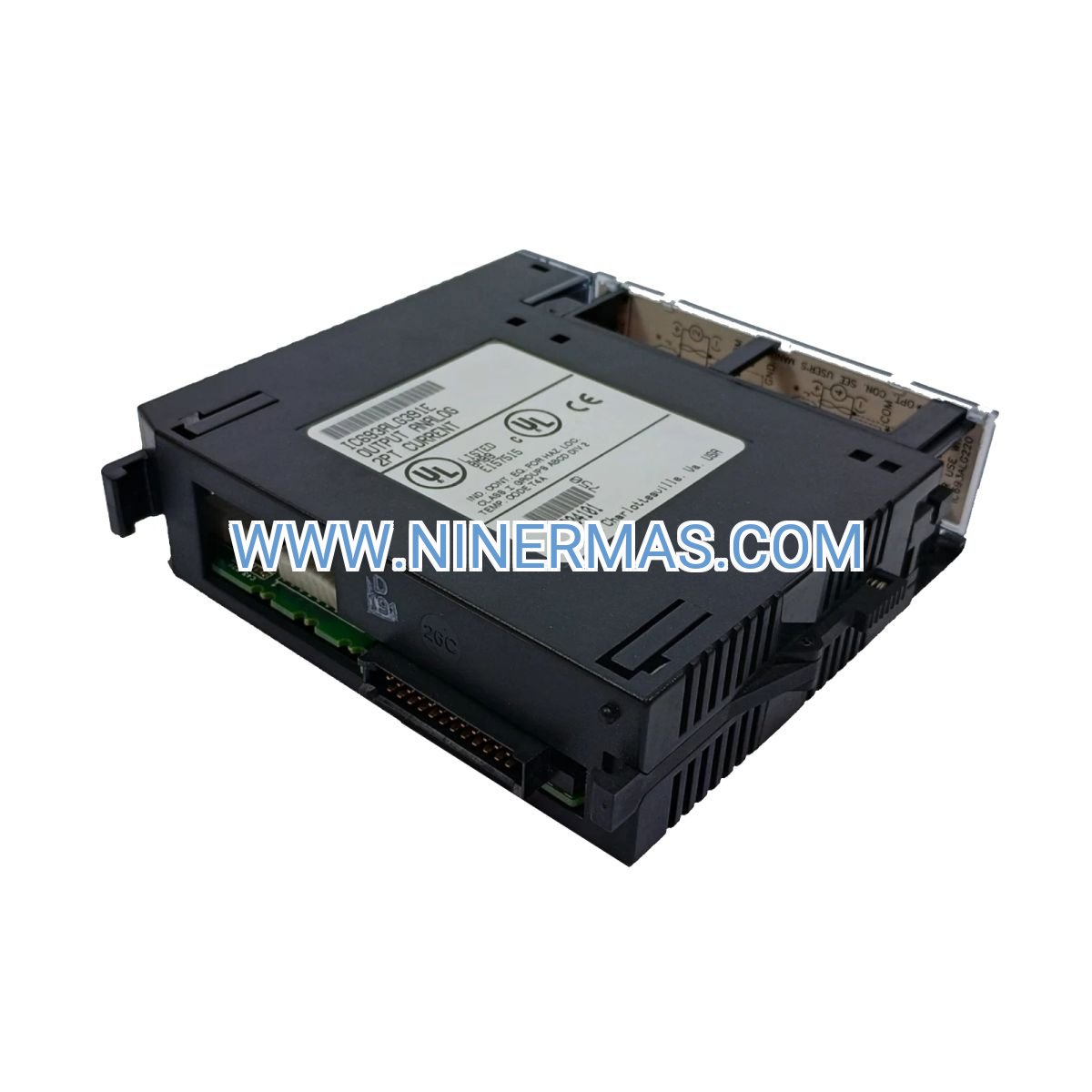

IC693ALG391 Dual-Channel Analog Current Output Module (Industrial-Grade Process Control)

The IC693ALG391 represents a proven solution for industrial current loop control within GE's Series 90-30 automation ecosystem. Engineered for process industries requiring reliable 4-20mA signal transmission, this dual-channel module combines 12-bit conversion accuracy with channel-to-backplane isolation, addressing common challenges in valve positioning, VFD speed control, and proportional actuator management across manufacturing and process environments.

Built to withstand industrial temperature extremes and electrical interference, the IC693ALG391 serves automation engineers seeking dependable analog control in applications where signal integrity over extended cable runs is critical. Whether retrofitting legacy GE 90-30 systems or designing new control architectures, this module provides the foundation for precise process variable manipulation.

Designed for seamless integration with Series 90-30 CPU platforms, the module supports hot-swappable installation and software-driven configuration through Logicmaster or Machine Edition programming environments, minimizing commissioning time while maximizing operational flexibility.

Core Capabilities & Technical Advantages

→ Channel Isolation Architecture
500V channel-to-backplane isolation eliminates ground loop interference and protects sensitive control circuits from electrical transients common in heavy industrial settings, ensuring signal stability in electrically noisy environments.

→ 12-Bit Resolution Precision
Delivers 1-in-4096 granularity for smooth analog control transitions, critical for applications requiring fine-tuned process adjustments such as temperature cascade loops, pressure regulation, and flow proportioning systems.

→ Rapid Signal Update Cycle
10-millisecond per-channel refresh rate enables real-time response to dynamic process conditions, supporting fast-acting control loops in packaging machinery, material handling, and batch processing operations.

✓ Software-Configurable Diagnostics
Built-in fault detection monitors output circuit integrity, loop power status, and over-current conditions, with diagnostic data accessible through PLC programming for predictive maintenance strategies.

✓ Industrial Environmental Resilience
Conformal-coated circuitry and 0-60°C operational range ensure reliable performance in harsh factory floor conditions including humidity, vibration, and temperature cycling typical of process industries.

✓ Hot-Swap Serviceability
Field-replaceable design allows module exchange during system operation without full shutdown, reducing mean time to repair and supporting continuous production requirements.

Industrial Application Scenarios

Chemical & Petrochemical Processing
Control pneumatic control valves and motorized actuators in distillation columns, reactor temperature loops, and blending systems where precise flow and pressure regulation directly impact product quality and safety compliance.

Water & Wastewater Treatment
Manage chemical dosing pumps, pH control systems, and filtration backwash cycles in municipal and industrial treatment facilities, where 4-20mA current loops provide noise-immune signaling over long cable distances between control rooms and field equipment.

HVAC & Building Automation
Interface with variable air volume damper actuators, chilled water valve positioners, and boiler modulation controls in commercial facilities requiring energy-efficient climate management with centralized PLC supervision.

Manufacturing & Material Handling
Drive variable frequency drives controlling conveyor speeds, regulate pneumatic pressure in pick-and-place systems, and position servo-actuated gates in automated warehousing and distribution centers.

Power Generation & Distribution
Provide setpoint signals to generator excitation systems, battery charger current regulation, and renewable energy inverter control in utility-scale and industrial power management applications.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the IC693ALG391 when your application requires current output signaling for noise immunity over long cable runs (up to 1000m). For voltage output requirements (0-10V, ±10V), consider the IC693ALG392B alternative. Verify loop power supply compatibility (10-30V DC) and ensure receiving devices accept standard 4-20mA input impedance (typically 250-500Ω).

Advanced Integration Features

Multi-Module Scalability
Expand analog output capacity by installing multiple IC693ALG391 modules on Series 90-30 chassis configurations. The platform supports mixed I/O architectures combining current output, voltage output, and digital modules for comprehensive process control solutions.

Remote I/O Compatibility
Deploy the module in distributed control architectures using GE's Genius or DeviceNet communication adapters, enabling decentralized analog control while maintaining centralized PLC supervision and data logging.

Customization & Configuration Options
Software-selectable output ranges, alarm thresholds, and failsafe states allow application-specific tuning without hardware modifications. Store configuration parameters in non-volatile memory for automatic restoration after power cycles.

Delivery Timeline & Service Commitment

Standard Delivery: In-stock units ship within 1-2 business days via express courier with tracking. International orders include customs documentation and HS code classification support.

Warranty Coverage: 12-month manufacturer warranty covers defects in materials and workmanship. Extended warranty options available for critical infrastructure applications.

Technical Support: Pre-sales application engineering assistance, post-sales configuration guidance, and troubleshooting support provided by GE-certified automation specialists. Comprehensive product documentation, wiring diagrams, and programming examples included.

Quality Assurance: All modules undergo factory testing and calibration verification. Certificate of conformity and traceability documentation available upon request for regulated industries.

Frequently Asked Questions

How does the IC693ALG391 current output module differ from voltage output alternatives?
Current loop outputs (4-20mA) provide superior noise immunity and support cable runs exceeding 1000 meters without signal degradation, making them ideal for distributed process control. Voltage outputs suit short-distance, high-impedance applications. The IC693ALG391's current output eliminates voltage drop concerns inherent in long-distance voltage signaling.

What Series 90-30 CPU models support the IC693ALG391 analog output module?
The module integrates with all Series 90-30 CPU platforms including IC693CPU331, IC693CPU352, IC693CPU360, and IC693CPU374 models. Verify available I/O slot capacity and backplane power budget (3.5W per module) when planning system expansion.

Can I replace the IC693ALG391 module during system operation without causing process disruption?
Yes, the module supports hot-swap replacement when proper procedures are followed. The PLC maintains control of other I/O while the module is exchanged, though the two affected output channels will enter failsafe state during replacement. Configure failsafe output values in your control program to ensure safe process conditions during maintenance.

What maximum cable distance is achievable with 4-20mA current loop outputs?
Properly shielded twisted-pair cable supports reliable transmission beyond 1000 meters (3280 feet) when loop power supply voltage and receiver impedance are correctly matched. This extended range capability makes current loops the preferred choice for distributed control systems spanning large facilities.

Does the IC693ALG391 require external loop power supplies for operation?
Yes, each output channel requires an external DC power supply (10-30V) to drive the current loop circuit. The module does not provide loop power internally. Size the power supply based on total loop resistance and number of devices in series (typically 24V DC supplies are standard).

How do I calibrate the analog output channels for optimal accuracy?
Calibration is performed through Logicmaster 90-30 or Machine Edition software using built-in calibration routines that adjust digital-to-analog conversion parameters. No physical potentiometer adjustments are required. Factory calibration typically maintains ±0.25% accuracy without field recalibration for the module's operational lifetime.

Take the Next Step in Process Control Optimization

Enhance your Series 90-30 automation system with proven analog output technology. Whether you're upgrading legacy installations or engineering new control solutions, the IC693ALG391 delivers the reliability and precision your operations demand.

Contact our automation specialists today: Receive application-specific recommendations, system integration guidance, and competitive pricing for single-unit purchases or volume deployments. Our team provides technical consultation to ensure optimal module selection for your unique process control requirements.
