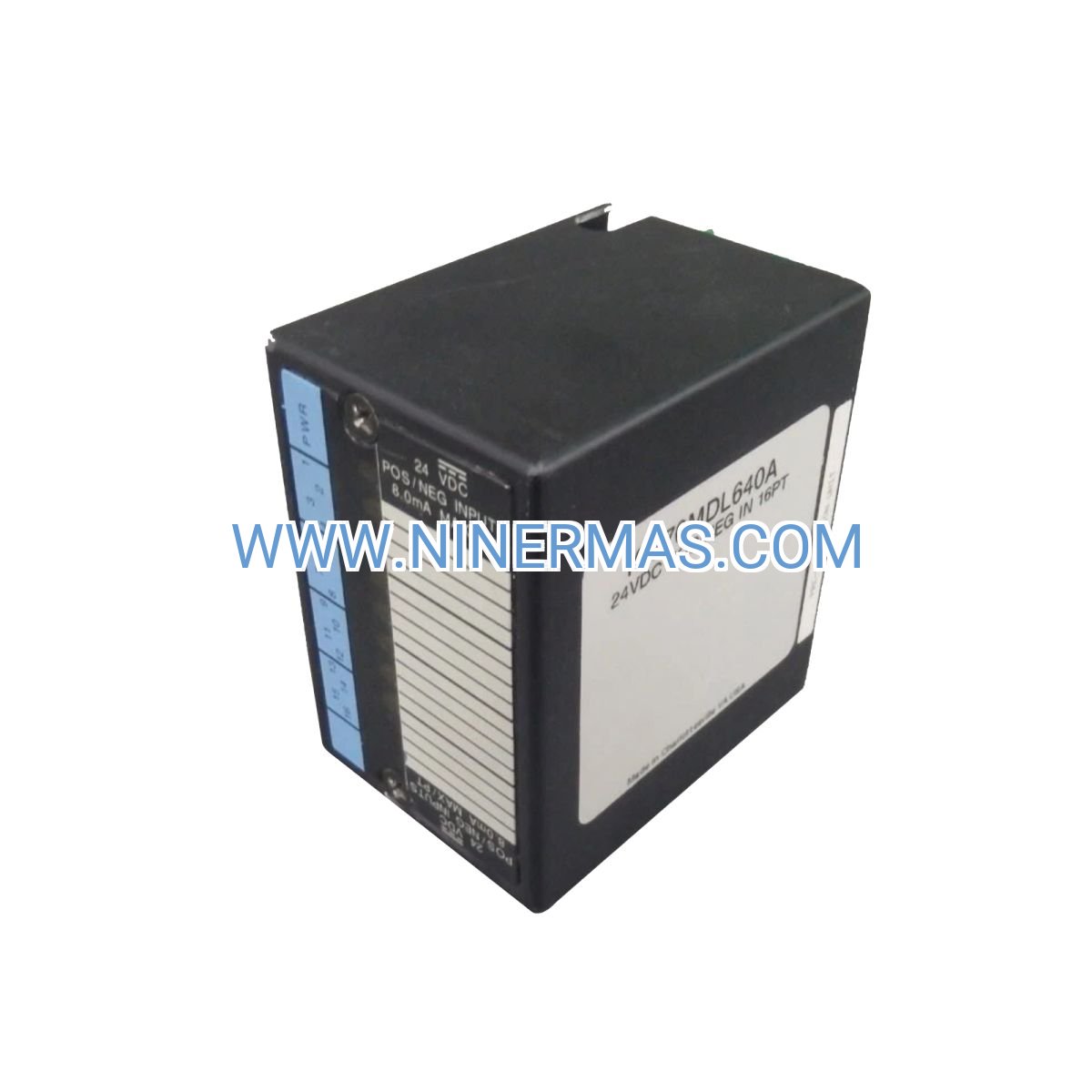

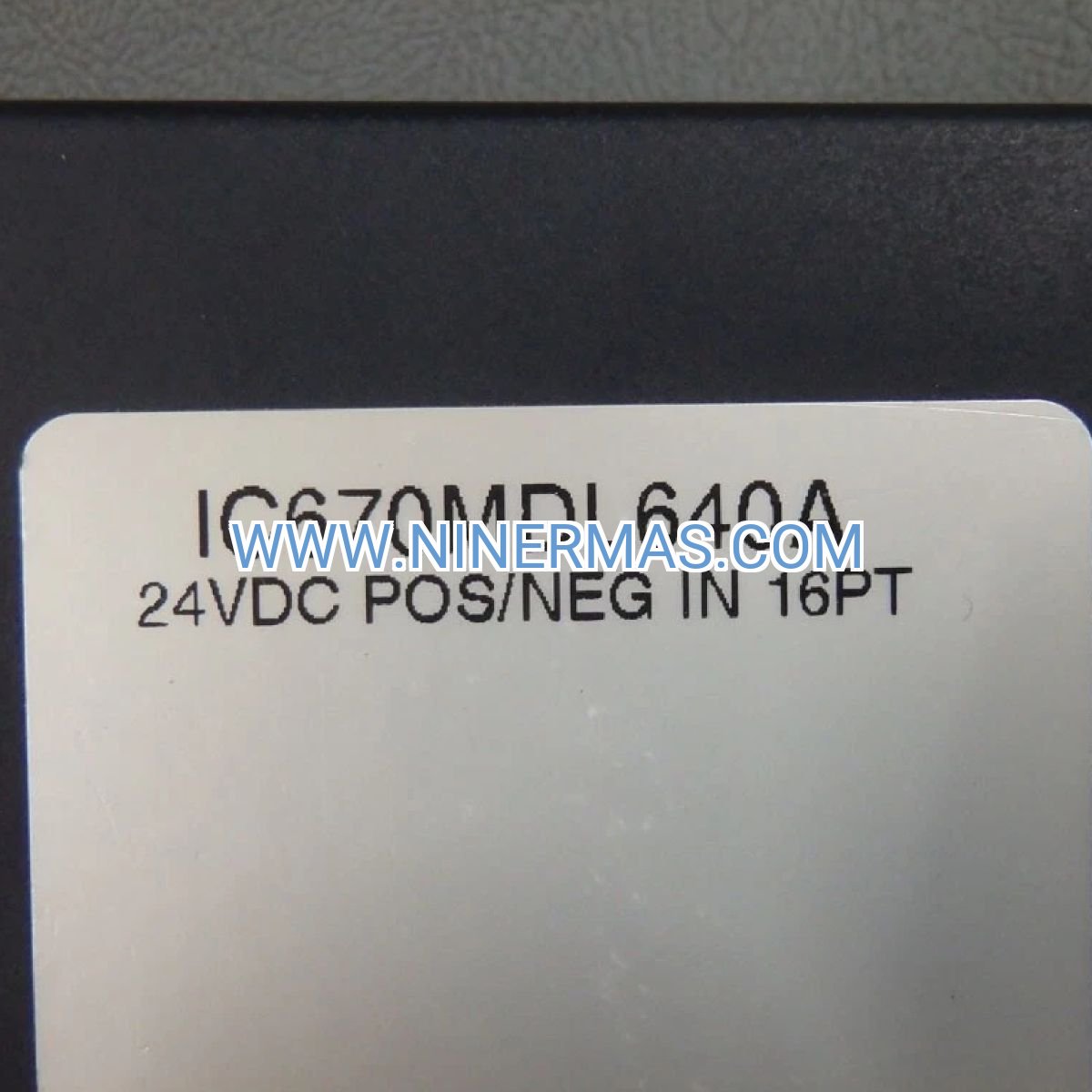

GE IC670MDL640 Discrete Input Module – Industrial-Grade 16-Channel Digital Signal Acquisition System

The GE IC670MDL640 is a professional discrete input module designed for demanding industrial control applications requiring reliable digital signal monitoring. Through advanced Field Control architecture and dual-logic configuration capability, this module delivers precise 24VDC input acquisition with robust 1500VAC isolation, making it the preferred choice for process control, manufacturing automation, machine monitoring, and distributed I/O systems across chemical processing, oil & gas, water treatment, and production facilities.

Engineered for environments where pressure stability, signal integrity, and continuous operation are critical, the IC670MDL640 addresses common challenges including electrical noise interference, mixed sensor compatibility, real-time response requirements, and diagnostic visibility. With 16 independent input channels, fast 6ms typical response time, and comprehensive LED status indication, this module helps eliminate signal loss, reduce troubleshooting time, and minimize unplanned downtime.

Built on proven Field Control technology with flexible positive/negative logic support and industrial-grade environmental ratings, the IC670MDL640 offers significant advantages in installation efficiency, system reliability, and long-term maintainability. Suitable for control engineers, system integrators, OEM equipment manufacturers, and plant maintenance teams, this module integrates seamlessly with GE Series 90-30/90-70 PLCs and Genius bus architectures. Contact our application engineers for customized I/O configuration recommendations and technical specifications.

Core Capabilities & Technical Advantages

High-Density Digital Input Acquisition
Provides 16 discrete input channels in a single compact module, reducing panel footprint by up to 40% compared to traditional 8-point designs while maintaining individual channel isolation and diagnostics for maximum system visibility.

Dual-Logic Flexibility for Universal Sensor Compatibility
Configurable for both positive logic (sourcing) and negative logic (sinking) operation without external signal conditioning, enabling direct connection to PNP sensors, NPN sensors, dry contacts, and relay outputs across diverse equipment manufacturers.

Deterministic Real-Time Response
Delivers 6ms typical response time with 10ms maximum guaranteed latency, ensuring predictable performance for safety interlocks, emergency stop circuits, high-speed counting applications, and time-critical process control sequences.

Industrial-Grade Electrical Isolation
Features 1500VAC field-to-logic isolation protecting sensitive PLC backplane circuits from voltage transients, ground loops, and electrical noise common in motor control centers, VFD installations, and high-power switching environments, reducing nuisance trips by up to 60%.

Comprehensive Visual Diagnostics

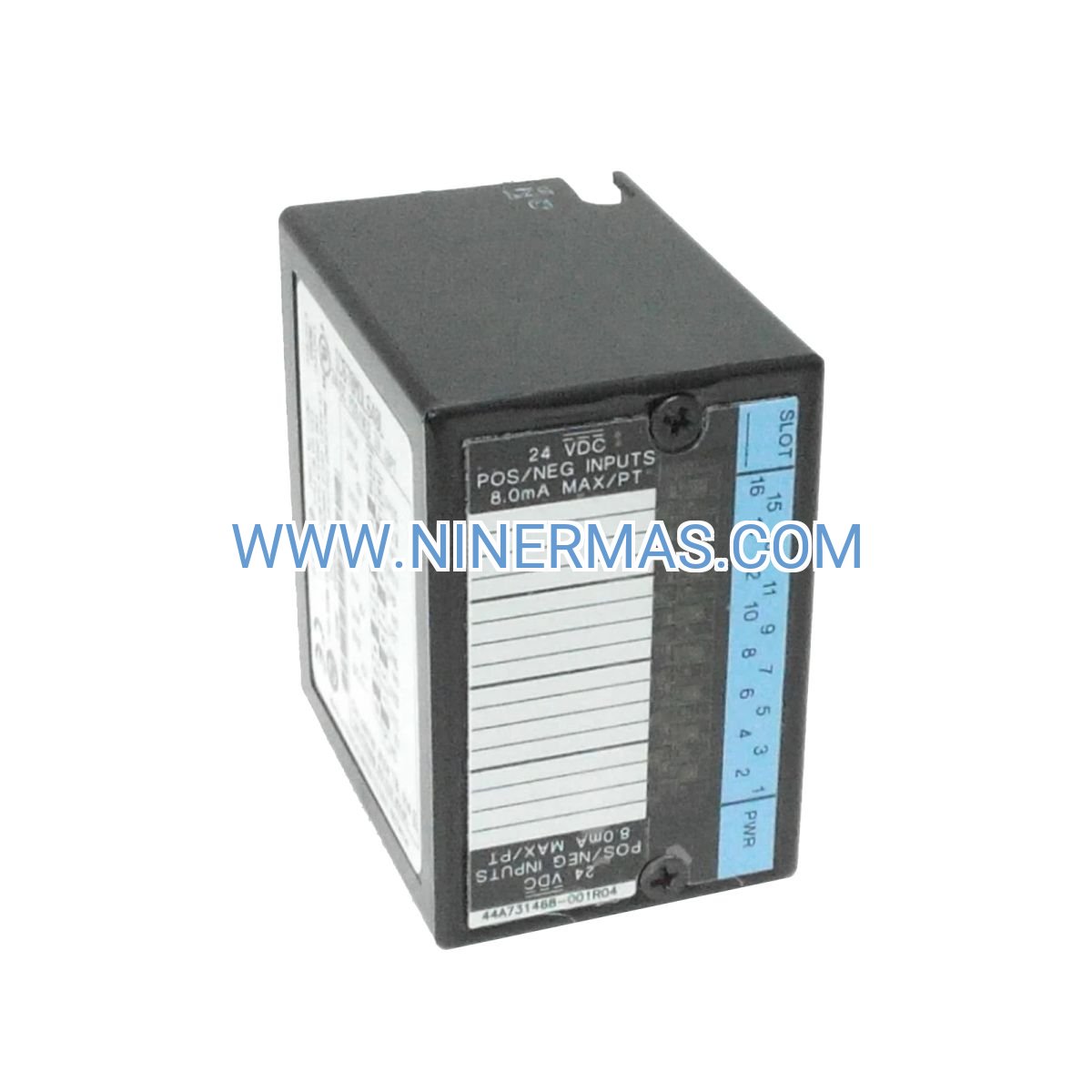

Equipped with 16 individual green LED indicators plus dedicated power status LEDs, providing instant visual confirmation of input states, field power presence, and backplane communication without requiring programming software or diagnostic tools, cutting troubleshooting time by 50%.

Extended Environmental Operating Range
Certified for continuous operation from 0°C to +55°C with 5-95% humidity tolerance (non-condensing), meeting requirements for outdoor enclosures, non-climate-controlled facilities, and harsh industrial environments including foundries, chemical plants, and wastewater treatment stations.

Typical Application Scenarios

The GE IC670MDL640 discrete input module serves critical monitoring functions across industries where reliable digital signal acquisition directly impacts production efficiency, safety compliance, and operational continuity:

Process Control & Safety Monitoring
Monitor valve limit switches, pump run status, pressure switch contacts, level sensor outputs, and emergency shutdown circuits in chemical reactors, distillation columns, pipeline systems, and batch processing equipment. The module's fast response time and robust isolation ensure reliable detection of critical process conditions while protecting control systems from field-side electrical disturbances.

Manufacturing Automation & Production Lines
Interface with proximity sensors, photoelectric sensors, limit switches, part-present detectors, and quality inspection stations in automated assembly lines, packaging machinery, material handling conveyors, and robotic work cells. High-density 16-channel design reduces wiring complexity and panel space requirements in multi-zone production systems.

Machine Tool & CNC Equipment Integration
Capture tool position feedback, spindle status, door interlocks, coolant level switches, and operator panel inputs for CNC machining centers, grinding machines, EDM equipment, and automated tool changers. Dual-logic capability accommodates mixed European (PNP) and North American (NPN) sensor standards without additional interface modules.

Building Automation & Facility Management
Monitor HVAC system status contacts, fire alarm panel outputs, access control door sensors, occupancy detectors, and utility meter pulse outputs in commercial buildings, data centers, hospitals, and educational facilities. Wide 0-30VDC input range handles diverse building automation voltage standards.

Water & Wastewater Treatment Systems
Track pump station status, valve positions, flow switch states, chemical feed system alarms, and filtration equipment conditions in municipal water treatment plants, industrial wastewater facilities, and irrigation control systems requiring continuous 24/7 monitoring with minimal maintenance intervention.

Technical Specifications & Selection Parameters

To facilitate system design and component selection, we provide comprehensive technical parameters for the IC670MDL640 module. Custom configurations are available based on specific application requirements including special environmental conditions, extended temperature ranges, or integration with legacy control systems.

Selection Guidelines & Configuration Considerations

When specifying the IC670MDL640 for your application, consider the following system parameters to ensure optimal performance and compatibility:

• Input Signal Types: Identify sensor output types (PNP/NPN, dry contact, relay) and select appropriate logic configuration
• Voltage Standards: Verify field device voltage (12VDC, 24VDC, or other within 0-30VDC range)
• Response Time Requirements: Confirm 10ms maximum response meets application timing needs for safety circuits or high-speed events
• Environmental Conditions: Assess installation location temperature, humidity, and electrical noise levels
• System Architecture: Determine BIU model, backplane configuration, and total I/O point count for proper power budgeting
• Wiring Distance: Calculate maximum cable runs and select appropriate wire gauge and shielding for signal integrity

For application-specific selection assistance, provide our engineering team with: system voltage, sensor types and quantities, environmental conditions, PLC model, required response time, and any special certifications needed. We will recommend the optimal configuration and compatible components within 24 hours.

Extended System Integration Capabilities

The IC670MDL640 integrates seamlessly within comprehensive Field Control distributed I/O architectures, offering flexible expansion options and multi-discipline signal handling:

Distributed I/O Network Integration
Connects to Field Control Bus Interface Units (BIU) supporting Genius bus communication protocol, enabling remote I/O placement up to 7,500 feet from the PLC for reduced wiring costs and improved system modularity in large facilities.

Mixed-Signal System Solutions
Combine with analog input modules for temperature, pressure, and flow measurement; analog output modules for valve and VFD control; and discrete output modules for solenoid, relay, and indicator lamp actuation to create complete multi-variable control systems.

Redundancy & High-Availability Configurations
Deploy in redundant BIU architectures for critical applications requiring fault-tolerant operation, automatic failover, and zero-downtime maintenance capabilities in pharmaceutical, power generation, and continuous process industries.

Legacy System Modernization
Provides backward compatibility with existing GE Series 90-30 and 90-70 PLC installations, enabling phased system upgrades without complete control system replacement, protecting capital investment while improving I/O density and diagnostic capabilities.

Installation, Commissioning & Service Support

Delivery & Lead Times
Standard IC670MDL640 modules ship from stock with 2-5 business day delivery to most locations. Custom-configured systems with pre-wired terminal blocks, tested assemblies, or special certifications typically require 10-15 business days. Expedited shipping available for emergency replacements and critical project deadlines.

Warranty & Quality Assurance
Every module includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. All units undergo factory testing for electrical performance, isolation integrity, and environmental compliance prior to shipment. Extended warranty programs and advance replacement services available for mission-critical applications.

Technical Documentation & Resources
Complete installation package includes: detailed user manual, electrical wiring diagrams, terminal block connection drawings, DIN rail mounting instructions, and PLC programming examples. CAD drawings, 3D STEP models, and panel layout templates available upon request for design integration.

Application Engineering Support
Our technical team provides pre-sales consultation, system design review, configuration assistance, and post-installation troubleshooting support. Services include remote diagnostic support, on-site commissioning assistance (location-dependent), and custom training programs for maintenance personnel.

Replacement Parts & Accessories
Stocked accessories include IC670TBM002 terminal blocks, DIN rail mounting clips, replacement LED covers, and field wiring connectors. Preventive maintenance kits and spare module programs available for facilities requiring rapid fault recovery.

Frequently Asked Questions

Q: How does the IC670MDL640 handle different sensor output types in the same system?
A: The module supports either positive logic (PNP/sourcing sensors) or negative logic (NPN/sinking sensors) configuration, but all 16 inputs on a single module must use the same logic type. For mixed sensor types, use separate modules configured appropriately, or employ external signal conditioning. The wide 0-30VDC input range accommodates various voltage levels within the same logic configuration.

Q: What is the maximum recommended cable length for reliable input signal transmission?
A: For typical industrial environments using shielded twisted-pair cable (18-22 AWG), maximum recommended distances are 100 meters (328 feet) for 24VDC sensors. Longer distances may be achievable with larger wire gauges, lower ambient electrical noise, and sensors with higher output current capability. Always follow proper grounding, shielding, and cable routing practices to minimize interference.

Q: Can this module be hot-swapped during system operation?
A: While the Field Control architecture supports module insertion and removal with backplane power applied, hot-swapping should only be performed following proper safety procedures and system documentation. The BIU will automatically detect and configure the module upon installation. For safety-critical applications, implement proper lockout/tagout procedures before module replacement.

Q: What terminal block is required, and are pre-wired options available?

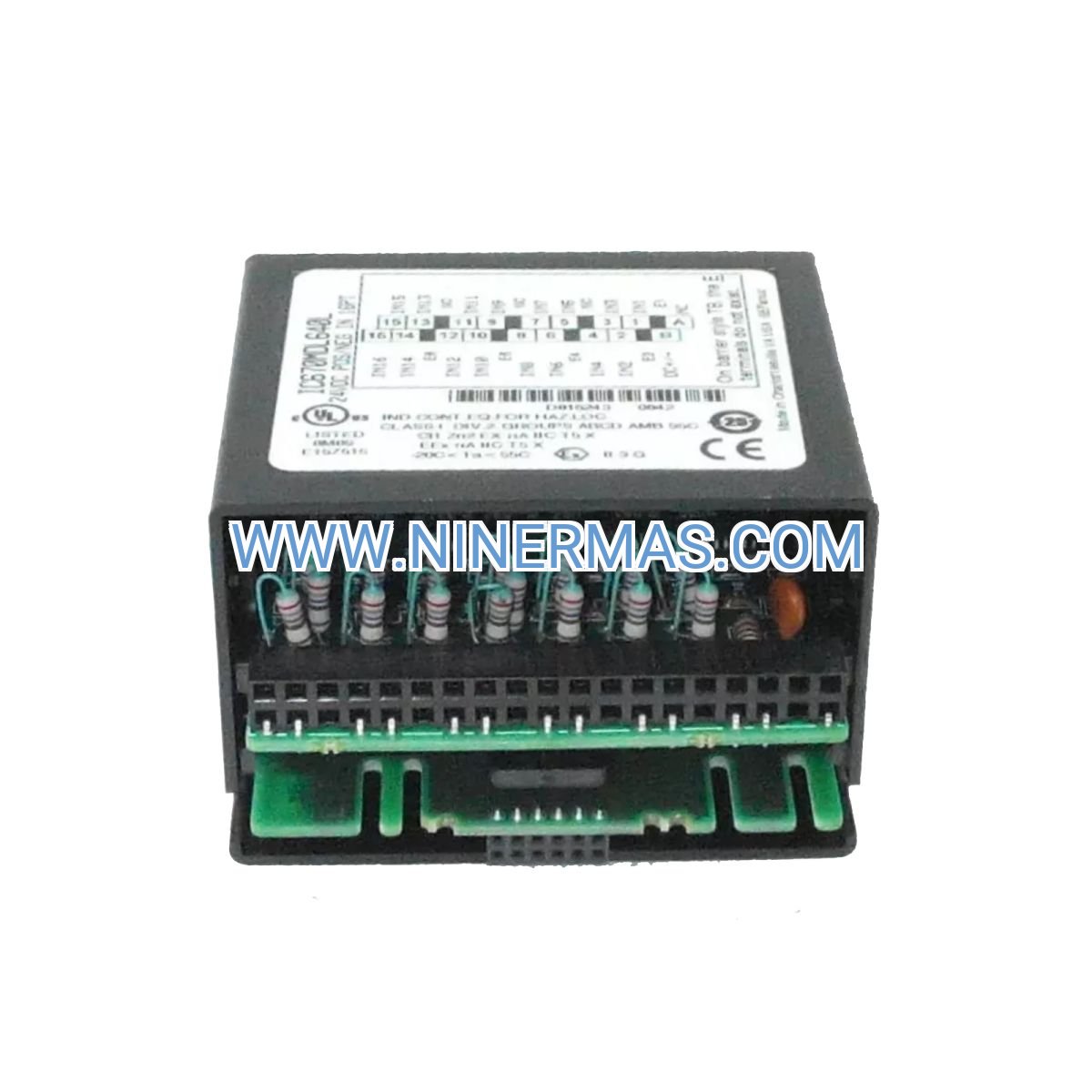

A: The IC670MDL640 uses the IC670TBM002 removable screw-terminal block (sold separately) providing connections for 16 inputs plus common and power terminals. Pre-wired terminal blocks with labeled ferrules and custom cable assemblies are available for volume orders or turnkey panel builds—contact our sales team for quotations.

Q: How does the 1500VAC isolation protect my control system?
A: The optical isolation barrier between field inputs and the internal logic circuitry prevents voltage spikes, ground potential differences, and electrical noise from the field side from damaging the PLC backplane or affecting other modules. This is critical in applications with motor starters, VFDs, welding equipment, or long cable runs where induced voltages and transients are common.

Q: Is the IC670MDL640 suitable for SIL-rated safety applications?
A: The IC670MDL640 is an industrial-grade I/O module but is not specifically certified for Safety Integrity Level (SIL) applications. For safety-instrumented systems requiring SIL certification, consult GE's safety-rated I/O product line or implement appropriate redundancy and voting logic in your system architecture. Our engineers can recommend suitable alternatives for safety applications.

Q: What diagnostic capabilities does the module provide beyond the LED indicators?
A: In addition to the 16 individual input status LEDs and power LED, the module reports its operational status to the BIU and PLC, enabling software-based diagnostics including module presence detection, backplane communication health, and field power status. Advanced diagnostics depend on your PLC programming and SCADA system configuration—our team can assist with diagnostic strategy development.

Request Technical Consultation & Quotation

To receive a customized system recommendation, detailed technical specifications, or project quotation for the GE IC670MDL640 discrete input module, please provide the following information to our application engineering team:

• Project Overview: Application type, industry, and control objectives
• Signal Requirements: Number and type of input devices (sensor models, contact types)
• Electrical Specifications: Field voltage (12VDC, 24VDC, other), logic type (PNP/NPN), current ratings
• System Architecture: Existing PLC model, BIU configuration, communication protocol
• Environmental Conditions: Operating temperature range, enclosure type, hazardous area classification (if applicable)
• Quantity & Timeline: Module quantity required, project schedule, delivery location

Our engineers will respond within one business day with a comprehensive selection guide, compatibility verification, and competitive pricing. For urgent requirements or emergency replacement needs, contact our technical support hotline for immediate assistance.
