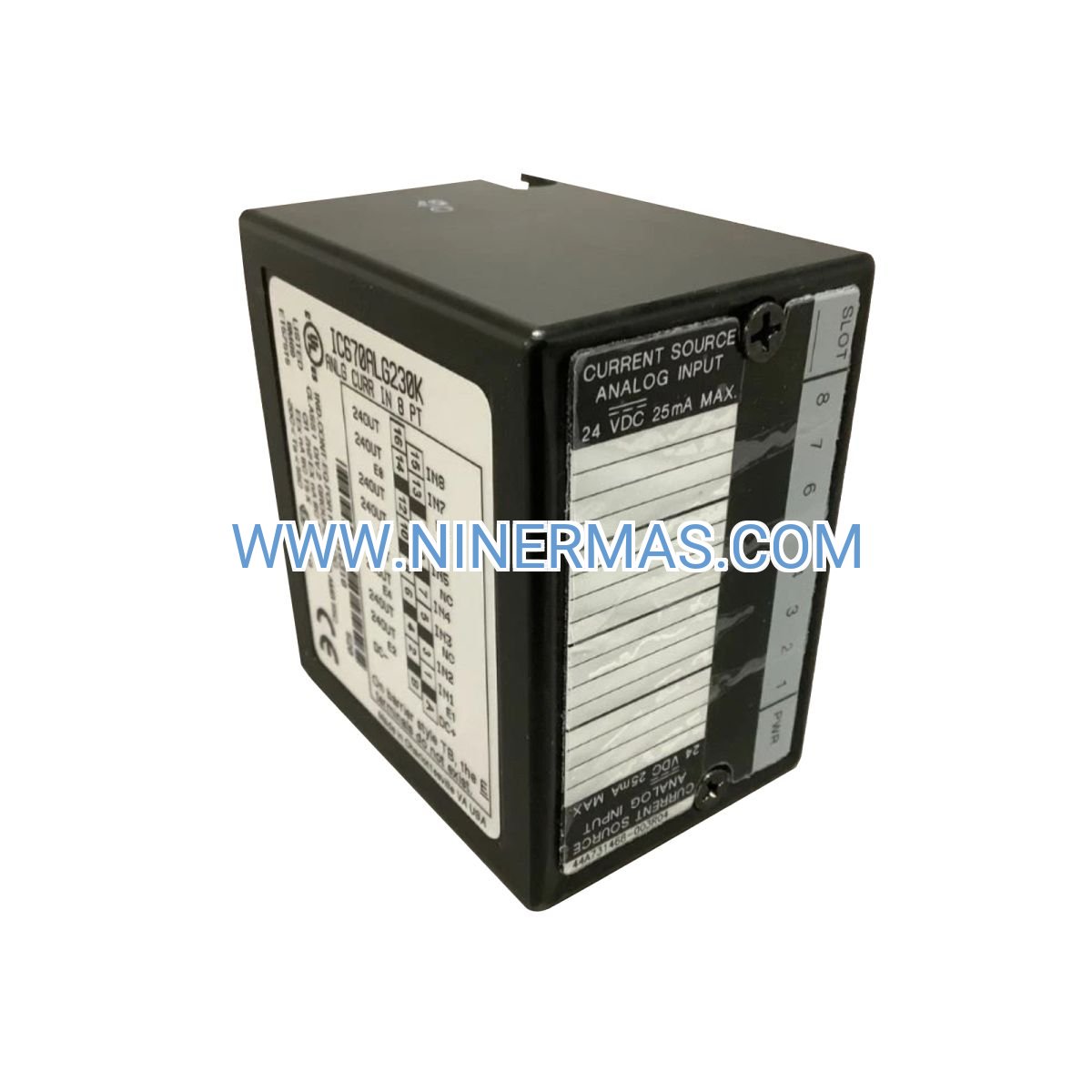

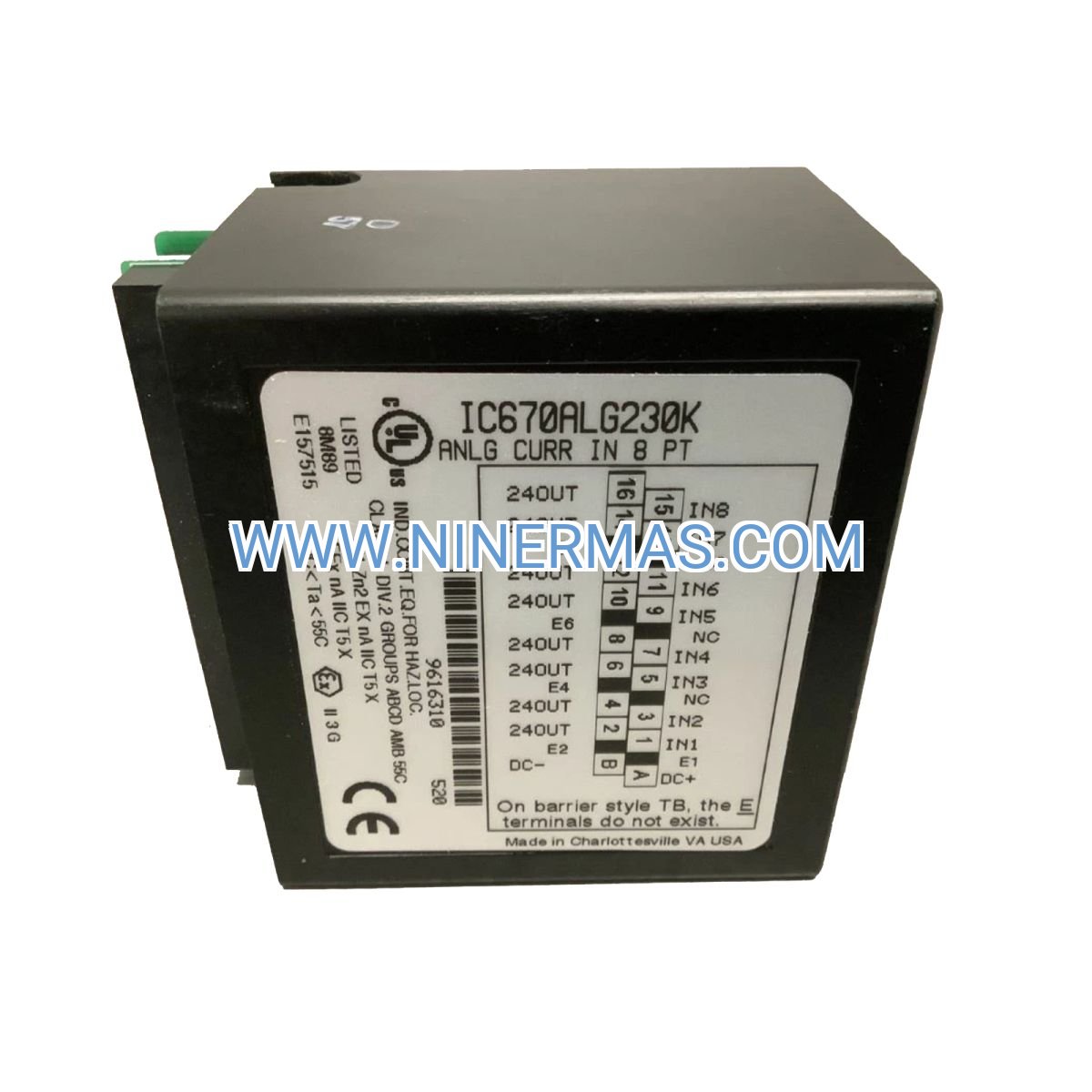

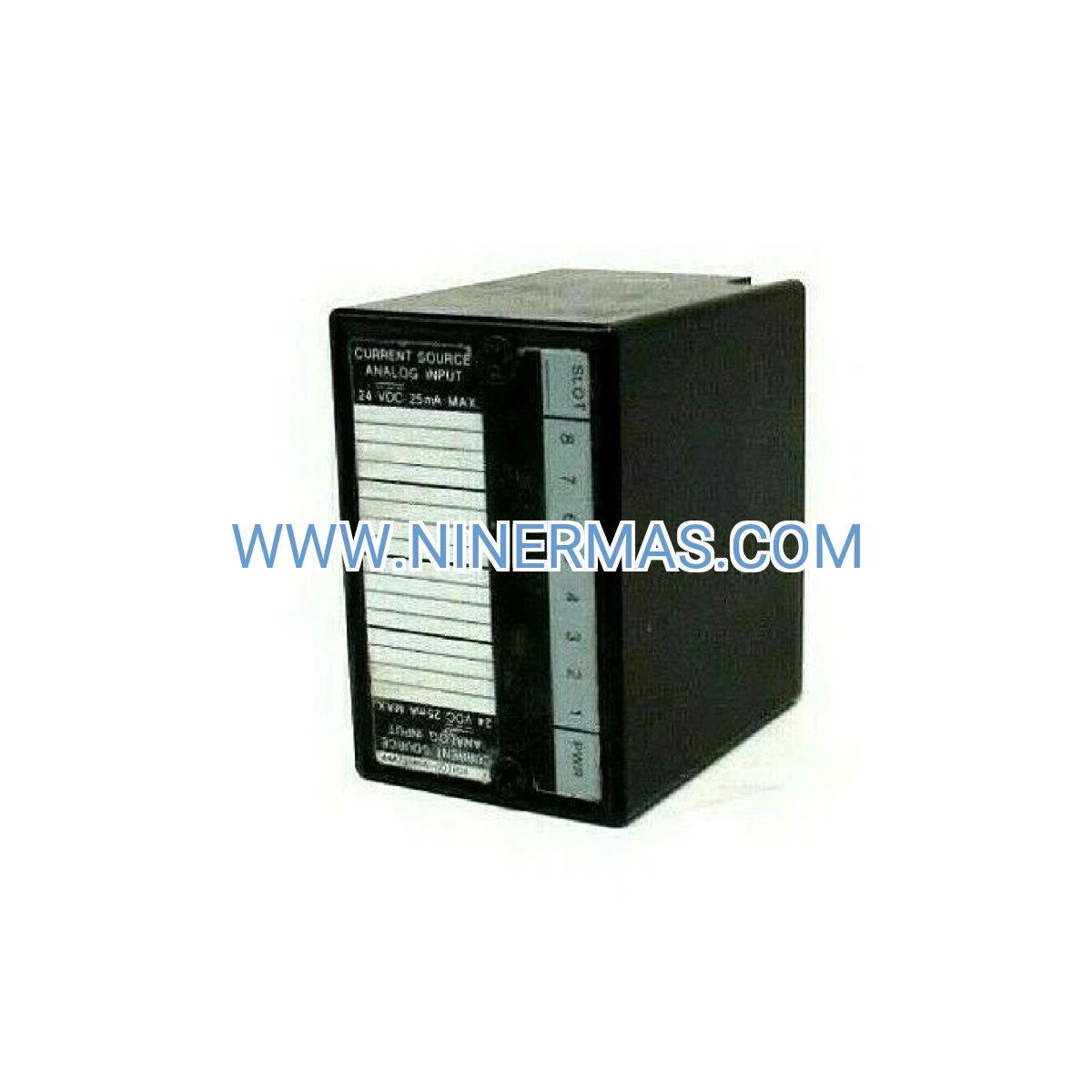

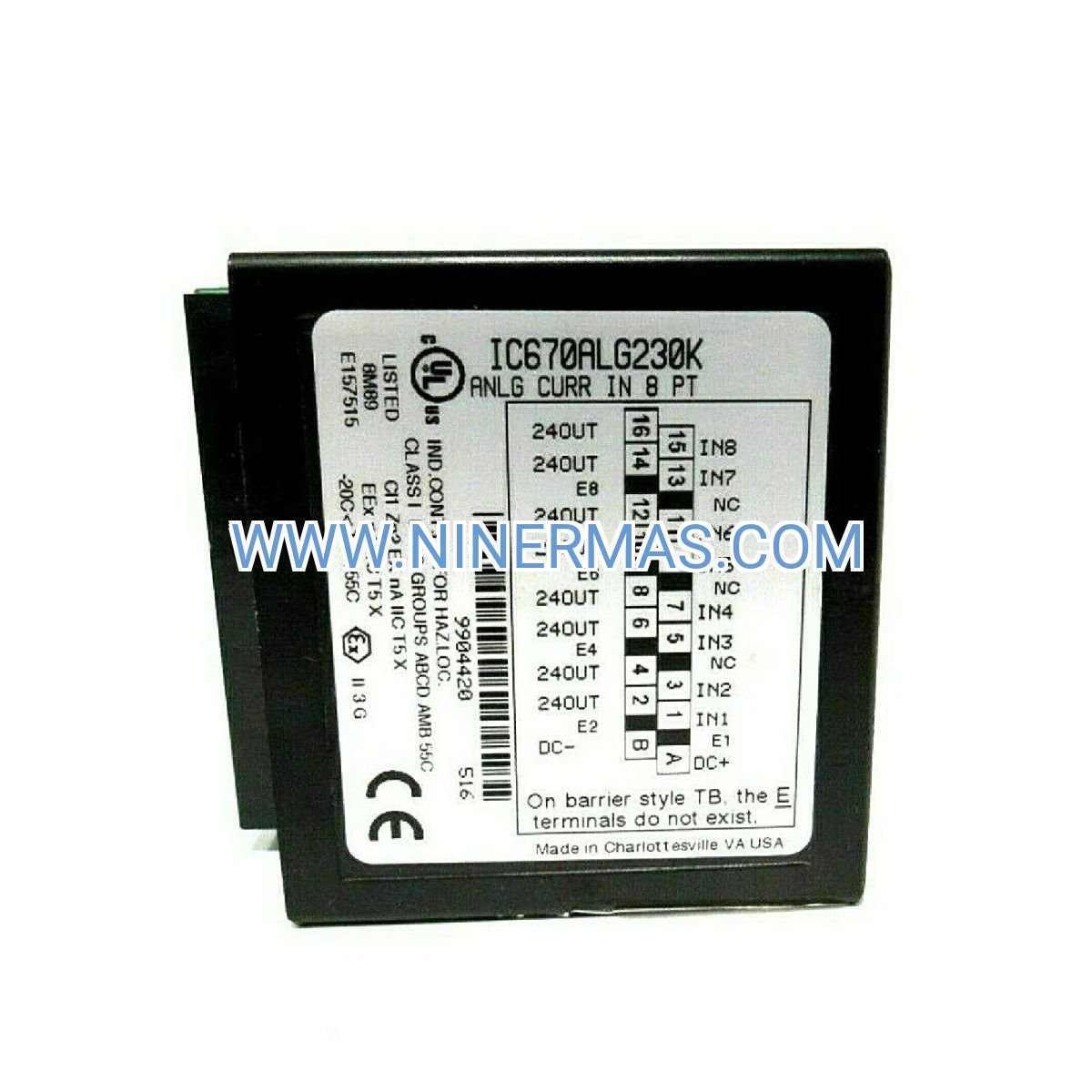

IC670ALG230K VersaMax Analog Input Module (Industrial-Grade 8-Channel Signal Acquisition)

The IC670ALG230K represents a precision-engineered solution for critical analog signal acquisition in VersaMax Field Control environments. Engineered by GE Fanuc, this 8-channel differential input module delivers 16-bit measurement accuracy across voltage and current ranges, serving process industries, manufacturing automation, and infrastructure monitoring applications where data integrity directly impacts operational efficiency and safety compliance.

Designed for system integrators and control engineers managing complex distributed I/O architectures, the IC670ALG230K eliminates signal conditioning complexity through software-configurable input ranges while maintaining electrical isolation that protects sensitive control networks from field-level disturbances. Whether you're retrofitting legacy systems or deploying greenfield installations, this module provides the measurement fidelity and operational flexibility demanded by modern industrial environments.

With hot-swap capability, diagnostic intelligence, and proven compatibility across VersaMax and PACSystems platforms, the IC670ALG230K reduces commissioning time, simplifies maintenance workflows, and extends system lifecycle value. Discover how precision analog acquisition transforms raw sensor data into actionable control intelligence.

Core Capabilities & Business Value

→ Precision Measurement Architecture
16-bit analog-to-digital conversion delivers ±0.0015% full-scale accuracy, enabling precise monitoring of temperature, pressure, flow, and level transmitters. This resolution supports tighter process control tolerances, reducing product variability and energy waste in chemical processing, pharmaceutical manufacturing, and food production environments.

✓ Software-Defined Input Flexibility
Each channel independently configures for ±10V DC, 0-10V DC, 4-20mA, or 0-20mA signals without hardware modifications or external components. This adaptability accelerates commissioning, simplifies spare parts inventory, and future-proofs installations against evolving sensor requirements—eliminating costly module swaps during system upgrades.

✓ Electrical Isolation Protection
500V channel-to-backplane isolation safeguards control networks from ground potential differences and electromagnetic interference common in industrial settings. This protection prevents measurement errors, extends equipment lifespan, and maintains system availability in electrically noisy environments like motor control centers and power distribution facilities.

✓ Hot-Swap Serviceability
Replace modules during live operation without system shutdown or process interruption. This capability transforms maintenance from scheduled downtime events into opportunistic service windows, directly improving Overall Equipment Effectiveness (OEE) and reducing production losses in continuous process industries.

✓ Integrated Diagnostics Intelligence
Channel-level health monitoring detects open circuits, signal over-range conditions, and module faults in real-time. Diagnostic data streams to SCADA systems and maintenance management platforms, enabling predictive maintenance strategies that prevent unplanned outages and optimize technician deployment.

✓ Compact High-Density Design
Standard DIN-rail mounting with minimal footprint maximizes I/O point density in space-constrained control cabinets. This efficiency reduces panel fabrication costs, simplifies cable management, and supports modular expansion as production capacity grows.

Industry Application Solutions

Chemical & Petrochemical Processing
Monitor reactor temperatures, distillation column pressures, and flow rates with the accuracy required for batch recipe compliance and safety interlock systems. The IC670ALG230K's isolation and noise immunity ensure reliable measurements in environments with variable frequency drives, large contactors, and high-voltage switchgear.

Water & Wastewater Treatment
Acquire signals from pH analyzers, turbidity sensors, dissolved oxygen probes, and level transmitters across treatment stages. Multi-range capability accommodates diverse sensor types within a single I/O rack, while diagnostic features alert operators to sensor fouling or calibration drift before regulatory compliance issues arise.

Power Generation & Distribution
Interface with power quality meters, temperature RTDs, and vibration transducers in generator monitoring and substation automation applications. The module's wide operating temperature range (-40°C to +70°C) supports outdoor enclosures and harsh industrial environments without environmental conditioning.

Food & Beverage Manufacturing
Capture process variables from pasteurization systems, fermentation vessels, and packaging lines where product quality depends on precise temperature and pressure control. Fast 5ms per-channel conversion rates support responsive control loops that maintain product specifications and minimize waste.

Building Automation & HVAC
Collect data from chilled water systems, air handling units, and energy meters in commercial facilities. Low 2.5W power consumption reduces heat generation in densely populated control panels, while compatibility with Modbus and Ethernet protocols simplifies integration with building management systems.

Technical Specifications & Selection Criteria

Selection Guidelines: Choose the IC670ALG230K when your application requires high-resolution measurement of slow-to-moderate speed process variables (update rates >40ms). For faster acquisition, consider multi-module configurations. Verify sensor output compatibility with supported voltage/current ranges. For RTD or thermocouple inputs, specify dedicated temperature modules. Confirm backplane power budget accommodates 2.5W per module in high-density configurations.

Advanced Integration & Expansion Options

Network Connectivity Enhancement
Expand system communication capabilities by integrating Ethernet, PROFIBUS, or Modbus interfaces. Network modules enable remote monitoring, centralized data logging, and integration with enterprise MES/ERP systems for production intelligence and regulatory compliance reporting.

Mixed-Signal I/O Architectures
Combine analog input modules with digital I/O, analog output, and specialty modules on a common backplane. This flexibility supports complete machine control solutions from a unified hardware platform, reducing spare parts complexity and training requirements.

Redundancy & High-Availability Configurations
Deploy dual-redundant I/O systems for critical process measurements where sensor failure could compromise safety or product quality. VersaMax architecture supports hot-standby configurations with automatic failover for maximum uptime.

IoT & Cloud Integration
Leverage edge computing gateways to stream analog data to cloud analytics platforms for machine learning, predictive maintenance, and remote expert diagnostics. Modern VersaMax systems bridge legacy control infrastructure with Industry 4.0 digital transformation initiatives.

Custom Calibration & Scaling
Utilize programming software to apply engineering unit conversions, linearization curves, and custom scaling factors. This capability eliminates external signal conditioners and simplifies operator interfaces by presenting data in meaningful process units (°C, PSI, GPM, etc.).

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock units ship within 1-2 business days via express courier. Custom configurations or volume orders may require 5-10 business days—contact our sales team for expedited options and project-specific delivery schedules.

Warranty Coverage: Every IC670ALG230K module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Warranty service includes advance replacement to minimize downtime, with return shipping prepaid for defective units.

Technical Support Services: Our application engineering team provides pre-sales consultation, configuration assistance, and post-installation troubleshooting support. Services include I/O point mapping, wiring diagram review, and integration guidance for complex multi-vendor systems.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and links to downloadable user manuals, programming software, and firmware updates. Comprehensive technical documentation ensures rapid commissioning and long-term maintainability.

Frequently Asked Questions

How do I configure input ranges for the IC670ALG230K analog module?
Input ranges are configured through GE Proficy Machine Edition or VersaMax programming software. Each channel can be independently set to ±10V, 0-10V, 4-20mA, or 0-20mA mode via software parameters—no DIP switches or jumpers required. Configuration changes take effect immediately upon download to the controller.

What is the maximum cable length for analog input signals?
For voltage inputs, maximum recommended cable length is 100 meters using shielded twisted-pair cable. Current loop inputs (4-20mA) support up to 300 meters due to superior noise immunity. Always use shielded cable with shield grounded at one end only to prevent ground loops.

Can the IC670ALG230K module operate in hazardous area classifications?
The module itself is not intrinsically safe rated. For Class I Division 2 or ATEX Zone 2 applications, install in appropriately rated enclosures with proper purging or use intrinsically safe barriers on field wiring. Consult local electrical codes and GE application notes for hazardous location installations.

Does this analog input module require external power supplies for sensors?
No, the IC670ALG230K does not provide loop power for 2-wire transmitters. Use separate 24V DC power supplies for powering 4-20mA transmitters, or select 3-wire/4-wire transmitters with independent power connections. The module provides only signal measurement, not excitation.

What diagnostic capabilities help troubleshoot analog input problems?
The module provides channel-level diagnostics including open wire detection, over-range/under-range alarms, and module health status. Diagnostic bits are accessible via controller logic for automated alarming. Front-panel LEDs indicate module power, communication status, and fault conditions for quick visual troubleshooting.

Is the IC670ALG230K compatible with older Series 90-30 PLC systems?
No, the IC670ALG230K is designed exclusively for VersaMax Field Control and PACSystems RX3i platforms. For Series 90-30 systems, specify IC693ALG-series analog input modules. VersaMax and Series 90-30 modules are not mechanically or electrically interchangeable due to different backplane architectures.

Order Your IC670ALG230K Module Today

Enhance your VersaMax Field Control system with precision analog acquisition that delivers measurement accuracy, operational flexibility, and long-term reliability. Whether you're upgrading existing installations or designing new control architectures, the IC670ALG230K provides the performance foundation for data-driven process optimization.

Ready to specify your analog I/O solution? Contact our technical sales team for application consultation, volume pricing, and project-specific delivery schedules. We support system integrators, OEMs, and end-users worldwide with genuine GE components, expert guidance, and responsive service.
