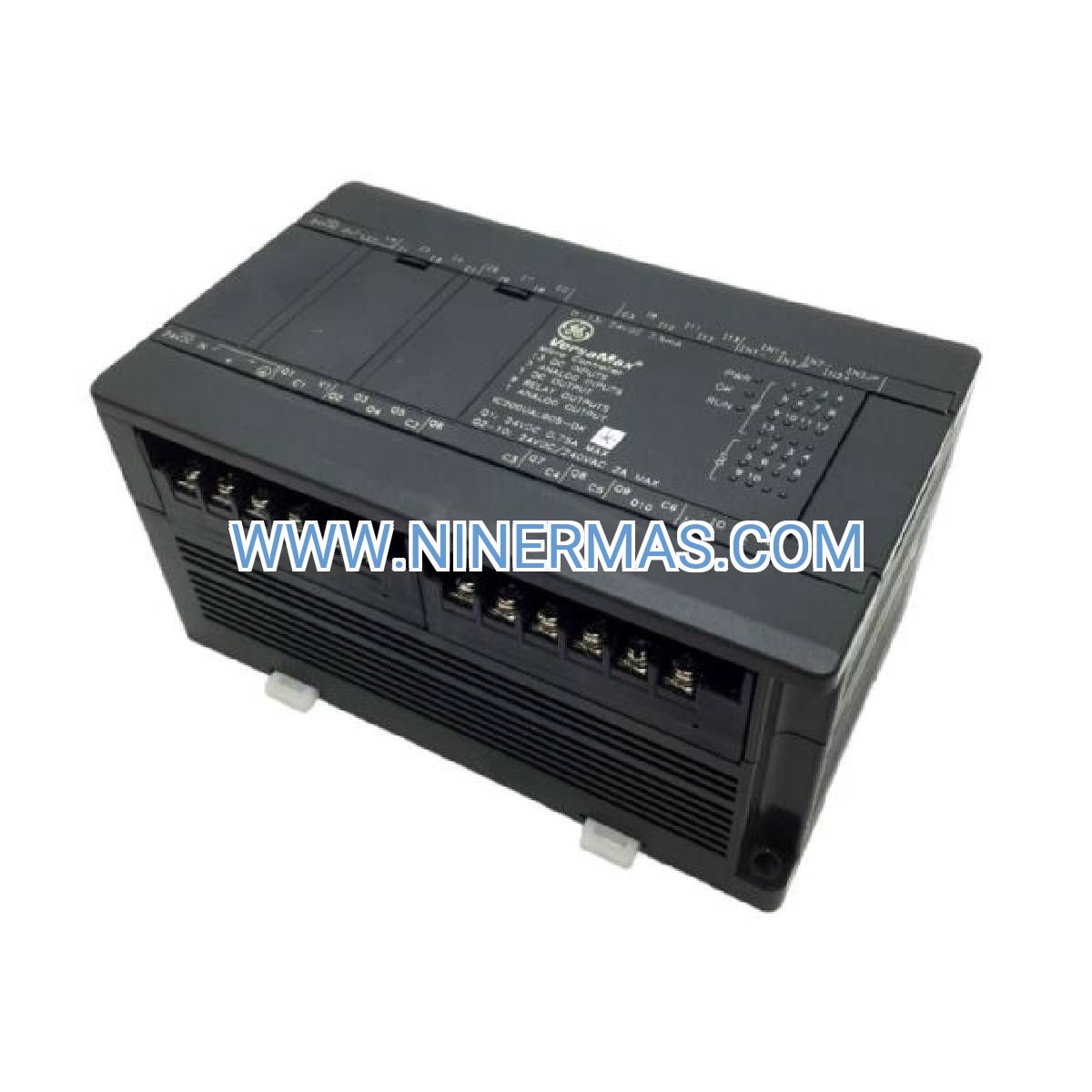

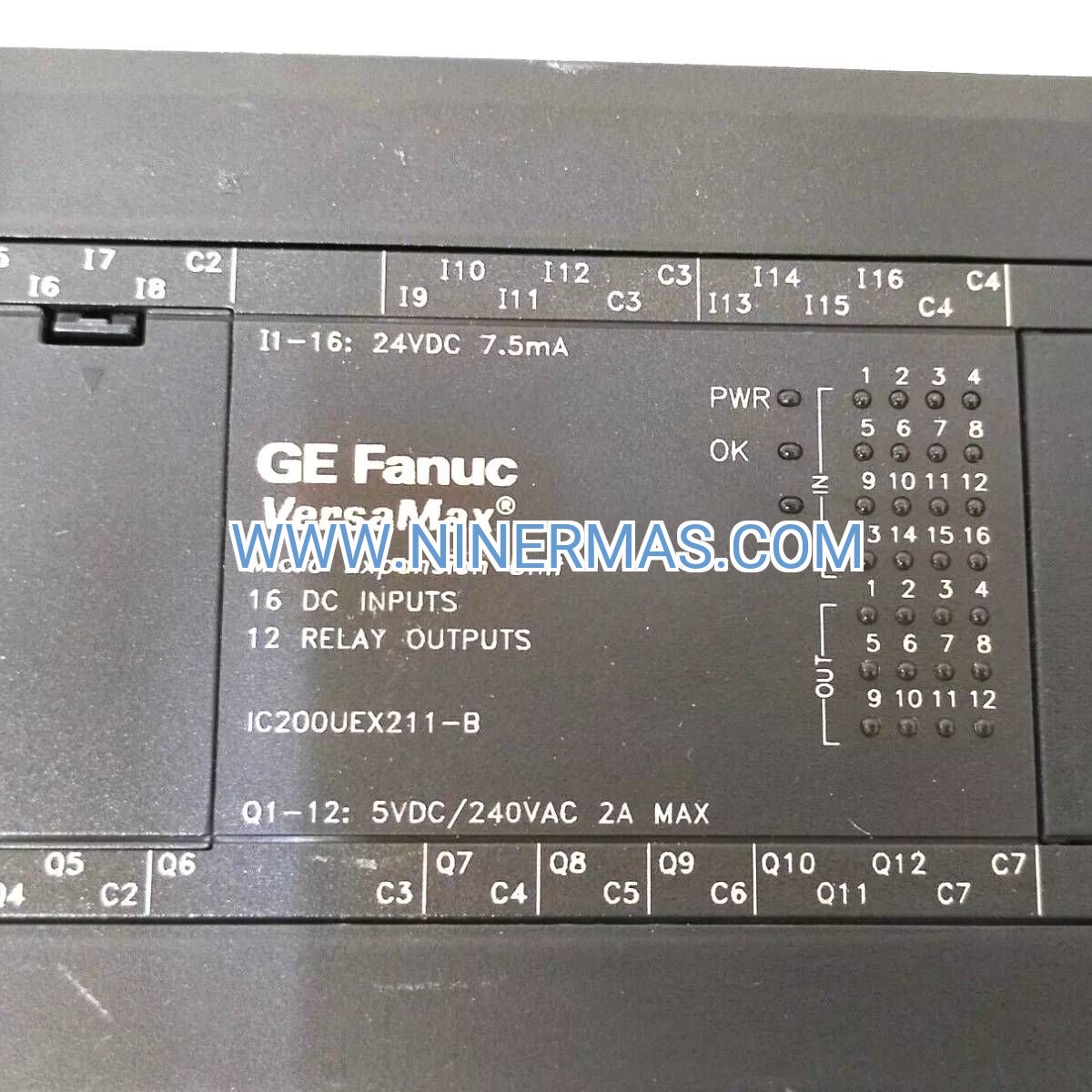

IC200UEX211 I/O Expansion Module (Industrial-Grade 28-Point Solution)

The IC200UEX211 represents a field-proven expansion solution for VersaMax Micro PLC architectures, delivering 28 discrete I/O points in a compact, DIN-rail mountable package. With 16 sink/source DC inputs and 12 Form C relay outputs, this module addresses the growing I/O demands of machine builders, system integrators, and plant engineers who require reliable discrete control without compromising cabinet space or budget.

Designed for harsh industrial environments, the IC200UEX211 operates across 0-60°C ambient temperatures and withstands 95% humidity, making it suitable for factory floors, water treatment facilities, and outdoor enclosures. Its relay outputs provide galvanic isolation—critical for switching high-voltage loads, eliminating ground loops, and protecting sensitive PLC circuitry from electrical noise.

Whether you're retrofitting legacy systems, scaling up production lines, or building new automation cells, the IC200UEX211 integrates seamlessly with VersaMax Micro CPUs via standard expansion cables, reducing engineering time and minimizing commissioning risks.

Key Features & Business Value

✓ High-Density Discrete I/O
28 points (16 inputs + 12 outputs) in a single module reduce rack space by up to 40% compared to legacy I/O systems, lowering panel costs and simplifying wiring.

✓ Relay Output Isolation
Form C (SPDT) contacts rated 2A @ 250V AC eliminate the need for external interposing relays, cutting BOM costs by $15-25 per output point while improving system reliability.

✓ Sink/Source Input Flexibility
10-30V DC input range accommodates both PNP and NPN sensors without additional interface modules, reducing inventory complexity and field wiring errors.

✓ Plug-and-Play Expansion
Auto-discovery via VersaMax expansion bus eliminates manual addressing—technicians can add I/O in under 5 minutes without programming tools or system downtime.

✓ Industrial Certifications
UL, CE, CSA, and RoHS compliance ensure global deployability and meet stringent safety requirements for machinery exports to EU, North America, and APAC markets.

✓ Low Power Consumption
3.5W typical draw extends power supply headroom, allowing up to 3 expansion modules per CPU without oversizing DC sources—saving $80-120 in power infrastructure costs.

Application Scenarios

→ Packaging Line Control
A beverage bottling plant uses IC200UEX211 to monitor 16 photoelectric sensors (fill level, cap presence, label detection) and control 12 pneumatic valves for reject gates and diverters. Relay isolation prevents 24V DC sensor circuits from interfering with 120V AC solenoid coils, reducing nuisance trips by 90%.

→ HVAC Zone Management
A commercial building automation system employs IC200UEX211 to read 16 zone thermostats and switch 12 damper actuators. The module's wide operating temperature range (-40°C storage) allows rooftop enclosure mounting, eliminating costly conditioned equipment rooms.

→ Wastewater Pump Sequencing
A municipal lift station integrates IC200UEX211 to monitor float switches, flow meters, and intrusion alarms while controlling lead/lag pump contactors. Relay outputs handle 240V AC pump starters directly, removing $600 worth of external relay panels.

→ CNC Machine Tool Interface
A machine shop retrofits aging CNC mills with IC200UEX211 to interface limit switches, tool changers, and coolant pumps. The module's 2A relay rating switches hydraulic solenoids and indicator lamps without derating, extending MTBF to 100,000+ cycles.

→ Conveyor Interlock Systems
A distribution center uses IC200UEX211 for emergency stop chains, photoeye arrays, and motor starter interlocks across 12 conveyor zones. Sink/source inputs accept both legacy NPN proximity sensors and new PNP safety devices without rewiring.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose IC200UEX211 when you need relay isolation for high-voltage switching or noisy environments
• For faster switching (>10Hz) or longer life (>1M cycles), consider solid-state output modules like IC200MDL650
• Verify total system I/O count does not exceed CPU limits (e.g., IC200CPU001 supports 120 I/O max)
• Calculate power budget: 3.5W base + (0.5W × number of energized relays)
• For analog signals, pair with IC200ALG260 (voltage) or IC200ALG240 (current) modules

Extended Functions

IoT Integration via Edge Gateways
Connect VersaMax systems to cloud platforms (AWS IoT, Azure IoT Hub) using third-party Modbus/Ethernet gateways. Monitor I/O status remotely, log relay cycle counts for predictive maintenance, and trigger alerts when input patterns indicate equipment faults.

Advanced Diagnostics
VersaMax CPUs provide per-point diagnostics accessible via Proficy Machine Edition. Track input transition counts, relay coil energization time, and module temperature to identify failing sensors or overloaded outputs before catastrophic failures occur.

Custom I/O Mapping
Use VersaMax configurator software to assign logical names to physical I/O (e.g., "Conveyor_1_Estop" instead of "%I0.0"), improving code readability and reducing commissioning errors by 60% in multi-engineer projects.

Delivery & Service Assurance

Lead Time:
→ Stock items: 2-3 business days (domestic CN/US/EU)
→ Build-to-order: 4-6 weeks for custom configurations
→ Express shipping available for critical downtime situations

Warranty:
→ 12-month manufacturer defect coverage from ship date
→ Extended 36-month plans available for OEM integrators
→ Advance replacement program (RMA turnaround <48 hours)

Technical Support:
→ Pre-sales application engineering (system sizing, I/O selection)
→ Post-sales troubleshooting via email/phone (8AM-8PM CST)
→ On-site commissioning support for orders >$10K (fee-based)

Documentation Included:
→ Quick-start installation guide (EN/CN/DE)
→ Wiring diagrams and terminal layouts
→ Sample ladder logic for common applications
→ Compliance certificates (UL, CE, RoHS)

Frequently Asked Questions

Q: How many IC200UEX211 modules can I daisy-chain to a single VersaMax CPU?
A: The IC200CPU001 supports up to 3 expansion modules (84 I/O points total). Higher-end CPUs like IC200CPU005 allow 7 expansions (196 I/O). Check your CPU datasheet for exact limits and ensure total current draw stays below power supply capacity.

Q: Can I mix IC200UEX211 with analog I/O modules in the same expansion chain?
A: Yes, VersaMax expansion bus supports heterogeneous module types. Common configurations include 1× IC200UEX211 (discrete) + 1× IC200ALG260 (analog input) + 1× IC200ALG331 (analog output) for hybrid process control.

Q: What happens if I exceed the 2A relay contact rating?
A: Contacts will arc excessively, reducing life from 100K to <10K cycles and potentially welding closed. For loads >2A, use the relay output to switch an external contactor rated for your actual load current.

Q: Do I need external fusing for the relay outputs?
A: While the module has internal protection, best practice is to fuse each output at 2A (fast-blow) to protect downstream wiring and loads. This also simplifies troubleshooting by isolating faults to specific circuits.

Q: Is the IC200UEX211 compatible with legacy VersaMax systems from the early 2000s?
A: Yes, the expansion bus protocol is backward-compatible. However, verify your CPU firmware is v3.50 or later—older versions may not auto-discover newer module revisions. Firmware updates are free via Proficy Machine Edition.

Q: Can I hot-swap the IC200UEX211 while the system is running?
A: No, VersaMax expansion modules are not hot-swappable. Power down the entire rack before installing or removing modules to prevent backplane damage and ensure safe operation. Typical downtime for module replacement is 5-10 minutes.

Ready to Expand Your Control System?

The IC200UEX211 delivers proven reliability, flexible I/O configuration, and cost-effective expansion for VersaMax Micro platforms. Whether you're adding capacity to an existing system or designing a new machine, this module provides the discrete I/O density and isolation you need.

Contact our automation specialists today:
→ Request a formal quotation with volume pricing
→ Schedule a technical consultation for system design
→ Inquire about demo units for proof-of-concept testing
