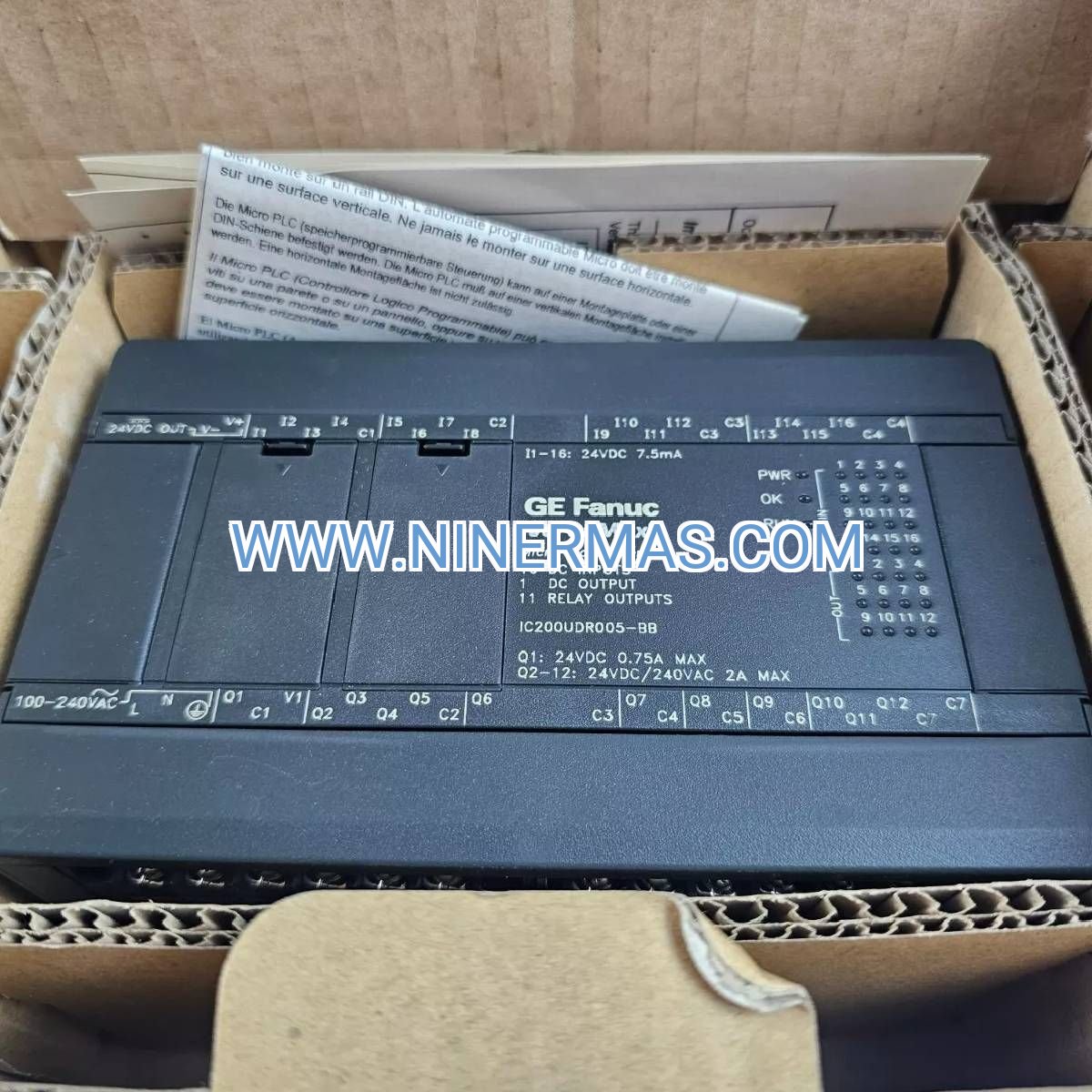

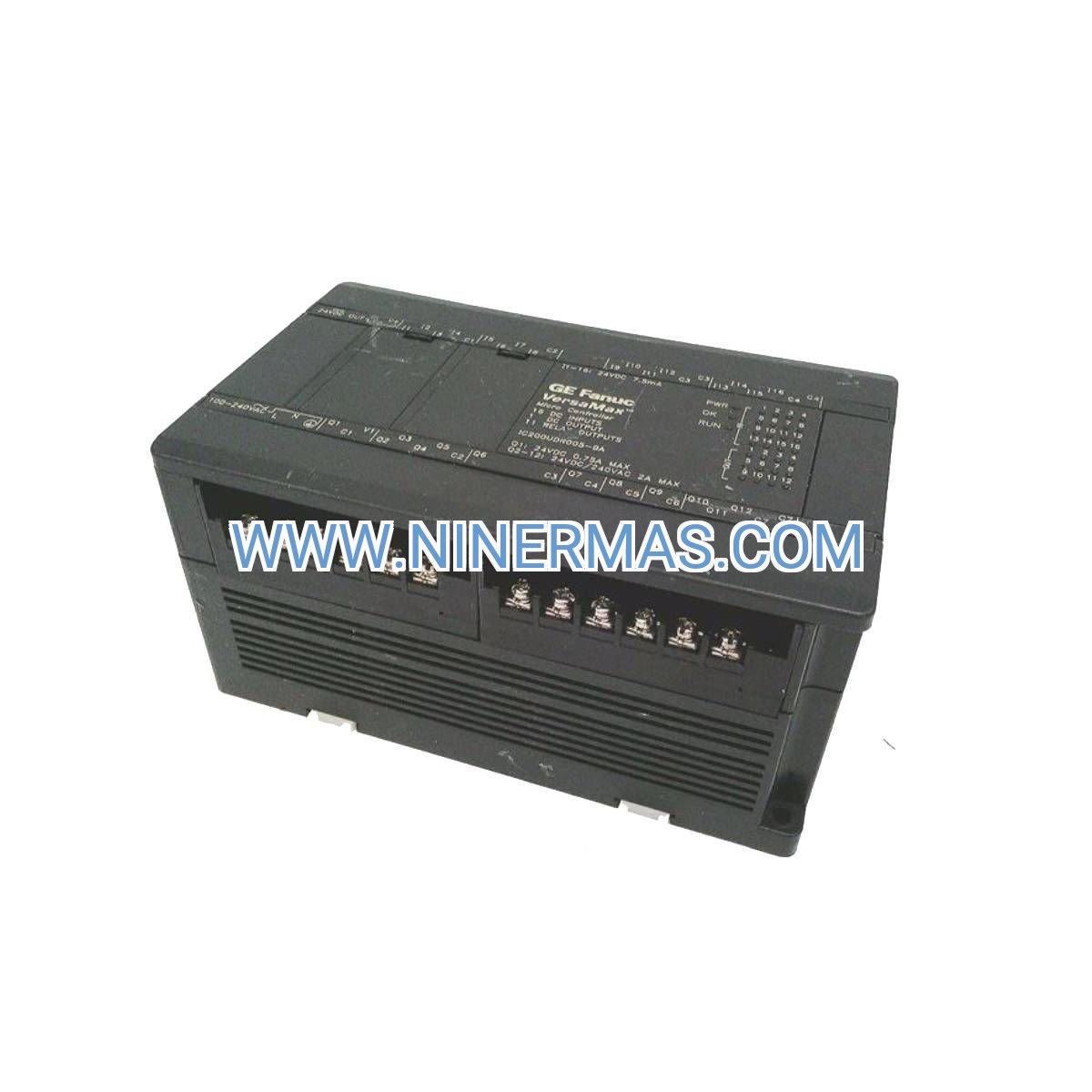

IC200UDR005 VersaMax Micro Programmable Logic Controller (Industrial-Grade Automation)

The IC200UDR005 represents GE's solution for space-critical automation environments where traditional modular PLC architectures prove impractical. This micro programmable logic controller integrates 28 discrete I/O points within a single housing, combining 16 sink/source DC inputs with 12 Form C relay outputs to address small-scale control requirements without sacrificing industrial reliability or expansion potential.

Designed for applications demanding compact footprints yet requiring proven control technology, the IC200UDR005 eliminates the complexity of assembling separate CPU, power supply, and I/O modules. Engineers gain immediate deployment capability while retaining the flexibility to scale systems through VersaMax's expansion bus architecture, supporting up to eight additional modules when process demands evolve beyond the base configuration.

Whether retrofitting legacy relay panels, implementing standalone machine control, or deploying distributed automation nodes, the IC200UDR005 delivers IEC 61131-3 programming compatibility, dual serial communication ports, and hot-swappable expansion—all within a DIN-rail mountable package measuring just 90mm × 100mm × 58mm.

Core Capabilities & Technical Advantages

→ All-in-One Integration: Eliminates wiring complexity between separate CPU and I/O modules, reducing installation time by 40-60% compared to modular PLC systems while minimizing potential connection failures in vibration-prone environments.

→ Versatile Relay Outputs: Form C contact configuration switches both AC (250V, 2A) and DC (30V, 2A) loads directly, controlling solenoid valves, indicator lamps, contactors, and small motors without requiring intermediate interface relays or solid-state modules.

→ Dual-Mode Input Architecture: 16 digital inputs accept both sinking and sourcing 24V DC signals, ensuring compatibility with diverse sensor types including proximity switches, photoelectric sensors, limit switches, and push-button stations without external signal conditioning.

→ Scalable Expansion Framework: Expansion bus supports eight VersaMax modules including analog I/O (voltage/current/RTD/thermocouple), high-speed counters, motion control, and fieldbus interfaces (PROFIBUS-DP, DeviceNet, Ethernet), enabling system growth from 28 to 256+ I/O points.

✓ Rapid Scan Performance: 0.5ms execution time per 1K of logic ensures deterministic control for high-speed packaging, assembly, and material handling applications requiring sub-millisecond response to input state changes.

✓ Multi-Protocol Serial Communication: RS-232/RS-485 ports support Modbus RTU, SNP (Serial Network Protocol), and CCM (Co-Processor Communication Module) protocols for HMI connectivity, peer-to-peer messaging, and integration with SCADA systems or third-party devices.

Industrial Application Scenarios

Automated Manufacturing Cells: In CNC machine tool environments, the IC200UDR005 coordinates tool changers, coolant pumps, chip conveyors, and door interlocks while monitoring limit switches, pressure sensors, and emergency stops. The compact form factor mounts directly inside electrical enclosures alongside motor starters and drives, reducing panel space requirements by 30-50% versus traditional PLC configurations.

HVAC & Building Systems: Commercial building automation leverages the IC200UDR005 for rooftop unit control, managing compressor staging, economizer dampers, supply/return fans, and freeze protection sequences. Relay outputs handle direct switching of 24VAC control circuits while inputs monitor temperature switches, smoke detectors, and occupancy sensors across distributed mechanical rooms.

Water Treatment & Pumping Stations: Municipal and industrial water systems deploy the IC200UDR005 for lift station control, alternating pump operation based on level switches, monitoring run status feedback, and executing alarm sequences during fault conditions. The controller's wide operating temperature range (0-60°C) suits outdoor enclosures and harsh environmental conditions.

Packaging & Conveyor Control: End-of-line packaging equipment utilizes the IC200UDR005 for carton erecting, product indexing, label application, and case sealing sequences. High-speed inputs capture encoder pulses for position tracking while relay outputs trigger pneumatic actuators, ensuring precise timing coordination across multi-station packaging lines.

Food & Beverage Processing: Batch control applications in mixing, blending, and filling operations benefit from the IC200UDR005's ability to sequence ingredient addition, monitor agitator operation, control heating/cooling valves, and manage CIP (clean-in-place) cycles—all while maintaining compliance with sanitary design requirements through conformal-coated electronics.

Technical Parameters & Selection Criteria

Selection Guidelines: Choose the IC200UDR005 when total I/O requirements remain below 28 points and relay outputs suit the application's switching needs. For systems requiring more than 12 relay outputs or needing analog I/O from the start, consider the IC200CPU001 CPU module with separate I/O carriers. Applications demanding faster scan times (<0.3ms/K) or larger memory (>20KB) should evaluate higher-performance VersaMax or RX3i controllers.

Extended Integration & Connectivity Options

Analog Process Monitoring: Expand beyond discrete control by adding VersaMax analog modules for temperature, pressure, flow, and level measurement. The system accommodates voltage (0-10V), current (4-20mA), RTD (PT100/PT1000), and thermocouple (J/K/T/E) inputs through hot-swappable expansion modules that inherit the base controller's rugged design specifications.

Fieldbus Network Integration: Connect the IC200UDR005 to plant-wide automation networks using VersaMax communication modules supporting PROFIBUS-DP, DeviceNet, and Ethernet/IP protocols. This enables centralized SCADA monitoring, recipe management, and coordinated control across multiple machines while maintaining local autonomy during network interruptions.

Motion & Positioning Control: High-speed counter modules transform the IC200UDR005 into a motion controller for single-axis positioning, product counting, and speed measurement applications. Encoder inputs accept differential (A/B/Z) and single-ended pulse trains up to 250kHz, supporting stepper motors, servo drives, and frequency-based flow meters.

Custom I/O Configurations: Mix and match up to eight expansion modules from VersaMax's 40+ I/O module portfolio, including 32-point high-density digital I/O, isolated analog channels, relay/transistor/triac outputs, and specialty modules for RTD temperature sensing, strain gauge conditioning, and pulse train generation.

Delivery, Warranty & Technical Support

Standard Lead Time: In-stock IC200UDR005 units ship within 1-2 business days via express courier services. Custom configurations with pre-installed expansion modules or programmed logic require 5-7 business days for assembly, testing, and quality verification before shipment.

Warranty Coverage: Every IC200UDR005 controller includes a comprehensive 12-month manufacturer warranty protecting against defects in materials, workmanship, and component failures under normal operating conditions. Warranty service includes advance replacement to minimize production downtime in critical automation systems.

Technical Assistance: Application engineers provide pre-sale consultation for system architecture design, I/O module selection, communication protocol configuration, and programming software setup. Post-sale support includes troubleshooting guidance, firmware updates, and replacement part identification for legacy system maintenance.

Documentation Package: Each controller ships with installation quick-start guide, I/O wiring diagrams, and digital access to complete user manuals, programming reference guides, and CAD drawings (DXF/STEP formats) for panel layout design and mechanical integration planning.

Frequently Asked Questions

How does the IC200UDR005 compare to Allen-Bradley Micro800 series controllers?
Both platforms target compact automation applications, but the IC200UDR005 offers superior expansion flexibility through VersaMax's modular architecture (8 expansion slots vs. Micro800's 2-4 slots). GE's relay outputs provide higher voltage ratings (250V AC vs. 125V AC), while Rockwell controllers typically offer faster Ethernet connectivity in base configurations. Choose based on existing automation infrastructure and required I/O density.

Can I program the IC200UDR005 using ladder logic from other PLC brands?
The IC200UDR005 requires GE's Proficy Machine Edition software and does not import ladder logic from Siemens, Allen-Bradley, or Mitsubishi programming environments. However, IEC 61131-3 compliance ensures that control algorithms developed in standard Ladder Diagram, Function Block, or Structured Text can be manually recreated with minimal modification, preserving intellectual property investment during platform migrations.

What is the maximum distance for expansion module connections?
Expansion modules connect directly to the IC200UDR005 via the backplane bus without external cabling, forming a continuous assembly on DIN rail. For distributed I/O beyond the local rack, use VersaMax remote I/O modules with serial or fieldbus communication, supporting distances up to 1200 meters (4000 feet) depending on communication protocol and cable specifications.

Are the relay outputs suitable for switching inductive loads like solenoid valves?
Yes, Form C relay contacts handle inductive loads when properly protected with suppression devices. For DC solenoids, install flyback diodes across coil terminals; for AC solenoids and contactors, use RC snubbers (0.1µF + 100Ω typical) to suppress voltage transients. Without suppression, contact life degrades from 100,000 operations to <10,000 operations when switching inductive loads exceeding 0.5A.

Does the IC200UDR005 support remote programming and monitoring over Ethernet?
The base IC200UDR005 provides serial communication only (RS-232/RS-485). For Ethernet connectivity, add the IC200BEM103 DeviceNet module or IC200BEM002 PROFIBUS module, then use protocol gateways to bridge to Ethernet networks. Alternatively, connect a serial-to-Ethernet converter to the RS-232 port for remote programming access via Proficy Machine Edition's serial-over-IP feature.

What programming languages does Proficy Machine Edition support for the IC200UDR005?
Proficy Machine Edition implements all five IEC 61131-3 programming languages: Ladder Diagram (LD) for relay logic replacement, Function Block Diagram (FBD) for process control, Structured Text (ST) for complex algorithms, Instruction List (IL) for optimization, and Sequential Function Chart (SFC) for batch sequencing. Most users employ Ladder Diagram for discrete control combined with Function Blocks for PID loops and mathematical operations.

Ready to Streamline Your Automation Project?

The IC200UDR005 VersaMax Micro PLC eliminates the complexity of multi-component control systems while preserving the scalability and reliability demanded by industrial environments. Whether replacing aging relay panels, implementing new machine control, or deploying distributed automation nodes, this integrated controller delivers proven GE technology in a space-efficient package.

Contact our automation specialists today to discuss your application requirements, receive customized I/O configuration recommendations, and obtain project-specific pricing for IC200UDR005 controllers and compatible VersaMax expansion modules. Technical consultation available for system architecture design, programming support, and migration planning from legacy control platforms.
