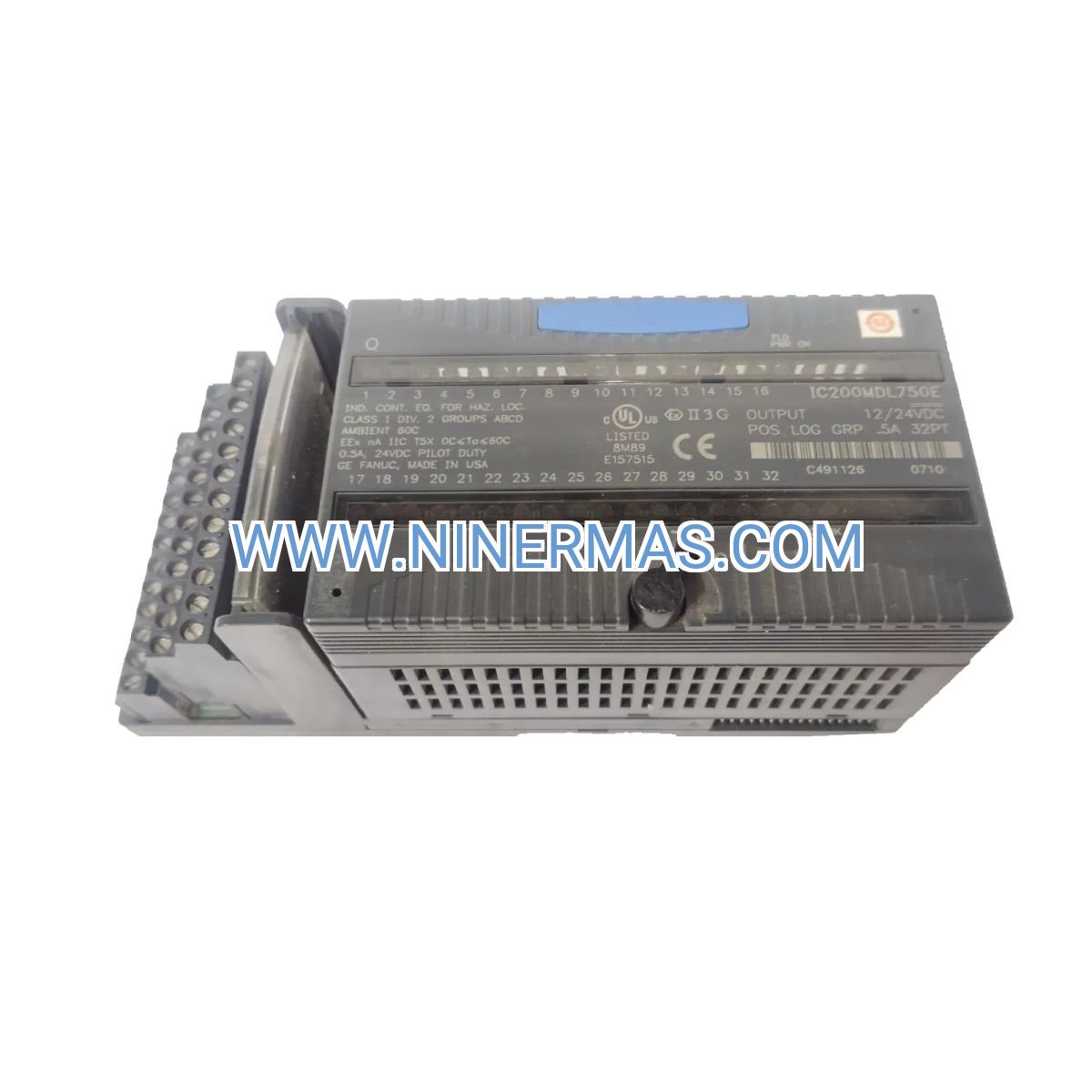

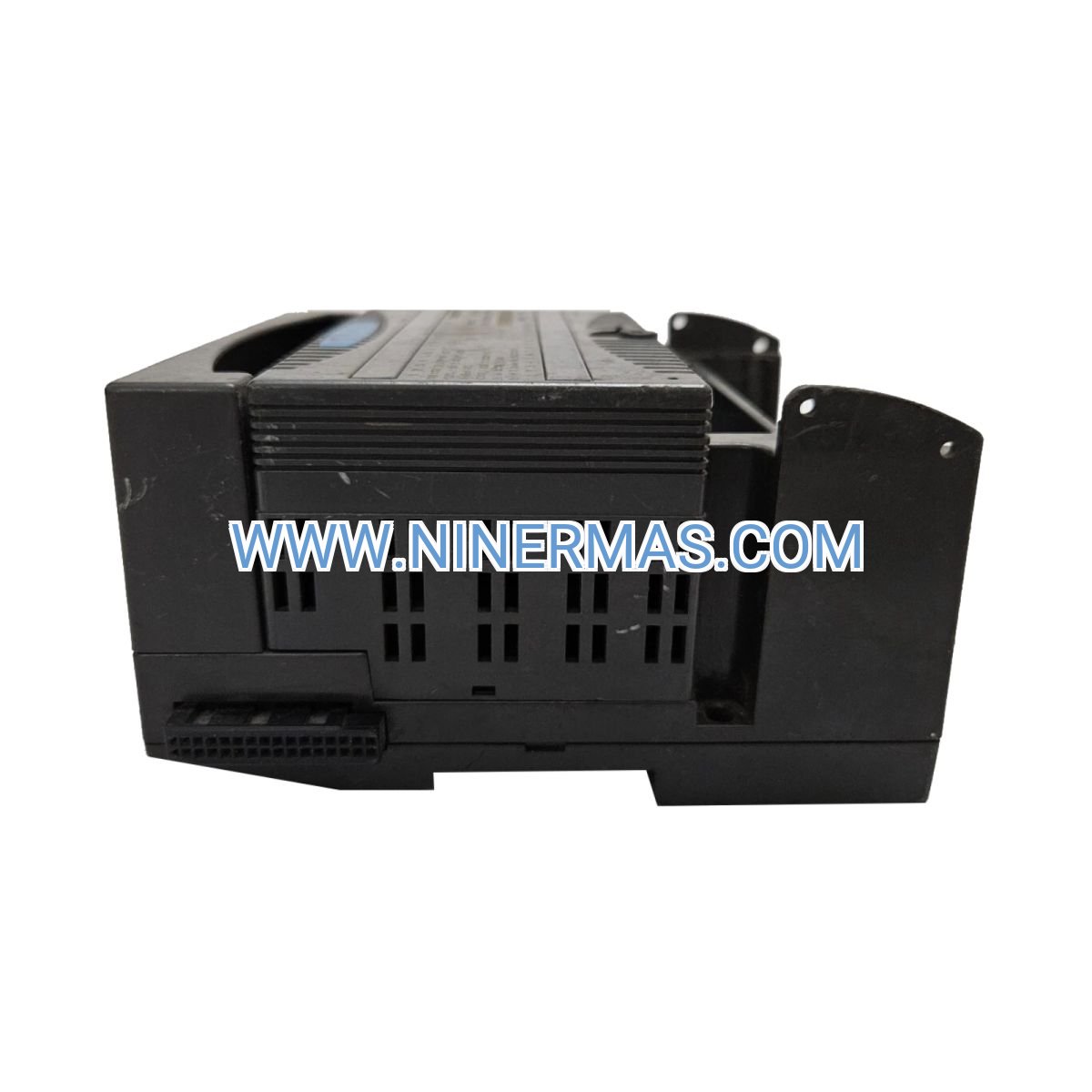

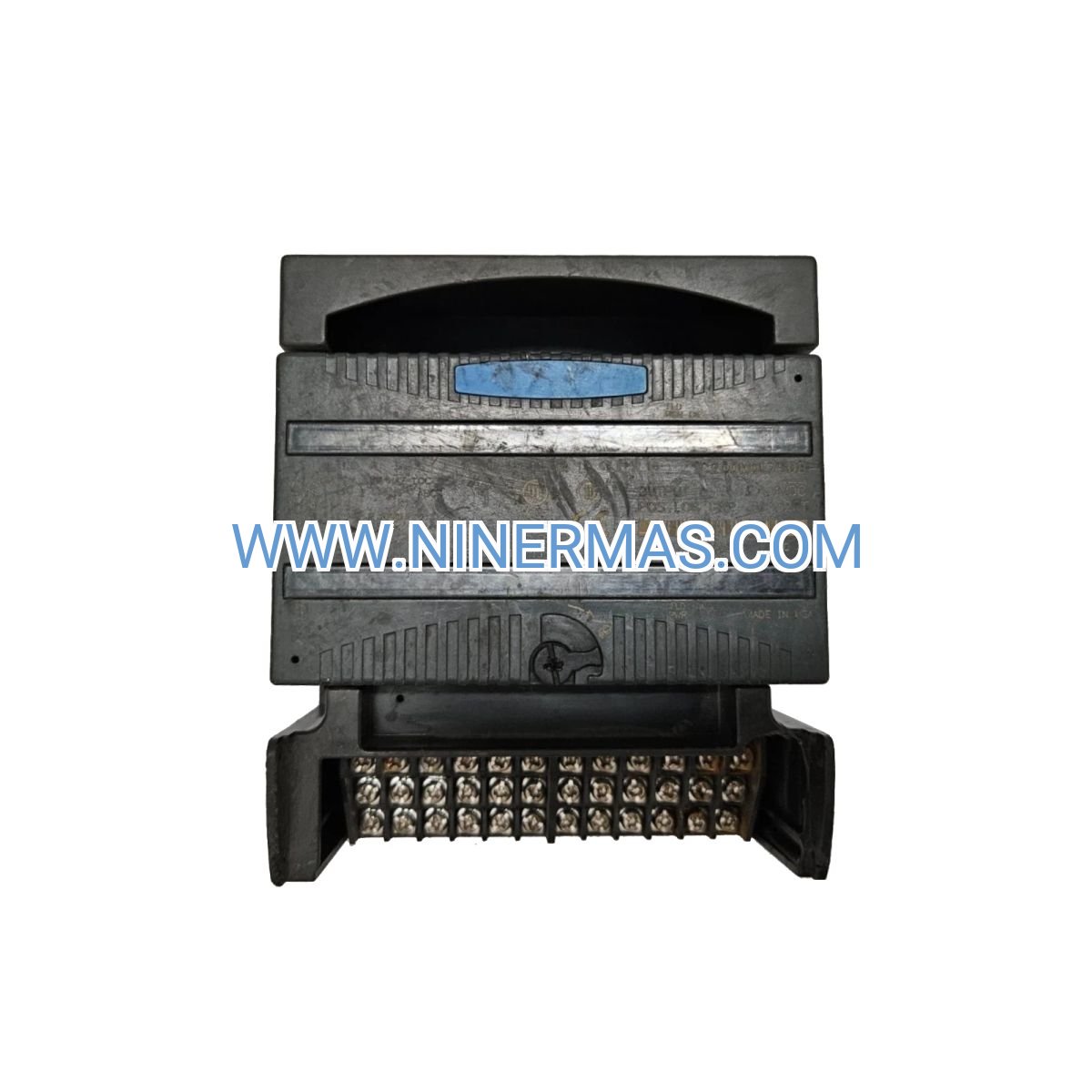

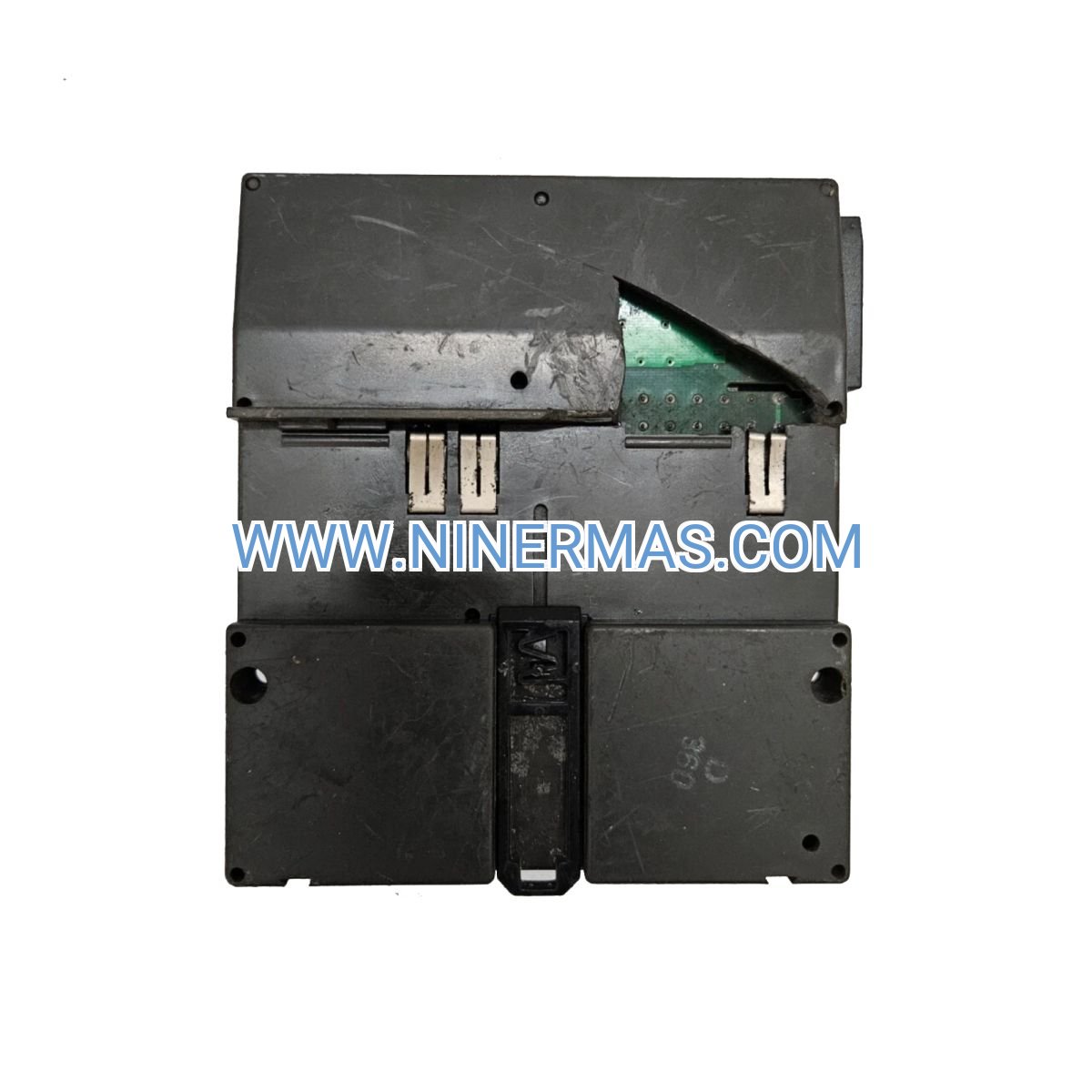

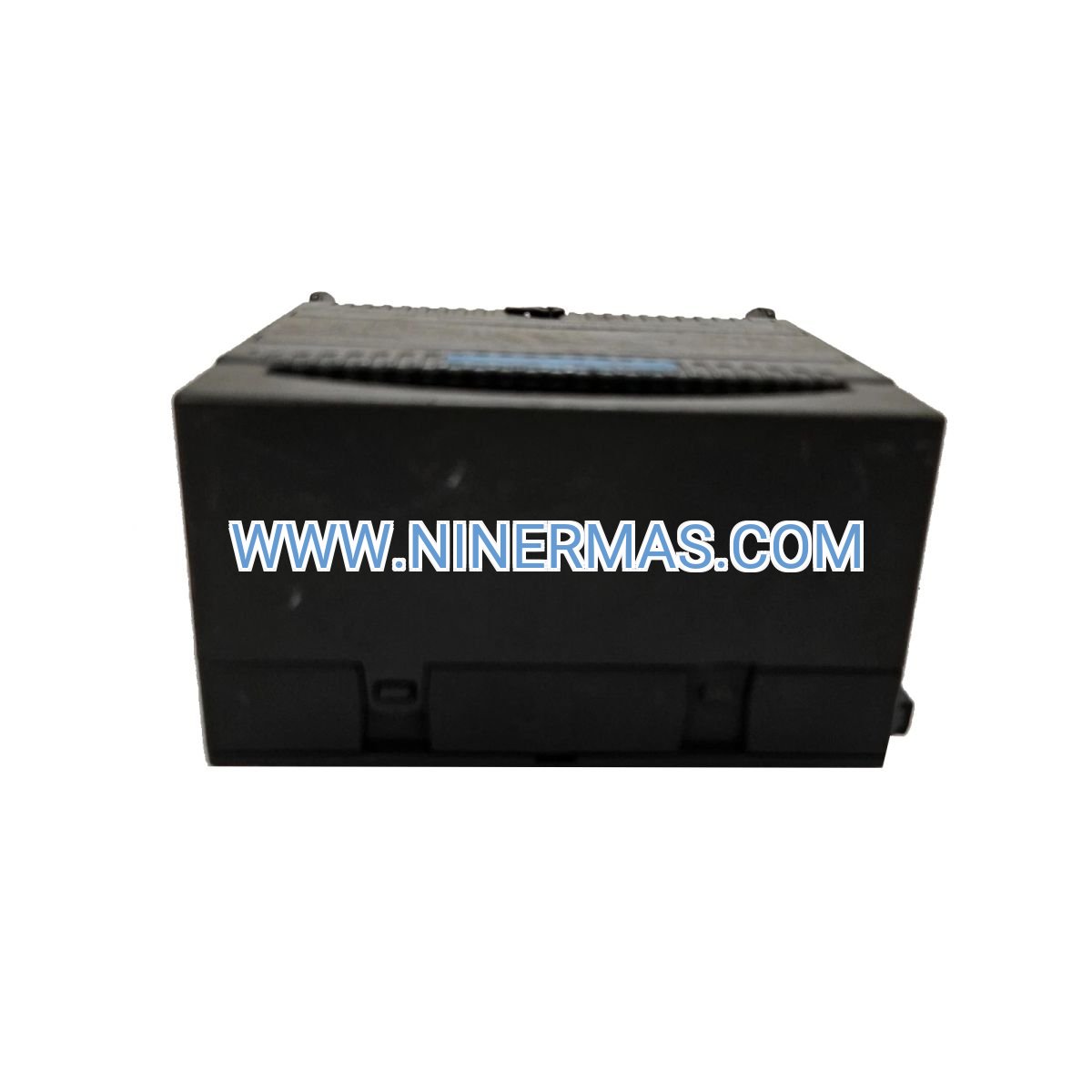

GE IC200MDL750L 32-Point Discrete Output Module (Industrial-Grade Digital Control Solution)

The GE IC200MDL750L VersaMax discrete output module is a high-density industrial control device designed for precise digital signal switching in automated manufacturing, process control, and machine integration systems. Through solid-state transistor technology and 24VDC positive/sourcing logic architecture, it delivers reliable on/off control for solenoid valves, indicator lights, relay coils, motor starters, and actuator circuits across 32 independent output channels.

Ideal for factory automation, packaging lines, material handling conveyors, HVAC control panels, and water treatment facilities, this module addresses common challenges including insufficient I/O density, electrical noise interference, complex wiring requirements, limited diagnostic visibility, and frequent maintenance downtime caused by mechanical relay failures.

Featuring standardized VersaMax platform compatibility with customizable configuration options, the IC200MDL750L offers 500V optical isolation, hot-swap capability, DIN rail mounting, and UL/CE/CSA certifications—making it suitable for design engineers, system integrators, OEM machine builders, and plant maintenance teams. Contact our application engineers for tailored I/O architecture recommendations and competitive project quotations.

Core Features & Technical Advantages

High-Density Output Architecture
Provides 32 discrete output points in a compact single-slot module footprint, reducing panel space requirements by up to 60% compared to traditional relay-based solutions while simplifying cabinet layout and wire management.

Solid-State Reliability & Longevity
Transistor-based switching eliminates mechanical wear, contact bounce, and arc erosion common in electromechanical relays, extending mean time between failures (MTBF) beyond 500,000 hours under typical industrial operating conditions.

Robust Electrical Isolation
500V optical isolation between logic circuits and field power protects sensitive PLC backplane components from voltage transients, ground loops, and electromagnetic interference (EMI) in harsh electrical environments.

Comprehensive Diagnostic Protection
Integrated short-circuit detection, thermal overload shutdown, and per-point status indication enable rapid fault identification and minimize unplanned downtime, with LED indicators providing real-time visual feedback for each output channel.

Flexible System Integration
Seamless compatibility with all VersaMax CPUs, expansion carriers, and communication modules allows scalable system growth from 32 to 2,048+ I/O points, supporting Modbus RTU, DeviceNet, and Ethernet/IP network protocols for distributed control architectures.

Industrial-Grade Environmental Resilience
Operates reliably across 0°C to 60°C ambient temperature range with conformal coating protection against moisture, dust, and chemical vapors—meeting IP20 enclosure ratings for standard industrial control panel installations.

Typical Application Scenarios

This module excels in applications demanding high output density, fast switching response, and long-term operational stability, particularly in:

Automated Assembly & Manufacturing Lines
Controls pneumatic actuators, part ejectors, conveyor diverters, and quality inspection gates in automotive component assembly, electronics production, and consumer goods packaging operations where cycle times demand sub-50ms response and 24/7 uptime reliability.

Process Control & Chemical Batch Systems
Manages solenoid valves for ingredient dosing, tank filling sequences, mixer agitation cycles, and transfer pump interlocks in food processing, pharmaceutical manufacturing, and petrochemical blending facilities requiring precise recipe execution and regulatory compliance documentation.

Building Automation & HVAC Control
Operates damper actuators, fan contactors, heating element stages, and chiller sequencing in commercial office buildings, data centers, and hospital environmental control systems where energy efficiency and occupant comfort depend on coordinated multi-zone temperature regulation.

Water & Wastewater Treatment Plants
Drives chemical feed pumps, clarifier scrapers, filter backwash valves, and UV disinfection lamp banks in municipal drinking water facilities and industrial effluent treatment systems where continuous operation and remote SCADA monitoring are mission-critical.

Material Handling & Warehouse Logistics
Switches sortation diverters, barcode scanner triggers, label applicators, and pallet wrapper clamps in distribution center conveyor networks and automated storage/retrieval systems (AS/RS) handling 10,000+ cartons per hour throughput.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement decisions, we provide comprehensive electrical, mechanical, and environmental specifications. Custom configurations available for non-standard voltage requirements or specialized mounting arrangements.

Selection Considerations
When specifying this module, evaluate: (1) total output current demand per group and per module to avoid exceeding 8A/group or 16A/module limits, (2) external 24VDC power supply capacity accounting for inrush current from inductive loads, (3) ambient temperature inside control enclosure considering heat dissipation from adjacent components, (4) wire routing distance and voltage drop for loads exceeding 50 meters from panel, and (5) compatibility with existing VersaMax CPU firmware revision and carrier slot availability. For application-specific guidance, provide load types (resistive/inductive), switching frequency requirements, and environmental conditions—our engineers will recommend optimal module quantity and power supply sizing.

Advanced Configuration Options

Multi-Module Expansion
Combine up to 7 IC200MDL750L modules on a single VersaMax carrier for 224-point output capacity, or distribute across multiple carriers using IC200CBL series expansion cables for systems requiring 500+ discrete outputs with centralized PLC control.

Mixed I/O Architecture
Pair with IC200MDL650 32-point input modules for balanced digital I/O, integrate IC200ALG260E analog input modules for process variable monitoring, or add IC200BEM communication modules for DeviceNet/Profibus network connectivity in hybrid control systems.

Redundant Output Protection
Implement dual-module configurations with software-based output comparison logic to detect transistor failures and automatically switch critical loads to backup channels—ideal for safety-critical applications in pharmaceutical clean rooms or semiconductor fabrication.

Remote I/O Deployment
Mount modules in IP65-rated remote I/O enclosures near machine zones, connected via Ethernet/IP or Modbus TCP to central PLC, reducing copper wire runs by 70% and enabling flexible production line reconfiguration without extensive rewiring.

Delivery, Service & Quality Assurance

Lead Time & Availability
Factory-sealed units ship within 2–5 business days from regional distribution centers. Custom-configured systems with pre-wired terminal blocks and tested I/O mapping require 10–15 business days. Expedited same-day shipping available for emergency breakdown situations (subject to stock availability and carrier service areas).

Warranty Coverage
All IC200MDL750L modules include a comprehensive 18-month manufacturer warranty covering material defects, workmanship issues, and component failures under normal operating conditions. Extended 36-month service agreements available with priority technical support and advance replacement options.

Installation & Commissioning Support
Complimentary remote technical assistance for module configuration, I/O address mapping, and diagnostic troubleshooting via phone/email. On-site startup services available in major metropolitan areas—includes physical installation verification, load testing, and operator training (quoted separately based on location and system complexity).

Technical Documentation Package
Each module ships with: (1) Quick Start installation guide with wiring diagrams, (2) Full user manual covering specifications and programming examples, (3) CAD drawings in DXF/PDF formats for panel layout, (4) Compliance certificates (UL/CE/CSA), and (5) Recommended spare parts list. Additional resources including PLC ladder logic samples and HMI screen templates available via download portal.

Quality Certifications
Manufactured in ISO 9001:2015 certified facilities with 100% functional testing including hi-pot isolation verification, output current capacity validation, and thermal cycling stress tests. Traceability documentation available for aerospace, defense, and pharmaceutical applications requiring serialized component tracking.

Frequently Asked Questions (FAQ)

Q: How does the IC200MDL750L discrete output module integrate with existing VersaMax PLC systems?
A: The module mounts directly onto any VersaMax IC200CHS series carrier and auto-configures via backplane communication. Simply insert into an available slot, assign I/O addresses using programming software (e.g., Proficy Machine Edition), and map output coils in your ladder logic. No DIP switches or manual configuration required—the CPU automatically detects module type and allocates memory.

Q: What is the maximum number of output modules I can install in a single VersaMax system?
A: A single VersaMax CPU supports up to 2,048 discrete I/O points total. With each IC200MDL750L providing 32 outputs, you can theoretically install 64 modules across multiple expansion carriers. Practical limits depend on CPU model (e.g., IC200CPU005 supports 256 I/O), backplane power budget (each module draws 3.5W), and physical carrier slot availability (typically 5–10 slots per carrier).

Q: Can this module drive inductive loads like solenoid valves and relay coils without external protection?
A: Yes, the integrated MOSFET transistors include built-in flyback diode suppression for inductive load protection. However, for highly inductive loads (coils >50mH) or long cable runs (>100m), we recommend adding external surge suppressors (varistors or RC snubbers) across the load to extend transistor lifespan and reduce electrical noise on the DC power bus.

Q: What happens if I exceed the 0.5A current rating on a single output point?
A: Each output channel features automatic thermal shutdown protection. If current exceeds 0.5A continuously or reaches 0.8A instantaneously, the transistor will turn off within 100ms and the corresponding LED will flash red (on models with fault indication). The output remains disabled until the PLC program cycles it off/on or the module is power-cycled. Repeated overloads may cause permanent transistor damage not covered under warranty.

Q: Is hot-swapping supported during live system operation?
A: The VersaMax platform supports hot-swap capability when enabled in CPU configuration. However, we strongly recommend: (1) placing the CPU in STOP mode before module removal, (2) verifying all connected loads are de-energized, (3) following LOTO (lockout/tagout) safety procedures, and (4) allowing 30 seconds after insertion for the CPU to recognize and initialize the new module before resuming RUN mode.

Q: Does the module require a separate external power supply for the output circuits?
A: Yes. While the module draws 3.5W logic power from the VersaMax backplane, the 24VDC output circuits require an external industrial power supply connected to the field power terminals (typically labeled V+ and COM on the terminal block). Size the supply for total connected load current plus 20% margin—for example, if driving 16 outputs at 0.3A each, specify a minimum 6A (16 × 0.3 × 1.2) 24VDC supply.

Q: What diagnostic capabilities are available for troubleshooting output failures?
A: Each of the 32 outputs has a dedicated green LED that illuminates when the PLC program commands the output ON and the transistor is conducting. If an LED is off when the output should be active, check: (1) PLC program logic and forced I/O table, (2) external 24VDC field power presence, (3) load wiring continuity and polarity, (4) per-point current not exceeding 0.5A, and (5) module firmware compatibility with CPU. Advanced diagnostics via programming software show real-time output status and fault history.
