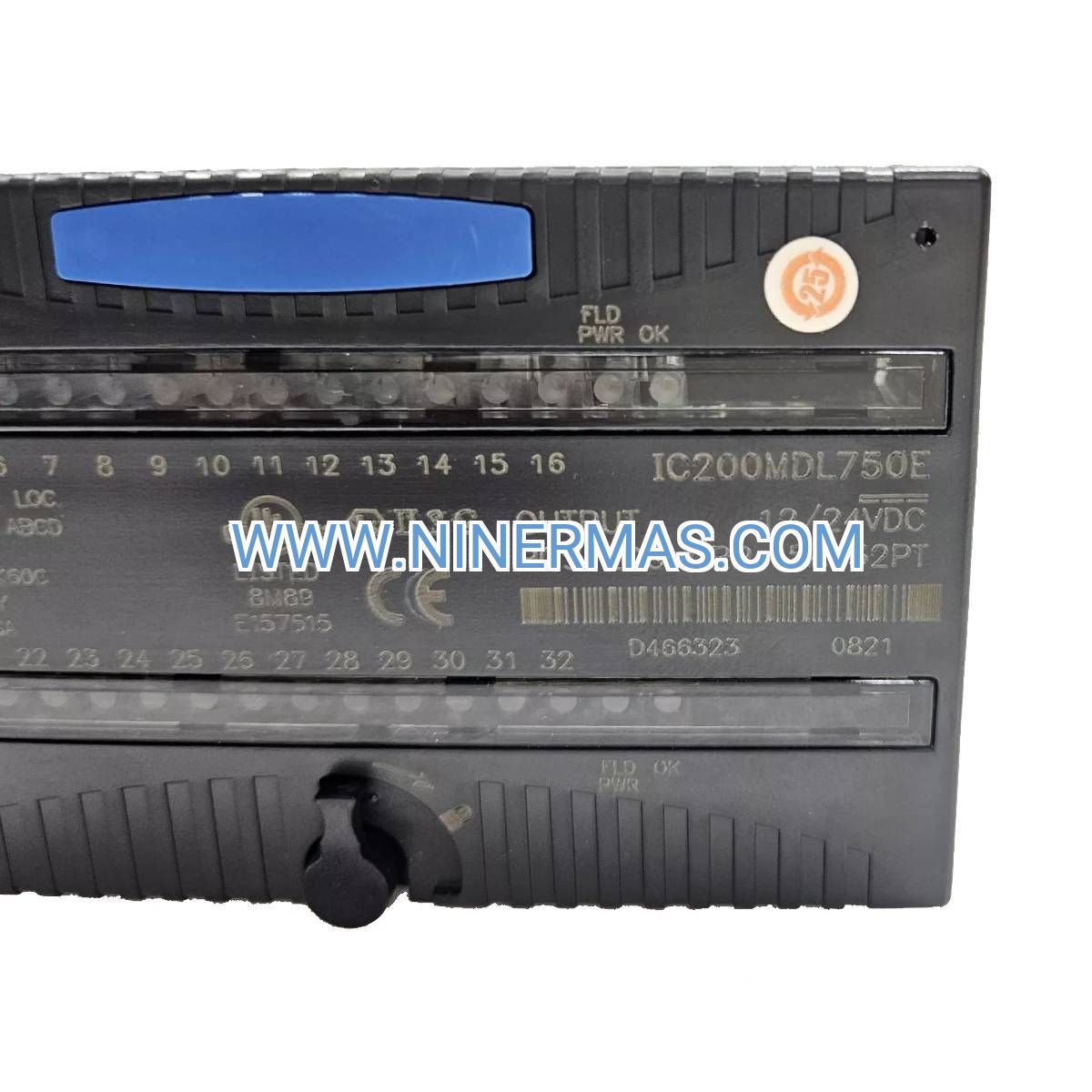

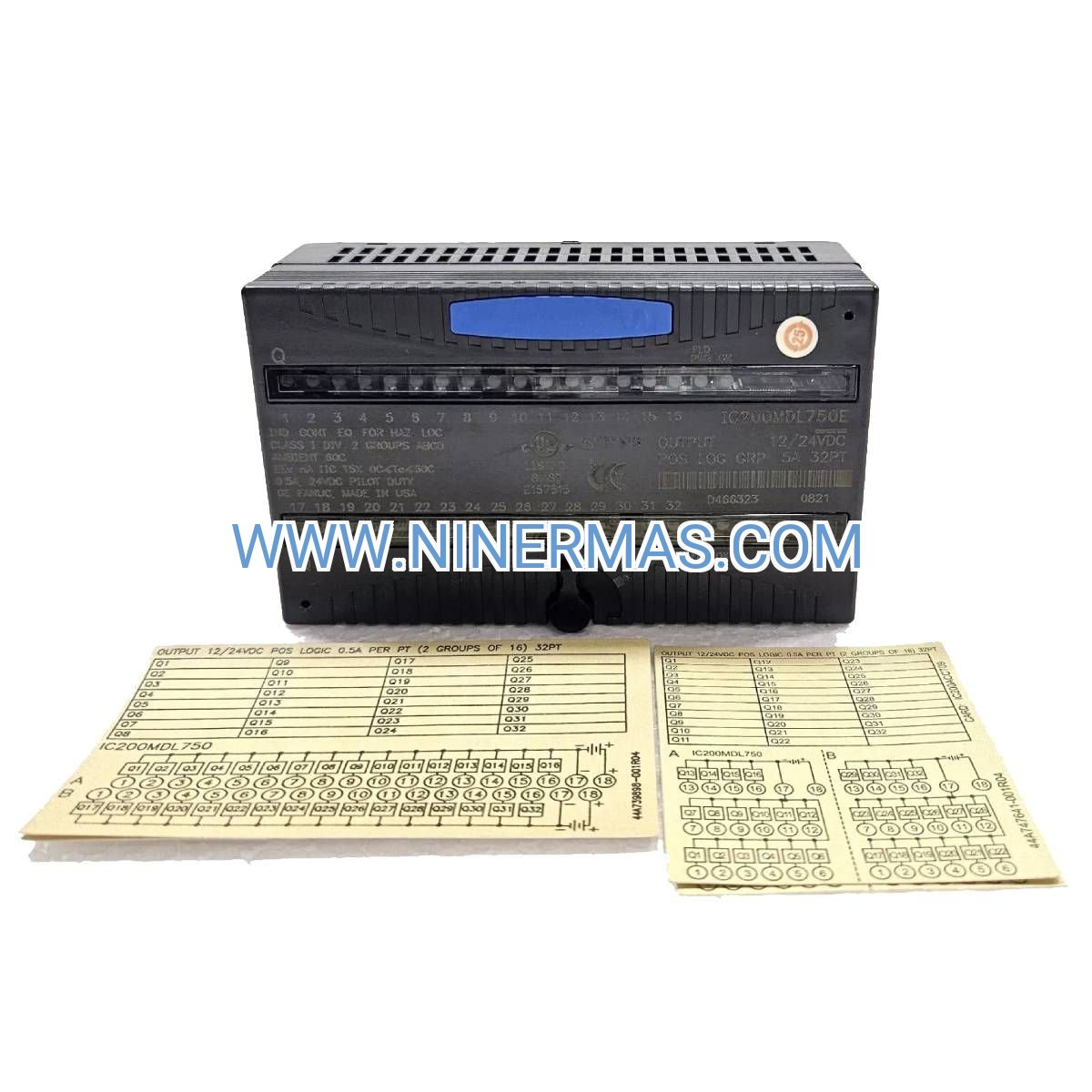

IC200MDL750 Discrete Output Module (Industrial-Grade 32-Channel Controller)

Engineered for precision control in demanding manufacturing environments, the IC200MDL750 stands as a cornerstone component in GE's VersaMax I/O architecture. This sourcing-type output module integrates 32 independent control channels into a single compact housing, enabling system designers to command solenoid valves, motor contactors, pilot lights, and relay coils with exceptional reliability. Built to withstand temperature extremes, electrical noise, and continuous operation cycles, it serves as the critical interface between your PLC logic and field devices across assembly lines, packaging systems, material handling networks, and process control installations.

Automation engineers select the IC200MDL750 when panel space constraints demand high I/O density without sacrificing diagnostic capabilities or serviceability. Each output point features dedicated LED indication for real-time status monitoring, while removable screw-terminal blocks accelerate both initial commissioning and future maintenance activities. The module's hot-swap capability ensures production continuity—technicians can replace units during scheduled maintenance windows or emergency repairs without halting adjacent I/O operations or disrupting active control sequences.

Whether you're retrofitting legacy relay panels, expanding existing VersaMax installations, or architecting greenfield automation projects, the IC200MDL750 delivers the performance headroom and integration flexibility required for mission-critical industrial applications. Its proven track record across automotive manufacturing, food processing, pharmaceutical packaging, and water treatment facilities demonstrates the module's versatility and long-term dependability in diverse operational contexts.

Performance Advantages & Technical Capabilities

→ Compact 32-Channel Architecture
Consolidate control functions into minimal footprint—each module replaces up to four traditional 8-point cards, reducing panel width requirements by 60% while simplifying backplane wiring and lowering installation labor costs.

→ 500VAC Optical Isolation Barrier
Protect sensitive CPU circuitry from voltage transients, ground potential differences, and electromagnetic interference. Isolation channels prevent fault propagation between field wiring and logic-level electronics, enhancing system uptime in electrically noisy industrial settings.

→ Millisecond Response Characteristics
Achieve typical ON/OFF transition times under 1ms, enabling precise synchronization of high-speed packaging equipment, robotic pick-and-place operations, and coordinated motion control sequences where timing accuracy directly impacts product quality.

✓ Field-Serviceable Terminal Blocks
Removable connectors with captive screws allow pre-wiring of replacement modules offline. Swap defective units in under 90 seconds without disturbing adjacent I/O or re-terminating 32 field conductors—minimizing mean time to repair during unplanned downtime events.

✓ Per-Point Diagnostic Indicators
Green LEDs illuminate for each active output, providing instant visual confirmation of commanded states. Troubleshoot wiring faults, load failures, or logic errors without connecting diagnostic tools—accelerate commissioning and reduce service call duration.

✓ Extended Environmental Tolerance
Operate reliably across 0°C to 60°C ambient temperature range with 5-95% humidity resistance. Conformal coating options available for corrosive atmospheres, washdown environments, and outdoor enclosures subject to condensation cycles.

Industry Application Scenarios

Automotive Assembly & Welding Cells
Control pneumatic clamps, part ejectors, and safety light curtain resets across multi-station body-in-white lines. The IC200MDL750's high channel count reduces I/O rack complexity in robotic workcells where dozens of discrete signals coordinate material flow and quality gates.

Food & Beverage Packaging Lines
Command conveyor diverters, label applicators, reject mechanisms, and case sealers in high-speed bottling or cartoning systems. Optical isolation prevents electrical noise from variable frequency drives and servo amplifiers from corrupting output signals during rapid product changeovers.

Water Treatment & Distribution
Activate chemical dosing pumps, valve actuators, alarm beacons, and SCADA interface relays in municipal treatment plants. The module's wide temperature rating suits outdoor pump stations and remote lift stations where HVAC systems may be absent or minimal.

Pharmaceutical Batch Processing
Sequence ingredient addition valves, agitator motors, heating elements, and clean-in-place spray balls during recipe-driven batch campaigns. Removable terminals simplify validation documentation and support rapid changeover between product formulations requiring different I/O configurations.

Material Handling & Sortation
Drive barcode scanner triggers, diverter solenoids, pusher cylinders, and status tower lights in distribution center sortation systems. Compact mounting enables dense I/O placement near conveyor merge points where cabinet space is constrained by mechanical infrastructure.

Technical Parameters & Selection Criteria

Selection Guidelines: Verify that your VersaMax carrier provides adequate 5VDC backplane current (150mA per module). For applications requiring sinking outputs or AC voltage switching, consult alternative IC200MDL models. When controlling inductive loads exceeding 50mA, install external flyback diodes or RC snubbers to prevent voltage spikes during coil de-energization. Ensure field power supply can deliver sustained current equal to the sum of all simultaneously active outputs plus 20% margin.

Advanced Integration & Expansion Options

Distributed I/O Networking: Pair the IC200MDL750 with Ethernet-based I/O carriers for remote installation up to 100 meters from the main controller. This architecture reduces copper wiring costs in large facilities while enabling flexible machine layout changes without rewiring control cabinets.

Redundant Output Configurations: Deploy dual IC200MDL750 modules controlling critical loads through OR-ing diode networks. This fault-tolerant design maintains output capability even if one module fails, supporting safety-instrumented systems and high-availability processes.

Mixed-Signal Control Panels: Combine discrete output modules with VersaMax analog I/O, high-speed counter modules, and specialty function blocks on shared carriers. Unified backplane communication simplifies programming and reduces scan time compared to distributed fieldbus architectures.

SCADA Integration: Map output states to OPC UA servers or Modbus TCP gateways for real-time visualization in plant-wide HMI systems. Historical trending of output activation patterns supports predictive maintenance and process optimization initiatives.

Delivery Timeline & Service Commitments

Standard Lead Time: In-stock units ship within 24-48 hours via express courier services. Typical delivery to major industrial centers: 3-5 business days domestic, 7-10 days international with customs pre-clearance.

Warranty Coverage: 12-month manufacturer defect warranty from shipment date. Coverage includes replacement module, return shipping labels, and technical root-cause analysis. Extended warranty programs available for critical spares inventory.

Technical Support: Pre-sales application engineering assistance for I/O sizing, carrier selection, and power budget calculations. Post-sales support includes configuration file review, troubleshooting guidance, and firmware compatibility verification.

Documentation Package: Each module ships with installation quick-start guide, wiring diagrams, and dimensional drawings. Downloadable resources include user manuals, CAD models (STEP/DWG), and sample ladder logic for common control patterns.

Frequently Asked Questions

Can the IC200MDL750 control 12VDC loads instead of 24VDC devices?
While the module is rated for 24VDC nominal operation, it will function with 12VDC field power, though output current capacity may be reduced. Verify that your loads operate reliably at the lower voltage and consult factory specifications for derated current limits below 19.2VDC.

What is the maximum wire gauge for terminal block connections?
Screw terminals accept 12-22 AWG (0.25-2.5mm²) copper conductors. Use ferrules on stranded wire to prevent strand breakage and ensure reliable contact pressure. Tighten terminal screws to 0.5-0.6 Nm torque specification.

How do I calculate backplane power budget for multiple modules?
Sum the 5VDC current draw of all modules on the carrier (IC200MDL750 = 150mA each). Ensure total does not exceed carrier rating—typically 2A for standard bases. Add 20% margin for inrush and future expansion.

Is firmware update required when adding this module to existing systems?
No firmware update needed—the IC200MDL750 is automatically recognized by VersaMax CPUs running any firmware version. Configuration occurs through standard I/O mapping in Proficy Machine Edition software without special drivers or patches.

What replacement interval is recommended for preventive maintenance?
Solid-state output modules typically operate 10+ years in controlled environments. Inspect terminal connections annually for tightness and corrosion. Replace modules showing erratic LED behavior, intermittent outputs, or physical damage from environmental exposure.

Can I mix IC200MDL750 with older VersaMax I/O on the same carrier?
Yes—full backward compatibility with legacy VersaMax modules is maintained. Mix output densities (8-point, 16-point, 32-point) on shared carriers to optimize panel layout. Ensure carrier firmware supports the highest-density module installed.

Order Your IC200MDL750 Module Today

Streamline your next automation project with authentic GE VersaMax components backed by expert application support and rapid fulfillment. Our engineering team assists with I/O architecture design, carrier selection, and integration planning to ensure your system meets performance targets and budget constraints. Contact us for volume pricing, custom configuration services, or technical consultation on complex control challenges.
