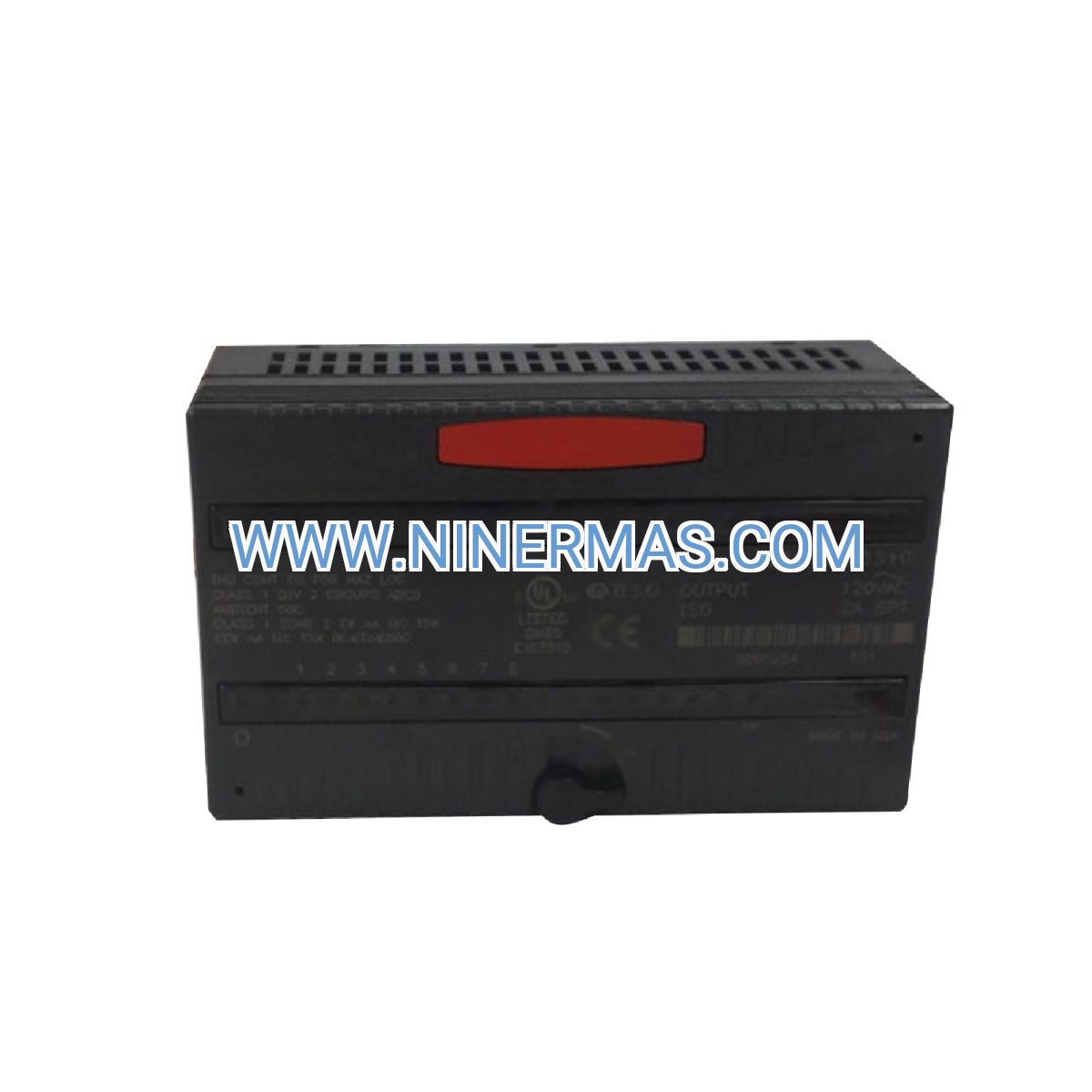

GE IC200MDL331G 8-Point AC Discrete Output Module (Industrial-Grade Control System)

The GE IC200MDL331G is an industrial-grade 8-channel AC discrete output module engineered for VersaMax programmable logic controller platforms. Through precision solid-state relay technology and optical isolation architecture, it delivers reliable switching control for AC-powered field devices including solenoid valves, electromagnetic contactors, motor starters, and pilot indicators. Each output channel supports dual voltage operation at 120/240VAC with 2A continuous current capacity, ensuring compatibility across diverse industrial voltage standards.

Designed for mission-critical applications in manufacturing automation, process control, and building management systems, this module addresses common challenges such as electrical noise interference, output circuit protection failures, and system downtime caused by component replacement. It serves design engineers, system integrators, OEM equipment manufacturers, and plant maintenance teams requiring proven reliability in harsh industrial environments.

Featuring hot-swap capability, 1500VAC optical isolation, and standardized VersaMax carrier mounting, the IC200MDL331G combines robust performance with operational flexibility. Users benefit from reduced installation time, simplified troubleshooting, and extended mean time between failures (MTBF). Contact our application engineers for customized system configuration, technical documentation, and competitive project quotations.

Core Features & Technical Advantages

Dual-Voltage AC Output Capability
Supports both 120VAC and 240VAC field devices on the same module, eliminating the need for separate output cards in mixed-voltage applications. Each channel independently switches AC loads up to 2A continuous rating, suitable for controlling industrial contactors, warning lights, and process valves.

1500VAC Optical Isolation Protection
Integrated photocoupler isolation between field outputs and PLC backplane logic circuitry prevents ground loop interference and protects sensitive controller components from voltage transients, surges, and electrical noise common in industrial power distribution systems.

Hot-Swap Serviceability
Enables module replacement during system operation without shutting down the entire VersaMax rack, minimizing production interruptions and supporting predictive maintenance strategies. Field wiring remains connected to the terminal block during swap procedures.

Fast Response Time Performance
Achieves output switching within one half-cycle (8.3ms at 60Hz / 10ms at 50Hz), meeting timing requirements for high-speed packaging machinery, material handling conveyors, and synchronized motion control applications.

Comprehensive Circuit Protection
Incorporates transient voltage suppression (TVS), thermal overload shutdown, and short-circuit current limiting on each output channel, reducing nuisance trips and extending module service life in electrically demanding environments.

Compact DIN-Rail Mounting Design

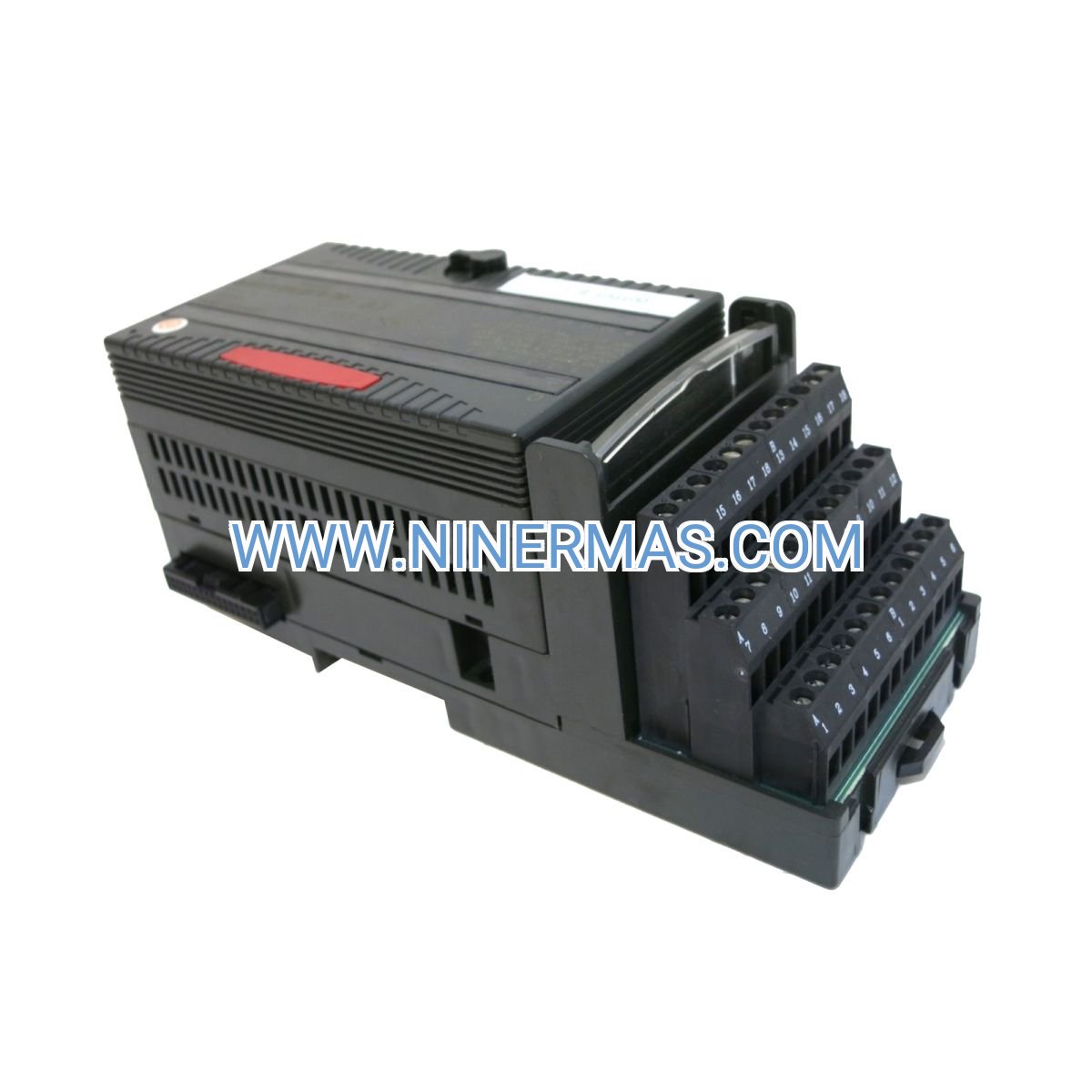

Mounts directly onto standard VersaMax I/O carriers with removable terminal blocks, supporting high-density control panel layouts and simplifying field wiring organization. Compatible with IC200CHS series carriers for flexible system expansion.

Typical Application Scenarios

This module excels in industrial environments requiring reliable AC load switching with electrical isolation and diagnostic capabilities:

Manufacturing Process Automation
Controls pneumatic solenoid valves, hydraulic directional control valves, and electromagnetic clutches in automotive assembly lines, food processing equipment, pharmaceutical packaging systems, and semiconductor fabrication tools. Isolated outputs prevent PLC damage from motor starter inrush currents and coil back-EMF.

Building & Facility Management Systems
Operates HVAC damper actuators, chilled water pump contactors, boiler control relays, and lighting control circuits in commercial buildings, hospitals, data centers, and educational facilities. Dual-voltage capability accommodates legacy 120VAC equipment alongside modern 240VAC systems.

Water & Wastewater Treatment Plants
Switches chemical dosing pump starters, aeration blower contactors, clarifier drive motors, and alarm annunciators in municipal water treatment, industrial effluent processing, and irrigation control systems. Optical isolation protects against ground potential differences in distributed outdoor installations.

Material Handling & Conveyor Systems
Activates diverter gates, sortation pushers, belt drive motor starters, and safety interlock circuits in warehouse automation, airport baggage handling, parcel distribution centers, and mining conveyor networks. Fast response time supports precise product positioning and throughput optimization.

Energy & Utilities Infrastructure
Manages substation breaker trip coils, transformer cooling fan contactors, generator excitation controls, and remote terminal unit (RTU) alarm outputs in electrical distribution, oil & gas pipeline monitoring, and renewable energy generation facilities.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement decisions, we provide comprehensive technical parameters for the IC200MDL331G module:

Selection Considerations
When specifying the IC200MDL331G for your application, evaluate the following system parameters: maximum simultaneous output activation (total current draw), field device voltage requirements (120VAC vs 240VAC), ambient operating temperature range, available panel space for VersaMax carrier mounting, and required diagnostic capabilities (LED status indicators vs network-based monitoring). For applications requiring DC output control, consider the IC200MDL750L 32-point DC output module. If you need assistance with load calculations, wiring diagrams, or system architecture design, our application engineers can provide customized recommendations based on your specific project requirements.

System Integration & Compatible Components

Build comprehensive VersaMax control solutions by combining the IC200MDL331G with complementary I/O modules, power supplies, and communication interfaces:

Input Signal Acquisition
Pair with the IC200MDL650V 32-point discrete input module for high-density 24VDC sensor monitoring, or integrate the IC200MDL650B for positive/negative logic input flexibility in mixed-signal applications.

Analog Signal Processing
Expand measurement capabilities with the IC200ALG240 8-channel analog input module supporting voltage, current, thermocouple, and RTD inputs, or add the IC200ALG321J 4-channel analog voltage output module for precise process control valve positioning.

System Power Distribution
Power your VersaMax rack reliably using the IC200PWR001G 24VDC power supply module (10W capacity) for small systems, or upgrade to the IC200PWR002J VersaMax power supply (30W capacity) for larger I/O configurations.

Controller & Network Connectivity
Complete your distributed control architecture with the IC200CPU001-GK VersaMax CPU module for standalone programmable logic control, and add industrial network connectivity via the IC200BEM002-HA PROFIBUS-DP network slave module for seamless integration into SCADA systems and plant-wide automation networks.

Carrier & Mounting Hardware
Mount modules on the IC200CHS001A single-slot carrier for distributed I/O installations, or use multi-slot carriers (IC200CHS002/003 series) for centralized control panel configurations with integrated terminal blocks.

Delivery, Service & Quality Assurance

Lead Time & Availability
Factory-sealed IC200MDL331G modules ship from stock within 1-3 business days for standard orders. Custom configurations with pre-wired terminal blocks or tested assemblies require 5-10 business days. Expedited shipping options available for urgent project requirements.

Warranty Coverage
All GE VersaMax modules include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty service includes advance replacement, technical troubleshooting support, and return shipping at no additional cost.

Technical Support Services
Our certified automation engineers provide complimentary pre-sales application consulting, system architecture review, and post-installation commissioning assistance. Services include remote diagnostic support, on-site startup supervision (regional availability), and customized training programs for maintenance personnel.

Documentation Package
Each module ships with complete technical documentation including installation manual, wiring diagrams, terminal block pinout specifications, programming examples, and troubleshooting flowcharts. CAD drawings (DXF/DWG formats) and 3D STEP models available upon request for panel design integration.

Quality Certifications
Manufactured under ISO 9001:2015 quality management systems with full traceability. Products comply with UL508 industrial control equipment standards, CE marking for European markets, and RoHS environmental directives. Test certificates and material declarations provided with shipment.

Frequently Asked Questions (FAQ)

Q: Can the IC200MDL331G control both 120VAC and 240VAC loads simultaneously on different channels?
A: Yes, each output channel operates independently and can switch either 120VAC or 240VAC loads. However, ensure proper field wiring segregation and verify that all connected devices match the applied voltage level. Use separate terminal block commons for different voltage groups to maintain electrical safety standards.

Q: What is the maximum number of outputs that can be activated simultaneously?
A: All 8 outputs can be energized concurrently, provided the total backplane current draw (145mA) does not exceed the VersaMax power supply capacity. Field power (120/240VAC) must be adequately sized for the cumulative load current (up to 16A if all channels operate at 2A maximum).

Q: Does this module require external power for the AC outputs?
A: Yes, AC field power (120VAC or 240VAC) must be supplied externally through the terminal block. The module draws only logic power (24VDC, 3.5W) from the VersaMax backplane for control circuitry and optical isolation drivers.

Q: How do I troubleshoot an output that won't energize?
A: First, verify the output status LED indicator on the module faceplate. If the LED illuminates but the load doesn't activate, check field wiring connections, measure AC voltage at the terminal block, and confirm load impedance is within specifications. If the LED remains off, verify PLC program logic, check backplane communication, and test with a known-good module to isolate hardware faults.

Q: Is the IC200MDL331G compatible with earlier VersaMax CPU firmware versions?
A: The module maintains backward compatibility with all VersaMax CPU firmware releases. However, advanced diagnostic features may require minimum firmware versions—consult the VersaMax System Manual (GFK-2314) for specific feature dependencies.

Q: What protection is provided against output short circuits?
A: Each channel incorporates current-limiting circuitry and thermal shutdown protection. In the event of a sustained short circuit, the affected output will disable automatically to prevent component damage. The fault condition is indicated via the module status LED and can be monitored through PLC diagnostics.

Request Technical Consultation & Quotation

To receive customized system design recommendations, detailed pricing, or application-specific technical support, please provide the following project information to our engineering team:

• Project name and application description (industry, process type)
• Total number of AC output points required (voltage levels: 120VAC / 240VAC)
• Connected load specifications (device type, current draw per channel)
• VersaMax system configuration (CPU model, existing I/O modules, rack size)
• Operating environment conditions (temperature range, enclosure type, hazardous area classification if applicable)
• Required delivery timeline and installation support needs

Our application engineers will respond within 24 hours with tailored module selection guidance, system architecture diagrams, and competitive project quotations. For immediate technical assistance, contact our support team via email or phone during business hours.
