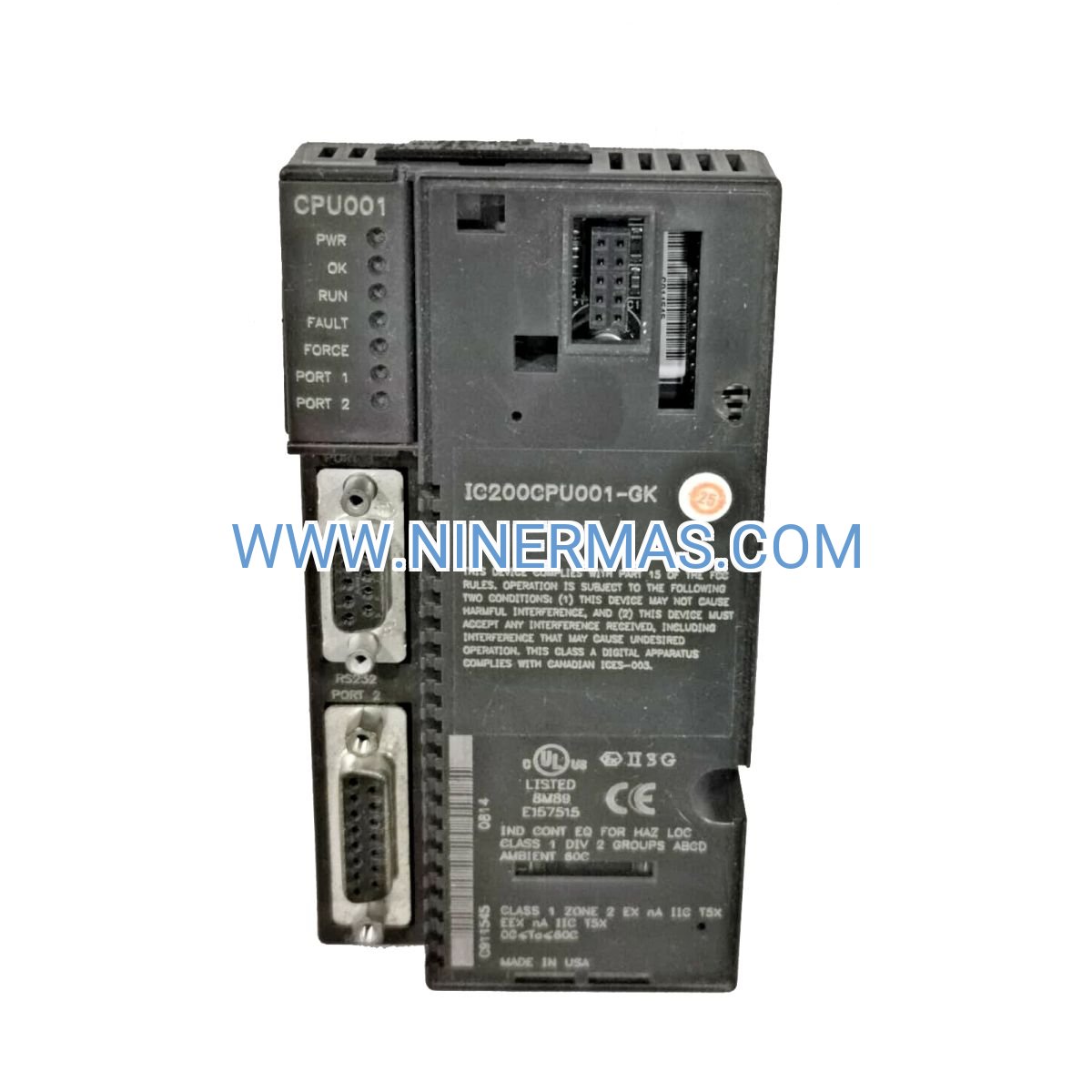

GE IC200CPU001-GK VersaMax PLC CPU Module – Compact Industrial Control Solution

The GE IC200CPU001-GK VersaMax CPU Module is an industrial-grade programmable logic controller designed for precision automation in manufacturing, process control, and machine operation environments. Leveraging advanced microprocessor technology and IEC 61131-3 compliant programming architecture, this compact PLC CPU delivers deterministic control with 10KB user program memory and 32-point I/O capacity, enabling reliable execution of ladder logic, function block diagrams, and structured text applications.

Engineered for integration within distributed control systems, the IC200CPU001-GK addresses critical challenges in industrial automation including inconsistent cycle times, limited scalability, complex wiring requirements, and inadequate diagnostic capabilities. This controller is ideal for OEMs, system integrators, plant engineers, and automation specialists managing packaging lines, material handling conveyors, HVAC systems, water/wastewater treatment facilities, and discrete manufacturing operations.

Built on GE's proven VersaMax platform with modular expansion capability, hot-swappable I/O modules, and multi-protocol communication support, the IC200CPU001-GK offers exceptional reliability, simplified maintenance, and seamless integration with existing SCADA/HMI infrastructure. Contact our automation engineers for application-specific configuration guidance, system sizing recommendations, and technical documentation.

Core Features & Performance Advantages

High-Speed Deterministic Processing
Executes control logic at 0.5ms per 1K instruction scan time, ensuring real-time response for time-critical processes. The optimized scan cycle minimizes latency in closed-loop control applications, reducing process variability and improving product quality in high-speed manufacturing environments.

Flexible I/O Architecture
Supports up to 32 discrete and analog I/O points in base configuration, expandable through VersaMax carrier-mounted modules. Mix-and-match digital inputs/outputs, analog voltage/current signals, and specialty modules (temperature, motion, high-speed counter) to match exact application requirements without over-provisioning hardware.

Multi-Protocol Communication Capability
Integrated RS-232/RS-485 serial ports enable direct connectivity to HMI panels, variable frequency drives, and third-party devices. Optional network interface modules provide DeviceNet, PROFIBUS-DP, and Ethernet/IP connectivity for enterprise-level data exchange and remote monitoring via SCADA systems.

Robust Industrial-Grade Construction
Operates reliably in harsh environments with 0°C to 60°C temperature tolerance, conformal-coated PCBs for moisture/dust resistance, and EMI/RFI immunity per IEC 61000-6-2 standards. DIN-rail or panel mounting options simplify installation in space-constrained control cabinets.

Comprehensive Diagnostic & Protection
Built-in self-diagnostics monitor CPU health, I/O module status, power supply voltage, and communication integrity. LED indicators and software-accessible fault logs accelerate troubleshooting, while watchdog timers and battery-backed memory retention prevent data loss during power interruptions.

Intuitive Programming Environment
Programmed via GE Proficy Machine Edition software supporting all five IEC 61131-3 languages (ladder diagram, function block, structured text, instruction list, sequential function chart). Reusable function blocks, online editing, and simulation tools reduce development time and commissioning costs.

Typical Application Scenarios

The GE IC200CPU001-GK VersaMax CPU Module excels in automation applications demanding compact footprint, reliable performance, and straightforward integration:

Packaging & Material Handling Systems
Controls conveyor sequencing, product sorting, case packing, and palletizing operations in food/beverage, pharmaceutical, and consumer goods facilities. Coordinates multi-axis motion, barcode scanning, and reject mechanisms while maintaining production throughput targets and minimizing downtime.

Process Control & Batch Management
Regulates temperature, pressure, flow, and level parameters in chemical mixing, water treatment, and industrial heating/cooling systems. Executes PID control loops, recipe management, and alarm handling to ensure process stability, regulatory compliance, and operator safety.

Machine Automation & OEM Equipment
Embedded in injection molding machines, CNC tool changers, robotic work cells, and test/inspection equipment. Provides deterministic I/O control, encoder feedback processing, and synchronized motion coordination for precision manufacturing applications.

Building Automation & HVAC Control
Manages air handling units, chiller plants, boiler systems, and lighting control in commercial/industrial facilities. Optimizes energy consumption through demand-based scheduling, occupancy sensing, and integration with building management systems via BACnet or Modbus protocols.

Infrastructure & Utility Systems
Deployed in pump stations, lift stations, remote telemetry units (RTUs), and distributed generation facilities. Monitors equipment status, executes automatic start/stop sequences, and communicates operational data to central control rooms for predictive maintenance and asset management.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, review the following technical parameters when specifying the IC200CPU001-GK for your application:

Selection Considerations
When configuring a VersaMax control system with the IC200CPU001-GK, evaluate the following application parameters: maximum discrete I/O count (digital inputs/outputs), analog channel requirements (voltage/current ranges), communication protocol needs (serial, fieldbus, Ethernet), program complexity (estimated logic size), scan time requirements (process response time), environmental conditions (temperature extremes, vibration exposure), and expansion roadmap (future I/O additions, network integration).

For applications requiring more than 32 I/O points, combine the CPU module with VersaMax carrier assemblies (IC200CHS series) and appropriate I/O modules. Standard configurations support 64, 128, or 256 I/O points depending on carrier selection and module density. Consult our application engineers with your I/O list, control narrative, and electrical drawings for customized system recommendations and bill of materials.

System Integration & Expansion Options

Power Distribution Architecture
The IC200CPU001-GK requires a dedicated 24V DC power supply module from the IC200PWR series. The IC200PWR001 (10W) supports basic CPU + limited I/O configurations, while IC200PWR002 (30W) accommodates larger systems with multiple I/O modules. Implement redundant power supplies for mission-critical applications requiring fault-tolerant operation.

I/O Module Compatibility
Expand system capability with VersaMax I/O modules including discrete input modules (IC200MDL series, 16/32-point AC/DC), discrete output modules (IC200MDL series, relay/transistor/triac), analog input modules (IC200ALG series, voltage/current/RTD/thermocouple), analog output modules (IC200ALG series, 0-10V/4-20mA), and specialty modules (high-speed counter, encoder, motion control).

Communication Network Integration
Connect the IC200CPU001-GK to industrial networks using VersaMax Network Interface Units (NIU): IC200BEM103 for DeviceNet, IC200BEM104 for PROFIBUS-DP, or IC200ETM001 for Ethernet/IP. These modules enable peer-to-peer messaging, distributed I/O control, and integration with plant-wide SCADA/MES systems for production monitoring and data analytics.

Carrier & Mounting Solutions
Mount the CPU module on VersaMax carriers designed for specific application requirements: IC200CHS006 (6-slot communications carrier) for compact installations, IC200CHS022 (22-slot expansion carrier) for large I/O systems, or IC200CHS003 (3-slot micro carrier) for space-constrained OEM equipment. Carriers provide mechanical support, backplane power distribution, and module-to-module communication.

Programming & Configuration Tools
Develop, debug, and maintain control programs using GE Proficy Machine Edition software (version 9.0 or later recommended). This integrated development environment supports offline simulation, online monitoring, forced I/O testing, trend analysis, and remote diagnostics via Ethernet or serial connection. Software licenses available in Standard, Professional, and Enterprise editions.

Frequently Asked Questions (FAQ)

Q: What programming languages does the IC200CPU001-GK VersaMax CPU support?
A: The CPU module supports all five IEC 61131-3 programming languages through GE Proficy Machine Edition: Ladder Diagram (LD) for relay logic replacement, Function Block Diagram (FBD) for process control, Structured Text (ST) for complex algorithms, Instruction List (IL) for optimized code, and Sequential Function Chart (SFC) for batch/sequential operations. Most users prefer Ladder Diagram for discrete control and Function Block for analog/PID applications.

Q: How many I/O modules can I connect to a single IC200CPU001-GK CPU?
A: The base CPU supports 32 I/O points without expansion. Using VersaMax carrier assemblies and expansion units, you can scale up to 256 total I/O points (mix of discrete and analog). The actual module count depends on carrier slot capacity (3, 6, or 22 slots) and individual module point density (8, 16, or 32 points per module). For systems exceeding 256 points, consider distributed I/O via network interface modules.

Q: What communication protocols are compatible with this VersaMax CPU module?
A: Standard serial communication includes RS-232 (programming port) and RS-485 (SNP/Serial I/O protocol for distributed I/O). Adding VersaMax Network Interface Units enables DeviceNet (IC200BEM103), PROFIBUS-DP (IC200BEM104), Ethernet/IP (IC200ETM001), and Modbus RTU/TCP connectivity. The CPU also supports peer-to-peer messaging and master/slave configurations for multi-drop networks.

Q: Is the IC200CPU001-GK suitable for outdoor or harsh industrial environments?
A: Yes, when properly enclosed. The CPU module is rated for 0°C to 60°C ambient temperature with conformal coating for moisture/dust protection. Install in NEMA 4/4X or IP65-rated enclosures for outdoor applications. Ensure adequate ventilation to prevent heat buildup, and consider environmental extremes when selecting I/O modules (some rated for -25°C to 70°C extended range). Vibration and shock ratings meet IEC 60068 industrial standards.

Q: What is the typical program execution speed and scan time?
A: The IC200CPU001-GK executes Boolean logic at approximately 0.5ms per 1K instructions. Actual scan time depends on program complexity, I/O update overhead, communication tasks, and interrupt processing. A typical 5KB ladder program with 64 I/O points scans in 3-5ms. For time-critical applications requiring sub-millisecond response, optimize code structure, minimize floating-point math, and use interrupt-driven I/O where applicable.

Q: Can I hot-swap I/O modules while the CPU is running?
A: Yes, VersaMax I/O modules support hot-swap capability when using appropriate carrier assemblies. The CPU automatically detects module insertion/removal and updates the I/O image table without halting program execution. This feature enables online maintenance, module replacement, and system expansion without production interruption. Always follow proper ESD precautions and verify module configuration before hot-swapping.

Q: What memory backup options are available for program retention?
A: The IC200CPU001-GK includes battery-backed RAM for retentive memory (user program, data tables, and configuration). The onboard lithium battery (IC200ACC001) provides 5+ years of backup at 25°C ambient temperature. For permanent storage, transfer programs to optional flash memory modules or maintain backup copies in Proficy Machine Edition software. Battery status is monitored via diagnostics with low-battery warnings.

Delivery, Technical Support & Warranty

Stock Availability & Lead Times
Standard catalog items including the IC200CPU001-GK CPU module typically ship within 3-5 business days from our regional distribution centers. Custom-configured systems with specialized I/O modules, carrier assemblies, and network interfaces require 7-14 days for assembly and testing. Expedited shipping options available for urgent project requirements. Contact our sales team for current inventory status and delivery scheduling.

Comprehensive Warranty Coverage
Every GE VersaMax IC200CPU001-GK CPU module includes a 12-month manufacturer warranty covering defects in materials and workmanship. Warranty terms include advance replacement service, return freight reimbursement, and no-charge repair or replacement of defective units. Extended warranty programs (24/36 months) available for critical infrastructure applications requiring long-term protection.

Technical Documentation & Resources
Complete technical documentation package includes: product datasheet with electrical specifications, installation/mounting instructions, wiring diagrams and terminal assignments, programming reference manual, communication protocol specifications, troubleshooting guide with diagnostic codes, and CAD drawings (DXF/STEP formats). All documentation provided in PDF format with purchase; additional resources available via GE Digital support portal.

Application Engineering Support
Our certified automation engineers provide pre-sales consultation for system sizing, I/O configuration, network architecture design, and software licensing. Post-sales support includes remote commissioning assistance, program debugging, performance optimization, and integration troubleshooting. On-site startup services available for complex installations requiring hands-on technical expertise (travel charges apply based on location).

Training & Certification Programs
Maximize your investment with GE-authorized training courses covering VersaMax hardware installation, Proficy Machine Edition programming, advanced troubleshooting techniques, and network integration. Courses offered in instructor-led (classroom/virtual) and self-paced online formats. Certification programs available for system integrators and OEM partners requiring documented competency verification.

Why Choose the IC200CPU001-GK VersaMax CPU?

The GE IC200CPU001-GK represents proven industrial automation technology trusted by thousands of installations worldwide across manufacturing, infrastructure, and process industries. This compact PLC CPU delivers the performance, reliability, and flexibility required for modern control applications while maintaining compatibility with legacy GE Fanuc systems for seamless migration and upgrade paths.

Whether you're designing new automation systems, retrofitting obsolete controllers, or expanding existing VersaMax installations, the IC200CPU001-GK provides a cost-effective foundation for scalable, maintainable control solutions. Backed by GE's global support network and extensive ecosystem of compatible I/O modules, communication interfaces, and software tools, this CPU module ensures long-term availability and investment protection.

For detailed system configuration assistance, custom application development, or technical specifications beyond this overview, please contact our automation specialists. Provide your application requirements including I/O count, control objectives, communication needs, environmental conditions, and project timeline for personalized recommendations and competitive quotations.
