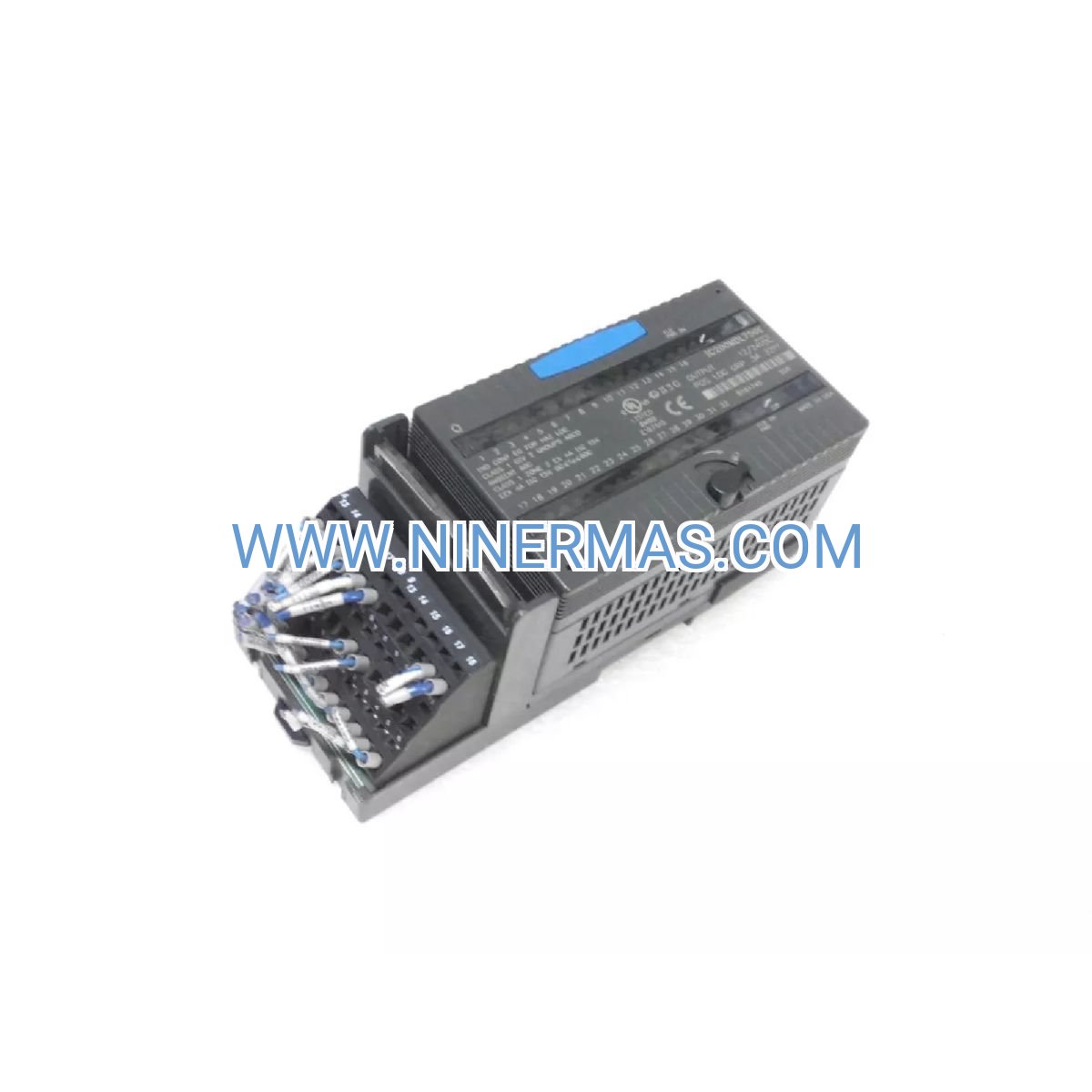

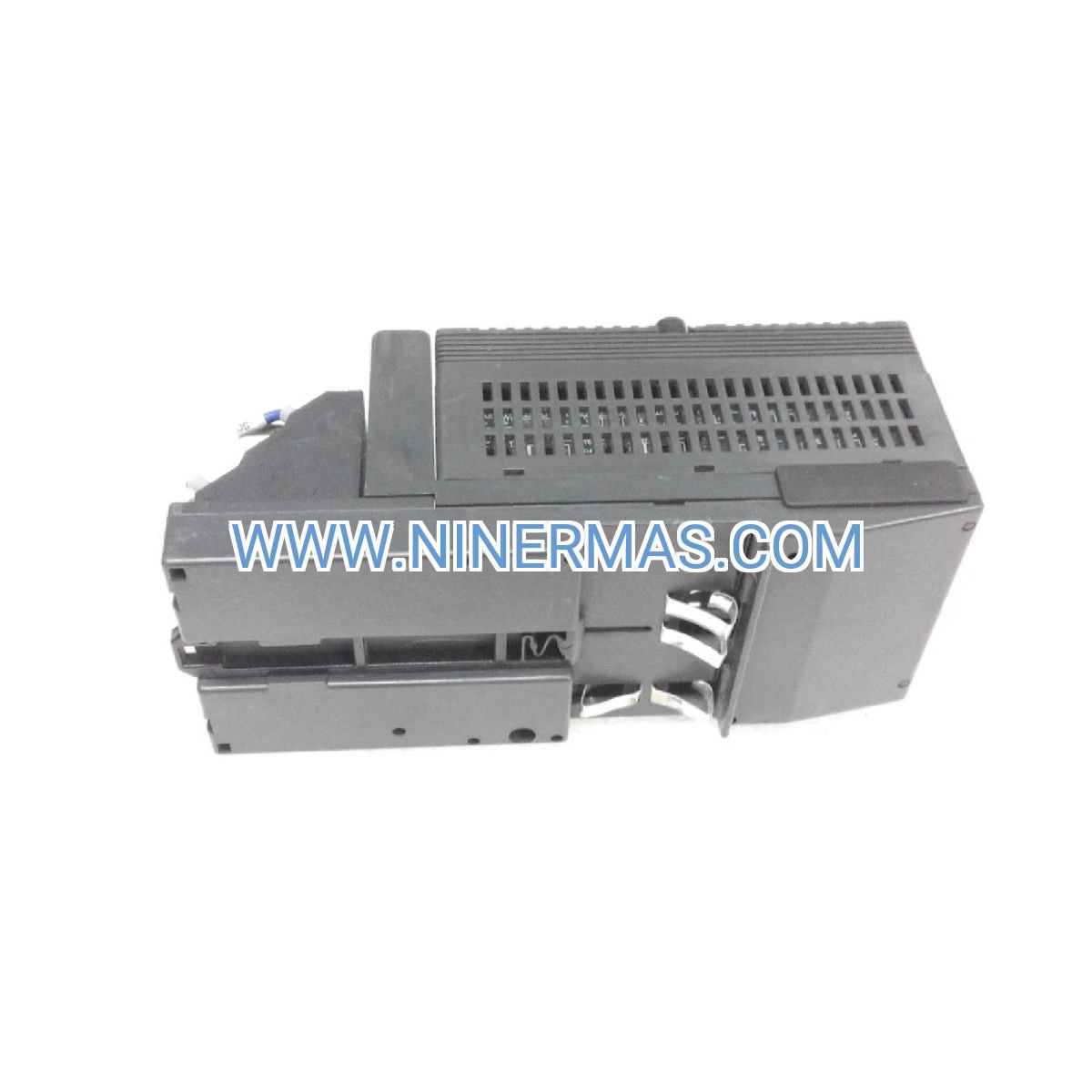

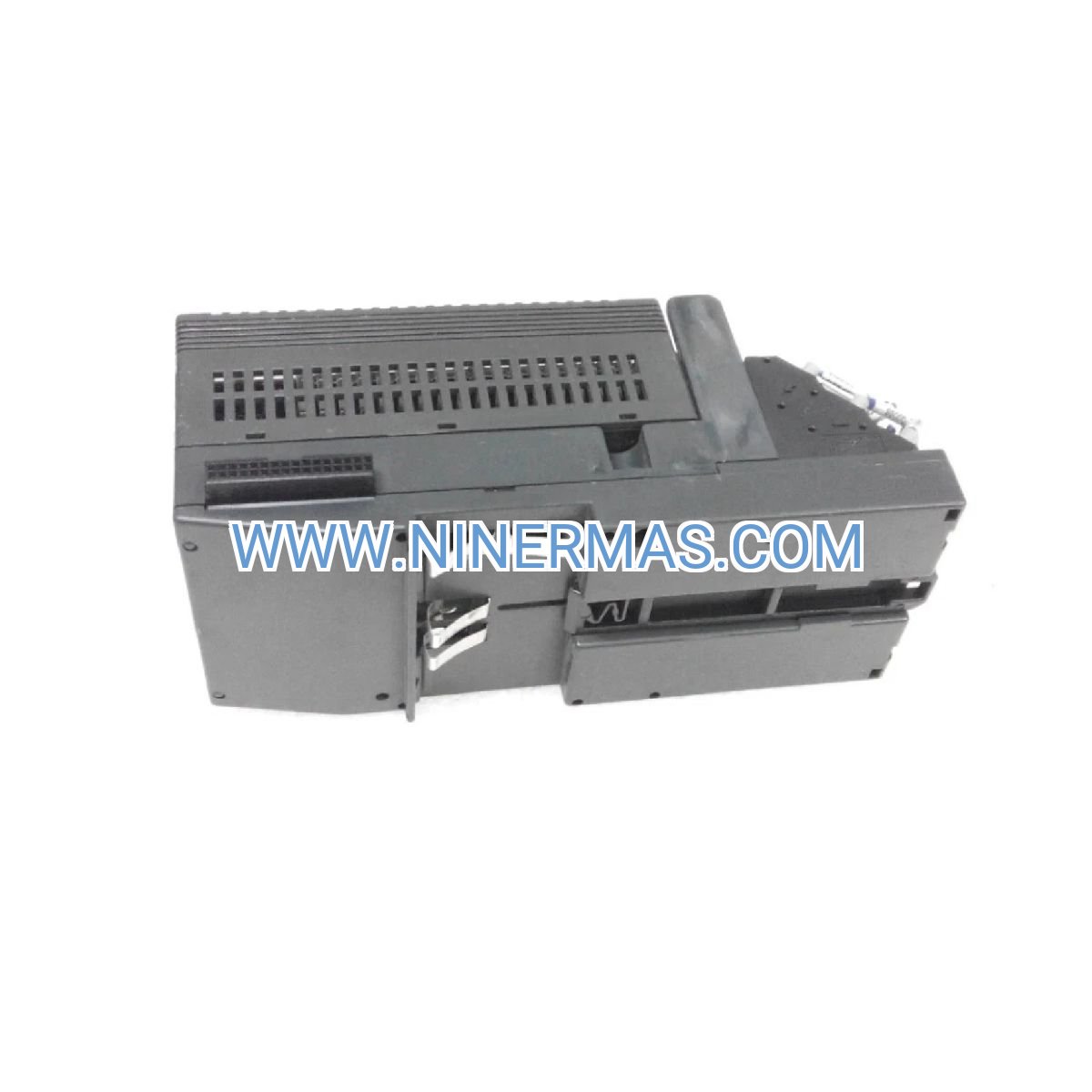

VersaMax 25-Point I/O Carrier (Industrial-Grade Terminal Base System)

The IC200CHS025F I/O Carrier is an industrial-grade terminal base designed for mounting and signal distribution in programmable logic controller (PLC) systems. Through spring-clamp terminal technology and modular architecture, it enables rapid installation, reliable connectivity, and flexible expansion for discrete and analog I/O modules in space-critical control environments.

Suitable for manufacturing automation, process control, building management, and water treatment applications, this carrier addresses common challenges including lengthy installation time, wiring errors, cabinet space constraints, and maintenance complexity. It helps system integrators, control panel builders, OEM manufacturers, and facility engineers reduce commissioning time while improving system reliability.

With standardized design and customizable configuration options, the IC200CHS025F delivers tool-free wiring, compact footprint, universal module compatibility, and industrial-grade durability. Contact our application engineers for system design consultation, module selection guidance, and technical specifications tailored to your project requirements.

Core Features & Advantages

Tool-Free Spring-Clamp Technology
Spring-clamp terminals accept 14-26 AWG wire without screwdrivers or torque tools, reducing installation time by 30-40% compared to conventional screw terminals. Wire insertion requires simple push-button release, minimizing wiring errors and enabling faster troubleshooting during commissioning and maintenance cycles.

Space-Optimized Compact Design
Engineered with a minimal footprint that maximizes I/O density per linear inch of DIN rail, allowing up to 25% more modules in existing control cabinets. Ideal for retrofit projects and high-density control panels where cabinet real estate is limited or expansion space is unavailable.

Universal VersaMax Module Compatibility
Supports the complete range of VersaMax discrete input, discrete output, analog input, analog output, and specialty modules. Mix different module types on a single carrier to create customized I/O configurations matching specific application requirements without compatibility concerns.

Standard DIN Rail Mounting
Mounts directly to industry-standard 35mm DIN rail with snap-on installation and secure locking mechanism. No additional mounting hardware required, enabling quick installation, easy repositioning, and simplified panel layout modifications during system upgrades.

Industrial-Grade Environmental Protection
Constructed with flame-retardant materials rated for 0°C to 60°C operation and 5-95% humidity environments. Withstands mechanical vibration, electrical noise, and temperature cycling common in factory floors, ensuring long-term reliability in demanding industrial conditions.

Integrated Diagnostic Indicators
Module status LEDs provide instant visual feedback on power, communication, and fault conditions. Reduces troubleshooting time by enabling technicians to identify failed modules or wiring issues without diagnostic software or multimeter testing.

Typical Application Scenarios

This I/O carrier is designed for industrial control systems requiring high reliability, flexible configuration, and efficient installation, particularly in:

Manufacturing Automation & Assembly Lines
Controls conveyor systems, robotic work cells, and automated assembly equipment where rapid sensor/actuator integration is critical. Spring terminals enable quick machine reconfiguration during product changeovers, reducing downtime. Commonly paired with proximity sensors, photoelectric switches, and pneumatic valve manifolds for discrete control applications.

Process Control & Chemical Processing
Monitors and regulates temperature, pressure, flow, and level in batch reactors, distillation columns, and mixing systems. Analog module compatibility supports 4-20mA transmitters and RTD sensors for precise process variable measurement. Compact design fits into existing DCS cabinets without panel modifications, ideal for plant expansion projects.

Building Automation & HVAC Systems
Manages heating, ventilation, air conditioning, lighting, and energy monitoring in commercial buildings, data centers, and institutional facilities. Integrates with BACnet, Modbus, and Ethernet networks for centralized building management. Supports mixed I/O configurations combining digital occupancy sensors with analog temperature and humidity transmitters.

Water & Wastewater Treatment
Controls pumps, valves, blowers, and chemical dosing systems in municipal water plants, industrial wastewater facilities, and irrigation systems. Operates reliably in high-humidity environments with corrosive atmospheres. Connects to flow meters, pH sensors, and turbidity analyzers for comprehensive process monitoring and regulatory compliance.

Material Handling & Warehouse Logistics
Automated storage and retrieval systems (AS/RS), sortation equipment, and packaging lines benefit from high-density I/O mounting and rapid commissioning. Supports distributed control architectures with multiple carriers connected via expansion cables, enabling scalable system growth as warehouse operations expand.

Technical Parameters & Selection Guide

To facilitate engineering design and system specification, we provide comprehensive technical parameters for the IC200CHS025F carrier. Custom configurations are available based on project-specific requirements including environmental conditions, I/O count, and network protocols.

Selection Recommendations
When specifying the IC200CHS025F carrier, consider the following factors: total I/O point count required for your application, mix of discrete versus analog signals, available cabinet space and DIN rail length, ambient temperature and humidity conditions, wire gauge and termination preferences, and future expansion requirements. For systems requiring more than 25 points, consider the 36-point IC200CHS022 series or distributed architecture with multiple carriers connected via expansion cables.

Our application engineers can assist with system architecture design, I/O module selection, power budget calculation, and network topology planning. Provide your project details including machine type, I/O list, control panel layout, and environmental conditions for customized recommendations and bill of materials.

System Integration & Compatible Components

CPU & Controller Options
Pair with VersaMax Nano/Micro CPUs for standalone machine control or integrate into larger PAC systems. Supports local I/O expansion and remote I/O configurations via Ethernet, DeviceNet, or PROFIBUS networks.

I/O Module Portfolio
Compatible with discrete input modules (AC/DC sinking/sourcing), discrete output modules (relay/transistor), analog input modules (voltage/current/RTD/thermocouple), analog output modules (voltage/current), and specialty modules (high-speed counter, encoder, motion control).

Network Communication Modules
Add Ethernet, DeviceNet, PROFIBUS-DP, or Modbus RTU communication modules to integrate with SCADA systems, HMI panels, and enterprise networks. Supports multiple protocols simultaneously for hybrid network architectures.

Power Supply & Distribution
Requires VersaMax power supply module (24VDC typical) mounted on the same DIN rail. Power is distributed through the carrier backplane to all installed I/O modules, eliminating individual module wiring.

Expansion & Cabling
Use VersaMax expansion cables to connect multiple carriers for distributed I/O architectures. Supports up to 8 expansion carriers per CPU, enabling scalable system growth without controller replacement.

Delivery, Service & Quality Assurance

Lead Time & Availability
Standard catalog items typically ship within 3-5 business days from stock. Custom-configured systems or large quantity orders may require 10-15 business days. Expedited shipping options available for urgent project requirements.

Warranty Coverage
All IC200CHS025F carriers include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Warranty begins from shipment date and includes replacement or repair at manufacturer's discretion.

Technical Support Services
Complimentary pre-sales application engineering support including system design review, I/O module selection, and configuration assistance. Post-sales support includes remote troubleshooting, firmware updates, and on-site commissioning assistance (subject to location and service agreement).

Documentation Package
Each carrier ships with complete technical documentation including installation manual, wiring diagrams, electrical schematics, dimensional drawings, and safety instructions. Digital documentation available in PDF format for easy reference and distribution to installation teams.

Quality Certifications
Manufactured in ISO 9001 certified facilities with rigorous quality control testing including electrical continuity, insulation resistance, and environmental stress screening. All units undergo 100% functional testing before shipment to ensure field reliability.

Frequently Asked Questions (FAQ)

Q: How does the spring-clamp terminal system work and what tools are required?
A: Spring-clamp terminals use a spring-loaded mechanism that grips the wire when inserted. To install, press the orange release button with a small screwdriver or push-stick, insert the stripped wire (7-9mm strip length recommended), and release the button. The spring automatically clamps the wire with consistent contact force. No torque screwdrivers or special tools required, reducing installation time and eliminating over-tightening risks.

Q: What is the maximum number of I/O modules that can be installed on one IC200CHS025F carrier?
A: The 25-point configuration supports various module combinations depending on module width. Typical configurations include 3-5 standard I/O modules. Exact capacity depends on specific module types selected, as some specialty modules occupy multiple terminal positions. Consult module datasheets for terminal point requirements and contact our engineers for configuration validation.

Q: Can I mix discrete and analog I/O modules on the same carrier?
A: Yes, the IC200CHS025F supports any combination of compatible VersaMax discrete input, discrete output, analog input, and analog output modules. The carrier provides universal backplane connectivity, allowing flexible mixed I/O configurations to match application requirements. Ensure total power consumption does not exceed power supply capacity.

Q: What is the expected energy savings compared to traditional relay-based control systems?
A: Solid-state I/O modules typically consume 60-80% less power than equivalent electromechanical relay systems. A typical 25-point system may reduce control panel power consumption by 15-25 watts, lowering operating costs and reducing cooling requirements. Actual savings depend on module types, scan rates, and duty cycles. Energy efficiency also improves through reduced wiring and faster commissioning.

Q: What environmental conditions are required for installation and operation?
A: The IC200CHS025F operates reliably in 0°C to 60°C ambient temperature with 5-95% relative humidity (non-condensing). Install in enclosed control panels rated IP54 or higher for protection against dust and moisture. Avoid direct exposure to corrosive gases, conductive contaminants, or condensation. Ensure adequate ventilation to prevent heat buildup in densely populated panels. For harsh environments, consider additional panel cooling or environmental sealing.

Q: Does the carrier support remote monitoring and data acquisition via industrial networks?
A: Yes, when paired with VersaMax communication modules, the system supports Ethernet/IP, Modbus TCP, DeviceNet, PROFIBUS-DP, and other industrial protocols. This enables integration with SCADA systems, cloud platforms, and IIoT applications for remote monitoring, predictive maintenance, and data analytics. Protocol selection depends on network infrastructure and communication module installed on the carrier.

Q: What is the difference between IC200CHS025F and other VersaMax carrier models?
A: The IC200CHS025F features 25-point spring-clamp terminals optimized for compact installations. Alternative models include IC200CHS022 series (36-point for higher density), IC200CHS003 (box-style for interposing relays), and screw-terminal variants for applications requiring permanent connections. Selection depends on I/O count, wiring method preference, cabinet space, and maintenance requirements.

Request Technical Support & Quotation

For detailed system design assistance, custom configuration recommendations, or project quotations, please provide the following information to our application engineering team:

• Project name and application type (manufacturing, process control, building automation, etc.)
• Total I/O point count (discrete inputs, discrete outputs, analog inputs, analog outputs)
• I/O signal specifications (voltage levels, current ranges, sensor types)
• Environmental conditions (temperature range, humidity, enclosure type)
• Network communication requirements (Ethernet, DeviceNet, PROFIBUS, Modbus)
• Power supply availability (voltage, current capacity)
• Installation timeline and quantity requirements

Our engineers will provide one-on-one consultation including system architecture recommendations, bill of materials, wiring diagrams, and competitive pricing within 24-48 hours.
