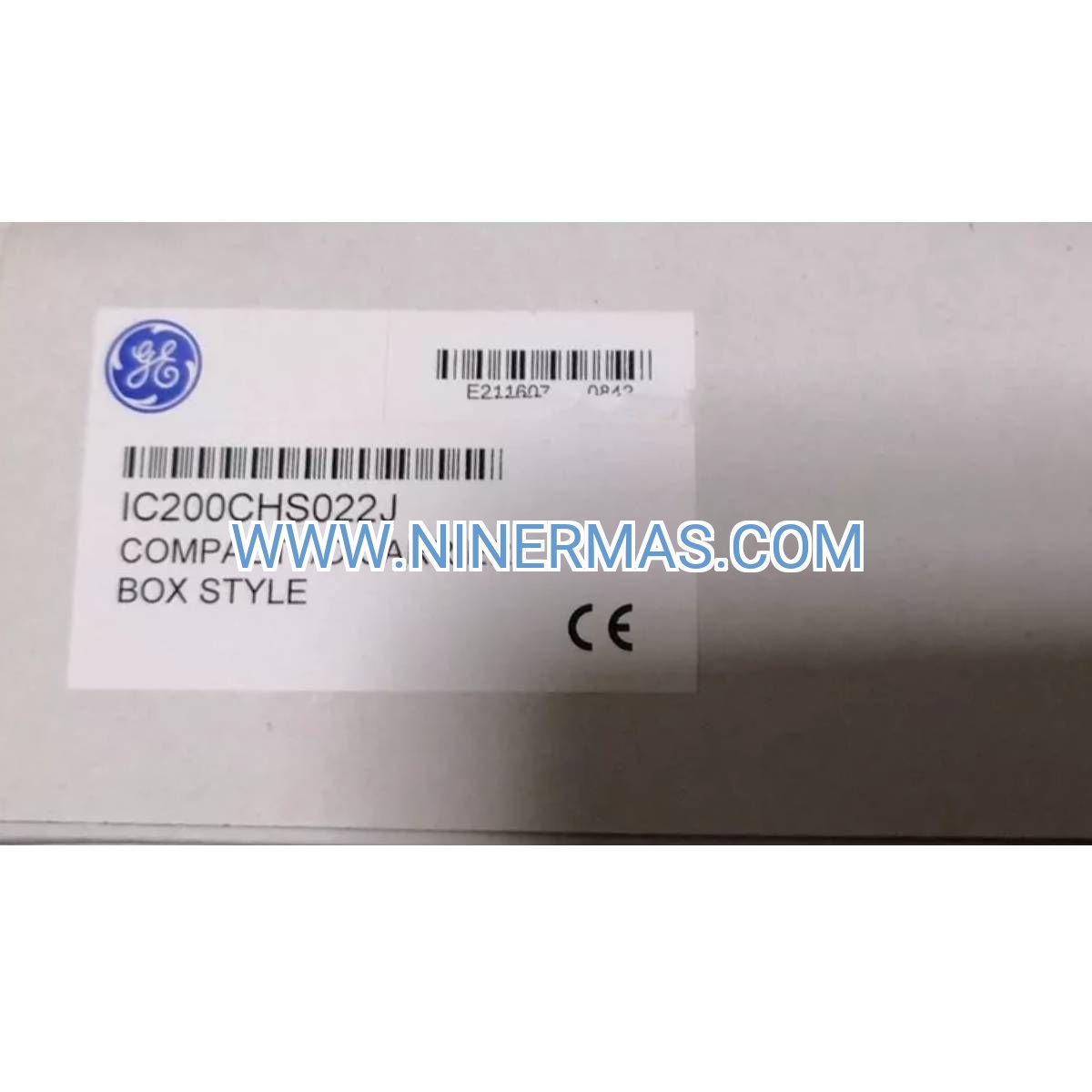

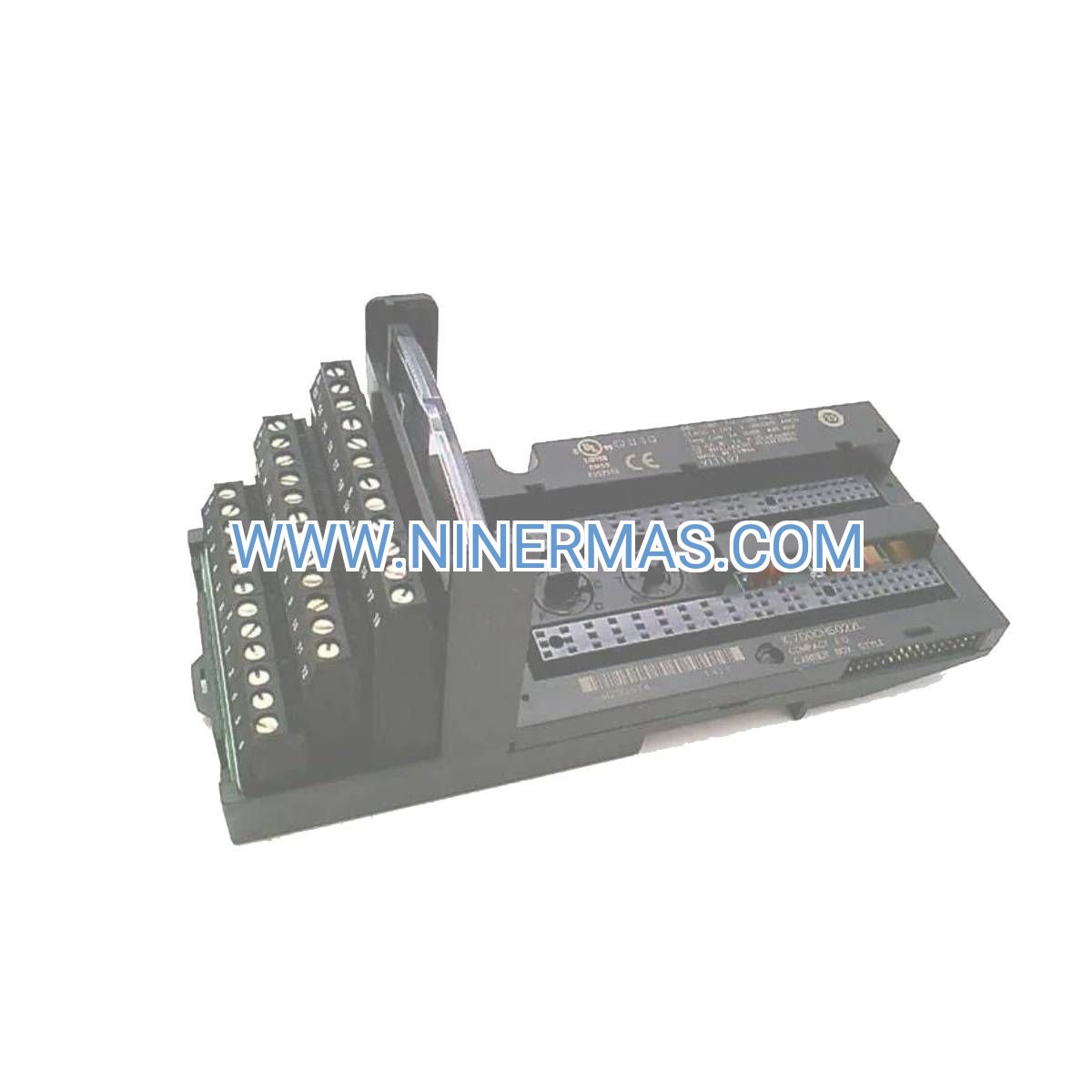

IC200CHS022 VersaMax I/O Carrier (Industrial-Grade Terminal Base)

The IC200CHS022 represents a field-proven terminal carrier solution engineered for VersaMax distributed I/O architectures. Featuring 36 IEC box-style terminals and DIN-rail compatibility, this carrier enables rapid module deployment while maintaining wiring integrity during maintenance cycles. Designed for harsh industrial environments, it supports both discrete and analog I/O modules across manufacturing, process control, and infrastructure applications.

System integrators and maintenance teams face recurring challenges with downtime during I/O module replacement and complex field wiring management. The IC200CHS022 addresses these pain points through its hot-swappable design and pre-wired terminal architecture, allowing technicians to replace modules in under 60 seconds without disturbing existing connections. This carrier is ideal for OEMs, plant engineers, and automation contractors managing multi-zone control systems.

Key differentiators include Class I Division 2 hazardous location certification, wide operating temperature range (0-60°C), and compatibility with the complete VersaMax I/O family. The compact 110mm width conserves panel space while the robust terminal design accommodates AWG 14-24 wire gauges for flexible installation requirements.

Core Features & Benefits

✓ Hot-Swap Module Replacement
Replace I/O modules without powering down the system or rewiring terminals, reducing maintenance windows from hours to minutes and eliminating production interruptions.

✓ 36 IEC Box-Style Terminals
High-density terminal block accepts 0.2-2.5mm² wire sizes with tool-free insertion, ensuring secure connections that withstand vibration and thermal cycling in industrial environments.

✓ Universal VersaMax Compatibility
Supports all VersaMax discrete and analog I/O modules (digital input/output, analog voltage/current, RTD, thermocouple), providing standardized infrastructure across diverse control applications.

✓ DIN-Rail Mounting System
Standard 35mm DIN-rail compatibility enables rapid installation and reconfiguration, with snap-lock mechanism ensuring vibration-resistant mounting in mobile equipment and high-shock environments.

✓ Hazardous Location Certified
Class I Division 2 approval allows deployment in petrochemical, pharmaceutical, and grain handling facilities where explosive atmospheres may occur under abnormal conditions.

✓ Compact Footprint Design
66.8mm height × 110mm width conserves valuable panel real estate, allowing higher I/O density in space-constrained enclosures while maintaining accessibility for wiring and diagnostics.

Typical Application Scenarios

→ Automotive Assembly Lines
Robotic welding cells and conveyor systems require frequent sensor reconfiguration during model changeovers. The IC200CHS022 enables technicians to swap I/O modules for different sensor types (proximity, photoelectric, pressure) without rewiring, reducing changeover time by 40% and minimizing production schedule disruptions.

→ Water Treatment Facilities
Municipal water plants operate 24/7 with strict uptime requirements for pump control and chemical dosing systems. This carrier's hot-swap capability allows maintenance teams to replace failed analog input modules during operation, preventing service interruptions while maintaining regulatory compliance for continuous monitoring.

→ Food & Beverage Processing
Packaging lines in dairy and beverage plants face harsh washdown environments with temperature fluctuations and moisture exposure. The IC200CHS022's sealed terminal design and wide operating range (0-60°C) ensure reliable operation through cleaning cycles, while Class I Div 2 rating addresses combustible dust concerns in flour and sugar handling areas.

→ Building Automation Systems
Commercial HVAC installations across multi-floor office buildings require distributed I/O for zone control and energy management. The compact carrier design allows installation in ceiling-mounted junction boxes, while standardized wiring reduces commissioning time for mechanical contractors managing hundreds of control points.

→ Oil & Gas Wellhead Monitoring
Remote production sites demand rugged components that withstand extreme temperatures and vibration. This carrier's -40°C to 85°C storage rating and robust terminal construction ensure reliable operation in unheated enclosures, while hazardous location certification meets API requirements for Zone 2 installations.

Technical Parameters & Selection Guide

Selection Criteria:

Choose the IC200CHS022 when your application requires terminal-block style field wiring with module replaceability. For applications needing multiple I/O modules in a single carrier, consider the IC200CHS023 (dual-module carrier). If your system uses spring-clamp terminals instead of screw terminals, evaluate the IC200CHS012 alternative. Verify that your VersaMax I/O module pin configuration matches the 36-terminal layout before ordering.

Extended Functions

Modular System Expansion
The carrier integrates seamlessly with VersaMax expansion racks and remote I/O networks via Genius, DeviceNet, or Profibus communication modules, enabling scalable architectures from 16 to 2,048 I/O points.

Diagnostic Integration
When paired with VersaMax I/O modules featuring LED status indicators, the carrier's open design provides clear visibility for troubleshooting, while the terminal block layout supports voltage measurement and signal tracing without module removal.

Custom Labeling Options
Terminal positions accept adhesive or clip-on label strips for wire identification, supporting plant documentation standards and reducing commissioning errors in complex multi-circuit installations.

Delivery & Service Assurance

Standard Lead Time: In-stock units ship within 1-2 business days via express courier (DHL/FedEx). Typical delivery to major industrial centers: 3-5 days domestic, 5-7 days international.

Warranty Coverage: 12-month manufacturer's warranty covering material defects and workmanship. Extended warranty programs available for critical infrastructure applications.

Technical Support: Direct access to automation specialists for application engineering, wiring diagrams, and integration guidance. Phone/email support available during business hours (GMT+8), with 24-hour response for urgent technical inquiries.

Documentation Package: Each unit includes installation quick-start guide, terminal wiring diagram, and DIN-rail mounting instructions. Complete user manual (GFK-2314) and CAD drawings available for download at ninermas.com/resources.

Frequently Asked Questions

Q: How does the IC200CHS022 carrier connect to the VersaMax I/O module?
A: The carrier features a 36-pin edge connector that mates directly with the I/O module's backplane interface. Simply align the module with the carrier's guide rails and press firmly until the locking tabs engage. No tools or additional connectors required.

Q: What is the maximum current capacity per terminal position?
A: Each IEC box-style terminal is rated for 10A continuous current at 60°C ambient temperature. For high-current applications exceeding 10A, use multiple terminals in parallel or specify heavy-duty terminal carriers.

Q: Can this carrier reduce energy consumption in my control system?
A: While the carrier itself is a passive wiring component, its hot-swap capability eliminates the need to power down entire I/O racks during maintenance, preventing energy waste from system restarts and reducing HVAC load from equipment cooling cycles.

Q: What installation clearances are required for proper ventilation?
A: Maintain minimum 25mm (1 inch) spacing above and below the carrier for convective cooling. Side-by-side mounting is permitted with zero clearance when using identical carriers, as the design incorporates ventilation channels along the module edges.

Q: Does the IC200CHS022 support remote monitoring and diagnostics?
A: The carrier provides physical infrastructure for I/O modules that may include diagnostic capabilities. When used with VersaMax modules featuring embedded web servers or SNMP agents, system integrators can implement remote monitoring through the connected PLC or gateway device.

Q: How do I verify compatibility with my existing VersaMax modules?
A: All VersaMax Compact I/O modules (IC200Mxx series) are compatible with the IC200CHS022 carrier. Check your module's catalog number—if it begins with "IC200M" and has a 36-pin connector, it will mate with this carrier. Contact our technical team for legacy module compatibility verification.

Get Your IC200CHS022 Carrier Today

Streamline your VersaMax I/O deployment with proven terminal carrier technology. Contact our automation specialists for volume pricing, custom configurations, or technical consultation on your distributed control project.
