GE IC200CHS022L VersaMax Compact I/O Carrier | 36-Point Spring Terminal | Extended Temperature PLC Module

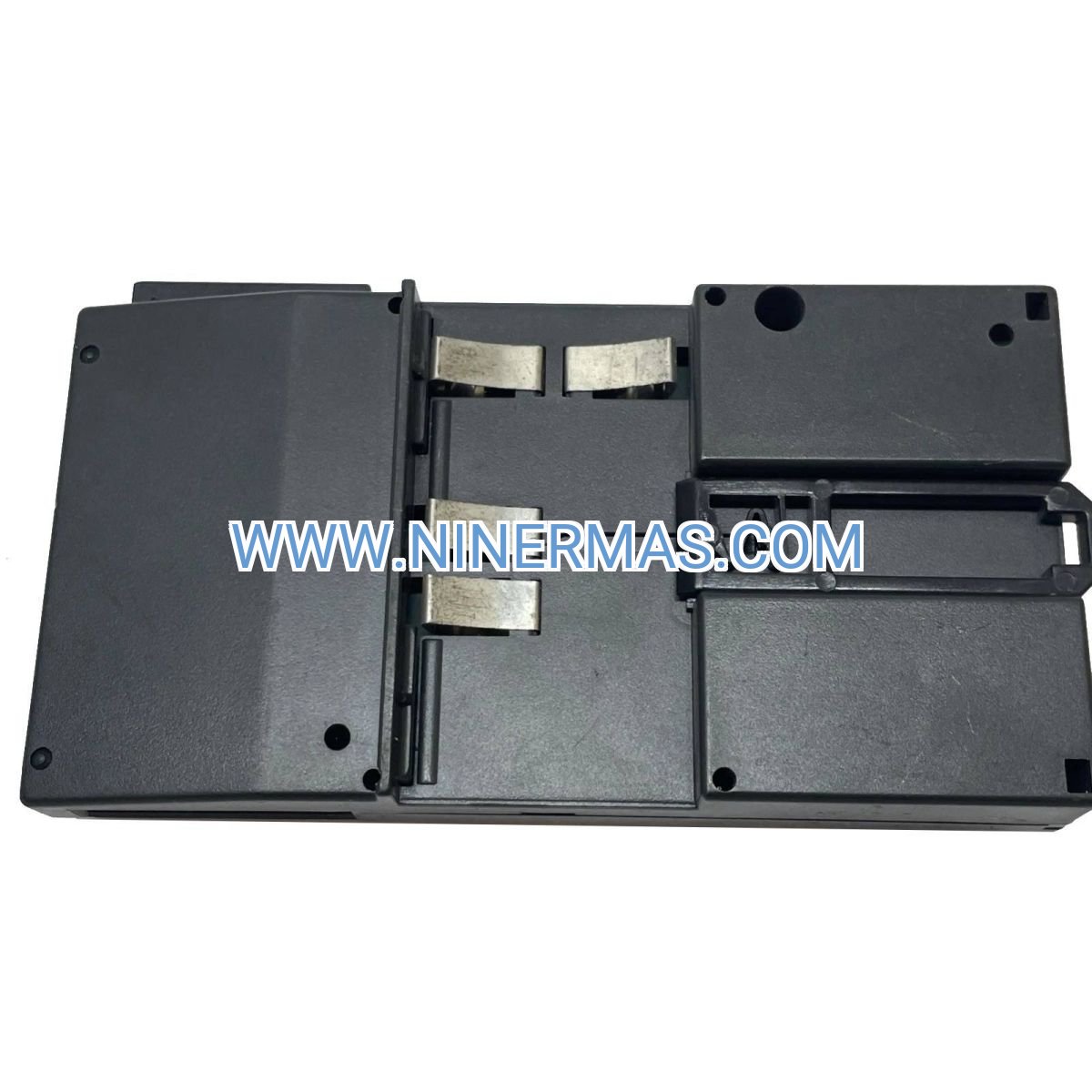

GE IC200CHS022L VersaMax Compact I/O Carrier (Industrial-Grade 36-Point Spring Terminal Module)

The GE IC200CHS022L VersaMax Compact I/O Carrier is a professional-grade PLC expansion module designed for distributed control systems requiring high-density I/O connectivity. Through its 36-point spring-clamp terminal design and hot-swappable architecture, it enables rapid field wiring, simplified maintenance, and enhanced system reliability in demanding industrial environments.

Engineered for process automation, manufacturing control, and SCADA integration, this carrier addresses critical challenges including limited cabinet space, complex wiring requirements, harsh operating conditions, and the need for minimal downtime during maintenance. It supports extended temperature operation from -40°C to +70°C, making it suitable for extreme industrial settings.

With standardized VersaMax platform compatibility and flexible configuration options, the IC200CHS022L delivers proven reliability, simplified installation, tool-free terminal connections, and comprehensive diagnostic capabilities. Ideal for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams seeking robust, field-proven I/O solutions with global support infrastructure.

Core Features & Technical Advantages

High-Density Spring-Clamp Terminals
Features 36 spring-clamp connection points that eliminate the need for screwdrivers during field wiring. This tool-free design reduces installation time by up to 40% compared to screw-terminal systems, minimizes wiring errors, and ensures consistent connection quality across all termination points.

Extended Temperature Range Operation
Certified for operation in -40°C to +70°C ambient conditions, significantly exceeding standard industrial temperature specifications. This extended range capability enables deployment in outdoor enclosures, unheated facilities, and high-temperature process areas without additional environmental controls.

Hot-Swap & Online Replacement
Supports hot-swappable module replacement without system shutdown or power cycling. Field technicians can replace I/O modules during live operation, dramatically reducing mean time to repair (MTTR) and eliminating costly production interruptions during maintenance activities.

Modular & Scalable Architecture
Compatible with the complete VersaMax I/O family including digital, analog, specialty, and communication modules. System designers can mix up to 10 carriers on a single rack, supporting configurations from 8 to 360+ I/O points with consistent programming and diagnostic interfaces.

Comprehensive Diagnostic Capabilities
Integrated LED indicators provide real-time status for power, communication, and module health. Advanced diagnostics accessible via PLC programming software enable predictive maintenance, rapid fault isolation, and detailed event logging for compliance documentation.

Robust Industrial Construction
Built with conformal-coated PCBs, industrial-grade connectors, and reinforced housing to withstand vibration, electrical noise, and corrosive atmospheres. Meets stringent CE, UL, and CSA certifications for global deployment in safety-critical applications.

Typical Application Scenarios

This carrier module excels in environments demanding high reliability, flexible I/O density, and simplified maintenance workflows, particularly in:

Process Manufacturing & Chemical Plants
Provides distributed I/O for reactor control, batch processing, and continuous production lines. The extended temperature rating and corrosion-resistant design suit harsh chemical environments, while hot-swap capability minimizes unplanned downtime during 24/7 operations.

Water & Wastewater Treatment Facilities
Supports pump control, valve actuation, and sensor monitoring across distributed lift stations and treatment processes. Spring-clamp terminals simplify field wiring in wet environments, and the rugged construction withstands high humidity and temperature fluctuations.

Oil & Gas Production & Pipeline Systems
Enables remote I/O expansion for wellhead control, compressor stations, and pipeline monitoring in extreme temperature zones. The extended operating range eliminates the need for heated enclosures in outdoor installations, reducing infrastructure costs.

Building Automation & HVAC Control
Facilitates centralized control of chillers, boilers, air handlers, and energy management systems in commercial facilities. The compact footprint maximizes cabinet space utilization, while standardized wiring reduces installation complexity for system integrators.

Machine Automation & OEM Equipment
Integrates into packaging machinery, material handling systems, and automated production equipment requiring flexible I/O configurations. The modular design allows OEMs to standardize on a single platform across multiple machine models, simplifying spare parts inventory.

Technical Specifications & Selection Guide

To ensure optimal system performance and compatibility, review the following specifications when designing your control architecture:

Key Technical Parameters:

• Terminal Type: 36-point spring-clamp (tool-free connection)
• Operating Temperature: -40°C to +70°C (extended range)
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Power Supply: Provided via VersaMax backplane (no external power required)
• Module Capacity: Supports up to 10 I/O modules per carrier
• Communication: Integrated backplane communication (no external wiring)
• Mounting: DIN rail or panel mount (standard 35mm rail)
• Dimensions: Compact form factor optimized for space-constrained panels
• Certifications: CE, UL, CSA, RoHS compliant
• MTBF: >500,000 hours (calculated per IEC 61709)

Selection Considerations:
When specifying this carrier for your application, evaluate: total I/O point count requirements, mix of digital/analog/specialty modules needed, ambient temperature range at installation site, available panel space and DIN rail capacity, existing VersaMax system compatibility, and required certifications for your industry sector. For complex configurations or multi-rack systems, consult with application engineers to optimize backplane loading and communication performance.

System Integration & Configuration Options

Compatible I/O Module Families:

• Digital Input Modules: 8/16/32-point AC/DC configurations
• Digital Output Modules: Relay, transistor, and triac outputs
• Analog Input Modules: Voltage, current, thermocouple, RTD
• Analog Output Modules: 4-20mA, 0-10V isolated channels
• Specialty Modules: High-speed counter, PWM, motion control
• Communication Modules: Ethernet, serial, fieldbus gateways

Programming & Configuration:
Fully supported by GE Proficy Machine Edition and compatible third-party programming environments. Configuration is performed via standard VersaMax hardware configuration tools, with automatic module recognition and parameter download. Supports IEC 61131-3 programming languages including Ladder Logic, Structured Text, and Function Block Diagram.

Network Integration:
Integrates seamlessly with Ethernet/IP, Modbus TCP, and Profinet networks via appropriate communication modules. Supports distributed I/O architectures with centralized or remote rack configurations, enabling flexible system topologies for both new installations and retrofit projects.

Delivery, Support & Quality Assurance

Product Availability: Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom-configured systems or large-volume orders may require 2-3 weeks lead time depending on current demand and component availability.

Warranty Coverage: All products include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty programs and advance replacement services are available for mission-critical applications requiring maximum uptime assurance.

Technical Support: Access to factory-trained application engineers for pre-sales consultation, system design review, and post-installation troubleshooting. Remote diagnostic support available via secure VPN connections, with on-site commissioning services offered for complex installations (subject to geographic availability).

Documentation Package: Each carrier ships with complete technical documentation including installation manual, wiring diagrams, dimensional drawings, terminal assignment charts, and quick-start configuration guide. CAD files, 3D models, and detailed specifications available for download to support panel design and documentation requirements.

Quality Certifications: Manufactured in ISO 9001-certified facilities with full traceability and quality control documentation. Products undergo 100% functional testing, burn-in cycles, and environmental stress screening prior to shipment, ensuring field-ready reliability.

Frequently Asked Questions (FAQ)

Q: How does the IC200CHS022L VersaMax I/O Carrier integrate with existing PLC systems?
A: The carrier connects to VersaMax CPU modules or remote I/O scanners via the integrated backplane bus. It requires no external communication wiring between modules on the same rack. For integration with non-GE PLCs, use VersaMax communication gateway modules supporting Ethernet/IP, Modbus TCP, or Profinet protocols. Verify your PLC supports the required industrial network protocol and configure the gateway module accordingly.

Q: What is the maximum number of I/O modules supported per carrier?
A: Each IC200CHS022L carrier supports up to 10 I/O modules in any combination of digital, analog, or specialty types. Total system capacity depends on backplane power budget and communication bandwidth. For systems requiring more than 10 modules, add additional carriers to the rack (up to 10 carriers per rack) or implement distributed I/O architecture with multiple remote racks.

Q: Can I replace I/O modules while the system is running?
A: Yes, the VersaMax platform supports hot-swappable module replacement without powering down the carrier or interrupting other modules. The PLC will detect module removal and insertion automatically. However, ensure your application program includes appropriate fault handling logic to manage I/O unavailability during the swap period. Always follow proper ESD precautions when handling modules.

Q: What are the environmental requirements for installation?
A: The IC200CHS022L is rated for -40°C to +70°C ambient operation and 5-95% non-condensing humidity. Install in a NEMA-rated enclosure appropriate for your environment (NEMA 12 for indoor, NEMA 4X for outdoor/washdown). Ensure adequate ventilation to prevent heat buildup in enclosed panels. For corrosive atmospheres, consider additional conformal coating or purged enclosures. Protect from direct water spray, excessive vibration (>2G), and strong electromagnetic interference sources.

Q: Does the carrier support remote monitoring and diagnostics?
A: Yes, when connected to a VersaMax CPU or communication gateway with network capability, all diagnostic data is accessible via Ethernet. You can monitor module status, I/O point health, and system alarms remotely using GE Proficy software, SCADA systems, or third-party HMI platforms. The system supports SNMP traps, email alerts, and data logging for predictive maintenance programs. Configure appropriate network security measures (VPN, firewall rules) for remote access.

Q: What is the typical energy efficiency and power consumption?
A: The carrier itself draws minimal power from the backplane (typically <2W). Total system power consumption depends on the number and type of I/O modules installed. Digital modules typically consume 1-3W each, while analog modules may require 3-5W. Calculate total power budget based on your specific module configuration and ensure your power supply provides adequate capacity with 20-30% margin for reliability. The spring-clamp terminal design also reduces installation labor costs by approximately 30-40% compared to screw terminals.

Request Technical Support & Custom Configuration

For detailed application engineering support, custom system configuration, or project-specific quotations, please provide the following information to our technical team:

• Project name and application overview
• Total I/O point count (digital inputs, digital outputs, analog inputs, analog outputs)
• Required I/O module types and specifications
• Operating environment (temperature range, humidity, hazardous area classification)
• PLC platform and communication protocol requirements
• Installation timeline and delivery schedule
• Quantity requirements and budget parameters

Our application engineers will provide comprehensive system recommendations, detailed BOMs, wiring diagrams, and competitive pricing within 24-48 hours for standard configurations.
