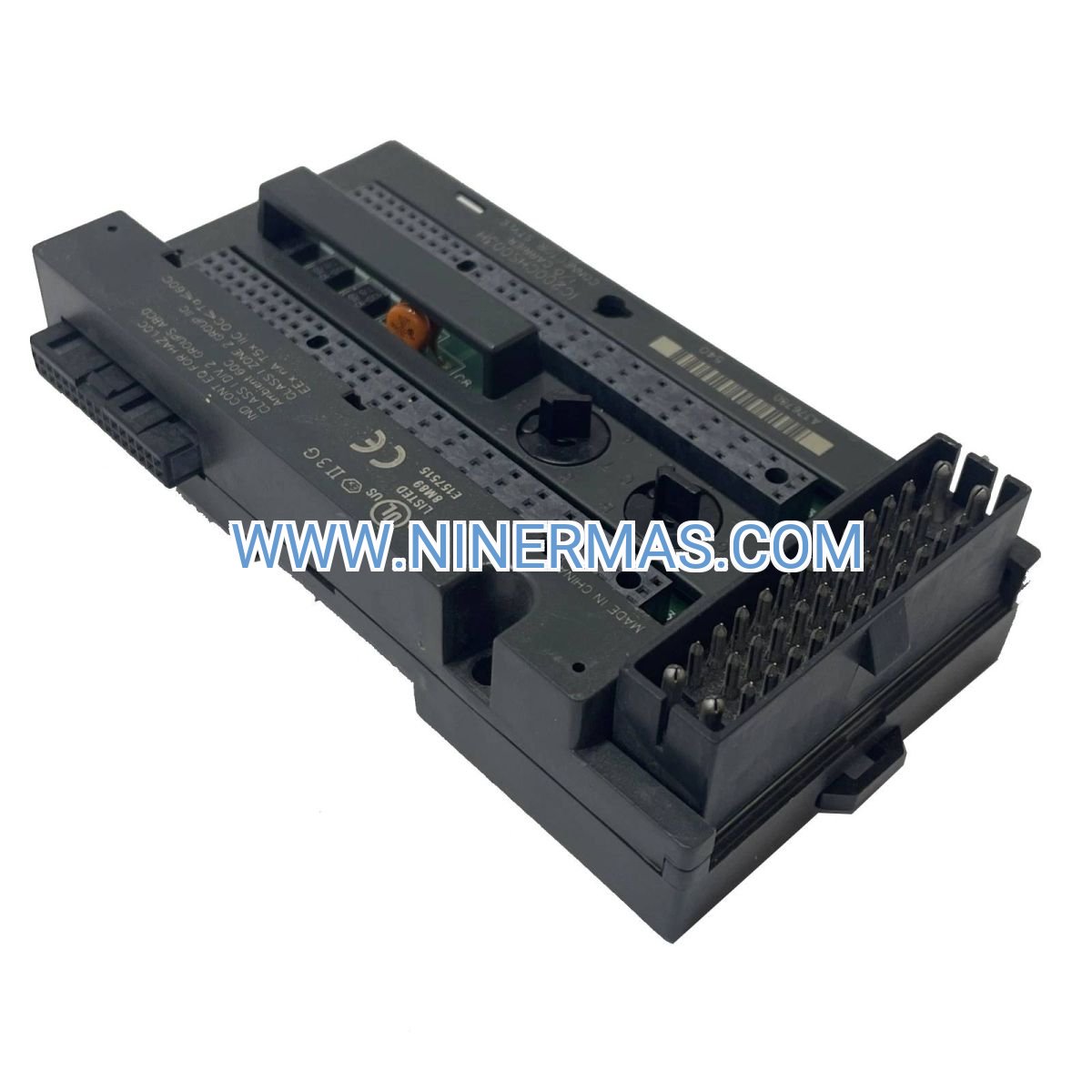

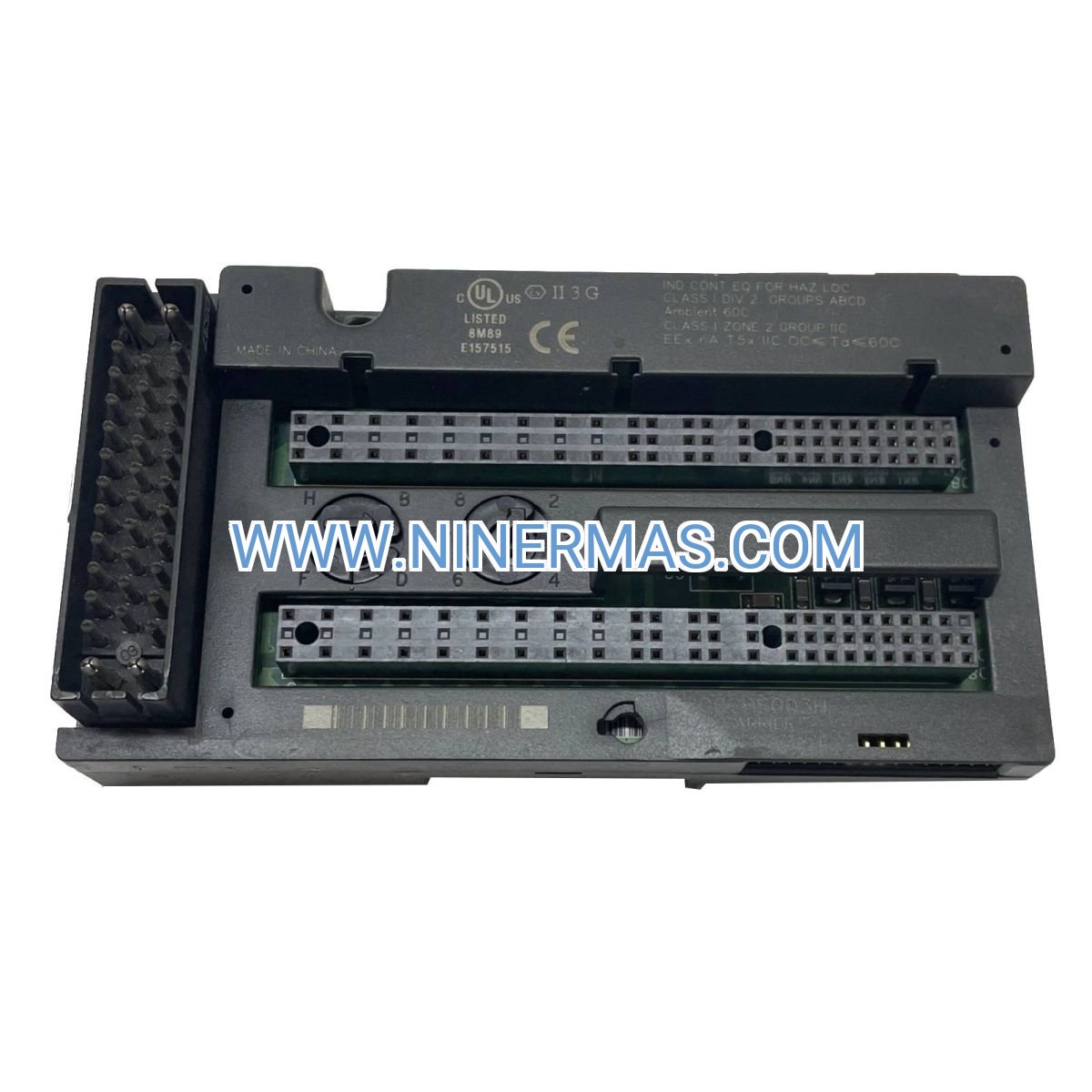

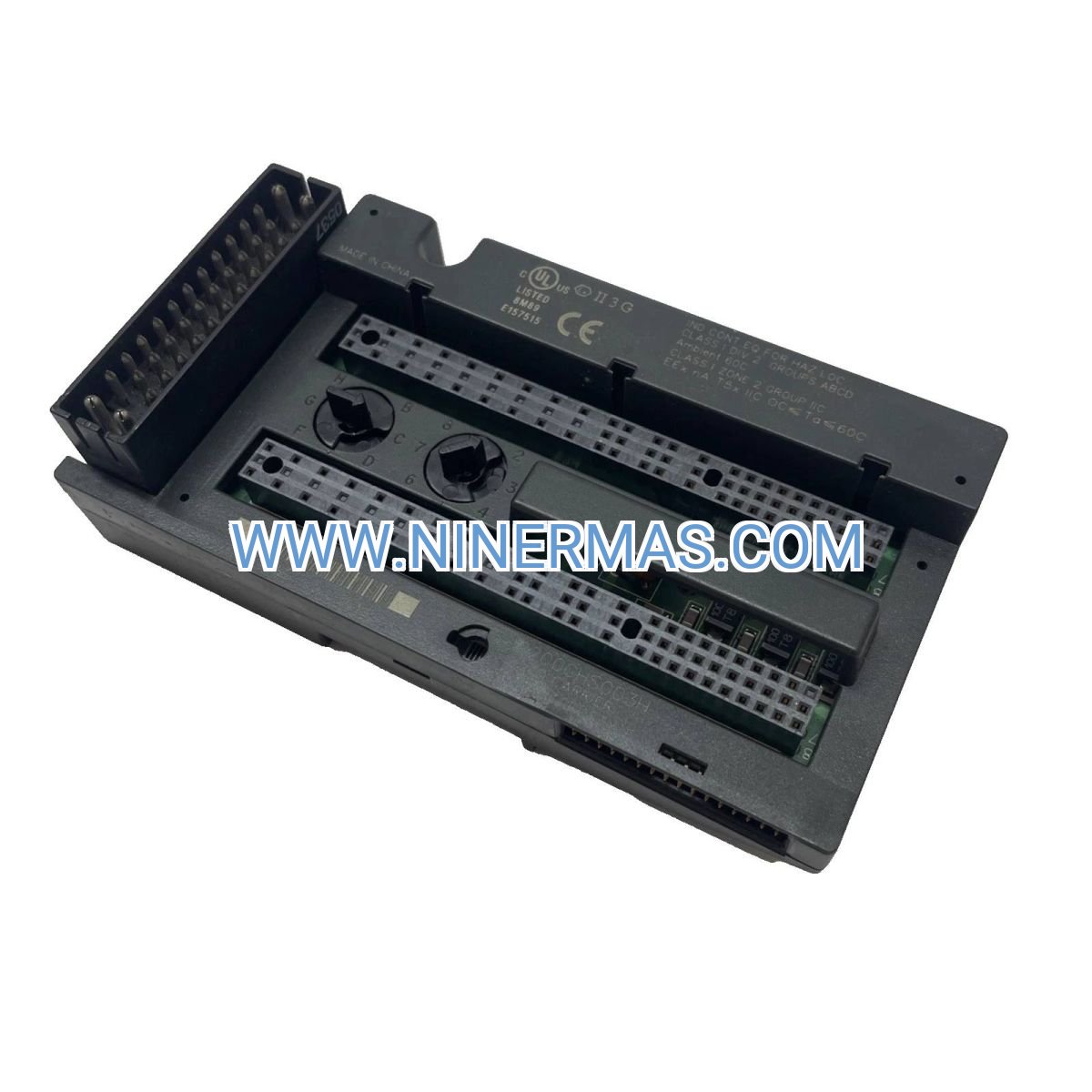

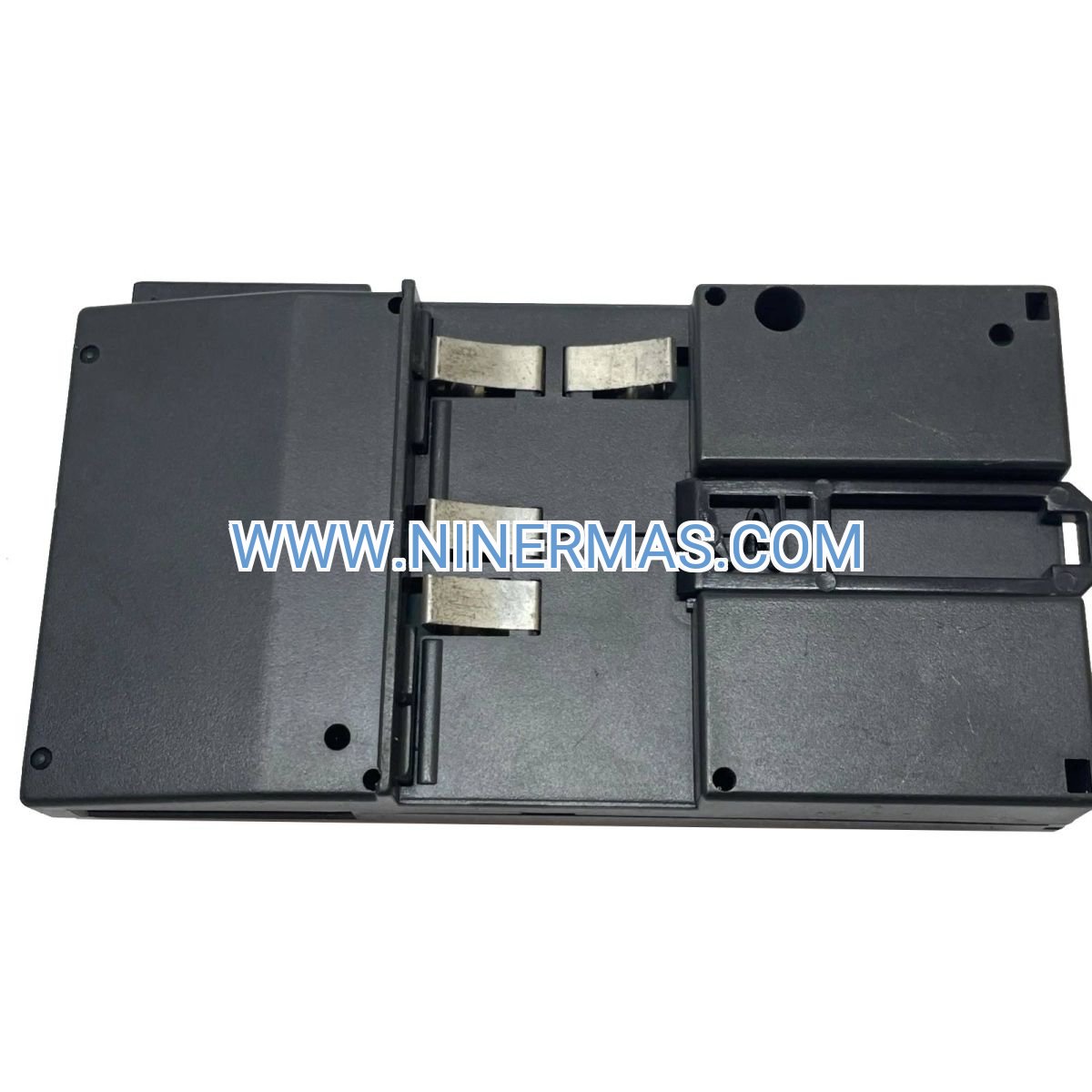

GE IC200CHS014G Thermocouple Compensation Terminal Block for VersaMax PLC | 14-Point I/O Module

GE IC200CHS014G Thermocouple Compensation Terminal Block – Industrial-Grade Temperature Sensing Solution

The GE IC200CHS014G is a precision-engineered thermocouple compensation terminal block designed for VersaMax PLC systems. Through advanced cold junction compensation (CJC) technology and box-style I/O architecture, it delivers accurate temperature measurement and reliable signal conditioning for industrial process control applications.

Ideal for manufacturing plants, process automation facilities, HVAC systems, chemical processing units, and energy management installations where precise temperature monitoring is critical. This module addresses common challenges including thermal drift, signal noise interference, wiring complexity, and measurement accuracy degradation in harsh industrial environments.

Featuring standardized design with customizable configuration options, the IC200CHS014G offers rapid installation, excellent compatibility with GE automation ecosystems, simplified maintenance procedures, and proven long-term reliability. Perfect for system integrators, control panel builders, plant engineers, and OEM equipment manufacturers seeking dependable temperature sensing solutions. Contact our engineering team for application-specific configuration guidance and technical specifications.

Core Features & Technical Advantages

• Precision Cold Junction Compensation
  Built-in CJC circuitry automatically compensates for ambient temperature variations at terminal connections, ensuring measurement accuracy within ±0.5°C and eliminating manual calibration requirements for most applications.
• 14-Point I/O Capacity
  Supports up to 14 independent thermocouple inputs with individual channel isolation, enabling multi-zone temperature monitoring while reducing cabinet space requirements by approximately 40% compared to discrete modules.
• Universal Thermocouple Compatibility
  Accepts standard thermocouple types (J, K, T, E, R, S, B) through software configuration, providing flexibility for diverse temperature ranges from -200°C to +1800°C without hardware modifications.
• Robust Industrial Protection
  Incorporates overvoltage protection, ESD shielding, EMI/RFI filtering, and reverse polarity safeguards to maintain signal integrity in electrically noisy environments, reducing false readings and system downtime.
• Tool-Free Installation Design
  Features spring-clamp terminal connections and standard 35mm DIN rail mounting, enabling installation in under 15 minutes without specialized tools while ensuring vibration-resistant connections rated for industrial shock levels.
• Diagnostic LED Indicators
  Provides real-time channel status visualization with color-coded LEDs for power, communication, and fault conditions, accelerating troubleshooting and reducing mean time to repair (MTTR) by up to 60%.

Typical Application Scenarios

This terminal block excels in environments demanding high-accuracy temperature measurement with continuous operation reliability:

• Process Manufacturing & Chemical Plants
  Monitors reactor temperatures, distillation columns, and heat exchanger performance in pharmaceutical, petrochemical, and specialty chemical production where process stability directly impacts product quality and safety compliance.
• Power Generation & Energy Systems
  Tracks turbine exhaust temperatures, boiler efficiency parameters, and generator winding conditions in conventional and renewable energy facilities, supporting predictive maintenance programs and optimizing thermal efficiency.
• Food & Beverage Processing
  Controls pasteurization temperatures, fermentation conditions, and cold chain monitoring in dairy, brewing, and packaged food operations requiring HACCP compliance and batch traceability documentation.
• HVAC & Building Automation
  Manages multi-zone climate control, chiller performance optimization, and energy consumption analysis in commercial buildings, data centers, and cleanroom facilities with strict environmental specifications.
• Metal Processing & Heat Treatment
  Regulates furnace temperatures, annealing cycles, and quenching operations in steel mills, foundries, and precision machining shops where thermal profile accuracy determines material properties and dimensional tolerances.

Technical Specifications & Selection Guide

To ensure optimal system performance, the IC200CHS014G is designed with the following industrial-grade specifications:

Selection Recommendations: When specifying this module, consider maximum simultaneous channel count, required temperature measurement range, ambient operating conditions, available backplane power budget, and cabinet space constraints. For applications requiring higher channel density or extended temperature ranges, consult our engineering team with your process parameters including sensor types, wire lengths, update rate requirements, and environmental conditions.

Advanced Integration Capabilities

• Seamless VersaMax Ecosystem Integration – Hot-swappable installation into VersaMax carrier racks with automatic configuration recognition, supporting mixed I/O configurations and distributed control architectures.
• Industrial Protocol Support – Native compatibility with Ethernet/IP, Modbus TCP, and Profinet communication protocols, enabling integration with SCADA systems, HMI panels, and enterprise MES platforms.
• Redundancy & Failover Options – Supports dual-controller configurations with automatic switchover capabilities, ensuring continuous operation in mission-critical applications with 99.9%+ uptime requirements.
• Linearization & Scaling Functions – Built-in polynomial linearization for all standard thermocouple types with user-definable scaling ranges, eliminating external signal conditioning requirements and reducing system complexity.

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days from our regional distribution centers; custom-configured modules with specialized firmware or extended temperature ratings require 10-15 business days lead time. All units include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service agreements available for critical applications.

Technical support includes remote diagnostic assistance via phone and email, on-site commissioning services (region-dependent), and complete documentation packages containing electrical schematics, terminal wiring diagrams, configuration software guides, and troubleshooting flowcharts. Our engineering team provides application notes for specialized installations including intrinsically safe barriers, signal isolation requirements, and grounding best practices.

Frequently Asked Questions (FAQ)

Q: How does the IC200CHS014G thermocouple compensation terminal block integrate with existing VersaMax PLC systems?
A: The module installs directly onto standard VersaMax carrier racks using the backplane connector, with automatic recognition by the CPU module. Configuration is performed through GE's Proficy Machine Edition software, where you assign thermocouple types, temperature ranges, and alarm thresholds for each channel. No external power supply or special cabling is required beyond standard thermocouple extension wire.

Q: What is the maximum number of thermocouple inputs supported per terminal block?
A: Each IC200CHS014G module supports 14 independent thermocouple input channels. For applications requiring more measurement points, multiple modules can be installed on the same carrier rack, with VersaMax systems supporting up to 240 I/O points per rack depending on CPU model and power budget.

Q: What accuracy improvements can be expected with cold junction compensation?
A: The integrated CJC circuitry typically improves measurement accuracy by 0.5°C to 2.0°C compared to non-compensated systems, with the exact improvement depending on ambient temperature stability and thermocouple type. For Type K thermocouples at 500°C, CJC reduces total system error from approximately ±2.5°C to ±0.8°C under typical industrial conditions.

Q: What environmental protection does this terminal block provide for industrial installations?
A: The module features IP20 protection rating suitable for enclosed control panel installations, with conformal coating on PCB assemblies for humidity resistance. Operating temperature range is 0°C to +60°C ambient, with storage ratings from -40°C to +85°C. For harsh environments with airborne contaminants or extreme temperatures, install within NEMA 12 or IP54-rated enclosures with appropriate climate control.

Q: Can this module support remote monitoring and data logging capabilities?
A: Yes, when connected to VersaMax CPUs with Ethernet communication modules, temperature data can be accessed via Modbus TCP, Ethernet/IP, or OPC protocols. This enables integration with SCADA systems, cloud-based analytics platforms, and historian databases for real-time monitoring, trend analysis, and compliance reporting. Data update rates are configurable from 100ms to several seconds per channel.

Q: What wire types and lengths are recommended for thermocouple connections?
A: Use thermocouple-grade extension wire matching your sensor type (e.g., Type K extension wire for Type K thermocouples) to maintain accuracy. Maximum recommended wire length is 100 meters for most applications, though longer runs up to 300 meters are possible with proper shielding and grounding practices. Twisted-pair shielded cable is recommended in electrically noisy environments, with shield grounded at the terminal block end only.

Request Technical Support & Custom Configuration

For detailed application engineering assistance, custom configuration specifications, or project quotations, please provide the following information: project name and industry sector, number of temperature measurement points required, thermocouple types and temperature ranges, ambient operating conditions, existing PLC platform details, and any special certifications needed (ATEX, IECEx, SIL-rated, etc.). Our technical specialists will respond within 24 hours with tailored recommendations and pricing.
