GE IC200CHS022L VersaMax I/O Carrier | 36-Point Spring Terminal | Industrial PLC Module

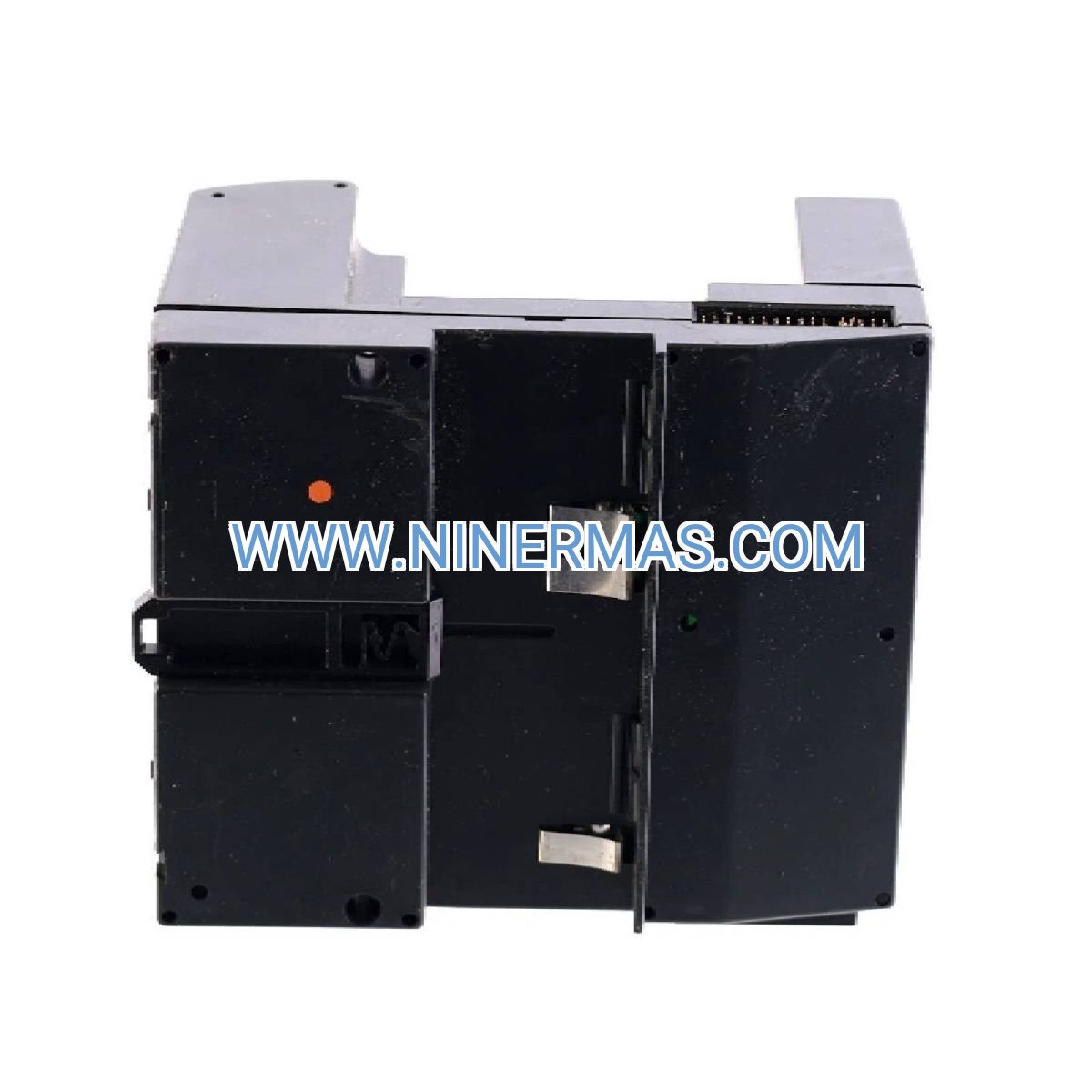

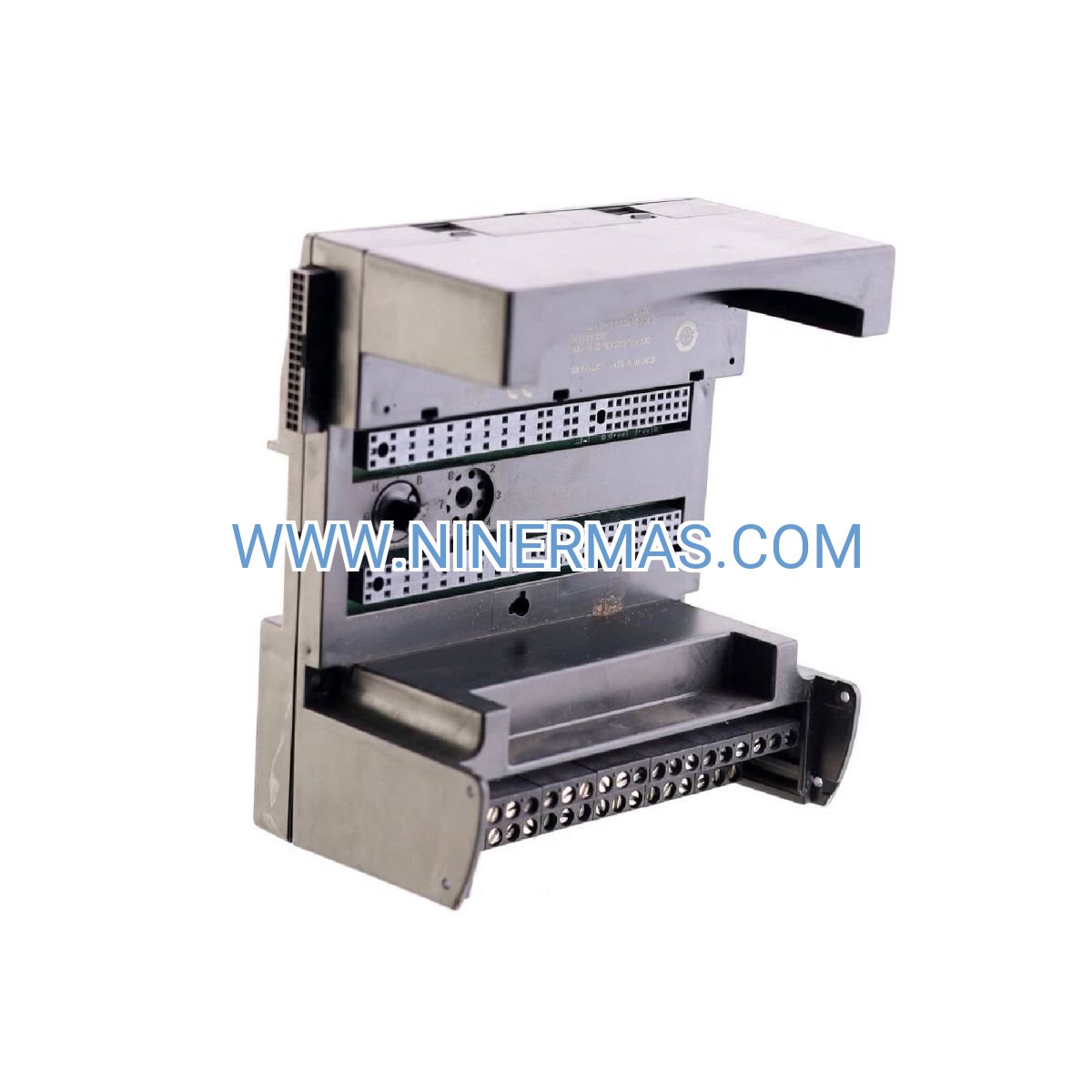

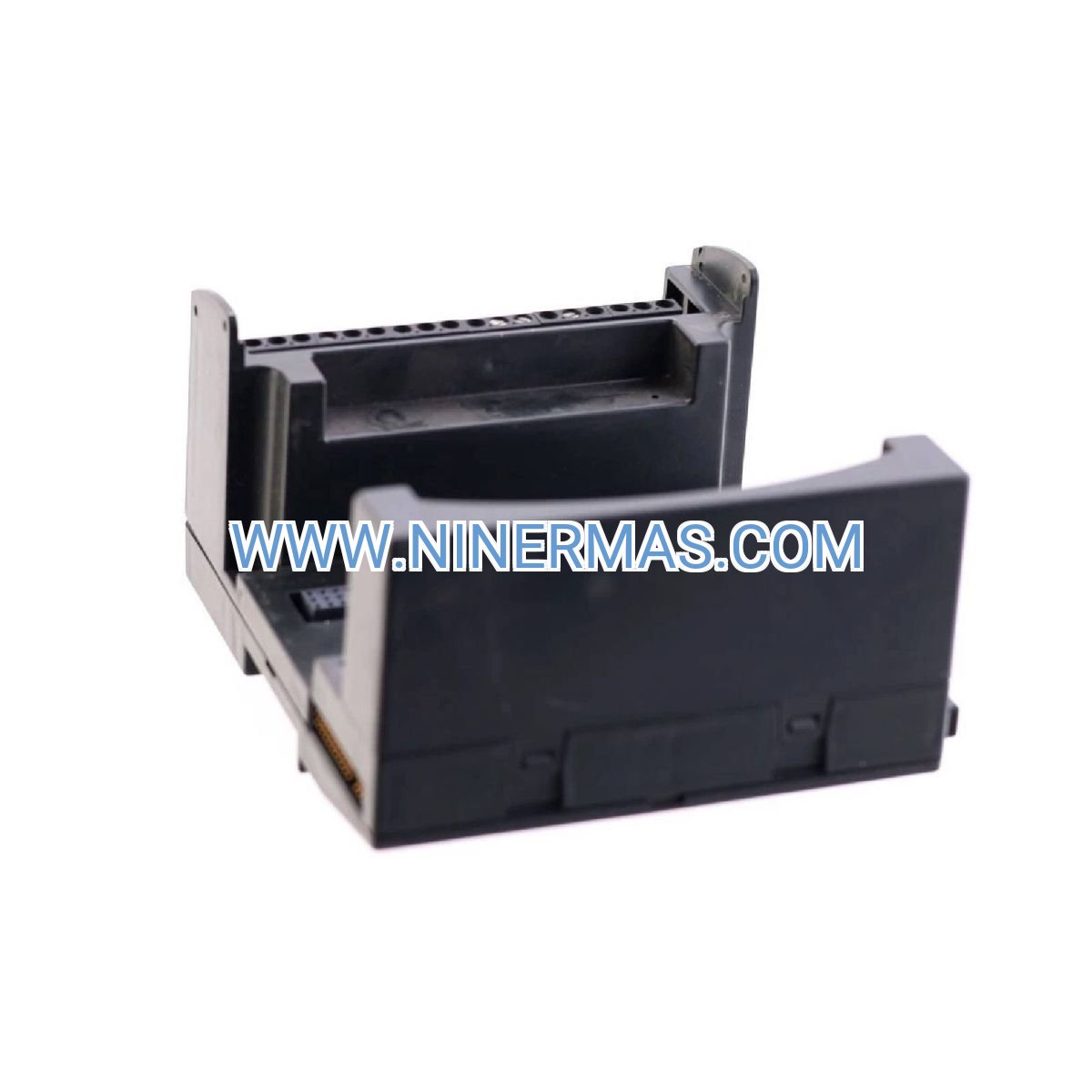

GE IC200CHS022L VersaMax Compact I/O Carrier (Industrial-Grade Spring-Clamp Terminal System)

The GE IC200CHS022L VersaMax Compact I/O Carrier is a professional-grade distributed I/O module designed for demanding industrial control applications. Through its 36-point spring-clamp terminal design and hot-swappable architecture, it delivers reliable signal interfacing, simplified wiring maintenance, and seamless integration with PACSystems controllers across process automation, discrete manufacturing, and hybrid control environments.

Engineered for applications requiring high-density I/O distribution—including chemical processing plants, water treatment facilities, packaging lines, and energy management systems—this carrier addresses critical challenges such as installation complexity, downtime during module replacement, harsh environmental conditions, and the need for flexible system expansion without production interruption.

Leveraging standardized VersaMax platform compatibility and field-proven reliability, the IC200CHS022L offers extended temperature operation (-40°C to +70°C), tool-free terminal connections, DIN-rail or panel mounting flexibility, and comprehensive diagnostic capabilities. Ideal for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams seeking to optimize uptime and reduce commissioning time. Contact our application engineers for configuration assistance, technical drawings, and project-specific recommendations.

Core Features & Technical Advantages

• 36-Point Spring-Clamp Terminal Design
  Tool-free wire insertion and removal using spring-loaded terminals (0.5–2.5 mm² wire capacity), significantly reducing installation time and eliminating screw-loosening issues in high-vibration environments.
• Hot-Swap Capability for Zero-Downtime Maintenance
  Field-replaceable I/O modules can be installed or removed under power without disrupting system operation, minimizing production losses during troubleshooting or upgrades.
• Extended Temperature Range (-40°C to +70°C)
  Conformal-coated circuitry and industrial-grade components ensure stable performance in extreme ambient conditions, suitable for outdoor enclosures, boiler rooms, and refrigerated facilities.
• Universal Compatibility with VersaMax I/O Modules
  Supports full range of digital input/output, analog I/O, specialty modules (RTD, thermocouple, high-speed counter), enabling flexible system configuration for diverse application requirements.
• Integrated Diagnostic & Status Indication
  Module-level LED indicators for power, communication, and fault status; supports remote diagnostics via Ethernet/IP or serial protocols, accelerating fault isolation and reducing mean-time-to-repair (MTTR).
• Compact Footprint with High Density
  Space-efficient design (dimensions optimized for standard control cabinet layouts) allows up to 36 I/O points per carrier, reducing panel space requirements by approximately 25% compared to traditional terminal block solutions.

Typical Application Scenarios

The IC200CHS022L VersaMax I/O Carrier is engineered for environments demanding robust signal distribution, rapid serviceability, and long-term reliability:

• Process Automation & Chemical Plants
  Interfaces field instruments (pressure transmitters, flow meters, control valves) to DCS/PLC systems in hazardous or corrosive atmospheres, where extended temperature rating and sealed terminal design prevent moisture ingress and signal degradation.
• Water & Wastewater Treatment Facilities
  Distributes I/O for pump control, level monitoring, and chemical dosing systems across remote lift stations and treatment basins, leveraging hot-swap capability to maintain 24/7 operation during module replacement.
• Packaging & Material Handling Lines
  Connects sensors, actuators, and safety interlocks in high-speed production environments, where spring-clamp terminals reduce wiring errors during line reconfiguration and minimize downtime from loose connections.
• Energy Management & Building Automation
  Aggregates HVAC control signals, lighting circuits, and metering data in commercial buildings or industrial campuses, supporting scalable system expansion as facility requirements evolve.
• OEM Machine Builders & Panel Fabrication
  Standardizes I/O carrier selection across product lines, simplifying spare parts inventory, reducing engineering time, and ensuring consistent performance across global installations.

Technical Specifications & Selection Guide

To facilitate system design and procurement, key specifications are summarized below. For detailed electrical characteristics, wiring diagrams, and dimensional drawings, refer to the official GE documentation or consult our engineering team.

Selection Considerations:
When specifying the IC200CHS022L, evaluate: (1) total I/O point count and signal types (digital/analog), (2) ambient temperature range at installation site, (3) available panel space and DIN-rail configuration, (4) controller compatibility (PACSystems RX3i, RX7i, or legacy Series 90-30), (5) communication protocol requirements. For custom configurations or multi-carrier systems, provide application details (process description, I/O list, environmental conditions) to receive tailored recommendations and layout drawings.

Advanced Integration & Customization Options

• Redundant Power Supply Configuration
  Dual 24 VDC inputs with automatic failover for mission-critical applications requiring uninterrupted operation.
• Fiber-Optic Communication Modules
  Extended-distance connectivity (up to 15 km) for distributed control across large facilities or electrically noisy environments.
• Intrinsically Safe (IS) Barrier Integration
  Compatible with Zener barriers or galvanic isolators for Zone 0/1 hazardous area installations (consult for certified configurations).
• Custom Terminal Labeling & Pre-Wiring Services
  Factory or field customization with project-specific wire markers, pre-terminated cables, and tested assemblies to accelerate commissioning.
• SCADA/HMI Integration Packages
  Pre-configured tag databases and graphic templates for popular HMI platforms (iFIX, CIMPLICITY, Wonderware), reducing engineering hours.

Delivery, Warranty & Technical Support

Lead Time: Standard catalog items typically ship within 3–5 business days from regional stock; custom-configured assemblies require 10–15 business days depending on complexity.

Warranty: 12-month manufacturer's warranty covering defects in materials and workmanship; extended warranty and advance-replacement programs available for critical applications.

Installation & Commissioning Support: Remote technical assistance included; on-site startup services available in select regions (consult for coverage and rates).

Documentation Package: Each unit ships with quick-start guide, wiring diagram, terminal layout drawing, and digital access to full user manual, CAD files (STEP/DWG), and configuration software.

Training & Certification: Online and instructor-led courses available for VersaMax system configuration, troubleshooting, and advanced diagnostics through authorized training partners.

Frequently Asked Questions (FAQ)

Q: How does the IC200CHS022L spring-clamp terminal system integrate with existing VersaMax installations?
A: The carrier is fully backward-compatible with all VersaMax I/O modules (digital, analog, specialty). Simply mount the carrier on DIN-rail, insert modules into desired slots, and connect field wiring to spring-clamp terminals using a flat-blade screwdriver to release the spring mechanism. No special tools or adapters required.

Q: What is the maximum number of I/O modules supported per carrier?
A: The IC200CHS022L accommodates up to 12 VersaMax I/O modules, providing a maximum of 36 I/O points (depending on module density—e.g., 32-point digital modules yield higher totals than 8-channel analog modules).

Q: Can I replace I/O modules while the system is running?
A: Yes, hot-swap capability allows module insertion/removal under power without disrupting controller operation or adjacent modules. Ensure proper ESD precautions and follow lock-out/tag-out procedures per site safety protocols.

Q: What environmental protection does the carrier provide?
A: The carrier itself is rated IP20 (finger-safe, protected against solid objects >12 mm). For higher ingress protection (IP54/IP65), install within a sealed NEMA 4/4X or IP65-rated enclosure with appropriate cable glands.

Q: Is remote monitoring and diagnostics supported?
A: Yes, when connected to a PACSystems controller with Ethernet/IP or Profinet interface, module-level diagnostics (power status, communication health, I/O faults) are accessible via SCADA/HMI or web-based management tools.

Q: What wire sizes are compatible with the spring-clamp terminals?
A: Terminals accept solid or stranded copper wire from 0.5 mm² to 2.5 mm² (AWG 20 to AWG 14). For optimal contact reliability, strip wire to 10 mm length and ensure conductors are free of oxidation or damage.

Request a Quote or Technical Consultation

To obtain detailed selection guidance, pricing, or application-specific configuration recommendations, please provide the following information:

• Project name and application overview (process type, industry sector)
• Total I/O point count and signal types (DI, DO, AI, AO, specialty)
• Controller model and communication protocol (Ethernet/IP, Genius, Profinet)
• Environmental conditions (temperature range, humidity, vibration, hazardous area classification)
• Quantity required and preferred delivery schedule

Our application engineers will respond within 24 hours with a tailored solution, technical drawings, and competitive quotation.
