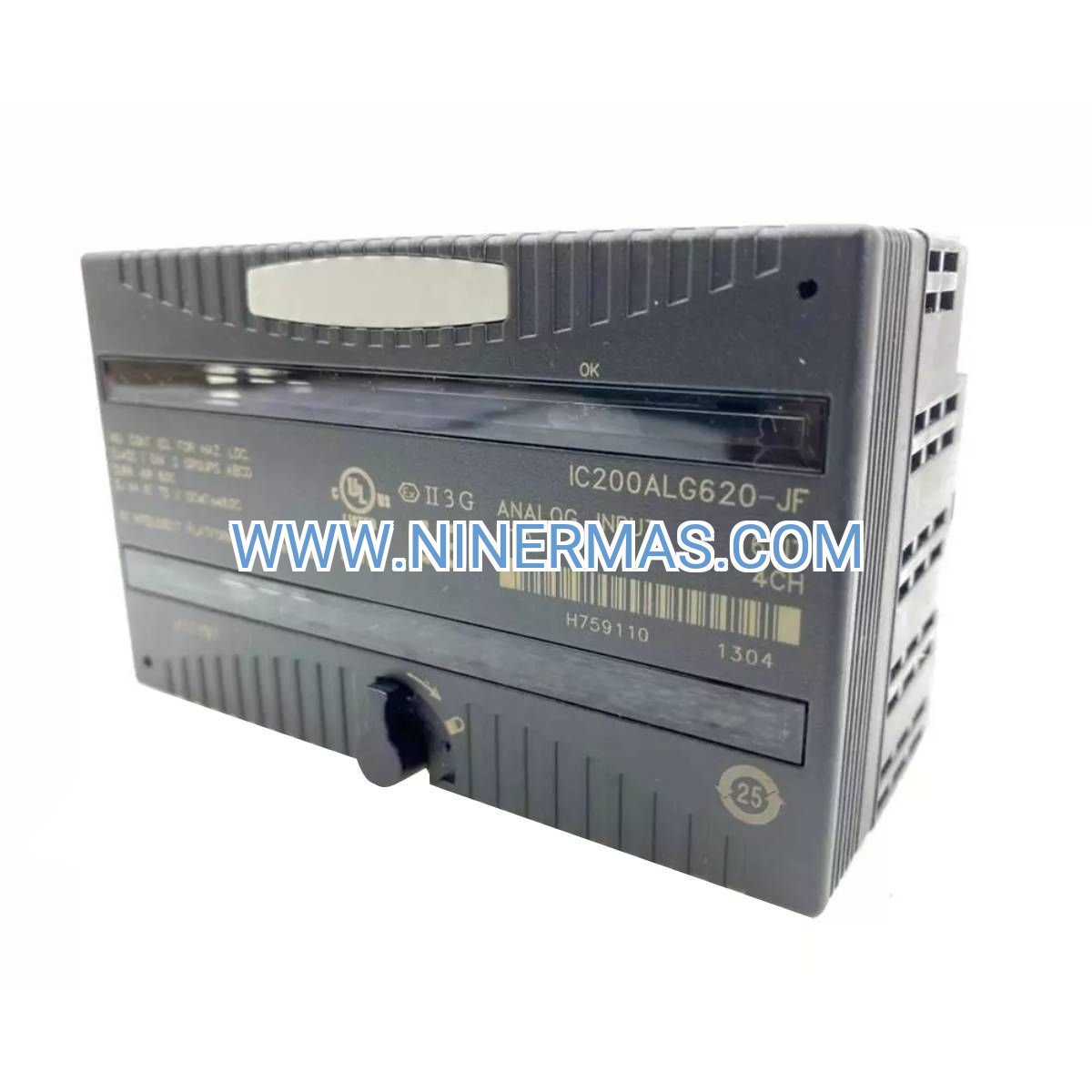

IC200ALG620-JF Industrial-Grade RTD Temperature Input Module

The IC200ALG620-JF represents a professional-grade solution for resistance temperature detector (RTD) signal acquisition in demanding industrial environments. Engineered for VersaMax distributed I/O architecture, this 4-channel analog input module transforms RTD sensor signals into high-fidelity digital data, enabling precise thermal monitoring across manufacturing, energy, and process industries.

Built to withstand harsh operating conditions while maintaining measurement integrity, the IC200ALG620-JF serves as the critical interface between field-mounted temperature sensors and your automation control system. Whether you're managing reactor temperatures, monitoring HVAC performance, or ensuring pharmaceutical cold chain compliance, this module delivers the accuracy and reliability your operations demand.

With support for multiple RTD types, flexible wiring configurations, and robust electrical isolation, the IC200ALG620-JF adapts to diverse installation requirements while maintaining consistent performance across wide temperature ranges.

Core Capabilities & Technical Advantages

→ Universal RTD Sensor Compatibility
Accepts Pt100, Pt1000, Ni120, and Cu10 resistance temperature detectors with automatic sensor type recognition. Each channel operates independently, allowing mixed sensor types within a single module—reducing inventory complexity and installation costs.

→ Adaptive Wiring Architecture
Supports 2-wire, 3-wire, and 4-wire RTD connection schemes. This flexibility accommodates legacy sensor installations while enabling high-accuracy 4-wire configurations for critical measurement points. Software-selectable wiring modes eliminate the need for hardware jumpers or module variants.

→ High-Fidelity Signal Conversion
16-bit analog-to-digital conversion delivers 0.0015% full-scale resolution, translating to temperature discrimination better than 0.1°C under controlled conditions. This precision enables tight process control and early detection of thermal anomalies.

✓ Extended Measurement Range
Operates across -200°C to +850°C (-328°F to +1562°F), covering cryogenic processing through high-temperature industrial applications. Single module type handles both refrigeration monitoring and furnace control applications.

✓ Electrical Noise Immunity
500V channel-to-backplane isolation protects measurement circuits from ground potential differences and electromagnetic interference common in industrial settings. Maintains signal integrity even in electrically noisy environments with VFDs, welders, and heavy machinery.

✓ Intelligent Diagnostics
Continuous sensor health monitoring detects open circuits, short circuits, and out-of-range conditions. Diagnostic flags integrate with PLC logic for automated alarm generation and predictive maintenance scheduling.

Industry Applications & Problem-Solving Scenarios

Chemical Manufacturing & Refining
Monitor exothermic reaction temperatures, distillation column profiles, and heat exchanger efficiency. The IC200ALG620-JF's wide temperature range and high accuracy support both safety interlocks and process optimization. Typical installations monitor 4-16 critical temperature points per reactor train, with modules distributed across control cabinets to minimize wiring runs.

Food Processing & Cold Chain Management
Ensure HACCP compliance by tracking pasteurization temperatures, blast freezer performance, and refrigerated storage conditions. The module's 100ms update rate enables rapid response to temperature excursions, protecting product quality and regulatory compliance. Pair with analog output modules for closed-loop control of heating and cooling systems.

Pharmaceutical & Biotechnology
Maintain validated temperature control during fermentation, lyophilization, and environmental chamber operation. The IC200ALG620-JF's measurement accuracy and diagnostic capabilities support FDA 21 CFR Part 11 compliance when integrated with validated control systems and data logging infrastructure.

Power Generation & Utilities
Track turbine bearing temperatures, generator stator windings, and transformer thermal conditions. Early detection of temperature rise trends enables predictive maintenance, preventing catastrophic failures. The module's industrial temperature rating supports installation in non-climate-controlled substations and generation facilities.

Metal Processing & Heat Treatment
Control annealing furnaces, quench tanks, and induction heating systems with RTD feedback. The IC200ALG620-JF's fast update rate and high resolution enable tight temperature control during critical metallurgical processes, improving product consistency and reducing scrap rates.

Technical Parameters & Selection Criteria

Selection Guidance: Choose 3-wire RTD configuration for most industrial applications, balancing accuracy and installation cost. Reserve 4-wire connections for critical measurement points requiring ±0.1°C accuracy. For cable runs exceeding 100 meters, use 3-wire or 4-wire configurations to minimize lead resistance effects.

Extended Functionality & System Integration

VersaMax Ecosystem Compatibility
The IC200ALG620-JF integrates seamlessly with the complete VersaMax I/O family. Combine with digital I/O modules, analog output modules, and specialty function modules on a common carrier for distributed control architecture. Hot-swap capability enables module replacement during operation without system shutdown.

Network Integration Options
Connect to Ethernet/IP, PROFIBUS-DP, DeviceNet, or Modbus networks using VersaMax communication modules. Distributed I/O architecture reduces wiring costs and enables flexible machine layout. Support for redundant network configurations ensures high availability in critical applications.

Software Configuration Tools
Configure RTD types, temperature ranges, and alarm thresholds using GE Proficy Machine Edition or compatible programming software. Automatic RTD linearization converts resistance values to engineering units (°C or °F) within the module, reducing PLC processing overhead.

Customization & Special Applications
For applications requiring higher channel density, consider parallel installation of multiple IC200ALG620-JF modules. For mixed thermocouple and RTD sensing, evaluate the IC200ALG630 7-channel universal temperature input module. Custom cable assemblies and terminal blocks available for specific installation requirements.

Delivery Timeline & Service Commitment

Standard Delivery: 3-5 business days for in-stock modules via express courier. Expedited same-day shipping available for urgent requirements.
Custom Configuration: 7-10 business days for pre-configured modules with specific RTD types and ranges programmed.
Warranty Coverage: 12-month comprehensive warranty covering manufacturing defects and component failures.
Technical Support: Lifetime access to application engineers for wiring diagrams, configuration assistance, and troubleshooting guidance.
Documentation Package: Installation manual, wiring diagrams, configuration examples, and CAD drawings included with every order.

Frequently Asked Questions

How do I select the appropriate RTD wiring configuration for my application?
For cable runs under 50 meters where ±0.5°C accuracy is acceptable, 2-wire RTDs offer the most economical solution. For runs between 50-200 meters requiring ±0.2°C accuracy, use 3-wire RTDs which compensate for lead resistance. For critical measurements demanding ±0.1°C accuracy regardless of cable length, specify 4-wire RTDs that completely eliminate lead resistance errors.

Can this module interface with existing RTD sensors from other manufacturers?
Yes, the IC200ALG620-JF accepts industry-standard RTD sensors from any manufacturer. Ensure your sensors match one of the supported types (Pt100, Pt1000, Ni120, Cu10) and verify the temperature coefficient matches standard curves (α = 0.00385 for Pt100/Pt1000). Most industrial RTD sensors meet these specifications.

What cable specifications are recommended for RTD sensor connections?
Use shielded twisted-pair cable with 18-22 AWG conductors for RTD connections. Shield should be grounded at the module end only to prevent ground loops. For 3-wire and 4-wire configurations, all conductors should have identical resistance (matched triplet or quad cable). Maximum recommended cable length is 300 meters for 3-wire and 4-wire configurations.

Does the module support simultaneous monitoring of different RTD types?
Absolutely. Each of the four channels can be independently configured for different RTD types and wiring modes. For example, Channel 1 might monitor a Pt100 3-wire sensor while Channel 2 connects to a Pt1000 4-wire sensor. This flexibility reduces the number of module types you need to stock.

How does the module handle sensor failure or disconnection?
The IC200ALG620-JF continuously monitors each RTD circuit for open conditions, short circuits, and out-of-range resistance values. When a fault is detected, the module sets a diagnostic bit accessible to your PLC program, allowing you to trigger alarms, switch to backup sensors, or initiate safe shutdown sequences.

What is the maximum distance between the module and the VersaMax controller?
When using VersaMax distributed I/O with network communication modules, the IC200ALG620-JF can be located up to 500 meters from the controller over Ethernet/IP, or several kilometers over fiber optic networks. This enables placement of I/O modules close to sensors, minimizing analog signal wiring runs.

Order Your IC200ALG620-JF RTD Temperature Module Today

Upgrade your temperature monitoring infrastructure with the precision and reliability of the IC200ALG620-JF. Our technical team is ready to assist with module selection, system design, and integration support. Contact us for volume pricing, custom cable assemblies, or application-specific configuration services.

Request a quote now or speak with an automation specialist to discuss your temperature measurement requirements.
