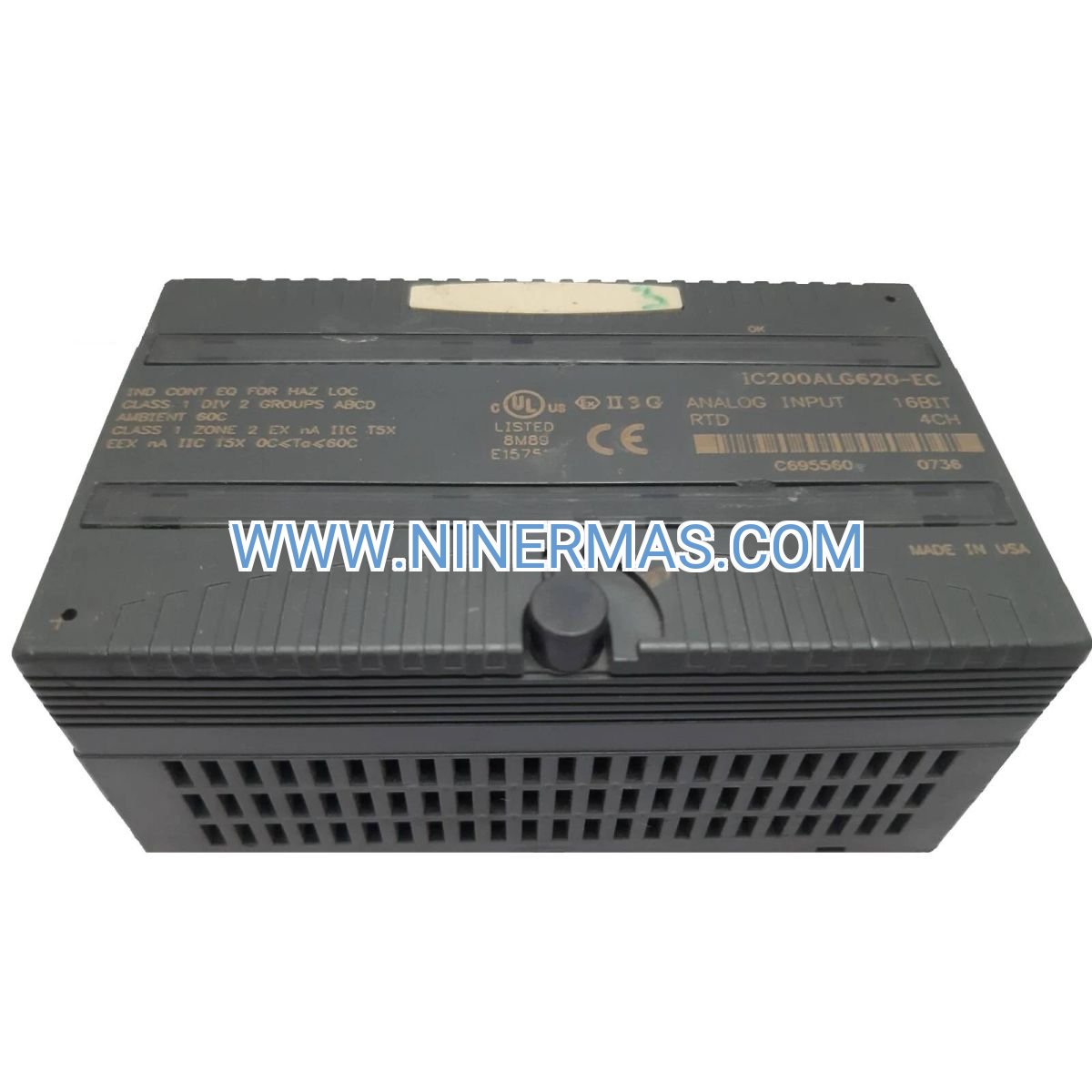

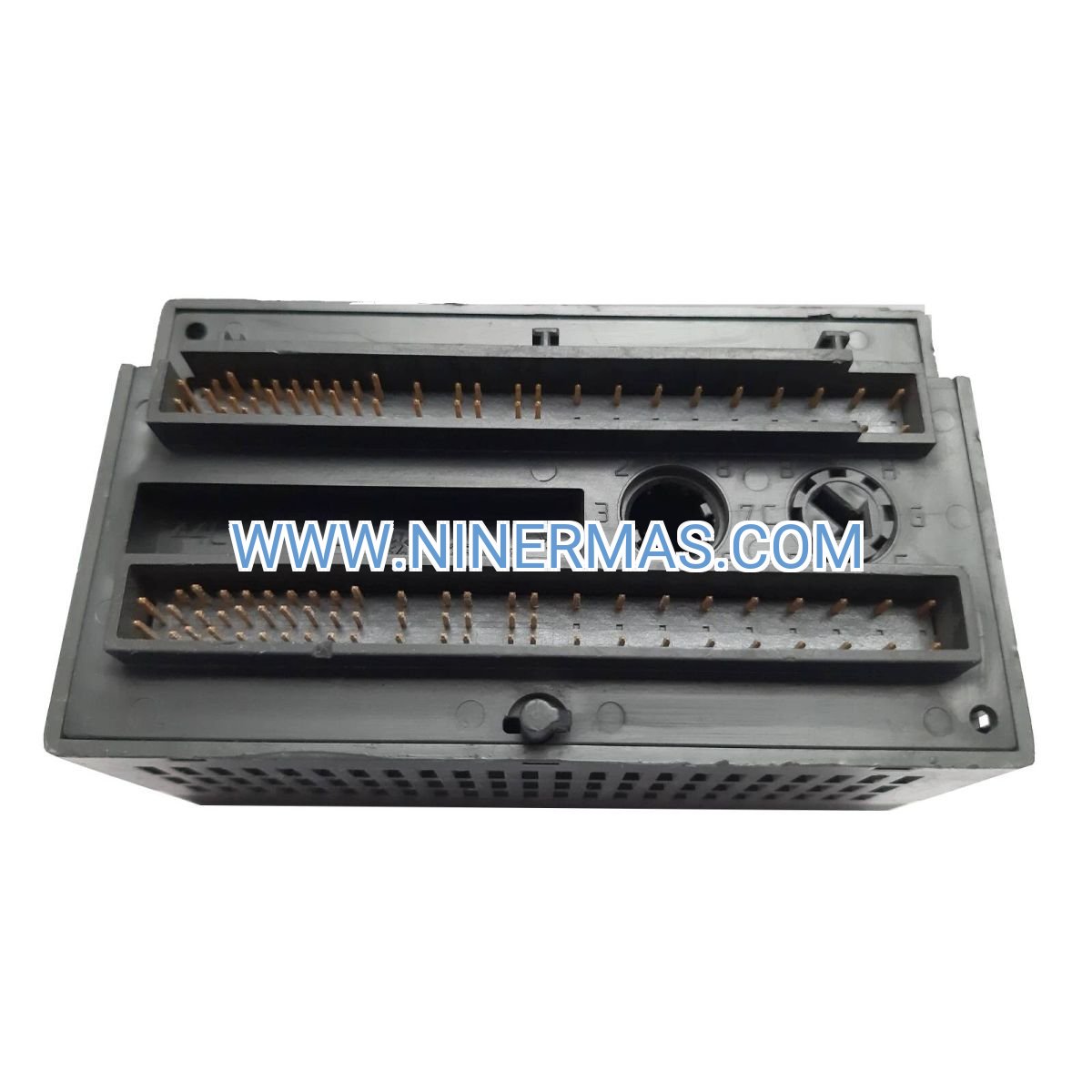

GE IC200ALG620-EC VersaMax RTD Analog Input Module (Industrial-Grade 7-Channel Temperature Measurement System)

The GE IC200ALG620-EC VersaMax RTD Analog Input Module is a precision industrial control device designed for multi-point temperature monitoring and data acquisition. Through high-resolution analog-to-digital conversion and RTD (Resistance Temperature Detector) signal conditioning, it delivers accurate, stable temperature measurement across seven independent channels. This module integrates seamlessly with GE VersaMax PLC/PAC systems to enable real-time thermal process control and monitoring.

Engineered for demanding industrial environments—including chemical processing, power generation, HVAC systems, and manufacturing automation—this module addresses critical challenges such as temperature drift, sensor compatibility issues, wiring complexity, and unreliable data acquisition. Its robust design ensures continuous operation in harsh conditions while maintaining measurement accuracy within ±0.1% of full scale.

With standardized configuration options and flexible customization capabilities, the IC200ALG620-EC offers multi-wire RTD support (2-wire, 3-wire, 4-wire), wide temperature range coverage (-200°C to +850°C), built-in cold junction compensation, and diagnostic features. Ideal for process engineers, system integrators, instrumentation specialists, and plant maintenance teams seeking reliable temperature monitoring solutions. Contact our application engineers for sensor selection guidance, wiring diagrams, and system integration support.

Core Features & Technical Advantages

Seven Independent RTD Input Channels
Supports simultaneous monitoring of seven temperature measurement points with individual channel configuration. Each input features isolated signal conditioning to prevent cross-channel interference, enabling comprehensive thermal profiling across complex processes or equipment zones.

Universal RTD Sensor Compatibility
Accepts industry-standard 2-wire, 3-wire, and 4-wire RTD configurations including Pt100, Pt1000, Ni100, Ni1000, and Cu10 sensors. Automatic lead resistance compensation in 3-wire and 4-wire modes ensures measurement accuracy regardless of cable length (up to 300 meters), reducing installation constraints and calibration requirements.

High-Resolution Temperature Measurement
16-bit analog-to-digital conversion delivers 0.1°C resolution across the full measurement span. Temperature coefficient stability of ±50 ppm/°C maintains accuracy in ambient temperature variations from -40°C to +70°C, critical for precision process control applications.

Comprehensive Diagnostic & Protection Functions
Built-in sensor open-circuit detection, short-circuit protection, over-range alarm, and module self-test capabilities minimize downtime. Real-time status indicators and diagnostic data accessible via PLC programming enable predictive maintenance and rapid fault isolation.

Rugged Industrial Construction
IP20-rated housing with conformal coating protects against dust, moisture, and chemical exposure. Operates reliably in high-vibration environments (5G at 10-150 Hz) and withstands electromagnetic interference per IEC 61000-4 standards. DIN rail mounting with removable terminal blocks simplifies installation and field servicing.

Seamless VersaMax System Integration
Hot-swappable design allows module replacement without powering down the entire I/O rack. Configuration data stored in module memory enables automatic parameter restoration upon replacement. Compatible with GE Proficy Machine Edition and PACSystems RX3i controllers for unified programming and diagnostics.

Typical Application Scenarios

This module excels in applications demanding multi-point temperature monitoring, thermal process optimization, and critical equipment protection:

Chemical & Petrochemical Processing
Monitors reactor vessel temperatures, distillation column profiles, and heat exchanger performance. Multi-channel capability reduces I/O rack space requirements while maintaining safety instrumented system (SIS) compliance. Supports hazardous area installations when paired with appropriate barriers.

Power Generation & Energy Systems
Tracks turbine bearing temperatures, generator winding heat, boiler feedwater conditions, and cooling system performance. High accuracy and fast response time (typically 250ms per channel) enable protective shutdown logic and efficiency optimization algorithms.

HVAC & Building Automation
Measures supply/return air temperatures, chilled water loops, and zone control sensors across commercial and industrial facilities. Scalable architecture supports expansion from small rooftop units to campus-wide central plant monitoring with consistent data quality.

Food & Beverage Manufacturing
Ensures pasteurization temperature compliance, fermentation control, and cold chain monitoring. Washdown-compatible terminal covers and stainless steel sensor options meet sanitary design requirements. Data logging capabilities support HACCP documentation and quality assurance protocols.

Metals & Materials Processing
Controls heat treating furnaces, annealing ovens, and extrusion processes where precise thermal profiles determine product quality. Thermocouple and RTD input flexibility accommodates diverse sensor types across different process stages.

Technical Specifications & Selection Guide

To facilitate system design and procurement, we provide key specifications for the IC200ALG620-EC module:

Input Specifications:
• Number of Channels: 7 differential RTD inputs
• RTD Types Supported: Pt100, Pt1000, Ni100, Ni1000, Cu10, Cu50
• Wiring Configurations: 2-wire, 3-wire, 4-wire
• Temperature Range: -200°C to +850°C (sensor dependent)
• Resolution: 16-bit (0.1°C typical)
• Accuracy: ±0.1% of full scale ±0.5°C
• Update Rate: 250ms per channel (configurable)

Electrical & Environmental:
• Power Supply: 24VDC via backplane (150mA typical)
• Isolation: 500VAC channel-to-backplane
• Operating Temperature: -40°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Protection Rating: IP20
• Vibration Resistance: 5G, 10-150 Hz per IEC 60068-2-6

Mechanical & Mounting:
• Dimensions: 118mm (H) × 35mm (W) × 114mm (D)
• Weight: Approximately 0.2 kg
• Mounting: DIN rail (35mm) via VersaMax carrier
• Terminal Type: Removable screw terminals (12-24 AWG)
• LED Indicators: Power, module OK, channel status

Compliance & Certifications:
• CE, UL508, cULus, RCM, EAC
• EMC: IEC 61000-6-2 (immunity), IEC 61000-6-4 (emissions)
• Shock & Vibration: IEC 60068-2-27, IEC 60068-2-6

Selection Considerations:
When specifying this module, evaluate: (1) Total number of RTD measurement points required, (2) RTD sensor types and wiring configurations, (3) Required temperature range and accuracy, (4) Ambient operating conditions and protection requirements, (5) Integration with existing VersaMax or PACSystems infrastructure, (6) Spare I/O capacity for future expansion. Our application engineers can review your P&ID drawings, sensor specifications, and control narrative to recommend optimal configuration and provide bill of materials.

Advanced Configuration Options

Custom Sensor Linearization Tables
Upload user-defined RTD curves for non-standard sensor types or extended temperature ranges beyond factory defaults.

Alarm & Notification Logic
Configure high/low temperature thresholds with hysteresis, rate-of-change alarms, and deviation alerts directly in module firmware to reduce PLC scan overhead.

Data Scaling & Engineering Units
Convert raw RTD resistance values to °C, °F, K, or custom engineering units within the module, simplifying PLC programming and HMI display configuration.

Redundancy & Failover Support
Pair with redundant VersaMax controllers and hot-standby I/O configurations for high-availability applications requiring 99.99%+ uptime.

Delivery, Service & Technical Support

Lead Time: Standard catalog items typically ship within 3-5 business days from regional distribution centers. Custom-configured modules or large quantity orders may require 2-3 weeks. Expedited shipping available for critical project timelines.

Warranty: 24-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for mission-critical installations.

Installation & Commissioning: Comprehensive documentation package includes dimensional drawings, terminal wiring diagrams, configuration software guides, and sample PLC code. Remote technical support provided during startup phase. On-site commissioning services available in select regions (consult for availability and pricing).

Technical Documentation: Each module ships with quick-start guide, full user manual (PDF), CAD files (STEP, DXF), and configuration templates for Proficy Machine Edition. Firmware update utilities and application notes accessible via online support portal.

Training & Resources: Access to online training modules covering VersaMax system architecture, RTD sensor fundamentals, troubleshooting procedures, and advanced programming techniques. Quarterly webinars on new features and application best practices.

Frequently Asked Questions (FAQ)

Q: How do I connect the IC200ALG620-EC RTD module to my existing VersaMax PLC system?
A: The module installs directly onto a VersaMax carrier (IC200CHS series) via DIN rail mounting. Connect RTD sensors to the removable terminal blocks following the wiring diagram for your chosen configuration (2-wire, 3-wire, or 4-wire). Power and communication are provided automatically through the backplane. Use Proficy Machine Edition software to configure channel parameters, sensor types, and temperature ranges. Verify proper module recognition in the hardware configuration tree before downloading to the controller.

Q: What is the maximum number of RTD sensors I can connect to one module?
A: The IC200ALG620-EC supports up to seven independent RTD sensors simultaneously. Each channel operates independently with individual configuration settings. For applications requiring more than seven measurement points, install additional modules in the same VersaMax rack (up to 10 modules per carrier depending on power budget).

Q: What energy savings or efficiency improvements can I expect from using this RTD module?
A: While the module itself is a measurement device, accurate temperature monitoring enables process optimization that typically reduces energy consumption by 8-15% in thermal systems. Benefits include: precise setpoint control reducing overshoot/undershoot cycles, early detection of heat exchanger fouling, optimized heating/cooling sequencing, and reduced safety margins due to improved measurement confidence. Actual savings depend on process characteristics, control strategy, and baseline efficiency.

Q: What are the environmental requirements for installing this module? What is its protection rating?
A: The module is rated IP20 for indoor industrial environments. Operating temperature range is -40°C to +70°C with 5-95% relative humidity (non-condensing). Install in a control cabinet or enclosure that protects against direct water spray, corrosive gases, and excessive dust. Maintain minimum 50mm clearance above and below the module for convection cooling. For harsh environments (washdown areas, outdoor installations), specify NEMA 4X or IP65-rated enclosures with appropriate ventilation or climate control.

Q: Can I remotely monitor temperature data and receive alarms from this module? What communication protocols are supported?
A: Yes, temperature data is accessible via the VersaMax controller's communication interfaces including Ethernet/IP, Modbus TCP, Profibus DP, and serial protocols (Modbus RTU, SNP). Configure alarm thresholds in the PLC logic and transmit notifications via email, SMS, or SCADA integration. For direct cloud connectivity, pair with GE's Predix edge gateway or third-party IoT platforms supporting OPC UA. The module itself does not have independent network connectivity—all data flows through the host controller.

Q: What is the difference between 2-wire, 3-wire, and 4-wire RTD connections, and which should I use?
A: 2-wire RTDs are simplest but include lead resistance in the measurement, causing errors over long cable runs (use only for short distances <3m or non-critical applications). 3-wire RTDs compensate for lead resistance assuming balanced wire lengths, suitable for most industrial applications up to 300m. 4-wire RTDs provide the highest accuracy by completely eliminating lead resistance effects, recommended for precision applications, long cable runs, or when using thin gauge wire. The IC200ALG620-EC automatically detects wiring configuration and applies appropriate compensation algorithms.

Request Technical Support & Quotation

To receive a detailed system design proposal, pricing quotation, or application engineering support, please provide the following information: (1) Project name and application description, (2) Number of temperature measurement points required, (3) RTD sensor types and temperature ranges, (4) Cable lengths and installation environment conditions, (5) Existing control system details (PLC model, communication protocols), (6) Delivery timeline and quantity requirements. Our engineers will respond within 24 hours with customized recommendations, wiring diagrams, and budget pricing.
