GE IC200ALG432K Thermocouple Input Module | 4-Channel Temperature Sensor | VersaMax Series

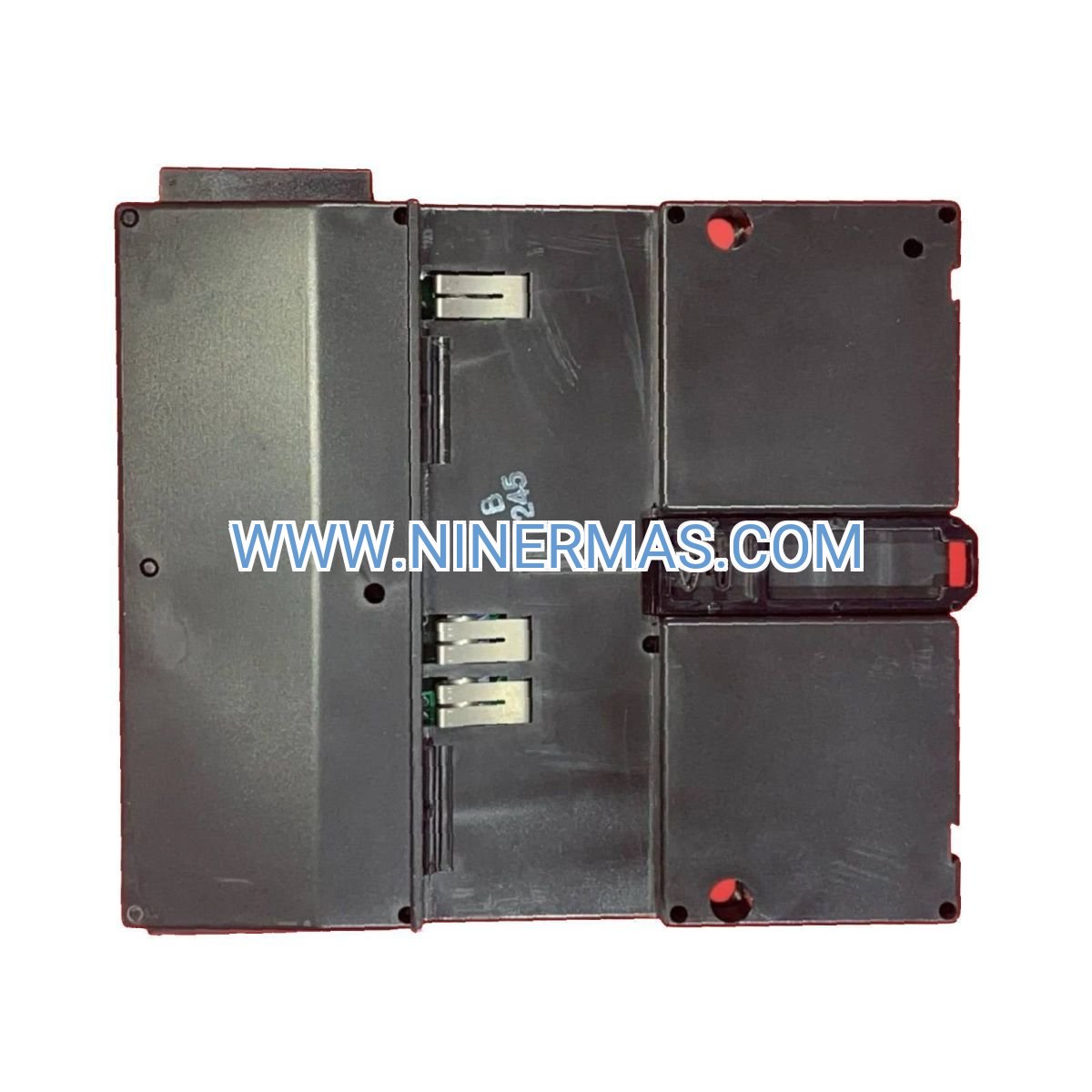

GE IC200ALG432K Thermocouple Input Module (Industrial-Grade Temperature Control System)

The GE IC200ALG432K is a precision 4-channel thermocouple input module designed for industrial temperature monitoring and control applications. Through advanced analog-to-digital conversion and cold junction compensation technology, it delivers accurate temperature measurement across multiple sensor types, enabling reliable process control in demanding environments.

Ideal for chemical processing plants, power generation facilities, heat treatment furnaces, HVAC systems, and manufacturing production lines, this module addresses critical challenges including temperature drift, sensor compatibility issues, multi-point monitoring complexity, and data acquisition accuracy requirements in industrial automation systems.

With standardized VersaMax architecture and flexible configuration options, the IC200ALG432K offers universal thermocouple compatibility, high-resolution measurement, robust EMI protection, hot-swappable design, and seamless PLC integration. Perfect for control engineers, system integrators, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized temperature monitoring solutions and technical specifications.

Core Features & Technical Advantages

• Universal Thermocouple Compatibility
  Supports J, K, T, E, R, S, B, and N-type thermocouples with automatic sensor detection and cold junction compensation, eliminating manual configuration and reducing installation errors for diverse temperature measurement requirements.
• High-Precision Measurement Performance
  Achieves ±0.5°C accuracy with 16-bit resolution across -200°C to +1370°C range, providing reliable data for critical process control applications where temperature stability directly impacts product quality and safety.
• Four Independent Input Channels
  Enables simultaneous monitoring of multiple temperature points with individual channel configuration, reducing hardware costs and cabinet space while maintaining signal isolation to prevent cross-channel interference.
• Industrial-Grade Protection & Reliability
  Features built-in overvoltage protection, open-circuit detection, short-circuit diagnostics, and EMI/RFI filtering, minimizing downtime and maintenance costs in harsh industrial environments with electrical noise and transient surges.
• Seamless VersaMax Integration
  Hot-swappable design with plug-and-play installation on VersaMax backplane, supporting online replacement without system shutdown. Compatible with GE PACSystems controllers and standard Modbus/Ethernet protocols for flexible system architecture.
• Intuitive Diagnostic Interface
  LED status indicators and comprehensive fault reporting through PLC interface provide real-time visibility of sensor health, wiring integrity, and measurement validity, accelerating troubleshooting and reducing commissioning time.

Typical Application Scenarios

This module is engineered for applications demanding high temperature measurement accuracy, multi-point monitoring capability, and continuous operation reliability, particularly in:

• Chemical & Petrochemical Processing
  Monitor reactor temperatures, distillation column profiles, and heat exchanger performance to maintain optimal process conditions, prevent thermal runaway, and ensure product consistency in batch and continuous operations.
• Power Generation & Energy Systems
  Track boiler temperatures, turbine exhaust conditions, and flue gas measurements in coal-fired, gas-fired, and biomass power plants, supporting combustion optimization and emissions compliance monitoring.
• Metal Heat Treatment & Forging
  Control furnace zones, quenching bath temperatures, and annealing cycles in steel mills, foundries, and heat treatment shops where precise thermal profiles determine material properties and product specifications.
• Food & Pharmaceutical Manufacturing
  Ensure pasteurization, sterilization, and drying process temperatures meet regulatory requirements (FDA, GMP) while maintaining product safety and quality in ovens, autoclaves, and freeze-dryers.
• HVAC & Building Automation
  Regulate commercial boiler systems, industrial air handling units, and district heating networks to optimize energy efficiency, reduce operating costs, and maintain comfort conditions in large facilities.

Technical Specifications & Selection Guide

To facilitate engineering design and system integration, we provide comprehensive technical parameters for the IC200ALG432K module. Custom configurations available for specialized applications.

Selection Considerations: When specifying this module, evaluate maximum/minimum process temperatures, thermocouple wire types, ambient temperature conditions, required response time, and PLC communication protocol. For applications requiring RTD inputs, explosion-proof ratings, or extended temperature ranges, consult our engineering team with your process parameters for alternative model recommendations.

System Integration & Configuration Options

• Controller Compatibility: Works with GE PACSystems RX3i, RX7i controllers and legacy VersaMax standalone systems
• Software Support: Configurable via Proficy Machine Edition with pre-built function blocks for temperature scaling and alarm management
• Communication Protocols: Native support for Modbus RTU/TCP, EGD (Ethernet Global Data), and SRTP protocols
• Redundancy Options: Compatible with redundant controller configurations for high-availability applications
• Expansion Capability: Mix with other VersaMax I/O modules (analog, digital, specialty) on same backplane for complete control solutions

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days; custom-configured modules require 10-15 days lead time. All products include 12-month manufacturer warranty covering defects in materials and workmanship. Technical support includes remote configuration assistance, on-site commissioning services (region-dependent), and comprehensive documentation package.

Each module ships with complete electrical schematics, terminal wiring diagrams, thermocouple connection tables, software configuration examples, and troubleshooting guides in English. Installation and maintenance training available upon request for system integrators and end-user maintenance teams.

Frequently Asked Questions (FAQ)

Q: How do I connect different thermocouple types to the IC200ALG432K module?
A: Each channel supports software-selectable thermocouple types. Connect thermocouple extension wire to corresponding screw terminals (observe polarity), then configure sensor type in controller software. Module automatically applies appropriate linearization and cold junction compensation for selected sensor.

Q: Can this module handle mixed thermocouple types on different channels?
A: Yes, each of the four channels can be independently configured for different thermocouple types (e.g., Channel 1 = Type K, Channel 2 = Type J), allowing flexible multi-zone temperature monitoring in a single module.

Q: What is the typical measurement accuracy and how is it affected by ambient temperature?
A: Base accuracy is ±0.5°C ±0.05% of reading at 25°C ambient. Accuracy may degrade by ±0.02°C per °C deviation from 25°C ambient. For critical applications, install module in temperature-controlled enclosures and allow 30-minute warm-up period.

Q: What environmental protection does this module require for installation?
A: Module is rated IP20 and must be installed in enclosed control cabinets. For harsh environments with dust, moisture, or corrosive gases, use NEMA 4/4X or IP65-rated enclosures with adequate ventilation to maintain operating temperature range.

Q: Does the IC200ALG432K support remote monitoring and data logging?
A: Yes, when integrated with PACSystems controllers, temperature data can be accessed via Ethernet/IP, Modbus TCP, or OPC protocols for SCADA systems, HMI displays, and cloud-based data historians. Module supports standard industrial communication architectures.

Q: How do I troubleshoot open-circuit or sensor fault alarms?
A: Check thermocouple wiring continuity, verify proper terminal connections, inspect for damaged sensor elements, and confirm correct sensor type configuration in software. Module diagnostics provide specific fault codes (open circuit, short circuit, out-of-range) to accelerate troubleshooting.

Request Technical Support & Custom Solutions

For detailed application engineering, system integration assistance, or custom temperature monitoring solutions, please provide: project name, application description, number of measurement points, temperature ranges, thermocouple types, controller platform, environmental conditions, and communication requirements. Our application engineers will deliver tailored recommendations with wiring diagrams, configuration files, and budget quotations within 24-48 hours.
