GE IC200ALG432K Thermocouple Input Module – Industrial-Grade Temperature Monitoring Solution

The GE IC200ALG432K is a precision 4-channel thermocouple input module designed for industrial temperature measurement and control applications. Through advanced signal conditioning and 16-bit A/D conversion technology, it delivers accurate temperature data acquisition with ±0.1°C precision, enabling reliable process monitoring across demanding industrial environments.

Engineered for manufacturing plants, chemical processing facilities, power generation stations, HVAC systems, and food & beverage production lines, this module addresses critical challenges including temperature drift, sensor compatibility issues, signal noise interference, and multi-point monitoring complexity. It ensures stable thermal control, reduces equipment downtime, and minimizes manual calibration requirements.

With standardized VersaMax architecture and flexible configuration options, the IC200ALG432K offers universal thermocouple compatibility, cold junction compensation, open circuit detection, superior EMI resistance, and hot-swappable installation. Ideal for design engineers, system integrators, OEM manufacturers, and plant maintenance teams seeking reliable temperature acquisition solutions. Contact our application engineers for customized system design and technical consultation.

Core Features & Technical Advantages

• Universal Thermocouple Compatibility
  Supports J, K, T, E, R, S, B, and N-type thermocouples with software-selectable input types per channel, eliminating the need for multiple module variants and simplifying inventory management.
• High-Precision Measurement
  16-bit resolution with ±0.1°C accuracy ensures reliable data for critical process control, meeting stringent quality standards in pharmaceutical, semiconductor, and aerospace applications.
• Automatic Cold Junction Compensation
  Built-in CJC circuitry eliminates external reference requirements, reducing installation complexity and improving measurement stability across ambient temperature variations.
• Comprehensive Fault Detection
  Real-time diagnostics for open circuit, short circuit, and out-of-range conditions with LED status indicators, enabling proactive maintenance and minimizing unplanned shutdowns.
• Industrial-Grade Reliability
  Conformal-coated PCB with -40°C to +70°C operating range, 5-95% humidity tolerance (non-condensing), and 2000V channel-to-bus isolation for harsh industrial environments.
• Seamless VersaMax Integration
  Hot-swappable design with keyed connectors and removable terminal blocks allows online replacement without system shutdown, reducing maintenance windows by up to 60%.
• Intuitive Configuration Interface
  Programming via Proficy Machine Edition software with graphical setup wizards, pre-configured function blocks, and real-time trending capabilities for rapid commissioning.

Typical Application Scenarios

This module excels in applications requiring stable temperature monitoring, continuous process reliability, and multi-zone thermal management:

• Chemical & Petrochemical Processing
  Monitors reactor temperatures, distillation column profiles, and heat exchanger performance in refineries and chemical plants, ensuring safe operating conditions and product quality consistency.
• Power Generation & Energy Systems
  Tracks turbine exhaust temperatures, boiler feedwater conditions, and generator winding heat in thermal power stations, nuclear facilities, and combined-cycle plants to prevent equipment damage.
• Metal Processing & Heat Treatment
  Controls furnace zones, annealing cycles, and quenching processes in steel mills, foundries, and forging operations, achieving precise metallurgical properties and reducing scrap rates.
• Food & Beverage Manufacturing
  Ensures pasteurization temperatures, sterilization cycles, and cold chain integrity in dairy processing, brewing, and packaged food production, meeting HACCP compliance requirements.
• HVAC & Building Automation
  Regulates air handling unit temperatures, chiller performance, and zone comfort levels in commercial buildings, data centers, and cleanroom facilities for energy optimization.

Technical Specifications & Selection Guide

To facilitate system design and procurement, we provide comprehensive technical parameters for integration planning:

Selection Recommendations: When specifying this module, consider maximum process temperature range, required response time, ambient conditions at installation location, and PLC rack power budget. For applications requiring faster sampling (< 50ms) or higher channel density (> 4 points), consult our engineering team for alternative solutions. Provide process parameters including thermocouple type, temperature range, and cable length for optimized system configuration.

Advanced Configuration Options

• Programmable Filtering: Selectable 50Hz/60Hz notch filters and moving average algorithms to suppress electrical noise in high-EMI environments
• Alarm Thresholds: User-defined high/low limits with hysteresis settings for process deviation alerts and equipment protection
• Scaling & Linearization: Built-in thermocouple linearization tables with custom offset/gain adjustments for sensor calibration
• Data Logging: Integration with Proficy Historian for trend analysis, SPC charting, and regulatory compliance documentation
• Network Connectivity: Ethernet/IP, Modbus TCP, and OPC UA protocol support for SCADA integration and remote monitoring

Delivery, Service & Quality Assurance

Standard units ship within 3-5 business days from our regional distribution centers; custom-configured systems with pre-programmed settings deliver in 7-10 days. Each module includes a 12-month manufacturer warranty covering defects in materials and workmanship, with optional extended service plans available.

We provide comprehensive technical support including remote configuration assistance, on-site commissioning services (region-dependent), and 24/7 emergency hotline access. Complete documentation package includes electrical schematics, terminal wiring diagrams, Proficy Machine Edition configuration files, and troubleshooting flowcharts in PDF format for seamless installation and maintenance.

All products undergo 100% factory testing with calibration certificates traceable to NIST standards, ensuring measurement accuracy and regulatory compliance for critical applications.

Frequently Asked Questions (FAQ)

Q: How do I connect the GE IC200ALG432K thermocouple input module to existing temperature sensors?

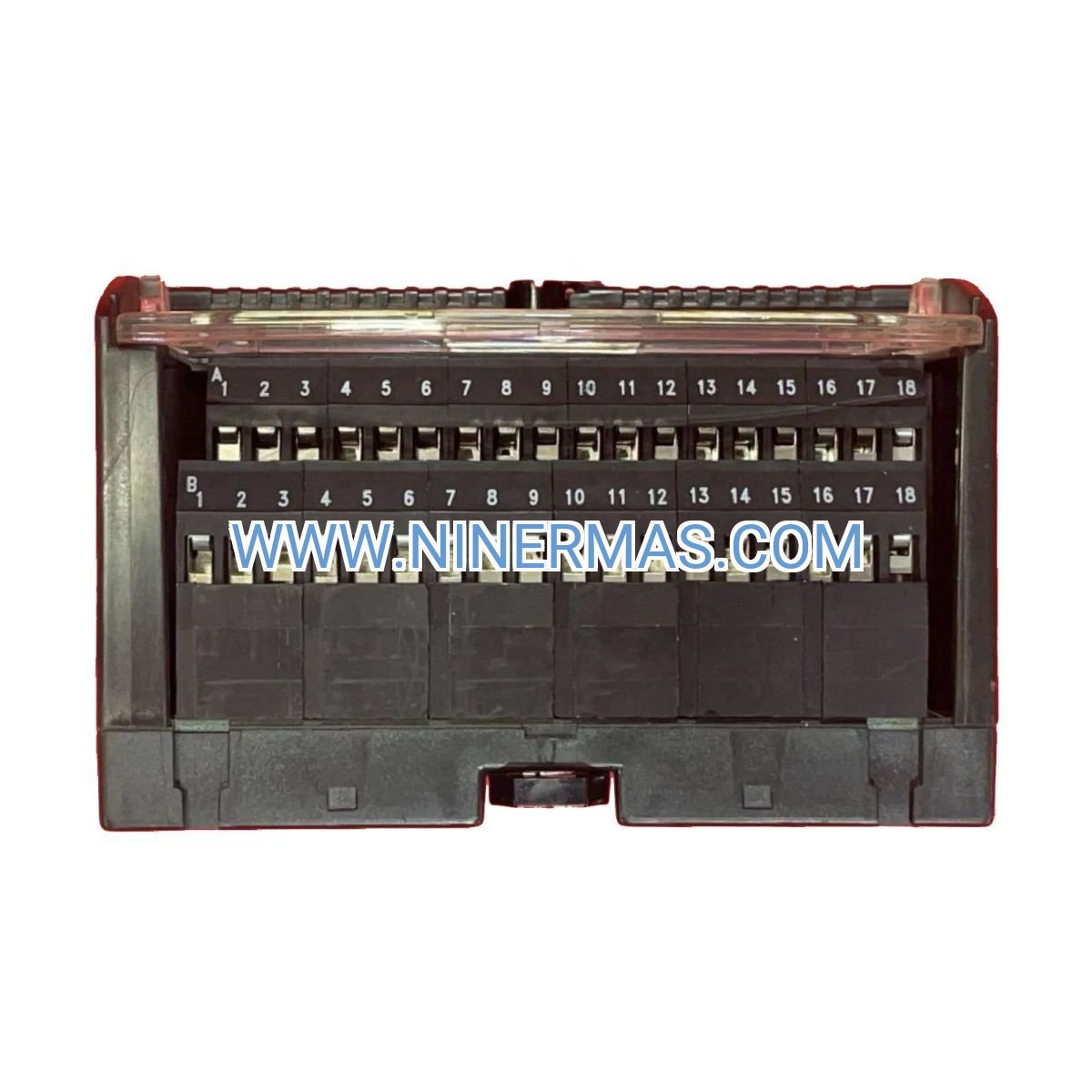

A: The module features removable screw-terminal blocks with clearly labeled (+) and (-) connections for each channel. Use shielded thermocouple extension wire matching your sensor type, connect shield to the dedicated ground terminal, and configure input type via Proficy Machine Edition software. Verify polarity to avoid reversed readings.

Q: Can one IC200ALG432K module handle different thermocouple types simultaneously?
A: Yes, each of the 4 channels is independently configurable. You can monitor a K-type on Channel 1, J-type on Channel 2, and so forth, making it ideal for multi-process applications with varying temperature ranges.

Q: What energy savings can I expect compared to traditional temperature monitoring systems?
A: By enabling precise closed-loop control with ±0.1°C accuracy, users typically achieve 15-25% reduction in heating/cooling energy consumption through tighter setpoint management and reduced overshoot. Actual savings depend on process characteristics and control strategy optimization.

Q: What are the environmental requirements for installing this module?
A: The IC200ALG432K operates reliably in -40°C to +70°C ambient temperatures with 5-95% non-condensing humidity. It carries IP20 enclosure rating, so installation in NEMA-rated control panels is recommended for dusty or wet environments. Ensure adequate ventilation to prevent heat buildup in densely packed racks.

Q: Does the module support remote monitoring and data acquisition via industrial networks?
A: When integrated with VersaMax Ethernet carrier modules, temperature data is accessible via Ethernet/IP, Modbus TCP, and OPC UA protocols. This enables real-time SCADA visualization, cloud-based analytics, and mobile dashboard access for remote facilities management.

Q: How do I troubleshoot open circuit errors on thermocouple inputs?
A: Open circuit faults typically indicate broken sensor wires, loose terminal connections, or damaged thermocouple junctions. Check LED indicators on the module front panel, verify wiring continuity with a multimeter, and inspect sensor condition. The diagnostic registers in Proficy Machine Edition provide detailed fault codes for rapid troubleshooting.

Request Technical Support & Custom Solutions

For detailed application engineering assistance, system integration quotes, or bulk procurement inquiries, please provide the following information: project name, application industry, required temperature measurement range, number of monitoring points, thermocouple types, PLC platform details, and environmental conditions. Our certified engineers will deliver tailored recommendations with CAD drawings, bill of materials, and budget estimates within 24-48 hours.
