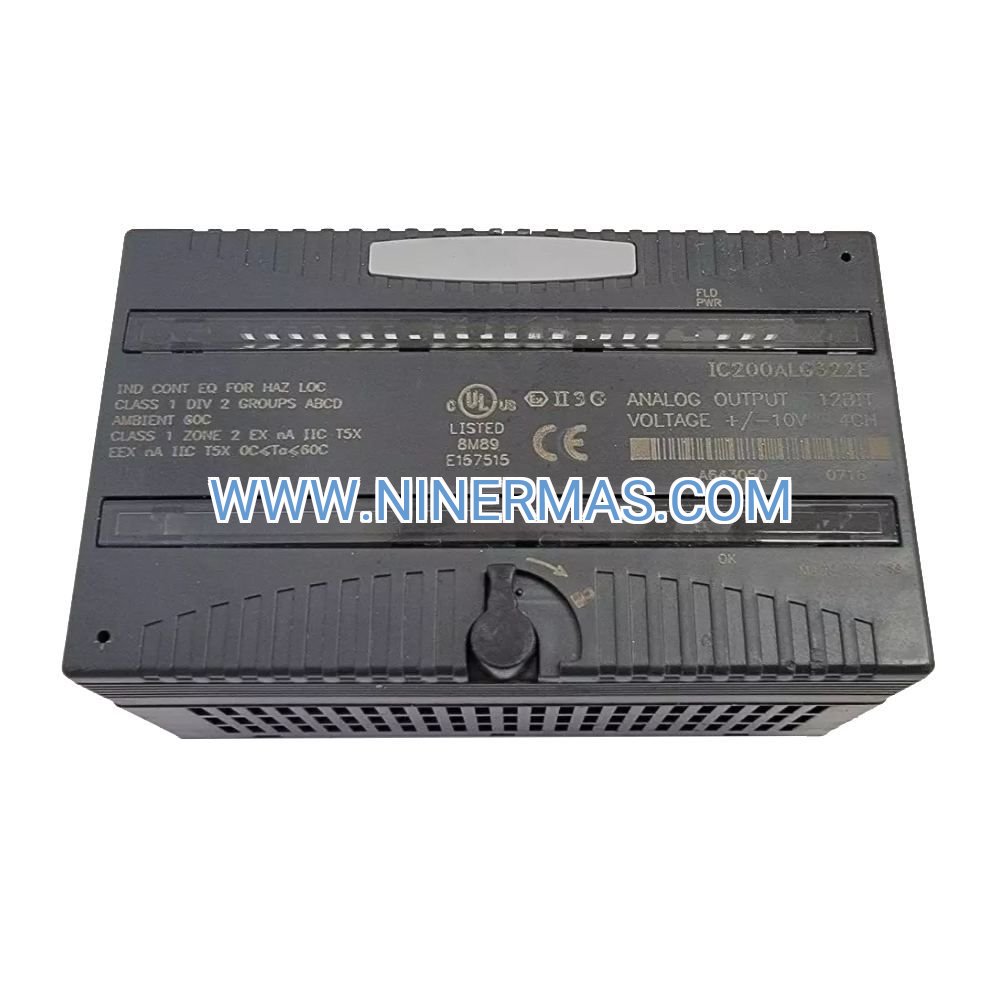

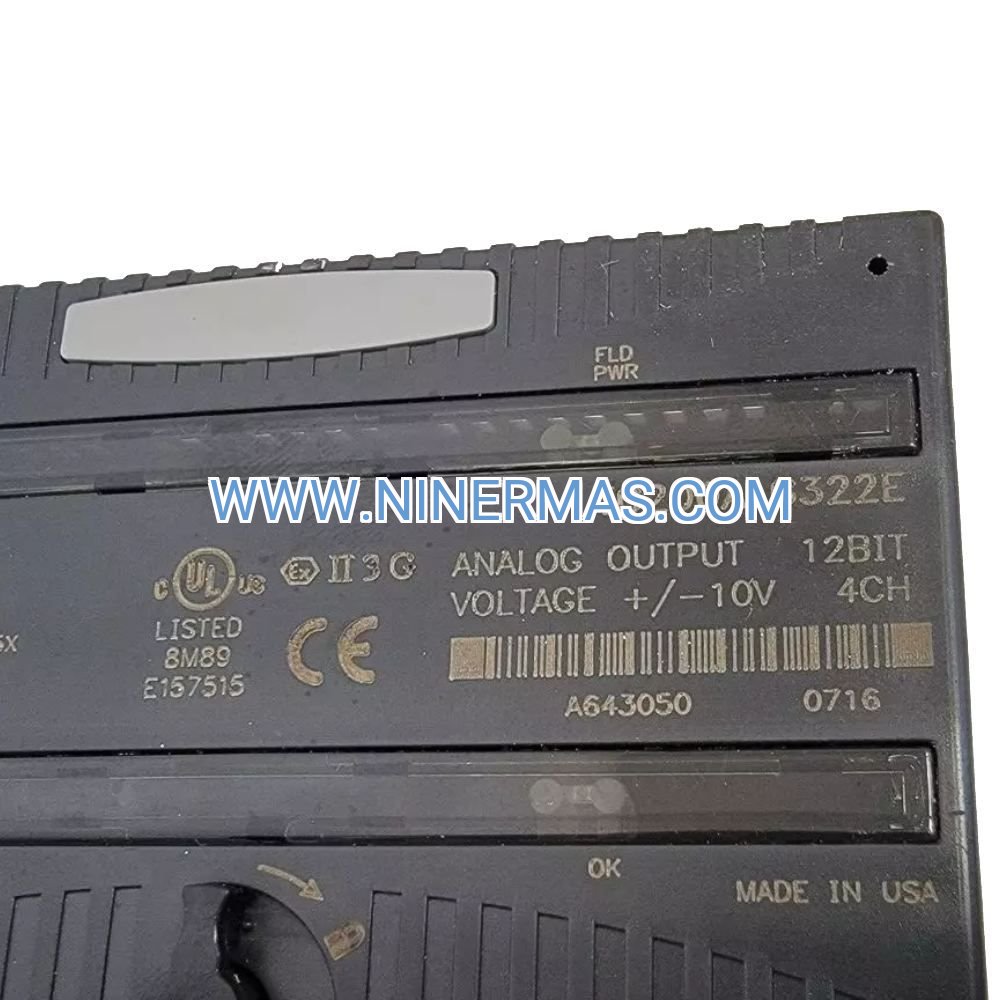

IC200ALG322 Analog Output Module – Industrial-Grade Precision for VersaMax Control Systems

The IC200ALG322 represents a cornerstone solution in analog signal conversion for VersaMax PLC architectures. Engineered by GE Automation, this 4-channel output module transforms digital control signals into precise analog voltages or currents, enabling seamless integration with field devices across manufacturing, process control, and building automation environments.

Built around a robust 12-bit digital-to-analog converter architecture, the IC200ALG322 delivers 4096 discrete output levels per channel—sufficient resolution for demanding applications including valve positioning, VFD speed control, and instrumentation signal conditioning. Channel-to-backplane isolation of 500V ensures reliable operation in electrically noisy industrial settings while protecting upstream control logic from field-side faults.

Whether you're retrofitting legacy systems or designing new automation solutions, the IC200ALG322 provides the flexibility, accuracy, and durability required for mission-critical analog control applications. Hot-swappable design minimizes maintenance windows, while software-configurable output ranges eliminate inventory complexity.

Core Capabilities & Technical Advantages

→ Multi-Range Output Flexibility
Each channel supports software-selectable voltage (0-10V DC) or current (0-20mA, 4-20mA) outputs without hardware modifications. This eliminates the need to stock multiple module variants and simplifies spare parts management. Configure ranges individually per channel to match diverse field device requirements within a single module slot.

→ Precision Signal Conversion
12-bit resolution delivers ±0.1% full-scale accuracy at 25°C, meeting the stringent requirements of pharmaceutical batch control, semiconductor fabrication, and precision motion applications. Temperature drift specifications ensure consistent performance across the full 0-60°C operating range.

→ Electrical Isolation & Noise Immunity
500V channel-to-backplane isolation breaks ground loops and protects control logic from field-side transients. This isolation barrier is critical in applications with long cable runs, multiple ground references, or high-voltage equipment proximity. Current output modes provide superior noise rejection over extended distances.

→ Diagnostic Intelligence
Per-channel LED indicators provide instant visual feedback on module health and output status. Software-accessible diagnostics include open-wire detection, over-range conditions, and module fault reporting—enabling predictive maintenance strategies and reducing troubleshooting time.

→ Hot-Swap Capability
Replace failed modules without system shutdown or loss of control. The VersaMax backplane architecture maintains power and communication to adjacent modules during replacement operations, maximizing uptime in continuous process environments.

✓ Compact DIN-Rail Mounting
At just 118mm × 87mm × 40mm, the IC200ALG322 maximizes I/O density in space-constrained control panels. Low power consumption (2.5W typical) reduces heat generation and allows higher module counts per power supply.

Industrial Application Scenarios

Chemical Processing & Batch Control
Regulate chemical dosing pumps, flow control valves, and reactor temperature loops with precision analog control. The IC200ALG322's 4-20mA current outputs drive pneumatic valve positioners and magnetic flowmeters over distances up to 1000 feet without signal degradation. Pair with analog input modules for closed-loop PID control of pH, conductivity, and pressure parameters in pharmaceutical manufacturing and specialty chemical production.

Packaging & Material Handling Automation
Control servo amplifiers and variable frequency drives for conveyor systems, pick-and-place robots, and form-fill-seal machines. The 10ms update rate per channel ensures responsive motion control for high-speed packaging lines. Integrate with VersaMax CPU modules for coordinated multi-axis positioning in bottling, labeling, and palletizing operations.

HVAC & Building Management Systems
Modulate damper actuators, chilled water valves, and variable air volume boxes for energy-efficient climate control. The module's wide operating temperature range (-40°C to 85°C storage) suits installation in mechanical rooms and rooftop equipment enclosures. Deploy in commercial buildings, data centers, and cleanroom facilities requiring precise environmental control.

Water Treatment & Municipal Infrastructure
Drive chemical metering pumps for coagulation, disinfection, and pH adjustment in drinking water and wastewater treatment plants. Current loop outputs provide excellent noise immunity in electrically harsh environments with large motors and VFDs. Monitor and control aeration blowers, clarifier mechanisms, and filter backwash systems with reliable analog signaling.

Energy & Power Generation
Interface with turbine governors, fuel control valves, and excitation systems in cogeneration and distributed energy facilities. The IC200ALG322's industrial temperature rating and vibration resistance suit installation in power plant control rooms and substation automation panels.

Technical Specifications & Selection Guide

Selection Criteria: Choose the IC200ALG322 when your application requires four or fewer analog outputs with standard voltage/current ranges. For applications requiring eight outputs, consider the IC200ALG326. If thermocouple or RTD inputs are needed, evaluate the IC200ALG432K or IC200ALG620JF respectively. Ensure your VersaMax carrier and power supply can accommodate the module's 2.5W power draw.

Advanced Integration & IoT Connectivity

The IC200ALG322 integrates seamlessly with modern SCADA systems, HMI platforms, and cloud-based analytics solutions through the VersaMax communication architecture. Ethernet/IP, Modbus TCP, and Profinet connectivity options enable real-time data exchange with MES and ERP systems. Leverage OPC UA servers for secure industrial IoT integration, enabling predictive maintenance algorithms and remote monitoring dashboards.

For edge computing applications, pair the IC200ALG322 with VersaMax CPUs featuring embedded web servers and data logging capabilities. Export analog output trends to SQL databases or time-series historians for process optimization and regulatory compliance reporting.

Delivery, Warranty & Technical Support

Lead Time: Standard stock items ship within 1-2 business days. Custom configurations or bulk orders may require 5-7 business days. Expedited shipping options available for critical downtime situations.

Warranty Coverage: Every IC200ALG322 module includes a comprehensive 12-month manufacturer's warranty covering defects in materials and workmanship. Extended warranty programs available for mission-critical applications.

Technical Support: Our automation engineers provide pre-sales application consulting, system design review, and post-installation troubleshooting assistance. Access to technical documentation, CAD drawings, and configuration examples included with purchase.

Documentation Package: User manual, wiring diagrams, software configuration guides, and compliance certificates provided in digital format. Hard copies available upon request.

Frequently Asked Questions

Can I configure different output ranges on each channel simultaneously?
Yes, the IC200ALG322 allows independent configuration of each channel. You can operate Channel 1 in 0-10V mode while Channels 2-4 use 4-20mA current outputs, all within the same module.

What is the maximum cable length for current loop outputs?
For 4-20mA operation with 600Ω maximum load, cable runs up to 1000 feet (300m) are achievable using 18 AWG shielded twisted-pair cable. Voltage outputs should be limited to 100 feet to maintain accuracy.

Does this module require external power supplies for field devices?
No, the IC200ALG322 is a passive output module. Field devices requiring loop power (2-wire transmitters) need external 24V DC power supplies. The module provides only the analog signal.

How do I perform field calibration if needed?
The IC200ALG322 ships factory-calibrated with certificates traceable to NIST standards. Field calibration is rarely required but can be performed using software scaling factors in the PLC program rather than hardware adjustments.

Is the module compatible with third-party VersaMax carriers?
The IC200ALG322 is designed for genuine GE VersaMax carriers (IC200CHS series). While physical compatibility may exist with third-party carriers, electrical specifications and safety certifications apply only to GE-approved hardware combinations.

What diagnostic capabilities are available for troubleshooting?
The module provides LED status indicators for power, communication, and per-channel output status. Software diagnostics accessible through the PLC program include open-wire detection, over-range alarms, and module health monitoring.

Request a Quote or Technical Consultation

Our industrial automation specialists are ready to assist with system design, product selection, and application-specific configuration guidance. Whether you're upgrading existing VersaMax systems or designing new control architectures, we provide the expertise and inventory to keep your operations running smoothly.

Contact our team today: Discuss your analog output requirements, receive custom pricing for volume orders, or schedule a technical review of your control system architecture. We stock genuine GE automation components with full traceability and support documentation.
