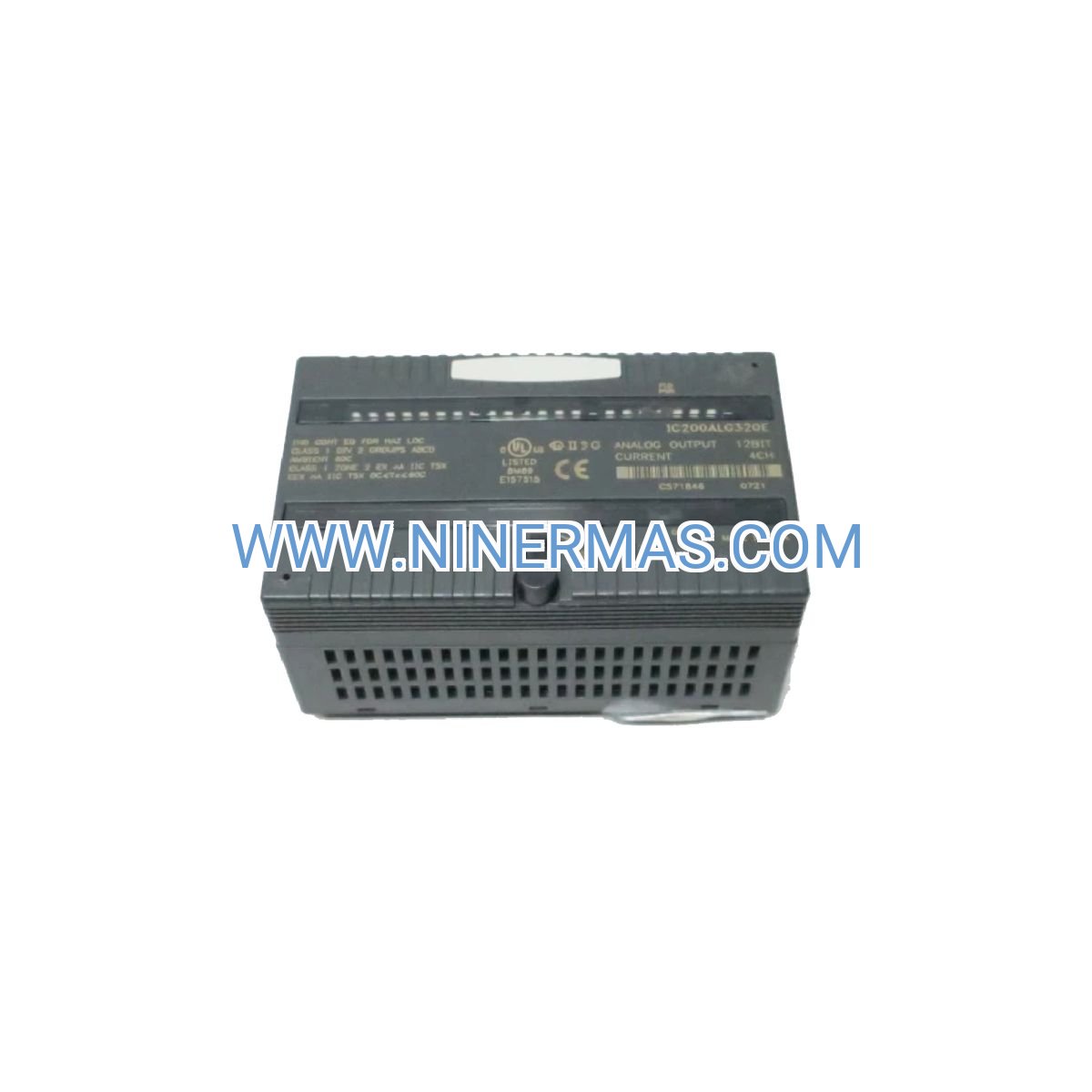

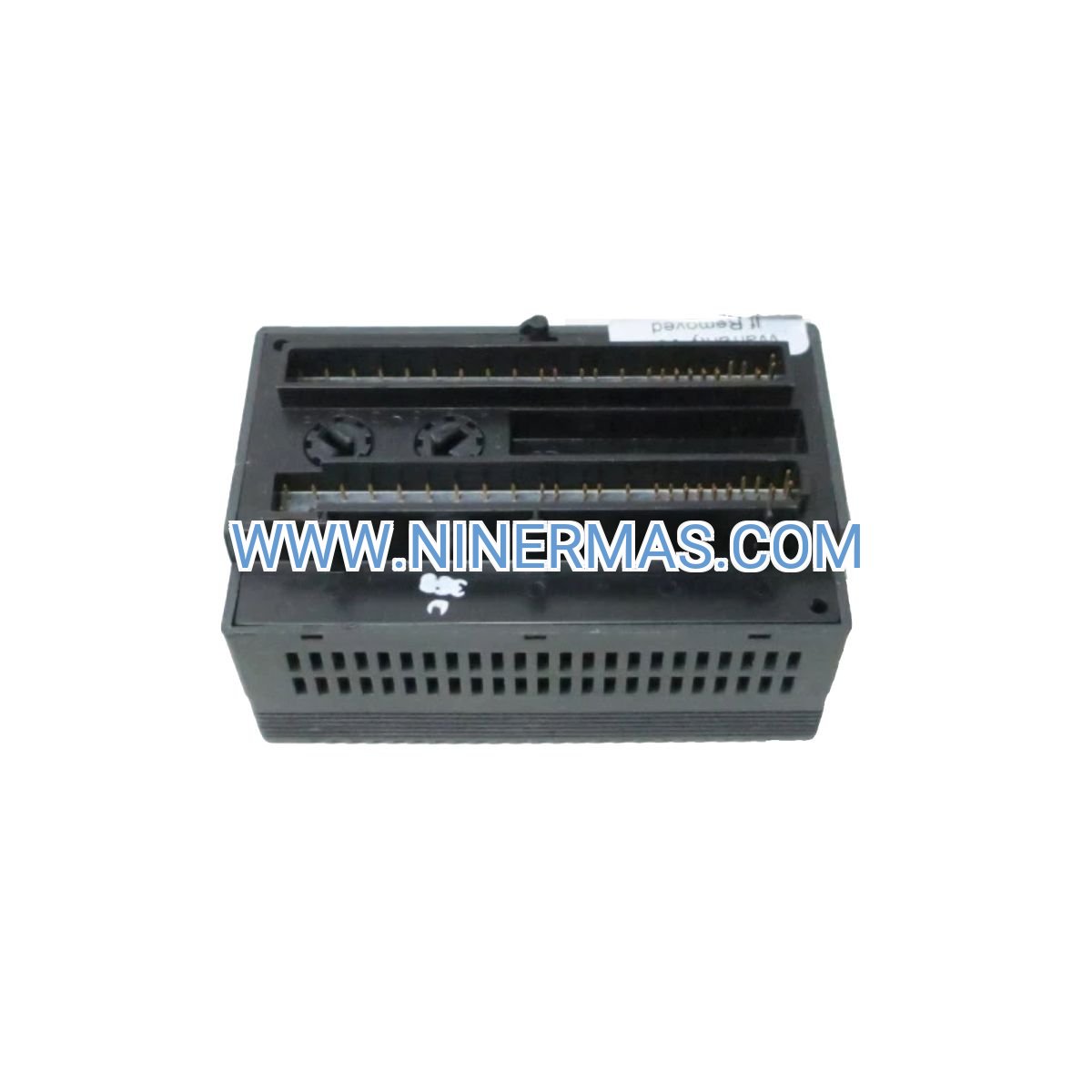

IC200ALG320M Analog Output Module – Industrial-Grade Signal Generation for VersaMax PLC Systems

The GE IC200ALG320M is a precision analog output module designed for seamless integration with VersaMax programmable logic controller (PLC) platforms. Through advanced 12-bit digital-to-analog conversion and channel isolation technology, it delivers stable voltage and current signal generation for industrial process control, motor speed regulation, and valve positioning applications.

Suitable for manufacturing plants, water treatment facilities, HVAC systems, and energy management installations where analog setpoint accuracy and system reliability are critical. This module addresses common challenges including signal drift, ground loop interference, insufficient output resolution, and limited diagnostic visibility in legacy control systems.

Featuring standardized VersaMax backplane connectivity with customizable output range configuration, the IC200ALG320M offers channel isolation, hot-swap capability, LED diagnostics, and multi-range output flexibility (±10 V / 0-10 V / 4-20 mA). Ideal for design engineers, system integrators, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for tailored selection guidance and technical specifications.

Core Functions & Advantages

Precision Multi-Range Analog Signal Generation
Each of the four output channels supports independent configuration for voltage (±10 V, 0-10 V) or current (4-20 mA) modes, enabling flexible control of VFDs, pneumatic positioners, and temperature controllers with ±0.3% full-scale accuracy at 25°C.

Enhanced Signal Integrity Through Channel Isolation
Galvanic isolation between output channels eliminates ground loop-induced noise and crosstalk, ensuring reliable operation in electrically noisy industrial environments with multiple grounding points and high-power equipment.

High-Resolution Control for Demanding Applications
12-bit digital-to-analog conversion provides 4,096 discrete output steps, delivering smooth proportional control for applications requiring fine adjustments such as blend ratio control, pressure regulation, and servo positioning.

Reduced Downtime with Hot-Swap Architecture
Field-replaceable design allows module removal and installation without de-energizing the entire VersaMax rack, minimizing production interruptions during maintenance and reducing mean time to repair (MTTR).

Simplified Troubleshooting via LED Diagnostics
Front-panel status indicators provide real-time visibility of power supply status, channel health, and fault conditions, accelerating fault isolation and reducing diagnostic time by up to 40% compared to non-visual systems.

Space-Efficient Modular Design
Compact 50 mm width footprint optimizes control cabinet utilization, allowing higher I/O density in space-constrained installations while maintaining accessibility for wiring and service.

Typical Application Scenarios

This module is engineered for industrial environments demanding precise analog control, continuous operation reliability, and seamless PLC integration, particularly in:

Process Manufacturing & Chemical Production
Controls temperature setpoints in reactors, regulates flow rates through control valves, and manages pressure in distillation columns. Supports batch recipe execution in pharmaceutical, food processing, and specialty chemical facilities where repeatability and traceability are mandatory.

Water & Wastewater Treatment Systems
Drives variable frequency pumps for flow control, positions actuated valves for chemical dosing, and regulates blower speeds in aeration basins. Ensures compliance with discharge regulations while optimizing energy consumption in municipal and industrial treatment plants.

HVAC & Building Automation
Modulates chiller capacity, controls damper positions in air handling units, and regulates steam valve openings in district heating systems. Maintains comfort conditions while reducing energy costs in commercial buildings, hospitals, and data centers.

Material Handling & Packaging Machinery
Controls conveyor speeds, regulates tension in web processing equipment, and positions servo-driven pick-and-place mechanisms. Enhances throughput and product quality in automotive assembly, logistics distribution, and consumer goods packaging lines.

Energy Generation & Distribution
Regulates turbine governor setpoints, controls excitation systems in generators, and manages load distribution in microgrids. Supports renewable energy integration and grid stability in solar farms, wind installations, and combined heat and power (CHP) facilities.

Technical Parameters & Selection Guide

To facilitate system design and component selection, we provide standardized electrical, environmental, and mechanical specifications. Custom configurations are available for project-specific requirements.

Selection Recommendations:
When specifying the IC200ALG320M, consider the following system parameters: required output signal types (voltage vs. current), load impedance characteristics, maximum cable run distances, ambient temperature range, available backplane power budget, and diagnostic integration requirements. For applications requiring more than four outputs, multiple modules can be installed in adjacent rack positions. Our application engineering team can provide load calculation worksheets, wiring diagrams, and configuration file templates upon request.

Extended Capabilities & System Integration

Software Configuration & Scaling
Programmed via GE Proficy Machine Edition software with support for linear scaling, square root extraction, and custom lookup tables. Supports both raw count output and engineering unit conversion for simplified PLC programming.

Diagnostic & Fault Reporting
Provides channel-level fault detection including open circuit, short circuit, and over-range conditions. Fault status is mapped to PLC memory for integration with SCADA alarm systems and predictive maintenance platforms.

Network Connectivity Options
When paired with VersaMax communication modules, enables remote monitoring and setpoint adjustment via Ethernet/IP, Modbus TCP, or Profinet protocols for Industry 4.0 integration.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days from regional distribution centers. Custom-configured modules or bulk orders (10+ units) typically require 10-15 business days. Expedited shipping available upon request.

Warranty Coverage: All IC200ALG320M modules include a 12-month manufacturer warranty covering defects in materials and workmanship under normal operating conditions. Extended warranty programs available for critical infrastructure applications.

Technical Support: Complimentary pre-sales application engineering consultation, post-installation commissioning assistance, and lifetime technical support via phone and email. Remote diagnostic support available for troubleshooting and performance optimization.

Documentation Package: Each module ships with installation quick-start guide, detailed user manual (PDF), electrical wiring diagrams, dimensional drawings (DXF/PDF), and sample PLC configuration code. Proficy Machine Edition hardware descriptor files (GSD) available for download.

Quality Standards: Manufactured in ISO 9001:2015 certified facilities with 100% functional testing prior to shipment. Traceability documentation and calibration certificates available upon request for regulated industries.

Frequently Asked Questions (FAQ)

Q: How do I configure the IC200ALG320M for mixed voltage and current outputs?
A: Each of the four channels can be independently configured through Proficy Machine Edition software. Select the desired output mode (±10 V, 0-10 V, or 4-20 mA) in the hardware configuration tree. For current output operation, ensure external 24 VDC loop power is connected to the designated terminals. Configuration changes take effect after downloading to the CPU and power cycling the module.

Q: What is the maximum cable length for 4-20 mA current loop outputs?
A: The IC200ALG320M supports current loop cable runs up to 300 meters (1,000 feet) using standard 18 AWG shielded twisted-pair cable. For longer distances or high-noise environments, consider using 16 AWG cable and ensuring proper shield grounding at the module end only to prevent ground loops.

Q: Can this module replace the older IC200ALG320 (non-M suffix) version?
A: Yes, the IC200ALG320M is a direct form-fit-function replacement for the IC200ALG320. The "M" designation indicates enhanced manufacturing processes and extended temperature qualification. Pin assignments, electrical specifications, and software configuration are identical, allowing seamless retrofits without PLC program modifications.

Q: Does the module require calibration after installation?
A: No field calibration is required. Each IC200ALG320M is factory-calibrated and tested to ±0.3% accuracy specifications. Calibration data is stored in non-volatile memory within the module. For applications requiring periodic verification, we recommend annual accuracy checks using certified test equipment per your facility's quality management procedures.

Q: What diagnostic information is available to the PLC program?
A: The module provides a comprehensive diagnostic byte accessible via the PLC's I/O image table. Available status bits include: module OK, channel fault (per channel), configuration error, backplane communication fault, and external power supply status. Fault conditions can trigger PLC alarms or initiate failsafe control sequences.

Q: Is the IC200ALG320M compatible with third-party VersaMax-compatible racks?
A: While the module is designed for genuine GE VersaMax racks, it may function in some third-party VersaMax-compatible systems. However, we recommend using certified GE hardware to ensure full compliance with safety certifications, warranty coverage, and technical support eligibility. Contact our team for compatibility verification if integrating with non-GE infrastructure.

Request Selection Support & Quotation

To receive a customized selection recommendation, technical specification sheet, or project quotation, please provide the following information to our application engineering team:

• Project name and application description (e.g., "Wastewater treatment plant VFD control upgrade")
• Number of analog output points required and signal types (voltage/current)
• Load characteristics (input impedance for voltage outputs, loop resistance for current outputs)
• Environmental conditions (ambient temperature range, enclosure type, hazardous area classification if applicable)
• Existing VersaMax system configuration (CPU model, rack size, available backplane slots)
• Required delivery timeline and installation support needs

Our engineers will respond within one business day with a detailed selection guide, wiring recommendations, and competitive pricing. For urgent inquiries, same-day telephone consultation is available.
