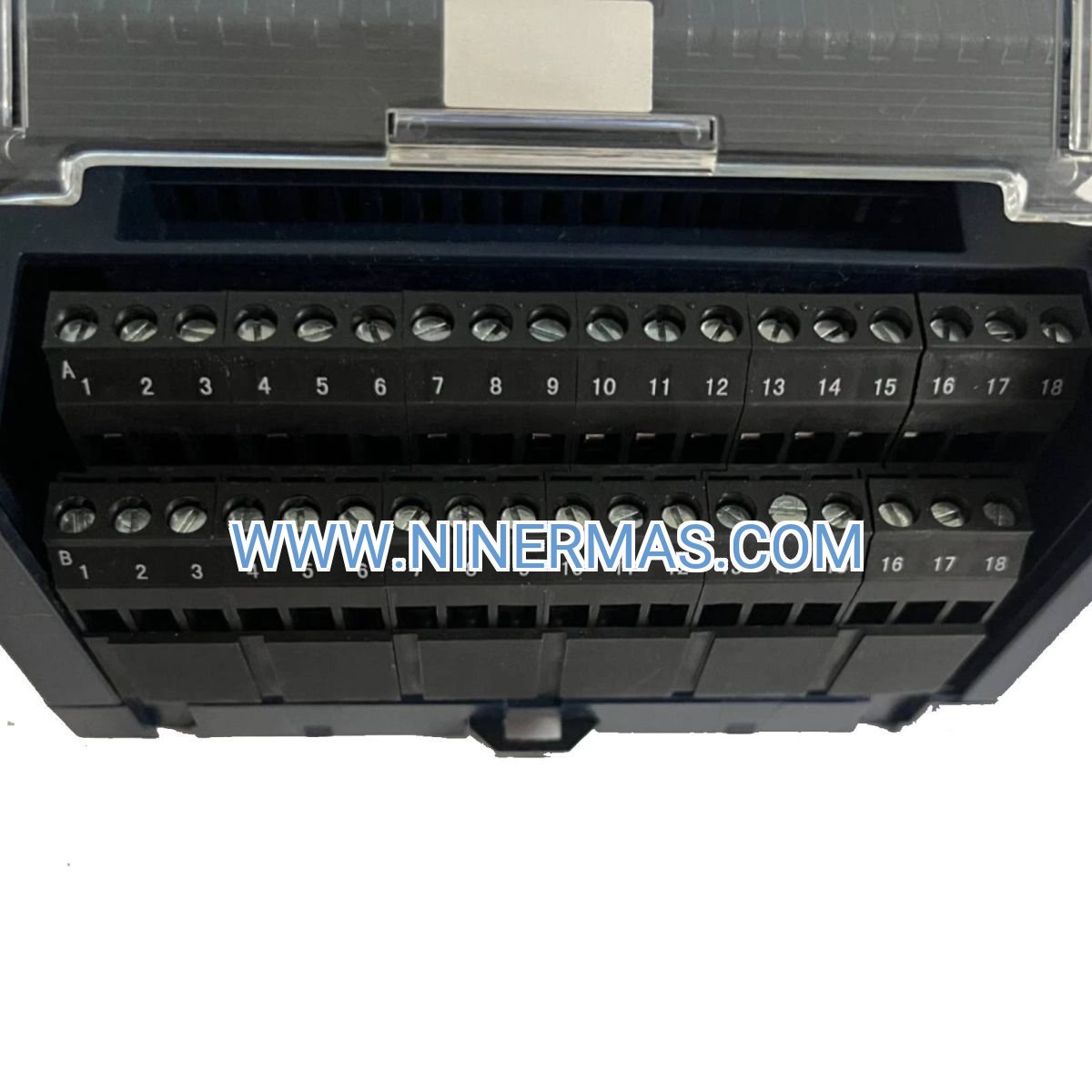

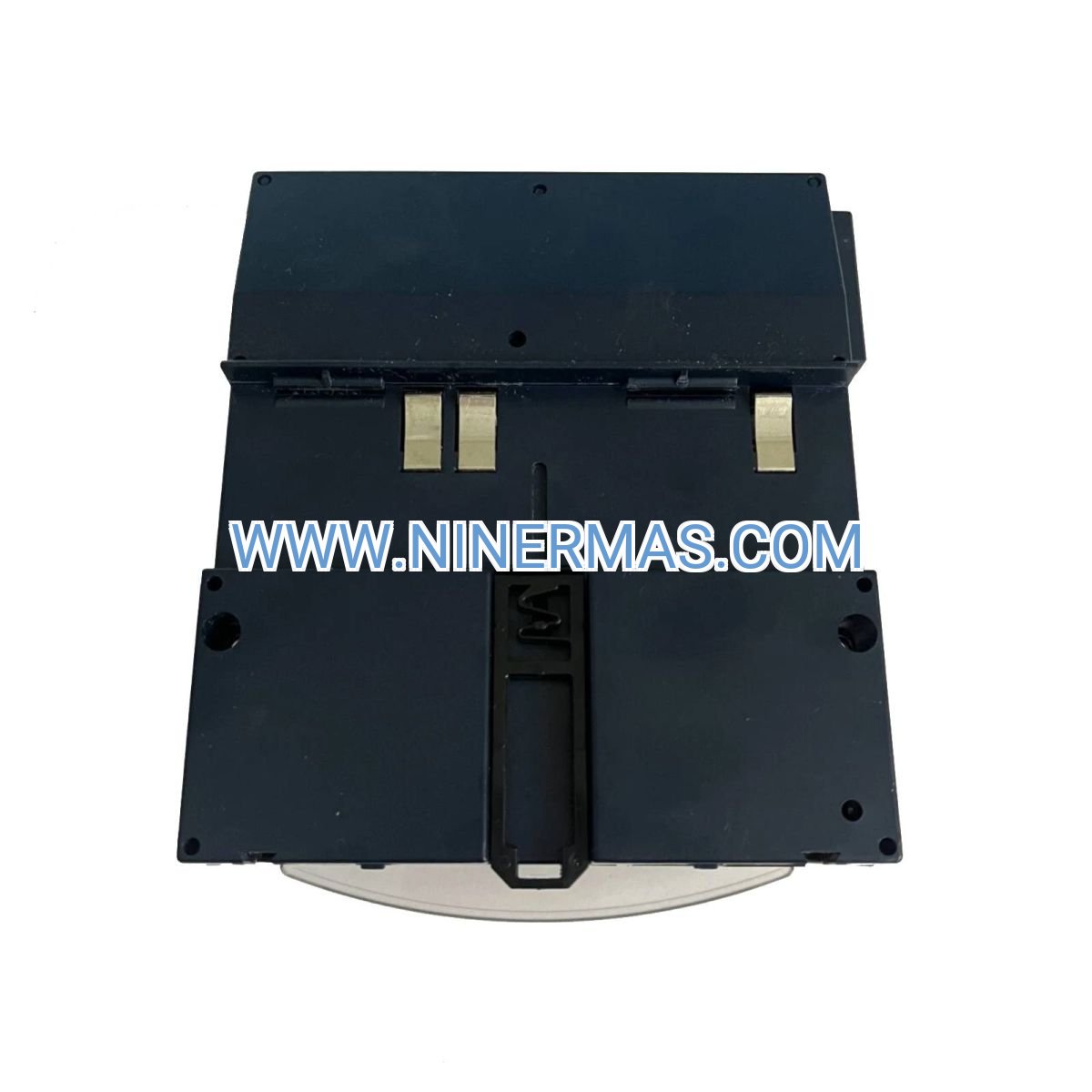

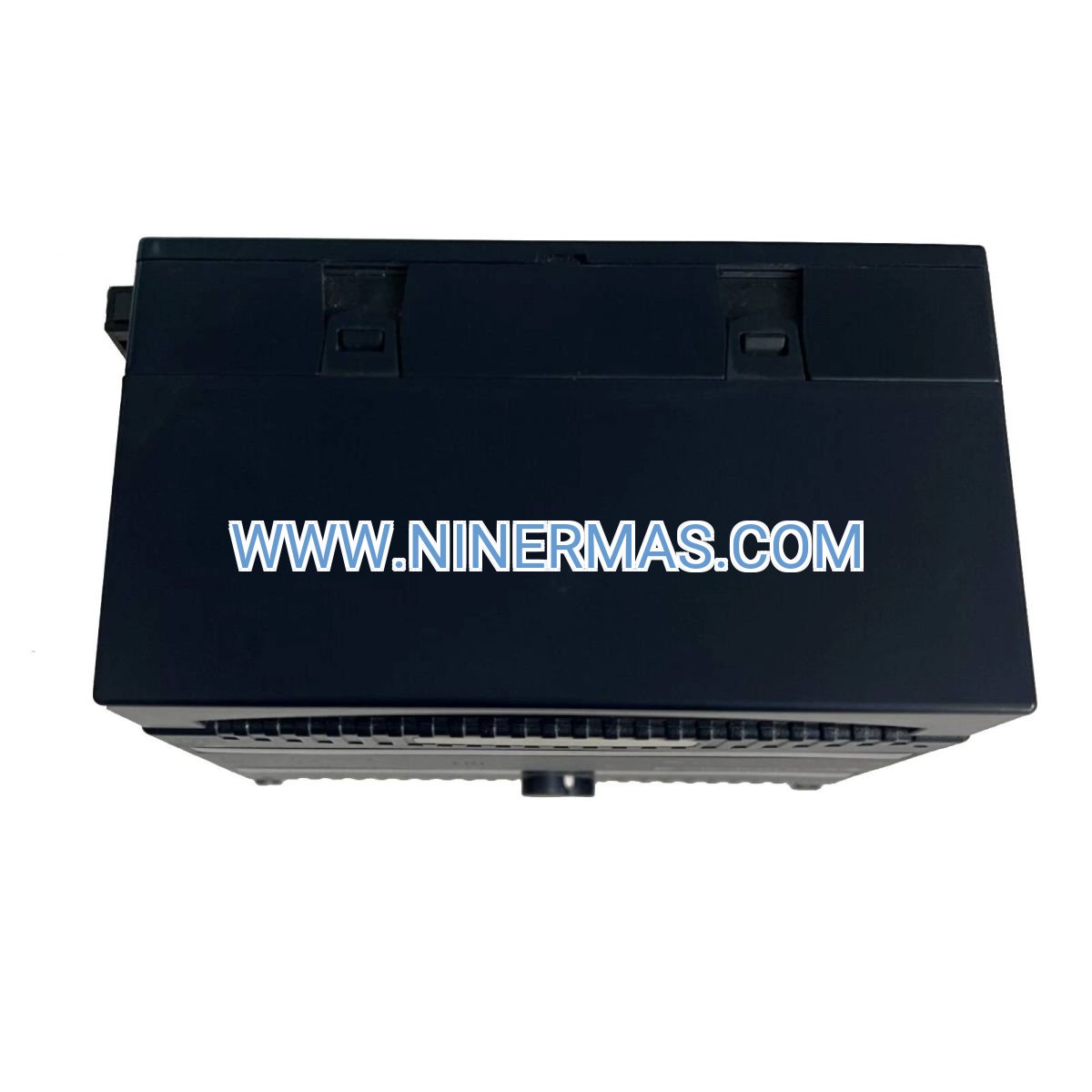

IC200ALG320K 4-Channel Analog Output Module (Industrial-Grade Current Control)

The IC200ALG320K represents a proven solution for industrial current-loop control, delivering four independent 4-20mA output channels with 12-bit precision. Designed for the VersaMax platform, this module serves process automation, manufacturing control, and energy management systems where reliable analog signal generation is non-negotiable.

Built to withstand demanding industrial environments, the IC200ALG320K combines robust electrical isolation, conformal coating protection, and hot-swap capability—ensuring your control systems maintain uptime even during maintenance cycles. Whether you're regulating valve positions, controlling variable frequency drives, or managing setpoint signals, this module provides the accuracy and dependability your operations demand.

Engineered for seamless integration with VersaMax CPUs and I/O carriers, the IC200ALG320K simplifies system expansion while maintaining the high performance standards expected in mission-critical applications. From chemical processing to power generation, this module delivers consistent, repeatable control signals that keep your processes running smoothly.

Core Capabilities & Technical Advantages

✓ 12-Bit Resolution Precision
With 4096 discrete output steps per channel, the IC200ALG320K enables smooth, granular control of analog devices. This resolution translates to superior valve positioning accuracy, reduced process variability, and tighter control loop performance compared to lower-resolution alternatives.

✓ Four Independent Current Outputs
Each channel operates autonomously with dedicated 4-20mA current sourcing, allowing simultaneous control of multiple field devices without crosstalk or interference. Ideal for multi-zone temperature control, parallel flow regulation, or distributed actuator management.

✓ Industrial Isolation & Protection
500V channel-to-backplane isolation shields your control system from ground loops and electrical noise. Combined with short-circuit and open-loop diagnostics, this protection architecture minimizes downtime and simplifies troubleshooting in electrically harsh environments.

✓ Hot-Swappable Architecture
Replace modules during operation without shutting down your entire control system. This field-proven design reduces maintenance windows, improves system availability, and lowers the total cost of ownership for distributed I/O installations.

✓ Fast Update Rates
10ms per channel refresh ensures responsive control action for dynamic processes. Whether tracking rapid setpoint changes or maintaining tight regulation during load disturbances, the IC200ALG320K keeps pace with your process demands.

✓ Built-In Diagnostics
LED status indicators and software-accessible fault detection identify wiring issues, load failures, and out-of-range conditions instantly. Reduce troubleshooting time and improve first-time fix rates with comprehensive diagnostic feedback.

Industrial Application Solutions

→ Chemical & Petrochemical Processing
Deploy the IC200ALG320K to control proportional valves in reactor feed systems, regulate pressure in distillation columns, and manage flow rates in blending operations. The module's accuracy and reliability support compliance with process safety management requirements while maintaining product quality specifications.

→ Water & Wastewater Treatment
Manage chemical dosing pumps, control aeration blowers, and regulate filtration system pressures with precise 4-20mA signals. The module's isolation and diagnostic features prove invaluable in electrically noisy pump stations and outdoor control panels.

→ Manufacturing & Assembly Automation
Control pneumatic proportional valves for force regulation, drive VFDs for conveyor speed control, and manage servo positioning systems. Integrate with digital I/O modules to build complete machine control solutions on a single VersaMax platform.

→ Energy & Power Generation
Regulate turbine inlet guide vanes, control boiler feedwater valves, and manage cooling system dampers with the precision required for efficient power plant operation. The module's wide operating temperature range suits both control room and field-mounted applications.

→ HVAC & Building Automation
Modulate chilled water valves, control variable air volume dampers, and regulate fan speeds in commercial and industrial facilities. The IC200ALG320K's compact footprint and carrier-based mounting simplify installation in space-constrained electrical rooms.

Technical Specifications & Performance Data

Selection Guidelines

Choose the IC200ALG320K when your application requires:

• Standard 4-20mA current loop outputs (most common industrial signal)
• Four or fewer analog control points per module location
• Integration with existing VersaMax PACSystems infrastructure
• Moderate-speed control loops (10ms update rate sufficient)
• Cost-effective expansion of analog output capacity

For voltage output requirements (0-10V), consider the IC200ALG326 module. For higher channel density, evaluate multi-module configurations on extended I/O carriers. For safety-rated applications, consult VersaMax safety I/O offerings.

Advanced Integration & System Expansion

The IC200ALG320K mounts directly on VersaMax I/O carriers, communicating with the CPU via high-speed backplane protocols. No external wiring is required between the module and controller, simplifying installation and reducing potential failure points.

Compatible I/O Carriers:

• IC200CHS001 - Standard 10-slot carrier with DIN rail mounting
• IC200CHS022 - Compact 5-slot carrier with spring-clamp terminals
• IC200CHS003 - Extended 15-slot carrier for high-density applications

System Architecture Options:

• Local I/O: Mount directly on CPU carrier for compact machine control
• Distributed I/O: Use expansion cables (IC200CBL001/005/010) to position I/O near field devices
• Networked I/O: Combine with Ethernet or DeviceNet interface modules for remote I/O racks

Pair with complementary VersaMax modules to build complete control solutions: analog input modules for closed-loop control, digital I/O for discrete signals, and specialty modules for RTD/thermocouple temperature measurement.

Delivery Timeline & Quality Assurance

Standard Delivery: 5-7 business days for in-stock units via express courier
Custom Configuration: 10-15 business days for pre-tested system assemblies
Warranty Coverage: 12-month comprehensive warranty against defects
Technical Support: Lifetime access to application engineering assistance
Documentation Package: Installation manual, wiring diagrams, configuration examples

Every IC200ALG320K module undergoes functional verification testing before shipment, including output accuracy checks, isolation testing, and diagnostic function validation. We maintain strict ESD handling protocols and climate-controlled storage to ensure product integrity.

Frequently Asked Questions

What is the maximum load resistance for each 4-20mA output channel?
The IC200ALG320K supports up to 600 ohms load resistance per channel at 24VDC supply voltage. This accommodates most industrial field devices and allows cable runs up to 1000 meters with appropriate wire gauge.

Can I use this module with third-party PLCs or control systems?
No, the IC200ALG320K is designed exclusively for GE VersaMax PACSystems and requires a compatible VersaMax CPU and carrier. The module uses proprietary backplane communication protocols not compatible with other platforms.

Does the module require external power supply for the current loops?
Yes, field devices require external 24VDC loop power. The module sources current but does not provide loop power supply. Use isolated power supplies rated for industrial environments and size according to total loop current requirements.

How do I configure output scaling and engineering units?
Configuration is performed through GE Proficy Machine Edition software. The module appears automatically in the I/O configuration tree when installed. Set scaling parameters, alarm limits, and diagnostic options through the software interface—no DIP switches or jumpers required.

What diagnostic information is available for troubleshooting?
The module provides LED status indicators for power, communication, and channel faults. Software diagnostics report open-circuit conditions, short-circuit faults, and out-of-range errors for each channel individually. Diagnostic data is accessible through controller logic and HMI interfaces.

Is the module suitable for hazardous area installations?
The standard IC200ALG320K is rated for general industrial use (Class I Division 2 when properly installed). For Class I Division 1 or ATEX Zone 1 applications, consult GE's intrinsically safe I/O offerings or use approved barriers/isolators.

Get Started with Precision Analog Control

Ready to upgrade your process control capabilities? The IC200ALG320K delivers the reliability, accuracy, and integration simplicity your industrial applications demand. Our automation specialists are available to assist with module selection, system design, and technical configuration.

Contact our team today: Discuss your specific application requirements, request technical documentation, or place your order for fast worldwide delivery.
