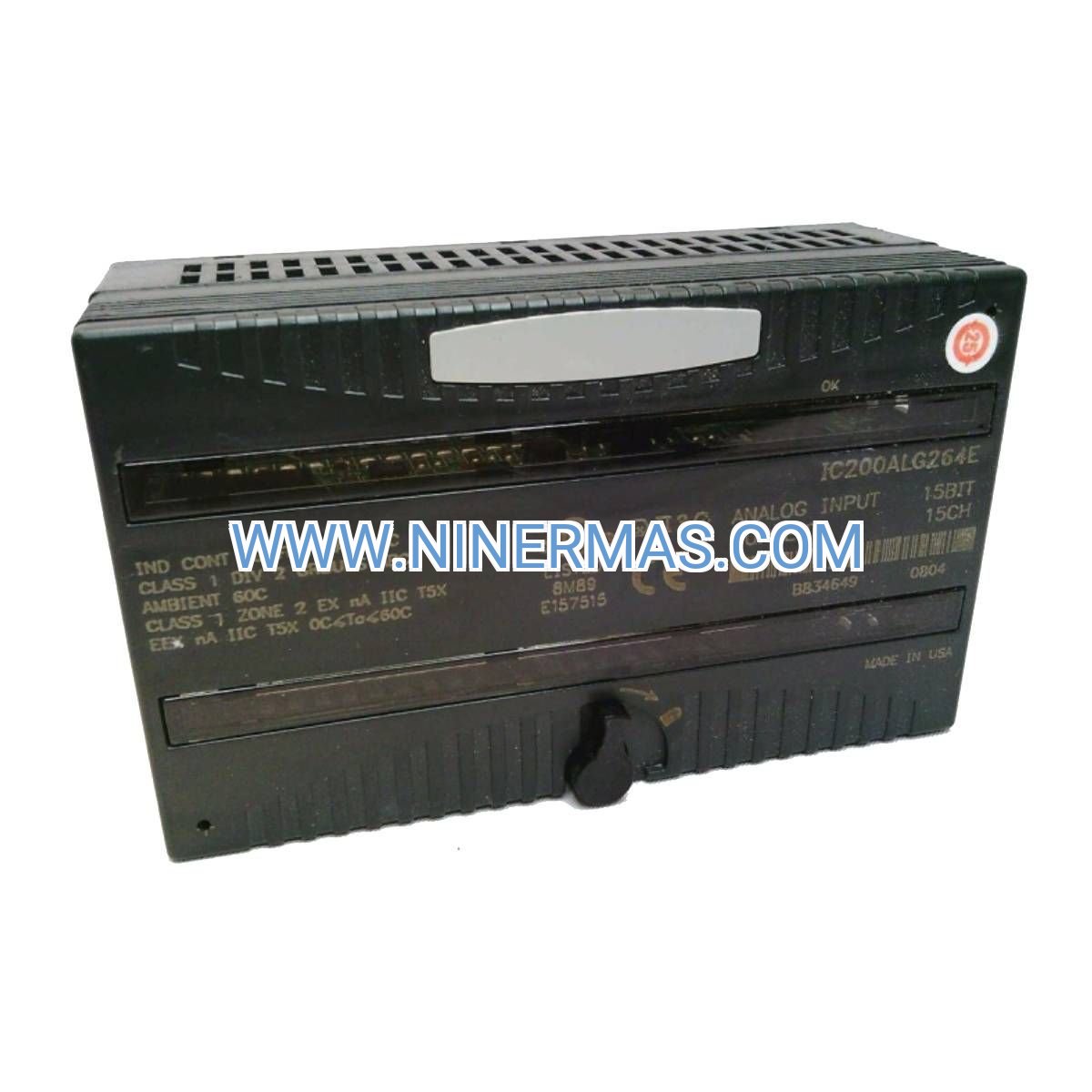

IC200ALG264 VersaMax Analog Current Input Module (Industrial-Grade Multi-Channel Solution)

The IC200ALG264 is a high-density analog input module engineered for demanding industrial environments where precise current signal acquisition is critical. Designed by General Electric (now Emerson Automation) as part of the VersaMax distributed I/O platform, this module delivers 15 single-ended channels capable of processing 4-20mA or 0-20mA current loops with 15-bit resolution and 7.5ms update cycles.

Built for process control engineers, system integrators, and automation professionals managing sensor-intensive applications, the IC200ALG264 solves the challenge of consolidating multiple current transmitters—pressure sensors, flow meters, temperature probes, and level indicators—into a single, compact I/O point. Its jumper-selectable input ranges and 250VAC isolation ensure flexible deployment across diverse industrial protocols.

Key advantages include space-efficient design (15 channels in 110mm width), rapid signal conversion for real-time monitoring, and seamless integration with GE PACSystems controllers. Whether you're retrofitting legacy systems or designing new automation architectures, this module provides the reliability and performance industrial operations demand.

Core Features & Benefits

→ High-Density Channel Architecture
15 single-ended inputs in one module reduce rack space requirements by up to 60% compared to 8-channel alternatives, lowering hardware costs and simplifying wiring in cabinet-constrained installations.

→ Dual-Range Current Input Flexibility
Jumper-selectable 4-20mA or 0-20mA ranges accommodate both standard process transmitters and legacy 0-20mA devices without external signal conditioning, eliminating the need for additional interface hardware.

→ 15-Bit Resolution for Precision Measurement
Captures analog signals with 0.003% granularity, enabling accurate monitoring of critical process variables where small deviations impact product quality or safety compliance.

✓ Fast 7.5ms Update Rate
Delivers near-real-time data acquisition for closed-loop control applications, supporting rapid response to process changes in batch operations, continuous manufacturing, and safety-critical systems.

✓ 250VAC Continuous Isolation
Protects control systems from ground loops and electrical noise in harsh industrial environments, ensuring signal integrity across long cable runs and mixed-voltage installations.

✓ Low Power Consumption (100mA @ 5VDC)
Minimizes backplane load, allowing higher I/O density per power supply and reducing energy costs in large-scale distributed control systems.

Typical Application Scenarios

Chemical Processing & Refining
Monitor reactor temperatures, flow rates, and pressure levels across multi-stage processes. The IC200ALG264's high channel count consolidates transmitter signals from distillation columns, heat exchangers, and storage tanks, while 15-bit resolution ensures compliance with batch recipe tolerances.

Water & Wastewater Treatment
Track pH levels, turbidity, dissolved oxygen, and flow rates in treatment plants. Jumper-selectable ranges accommodate both modern 4-20mA smart transmitters and legacy 0-20mA sensors during phased system upgrades, reducing migration costs.

Oil & Gas Production Facilities
Aggregate wellhead pressure, separator levels, and pipeline flow data in remote SCADA systems. The module's 250VAC isolation protects against electrical transients common in outdoor installations with long cable runs.

Food & Beverage Manufacturing
Capture temperature, pressure, and flow signals from pasteurizers, fermentation tanks, and CIP systems. Fast 7.5ms updates support tight process control required for consistent product quality and FDA compliance.

Building Automation & HVAC
Interface with chilled water flow meters, steam pressure transmitters, and air handling unit sensors. High-density design reduces panel space in mechanical rooms while maintaining granular control over energy-intensive systems.

Technical Parameters & Selection Guide

Selection Criteria:

• Choose IC200ALG264 when consolidating 9-15 current transmitters in a single rack slot
• Verify transmitter output matches 4-20mA or 0-20mA range (jumper configuration required)
• Confirm controller supports VersaMax I/O (compatible with GE PACSystems RX3i, RX7i)
• For voltage inputs (0-10V, ±10V), consider IC200ALG260 or IC200ALG262 alternatives
• Ensure ambient temperature stays within 0-60°C operational range

Extended Functions

Diagnostic Capabilities: Built-in channel diagnostics detect open-circuit, short-circuit, and out-of-range conditions, triggering controller alarms for proactive maintenance.

Hot-Swap Support: Module replacement without powering down the entire rack minimizes downtime during maintenance or upgrades in 24/7 operations.

Proficy Integration: Seamless data exchange with GE Proficy HMI/SCADA and Historian platforms enables advanced analytics, trending, and predictive maintenance workflows.

Redundancy Options: Deploy in redundant VersaMax configurations for high-availability applications where process interruptions carry significant financial or safety risks.

Delivery & Service

Lead Time: Standard stock items ship within 3-5 business days. Custom configurations or bulk orders may require 2-3 weeks—contact our team for expedited options.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty plans available upon request.

Technical Support: Access to certified automation engineers for configuration assistance, troubleshooting, and integration guidance via email, phone, or remote session.

Documentation Included: User manual, wiring diagrams, jumper configuration guide, and sample ladder logic for common applications provided with every order.

Frequently Asked Questions

Q: How do I configure the IC200ALG264 for 0-20mA versus 4-20mA input ranges?
A: Each channel has a dedicated jumper block on the module's circuit board. Position jumpers according to the configuration chart in the user manual (typically JP1-JP15). Changes take effect after power cycle. For mixed-range applications, individual channels can be set independently.

Q: What is the maximum cable length between transmitters and the IC200ALG264?
A: Current loop signals support up to 1,000 meters (3,280 feet) with proper shielded cable (Belden 9841 or equivalent). Longer distances may require loop-powered isolators to maintain signal integrity and avoid voltage drop issues.

Q: Can this module interface with HART-enabled smart transmitters?
A: The IC200ALG264 reads the 4-20mA analog signal from HART devices but does not decode digital HART communication. For full HART protocol support, consider adding a HART multiplexer or upgrading to Emerson's newer I/O platforms with native HART capability.

Q: Does the 15-bit resolution improve energy efficiency in HVAC applications?
A: Yes—higher resolution enables tighter control deadbands (±0.5°F vs. ±2°F with 12-bit modules), reducing compressor cycling and fan speed fluctuations. Customers report 8-15% energy savings in chiller plants after upgrading from lower-resolution I/O.

Q: Is the IC200ALG264 compatible with third-party PLCs via Modbus or Ethernet/IP?
A: The module requires a GE VersaMax carrier or PACSystems controller as the backplane host. For non-GE PLC integration, use a VersaMax-to-Modbus gateway (e.g., IC200BEM003) or Ethernet/IP scanner module to bridge protocols.

Q: What installation requirements ensure reliable operation in high-EMI environments?
A: Use shielded twisted-pair cable with 360° shield termination at the module end only (avoid ground loops). Mount the VersaMax rack away from VFDs, welders, and high-current switchgear. Maintain 150mm minimum clearance from AC power cables per NEC guidelines.

Ready to Optimize Your Analog Input Architecture?

The IC200ALG264 combines high channel density, precision measurement, and proven VersaMax reliability to streamline your current signal acquisition. Whether you're expanding an existing GE control system or consolidating legacy I/O, our team provides expert guidance from selection through commissioning.

Contact our automation specialists today: Request a detailed datasheet, discuss custom configurations, or place your order for same-week delivery. We support system integrators and end users worldwide with technical expertise and competitive pricing.
