GE IC200ALG263F VersaMax Analog Input Module | 15-Channel High-Precision I/O

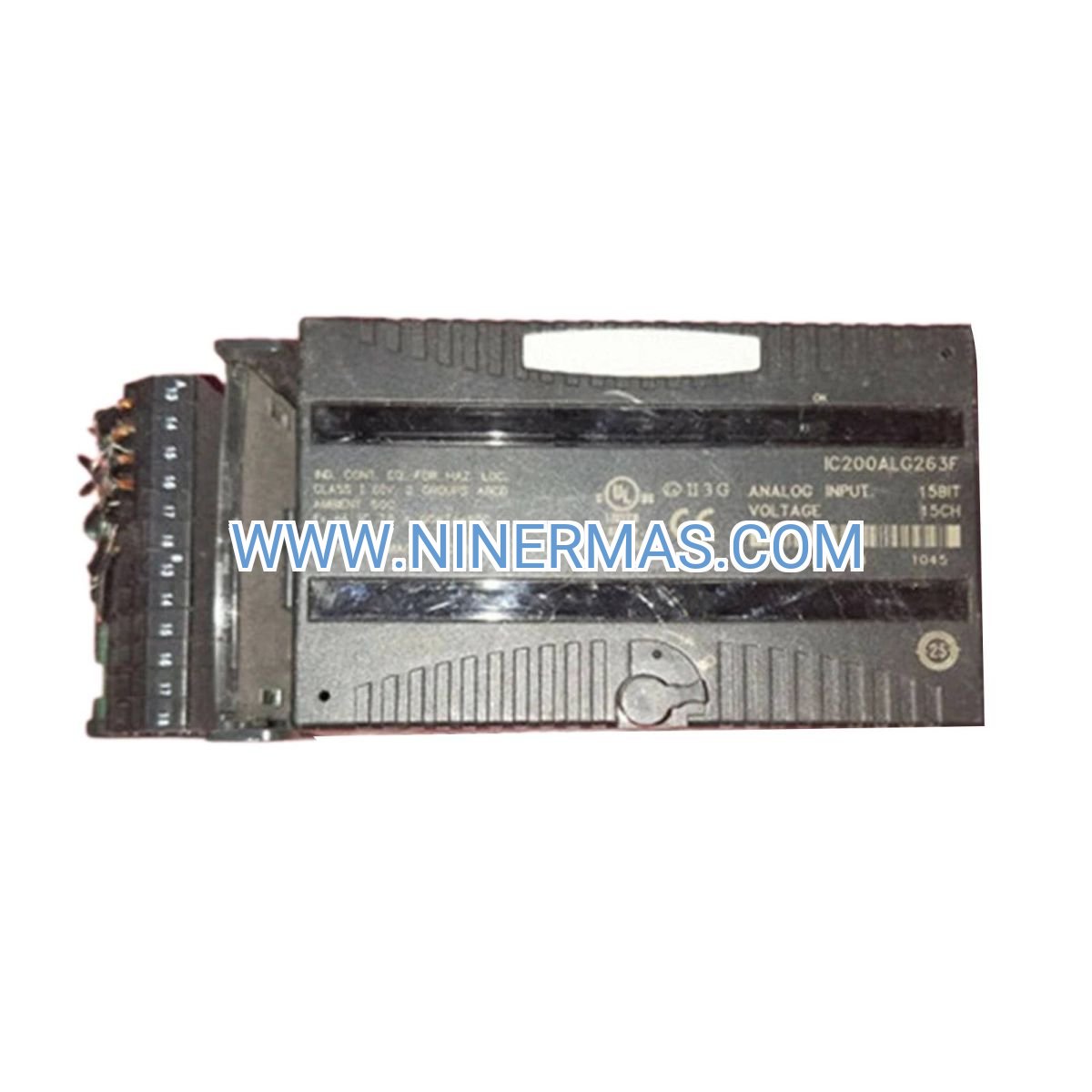

GE IC200ALG263F VersaMax Analog Input Module (Industrial-Grade 15-Channel I/O Solution)

The GE IC200ALG263F VersaMax Analog Input Module is a high-performance industrial I/O component designed for precision signal acquisition in PLC-based automation systems. Through 15 non-isolated analog input channels with 16-bit resolution, it enables accurate monitoring of voltage and current signals from field instruments, transmitters, and sensors—delivering reliable data for process control, SCADA integration, and real-time monitoring applications.

Ideal for manufacturing plants, chemical processing facilities, water treatment systems, energy management installations, and building automation projects, this module addresses critical challenges including signal drift, noise interference, multi-point data collection complexity, and system scalability limitations in distributed control environments.

Leveraging standardized VersaMax architecture with flexible configuration options, the IC200ALG263F offers rapid commissioning, seamless integration with GE PACSystems controllers, robust EMI/RFI immunity, and field-proven reliability. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams seeking dependable analog I/O expansion. Contact our application engineers for configuration assistance, wiring diagrams, and project-specific recommendations.

Core Features & Technical Advantages

• 15-Channel High-Density Input
  Supports simultaneous acquisition of 15 analog signals (voltage or current) with 16-bit resolution, reducing module count and cabinet footprint while maintaining measurement accuracy for multi-point monitoring applications.
• Flexible Signal Range Configuration
  Accepts standard industrial signals including 0-10V, ±10V, 0-20mA, 4-20mA inputs with software-selectable ranges per channel, accommodating diverse sensor types and eliminating the need for external signal conditioning in most installations.
• Non-Isolated Architecture for Cost Efficiency
  Optimized for applications where common ground reference is acceptable, delivering excellent price-performance ratio for large-scale I/O deployments in controlled electrical environments with proper grounding practices.
• Proven VersaMax Platform Compatibility
  Hot-swappable design with keyed connectors ensures quick replacement without system shutdown; fully compatible with VersaMax carriers, expansion racks, and GE PACSystems RX3i/RX7i controllers for scalable architecture.
• Comprehensive Diagnostic Capabilities
  Built-in channel health monitoring, open-wire detection, and over-range indication provide real-time status feedback through controller diagnostics, reducing troubleshooting time and minimizing unplanned downtime.
• Industrial-Grade Environmental Resilience
  Operating temperature range -40°C to +70°C, conformal coating protection, and compliance with CE/UL/cUL standards ensure reliable performance in harsh industrial environments including high-humidity, vibration-prone, and temperature-cycling conditions.

Typical Application Scenarios

This module excels in environments demanding stable, multi-channel analog signal acquisition with proven industrial reliability:

• Process Manufacturing & Chemical Plants
  Monitor temperature, pressure, flow, and level transmitters across reactor vessels, distillation columns, and batch processing lines; integrate with DCS/SCADA for closed-loop control and regulatory compliance data logging.
• Water & Wastewater Treatment Facilities
  Acquire pH, turbidity, dissolved oxygen, and flow rate signals from treatment stages; support municipal and industrial water quality monitoring with reliable 4-20mA loop-powered sensor integration.
• Energy Management & Building Automation
  Collect data from power meters, HVAC sensors, and environmental monitoring devices; enable energy consumption analysis, demand response strategies, and facility optimization in commercial and institutional buildings.
• Machine Building & OEM Equipment
  Integrate analog feedback from hydraulic pressure transducers, servo drives, and process sensors in packaging machinery, material handling systems, and automated production equipment requiring precise control.
• Oil & Gas Upstream/Midstream Operations
  Monitor wellhead pressure, pipeline flow, and tank level instrumentation in remote installations; support SCADA telemetry and alarm management for distributed asset monitoring.

Technical Specifications & Selection Guide

To facilitate system design and procurement, key specifications are provided below. Custom configurations and application-specific guidance available upon request.

Selection Considerations: When specifying this module, evaluate total analog input point count, required signal types (voltage vs. current), acceptable common-mode voltage, environmental conditions (temperature/humidity extremes), and whether channel-to-channel isolation is necessary. For applications requiring galvanic isolation between channels or from backplane, consider isolated analog input alternatives. Provide system architecture details, I/O list, and electrical drawings for engineering review and optimal module selection.

Extended Capabilities & Integration Options

• Software Configuration Tools: Programmable via GE Proficy Machine Edition or PACSystems programming software; supports online/offline configuration, channel scaling, alarm setpoints, and diagnostic parameter adjustment.
• Communication Protocols: Data accessible through Ethernet/IP, Modbus TCP, Profinet (depending on controller platform); enables seamless integration with third-party HMI, historians, and MES systems.
• Redundancy Support: Compatible with redundant controller configurations for high-availability applications; automatic failover ensures continuous process monitoring during controller switchover events.
• Calibration & Maintenance: Factory-calibrated with traceable certificates; field recalibration procedures documented in technical manual; recommended annual verification for critical measurement loops.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items typically ship within 3-5 business days from stock; custom-configured or large-quantity orders may require 2-3 weeks—contact sales for expedited options.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship; extended warranty and advance replacement programs available for critical applications.

Technical Support: Pre-sales application engineering assistance, post-sales commissioning guidance, and remote troubleshooting support included; on-site startup services available in select regions (quoted separately).

Documentation Package: Each module ships with installation quick-start guide, wiring diagram, and datasheet; complete user manual, CAD drawings (DWG/PDF), and sample PLC code available for download from technical library.

Quality Standards: Manufactured under ISO 9001-certified processes; 100% factory-tested for electrical performance, environmental stress screening, and functional verification prior to shipment.

Frequently Asked Questions (FAQ)

Q: How do I connect the GE IC200ALG263F analog input module to my existing VersaMax system?
A: The module installs directly onto any VersaMax carrier or expansion rack via the keyed backplane connector. Ensure controller firmware supports the module (consult compatibility matrix), configure I/O addressing in programming software, wire field signals to the removable terminal block following polarity markings, and verify channel configuration matches sensor output types (voltage/current). Hot-swap capability allows installation without powering down the rack in most configurations.

Q: What is the maximum number of IC200ALG263F modules I can use in a single system?
A: Module count is limited by the VersaMax carrier/expansion capacity (typically up to 10 modules per carrier) and controller I/O point licensing. A single RX3i controller can support hundreds of analog input points across multiple racks using expansion cables. Consult system planning guide for specific controller model limitations and backplane power budget calculations.

Q: Can this module accept both 4-20mA and 0-10V signals simultaneously?
A: Yes, each of the 15 channels is independently configurable for voltage or current input via software. You can mix signal types within the same module—for example, channels 1-8 configured for 4-20mA transmitters and channels 9-15 for 0-10V sensors. Configuration is performed in the controller programming environment without hardware jumpers.

Q: What are the installation environment requirements and protection class?
A: The module is rated IP20 and designed for installation inside a properly rated control enclosure (NEMA 12/IP54 or better recommended). Operating temperature range is -40°C to +70°C with 5-95% non-condensing humidity. Ensure adequate ventilation, avoid direct exposure to corrosive gases or conductive dust, and follow NEC/IEC wiring practices for industrial control panels. Conformal coating provides additional protection against moisture and contaminants.

Q: Does the IC200ALG263F support remote monitoring and data logging?
A: The module itself provides raw analog data to the PLC controller; remote access and data logging are implemented through the controller's communication capabilities. GE PACSystems controllers support Ethernet/IP, Modbus TCP, OPC UA, and other protocols for SCADA integration, cloud connectivity (via edge gateways), and historian systems. Sample code and communication setup guides are available in the technical documentation library.

Q: What diagnostic features help troubleshoot signal quality issues?
A: Built-in diagnostics include per-channel open-circuit detection, over-range/under-range indication, and module health status bits accessible in the controller program. LED indicators on the module faceplate show power status and fault conditions. Advanced troubleshooting can leverage controller-based trending, min/max value capture, and alarm logging to identify intermittent wiring issues, sensor drift, or electrical noise problems.

Request Technical Consultation & Quotation

For detailed application engineering support, custom configuration recommendations, or project quotations, please provide the following information to our technical sales team:

• Project name and application overview (industry, process type)
• Total analog input point count and signal types (voltage/current ranges)
• Controller platform and firmware version (if existing system expansion)
• Environmental conditions (temperature extremes, hazardous area classification if applicable)
• Required delivery timeline and quantity
• Any special requirements (extended temperature, conformal coating, custom testing)

Our application engineers will respond within 1 business day with tailored recommendations, wiring examples, and competitive pricing. We support global projects with multi-region logistics and local technical resources.
