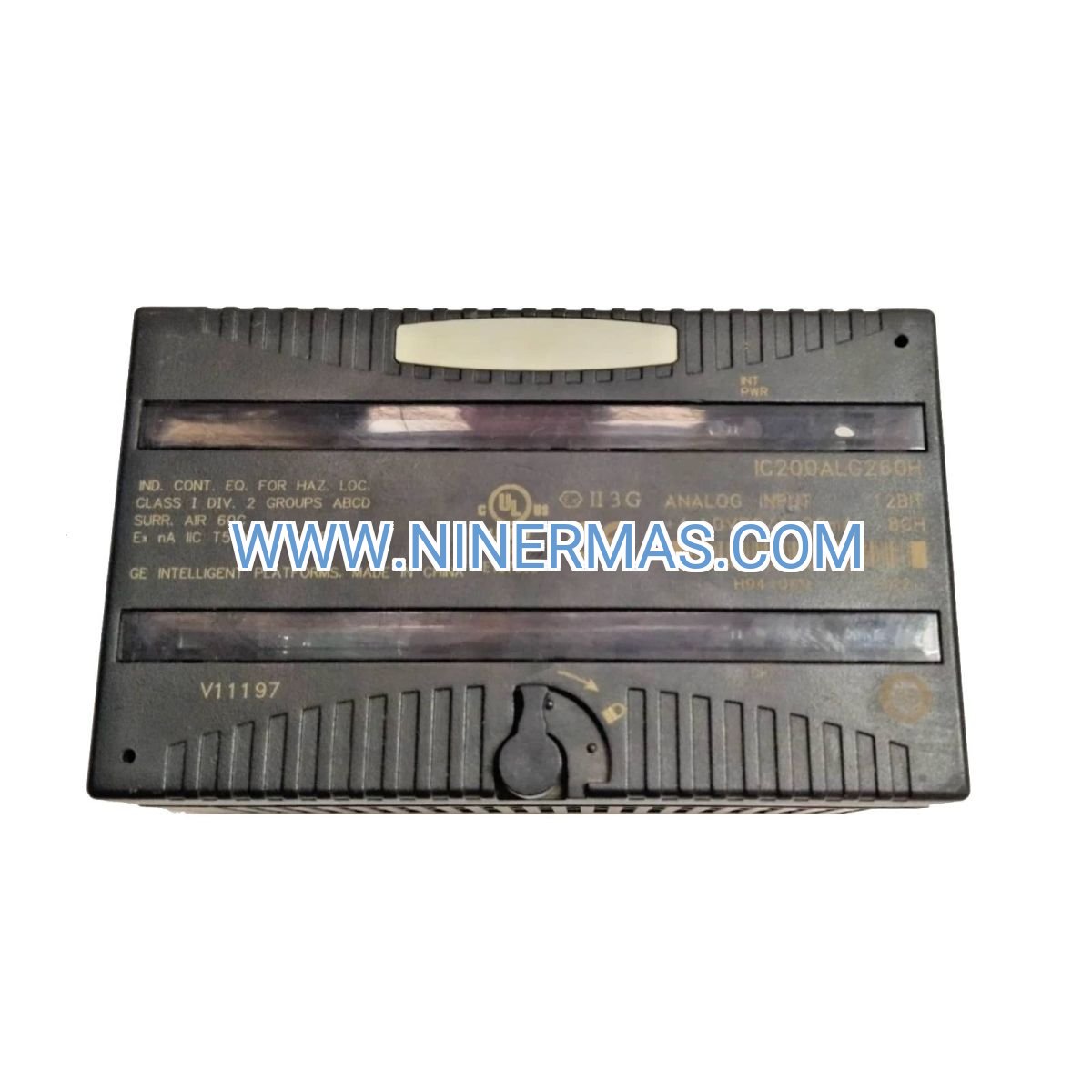

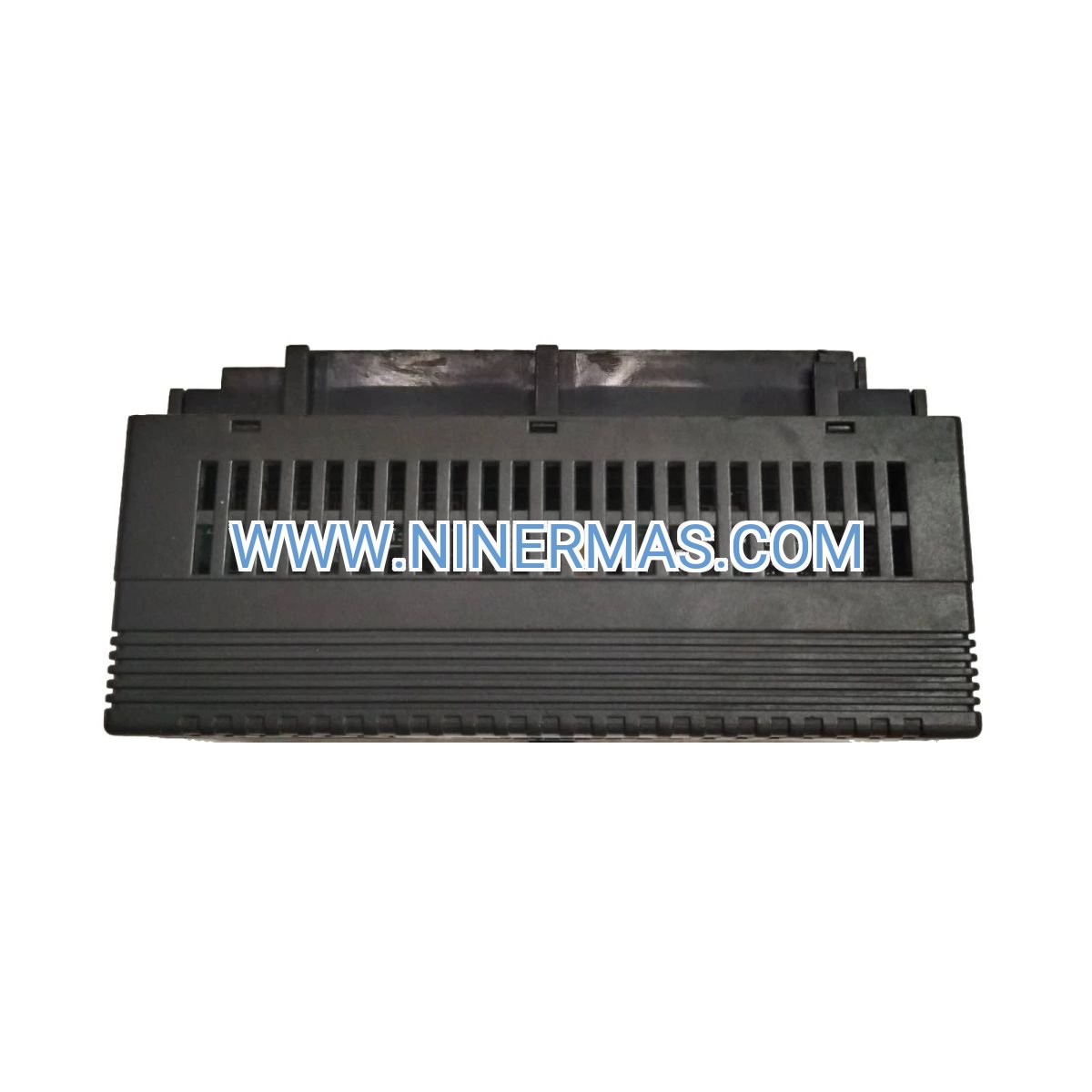

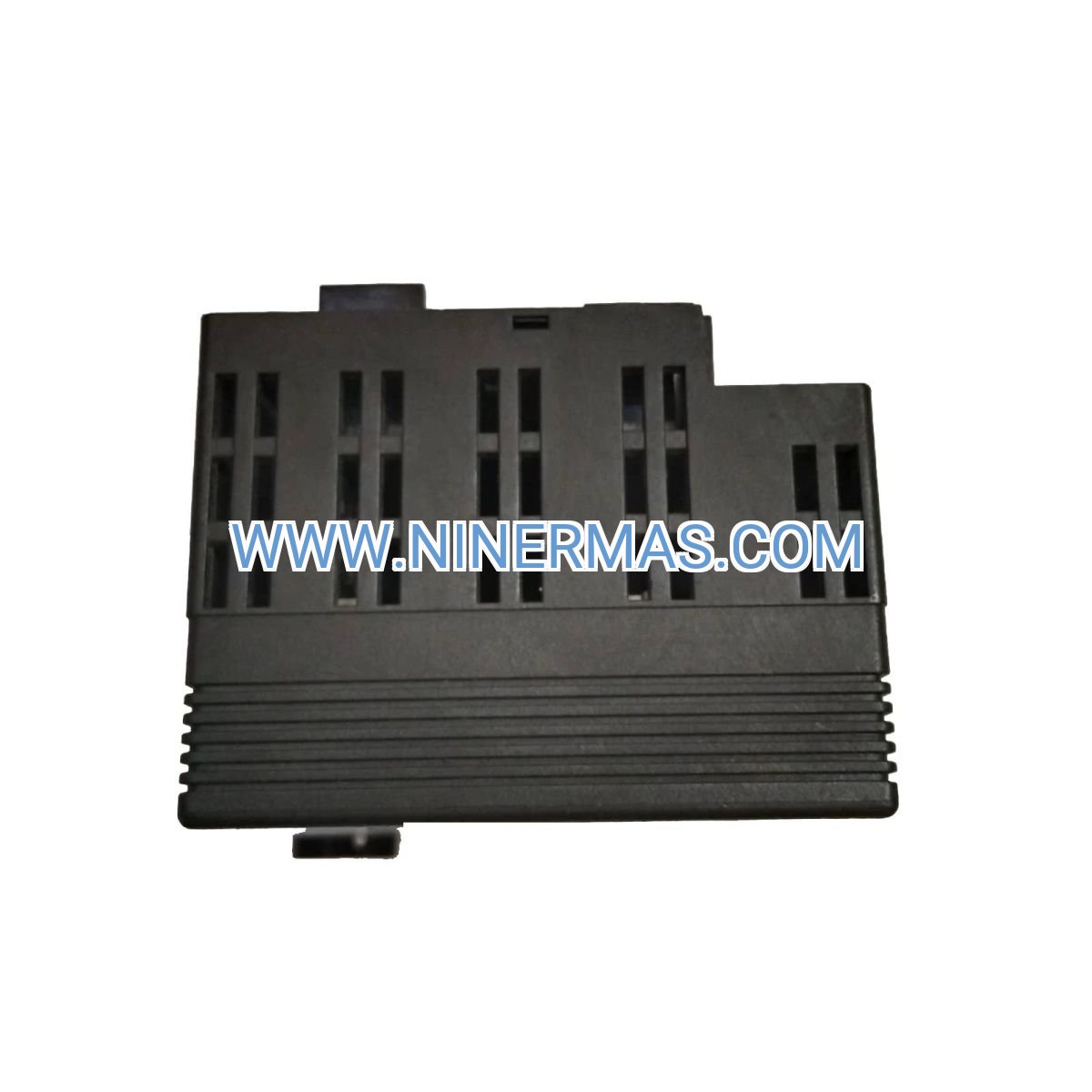

GE IC200ALG260H Analog Input Module | 8-Channel 12-Bit Voltage/Current VersaMax I/O

GE IC200ALG260H Analog Input Module (Industrial-Grade 8-Channel I/O System)

The GE IC200ALG260H VersaMax Analog Input Module is an industrial-grade I/O device designed for precision voltage and current signal acquisition in automated control systems. Through 12-bit A/D conversion and multi-channel parallel processing, it enables real-time monitoring of analog signals from field sensors, transmitters, and instruments, delivering accurate data to PLC/DCS controllers for process optimization and equipment protection.

Suitable for process control, manufacturing automation, energy management, and SCADA systems, this module addresses challenges such as signal drift, noise interference, wiring complexity, and diagnostic delays. It is widely adopted by system integrators, control panel builders, OEM manufacturers, and plant maintenance teams.

With standardized design and flexible configuration options, the IC200ALG260H offers high reliability, easy integration, simplified maintenance, and broad compatibility. Contact our application engineers for selection guidance, wiring diagrams, and technical quotations.

Core Features & Advantages

High-Precision Signal Conversion
12-bit resolution ensures accurate acquisition of voltage (0-10V, ±10V) and current (0-20mA, 4-20mA) signals, minimizing measurement errors and supporting critical process control applications.

8-Channel Parallel Input
Supports simultaneous monitoring of up to 8 independent analog signals, reducing module count, simplifying wiring, and lowering system costs—ideal for multi-point temperature, pressure, and flow monitoring.

Robust Noise Immunity
Features input filtering, isolation protection, and EMI/RFI shielding to maintain signal integrity in harsh industrial environments with high electromagnetic interference.

Comprehensive Diagnostics
Built-in self-diagnostics detect open circuits, short circuits, out-of-range signals, and module faults, enabling rapid troubleshooting and reducing downtime.

Hot-Swappable Design
Allows module replacement without powering down the system, minimizing production interruptions and enhancing operational continuity.

Seamless VersaMax Integration
Fully compatible with GE VersaMax PAC systems and supports standard backplane communication protocols, ensuring plug-and-play installation with minimal configuration effort.

Typical Application Scenarios

This module is designed for applications requiring stable analog signal acquisition and continuous data monitoring, including:

Process Control & Chemical Manufacturing
Monitors reactor temperature, tank level, pipeline pressure, and flow rates to ensure process stability, prevent overruns, and optimize batch control in chemical, pharmaceutical, and food processing industries.

Energy & Utilities Management
Acquires signals from power meters, flow sensors, and environmental monitors in substations, water treatment plants, and HVAC systems to support energy efficiency and regulatory compliance.

Manufacturing Automation & Assembly Lines
Integrates with robotic systems, conveyor controls, and quality inspection equipment to capture real-time production data, enabling predictive maintenance and throughput optimization.

Building Automation & HVAC Systems
Collects temperature, humidity, and pressure data from distributed sensors to maintain indoor climate control, reduce energy consumption, and extend equipment lifespan.

Technical Specifications & Selection Guide

To facilitate design and procurement, we provide key specifications below. Custom configurations are available based on project requirements.

Key Parameters:

• Input Channels: 8 single-ended analog inputs
• Resolution: 12-bit (1 in 4096)
• Input Types: Voltage (0-10V, ±10V) / Current (0-20mA, 4-20mA), software-selectable per channel
• Accuracy: ±0.1% of full scale (typical)
• Update Rate: Configurable, typically 10-100ms per channel
• Isolation: 500V channel-to-backplane isolation
• Operating Temperature: 0°C to +60°C
• Power Consumption: Supplied via VersaMax backplane (5V DC, <2W typical)
• Mounting: DIN rail or panel mount via VersaMax carrier
• Compliance: CE, UL, cUL, RoHS

Selection Recommendations:
When selecting this module, consider: number of analog signals, signal type (voltage/current), required accuracy, environmental conditions (temperature, humidity, vibration), and available backplane slots. For assistance, provide your application details—our engineers will recommend the optimal configuration and compatible accessories.

Extended Functionality

Software Integration: Compatible with GE Proficy Machine Edition, ControlST, and third-party SCADA platforms (e.g., Wonderware, Ignition) via Modbus TCP/IP, EtherNet/IP, or serial protocols.

Redundancy Support: Can be deployed in redundant controller architectures for mission-critical applications requiring high availability.

Calibration & Scaling: Software-based calibration and engineering unit scaling simplify commissioning and reduce field adjustment time.

Delivery, Service & Quality Assurance

Lead Time: Standard stock items ship within 3-5 business days; custom-configured modules require 10-15 business days.
Warranty: 12-month manufacturer warranty covering defects in materials and workmanship.
Technical Support: Remote configuration assistance, on-site commissioning (region-dependent), and lifetime technical consultation.
Documentation: Complete package includes user manual, wiring diagrams, configuration software, and sample ladder logic code for quick integration.

Frequently Asked Questions (FAQ)

Q: How do I connect the IC200ALG260H to my existing VersaMax system?
A: The module installs directly onto a VersaMax backplane. Ensure your controller firmware supports the IC200ALG260H, configure I/O mapping in your programming software, and wire field signals to the terminal block according to the provided wiring diagram.

Q: Can this module handle both voltage and current inputs simultaneously?
A: Yes, each of the 8 channels can be independently configured for voltage or current input via software, allowing mixed signal types on a single module.

Q: What is the typical accuracy and how can I improve it?
A: Typical accuracy is ±0.1% of full scale. To maximize accuracy, use shielded cables, ensure proper grounding, perform software calibration, and maintain stable ambient temperature.

Q: Is the module suitable for hazardous area installations?
A: The IC200ALG260H is designed for general industrial environments. For hazardous locations (Class I Div 2, ATEX, IECEx), consult our engineers for intrinsically safe barrier solutions or certified I/O modules.

Q: Does it support remote monitoring and data logging?
A: Yes, when integrated with a VersaMax controller and networked via Ethernet or serial communication, data can be accessed by SCADA systems, HMIs, and cloud-based IoT platforms for real-time monitoring and historical trending.

Q: What accessories are required for installation?
A: You will need a VersaMax backplane or carrier, terminal block (IC200TBM001 or equivalent), appropriate power supply, and field wiring. Consult the installation manual for complete bill of materials.

Request a Quote or Technical Consultation

To receive a detailed selection proposal, pricing, or technical support, please provide the following information: project name, application scenario, number of analog signals, signal types (voltage/current ranges), controller model, environmental conditions, and any special requirements. Our application engineers will respond with a tailored solution and competitive quotation.
