GE VersaMax IC200ALG260E Analog Input Module | 8-Channel 12-Bit Industrial I/O

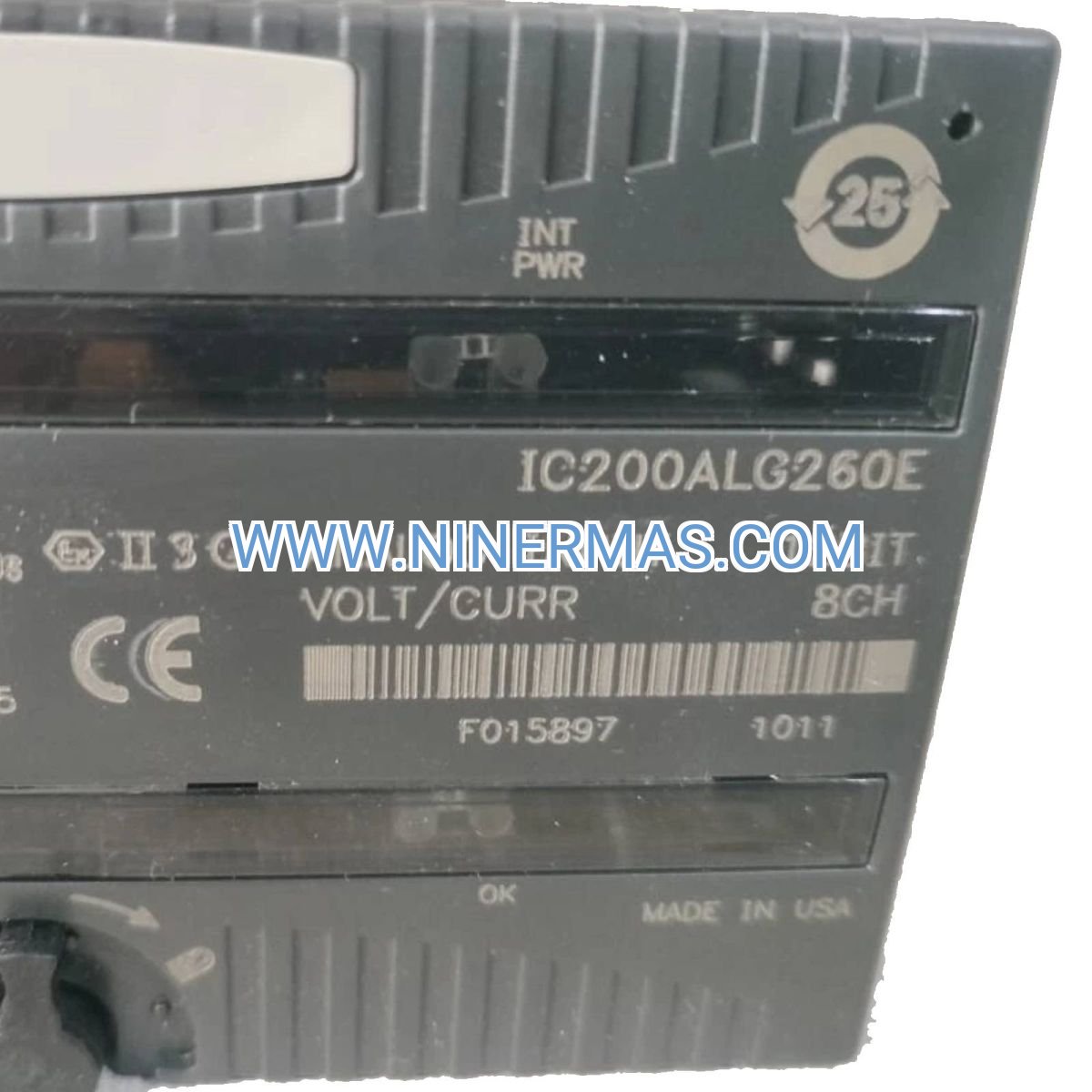

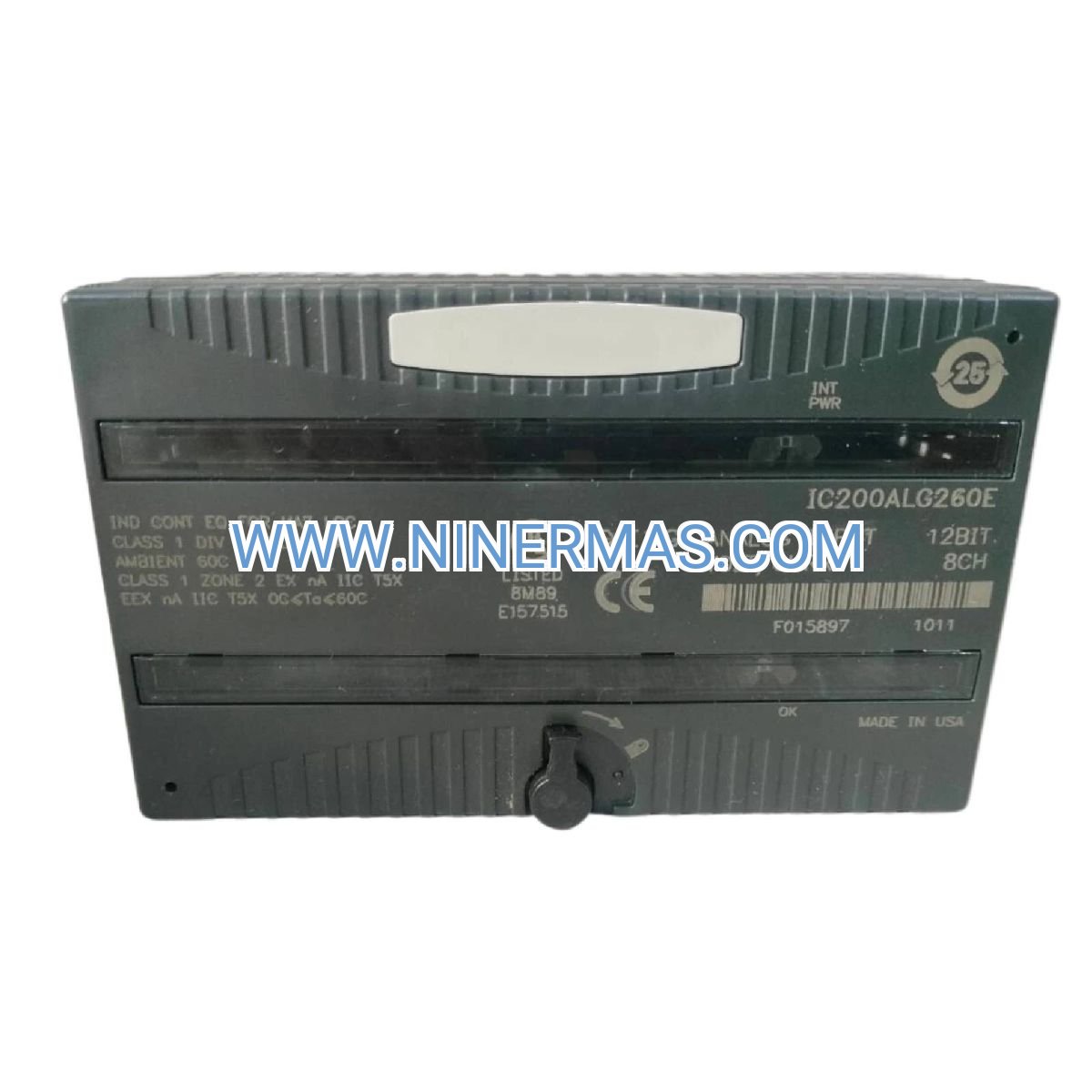

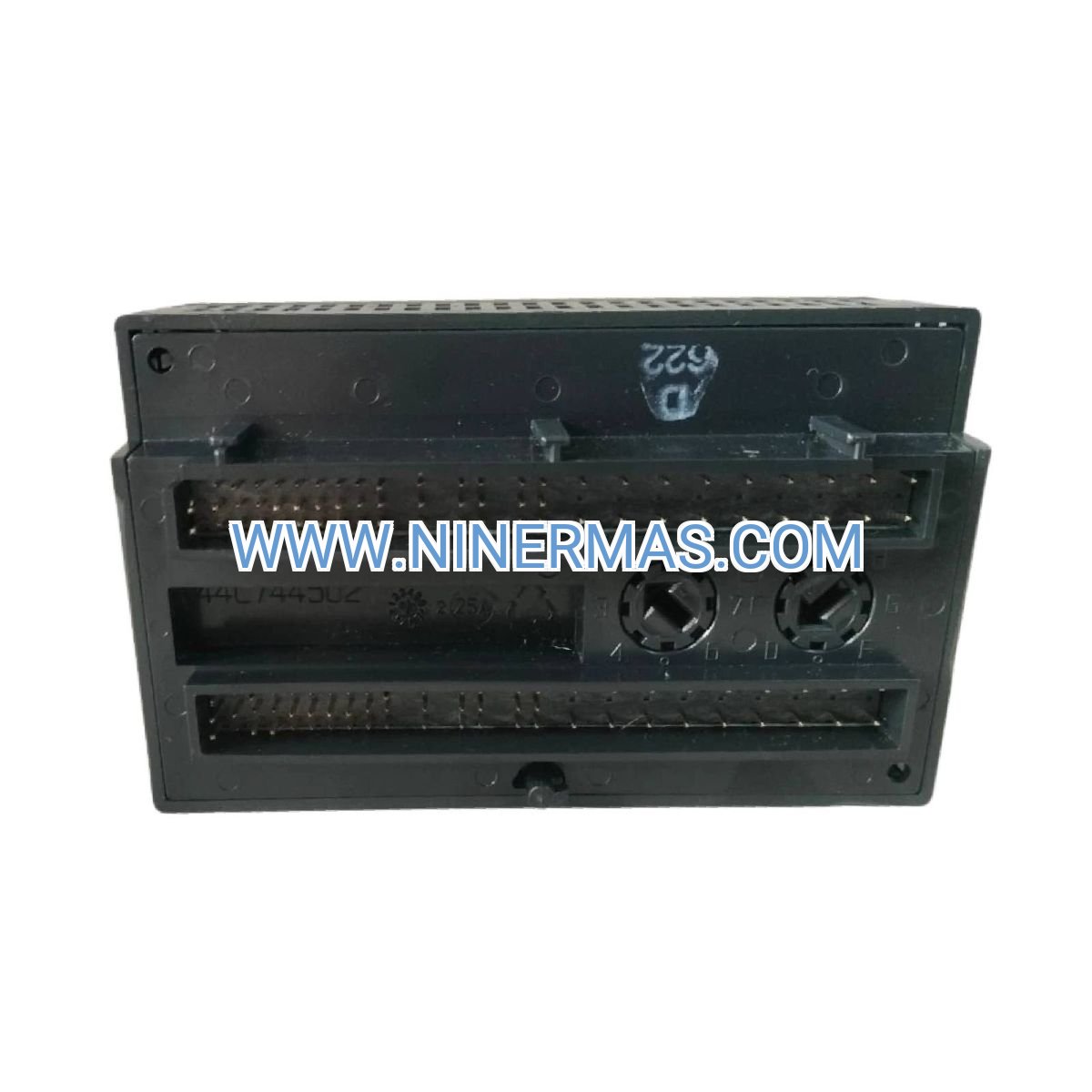

GE VersaMax IC200ALG260E Analog Input Module (Industrial-Grade 8-Channel I/O System)

The GE IC200ALG260E VersaMax Analog Input Module is a high-precision industrial I/O device designed for process monitoring and data acquisition applications. Through its 8-channel 12-bit analog-to-digital conversion technology and configurable input ranges (0-10V DC or 4-20mA), it delivers accurate real-time signal acquisition for critical control systems. Each channel features 500V optical isolation to ensure system reliability in harsh industrial environments.

Engineered for applications requiring stable signal processing and continuous operation, this module addresses common challenges in industrial automation: signal interference, measurement drift, configuration complexity, and inadequate fault diagnostics. It is widely adopted by control system integrators, automation engineers, OEM equipment manufacturers, and plant maintenance teams across process industries.

With standardized VersaMax platform compatibility and field-proven reliability, the IC200ALG260E offers flexible configuration options, robust EMI/RFI immunity, hot-swappable capability, and comprehensive diagnostic features. Suitable for new installations and retrofit projects alike. Contact our application engineers for system integration guidance and technical specifications.

Core Features & Advantages

High-Resolution Signal Acquisition
12-bit ADC resolution provides 0.024% accuracy across the full scale, enabling precise monitoring of process variables such as temperature, pressure, flow, and level signals with minimal quantization error.

Dual Input Range Flexibility
Each channel independently configurable for 0-10V DC voltage or 4-20mA current loop inputs, accommodating diverse sensor types without external signal conditioning—reducing installation costs and wiring complexity.

Industrial-Grade Isolation Protection
500V channel-to-backplane optical isolation prevents ground loop interference and protects sensitive control logic from field-side electrical transients, ensuring system uptime in electrically noisy environments.

Simplified Diagnostics & Maintenance
Built-in channel status LEDs and software-accessible fault registers enable rapid troubleshooting of open-circuit, short-circuit, and out-of-range conditions, minimizing mean time to repair (MTTR).

Seamless VersaMax Integration
Hot-swappable design with keyed connectors and automatic module recognition allows for quick replacement without system shutdown, supporting high-availability applications and reducing planned maintenance windows.

Proven Environmental Ruggedness
Operating temperature range of 0-60°C, conformal coating option for humidity/chemical resistance, and compliance with CE/UL/CSA standards ensure reliable performance in demanding industrial settings.

Typical Application Scenarios

This module is engineered for environments demanding high signal integrity, continuous monitoring, and integration with distributed control architectures, including:

Process Control & Chemical Manufacturing
Monitors reactor temperatures, tank levels, and flow rates in batch and continuous processes. Supports regulatory compliance (21 CFR Part 11) through accurate data logging and integration with SCADA/DCS platforms for pharmaceutical, petrochemical, and food & beverage industries.

HVAC & Building Automation Systems
Acquires signals from pressure transducers, temperature sensors, and humidity transmitters in commercial HVAC installations. Enables energy-efficient control strategies by providing real-time feedback to variable-frequency drives (VFDs) and damper actuators in air handling units and chiller plants.

Machine Monitoring & Predictive Maintenance
Interfaces with vibration sensors, bearing temperature RTDs, and oil pressure transmitters on rotating equipment (pumps, compressors, conveyors). Facilitates condition-based maintenance programs by trending analog signals and triggering alarms before catastrophic failures occur.

Water & Wastewater Treatment
Collects data from pH probes, dissolved oxygen sensors, turbidity meters, and flow transmitters in municipal and industrial treatment facilities. Supports automated dosing control and regulatory reporting for environmental compliance.

Energy Management & Utility Monitoring
Measures current transducer outputs, power meter analog signals, and battery voltage levels in substations, renewable energy systems, and backup power installations. Enables load profiling, demand response, and power quality analysis.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide key specifications for the IC200ALG260E. Custom configurations and extended-temperature variants are available upon request.

Selection Recommendations:
When specifying the IC200ALG260E, consider the following system parameters: total number of analog points required, sensor output types (voltage vs. current), required scan rate for control loop stability, environmental conditions (temperature extremes, vibration, EMI sources), available rack space in the VersaMax chassis, and integration with existing GE PACSystems controllers (RX3i, RX7i) or third-party PLCs via Ethernet/IP or Modbus TCP.

For applications requiring higher channel density, consider the IC200ALG430 (16-channel variant). For thermocouple or RTD inputs, refer to the IC200ALG240 series. Our application engineers can assist with I/O point mapping, wiring diagrams, and configuration file templates—please provide process instrument lists and P&ID references for detailed recommendations.

Advanced Configuration & Integration

Software Configuration Tools
The module is configured using GE Proficy Machine Edition or PAC Machine Edition software. Configuration includes channel enable/disable, input type selection (voltage/current), scaling parameters (engineering units conversion), alarm setpoints, and filter time constants. Configuration files can be stored in controller memory and automatically downloaded to replacement modules during hot-swap operations.

Communication Protocol Support
Data from the IC200ALG260E is accessible via standard industrial protocols including Ethernet/IP (implicit and explicit messaging), Modbus TCP/IP, and SRTP (GE proprietary). This enables integration with third-party HMI/SCADA systems (Wonderware, Ignition, FactoryTalk) and cloud-based analytics platforms for IIoT applications.

Redundancy & High-Availability Options
For mission-critical applications, the module supports hot-standby controller configurations and redundant I/O architectures. When paired with GE RX3i redundant CPUs, seamless failover ensures continuous process monitoring without data loss or control interruption.

Delivery, Service & Quality Assurance

Lead Time & Inventory: Standard IC200ALG260E modules are typically available from stock with same-day dispatch for orders placed before 3 PM CST. Custom-configured or extended-temperature variants require 10-15 business days for factory programming and testing.

Warranty Coverage: All modules include a comprehensive 12-month warranty covering manufacturing defects and component failures under normal operating conditions. Extended warranty and advance-replacement service plans are available for critical applications.

Technical Support & Commissioning: We provide remote configuration assistance, startup support, and on-site commissioning services (subject to location and project scope). Each module ships with detailed documentation including installation manual, wiring diagrams, configuration examples, and troubleshooting flowcharts in PDF format.

Quality Certifications: Manufactured under ISO 9001:2015 quality management systems. All units undergo 100% functional testing, burn-in cycles, and calibration verification before shipment. Test reports and certificates of conformity available upon request.

Frequently Asked Questions (FAQ)

Q: How do I connect 4-20mA sensors to the IC200ALG260E analog input module?
A: For 4-20mA current loop inputs, configure the channel for current mode via software, then wire the sensor's positive output to the channel's input terminal and the negative to the common terminal. The module's internal 250Ω precision resistor converts current to voltage for ADC measurement. Ensure loop power supply voltage is sufficient (typically 12-24V DC) and verify polarity to avoid reverse-connection damage.

Q: What is the maximum cable length for analog signals to the VersaMax input module?
A: For 4-20mA current loops, cable runs up to 1000 meters (3280 feet) are feasible with minimal signal degradation due to current loop immunity to voltage drop. For 0-10V voltage inputs, limit cable length to 100 meters (328 feet) using shielded twisted-pair cable with shield grounded at one end only to minimize noise pickup and voltage drop effects.

Q: Can the IC200ALG260E be used with non-GE controllers or third-party PLCs?
A: Yes, when used with a VersaMax carrier and appropriate communication interface (e.g., IC200BEM003 Ethernet module), the analog data can be accessed via Modbus TCP or Ethernet/IP protocols, enabling integration with Siemens, Allen-Bradley, Schneider Electric, or other third-party control platforms. Consult integration guides for register mapping details.

Q: What diagnostic features help troubleshoot analog input signal problems?
A: The module provides per-channel status LEDs (green = normal, red = fault), software-accessible fault registers indicating open-circuit, short-circuit, or out-of-range conditions, and real-time raw ADC count values for signal verification. Advanced diagnostics include input impedance monitoring and channel-to-channel crosstalk detection available through configuration software.

Q: Does the module support HART protocol for smart transmitter communication?
A: No, the IC200ALG260E is a standard analog input module without HART communication capability. For HART-enabled applications requiring digital transmitter configuration and diagnostics over the 4-20mA loop, consider GE's HART-compatible I/O modules or external HART multiplexers interfaced to standard analog inputs.

Q: What is the typical power consumption and heat dissipation of this module?
A: The IC200ALG260E draws approximately 2.5W from the VersaMax backplane under normal operating conditions (all channels active). Heat dissipation is minimal (~8.5 BTU/hr), allowing dense rack configurations without forced cooling in ambient temperatures up to 60°C. Ensure adequate rack ventilation per GE installation guidelines.

Request Technical Support & Custom Solutions

To obtain detailed application engineering support, pricing quotations, or custom configuration services, please provide the following project information: application description and industry sector, list of process instruments with signal types and ranges, required scan rates and control loop timing, environmental conditions (temperature, humidity, vibration, hazardous area classification), existing control system platform and communication protocols, and any special certifications or compliance requirements (ATEX, IECEx, SIL rating).

Our application engineers will respond within one business day with tailored recommendations, system architecture diagrams, bill of materials, and budget pricing. For urgent inquiries or on-site technical support requests, contact our 24/7 hotline.
