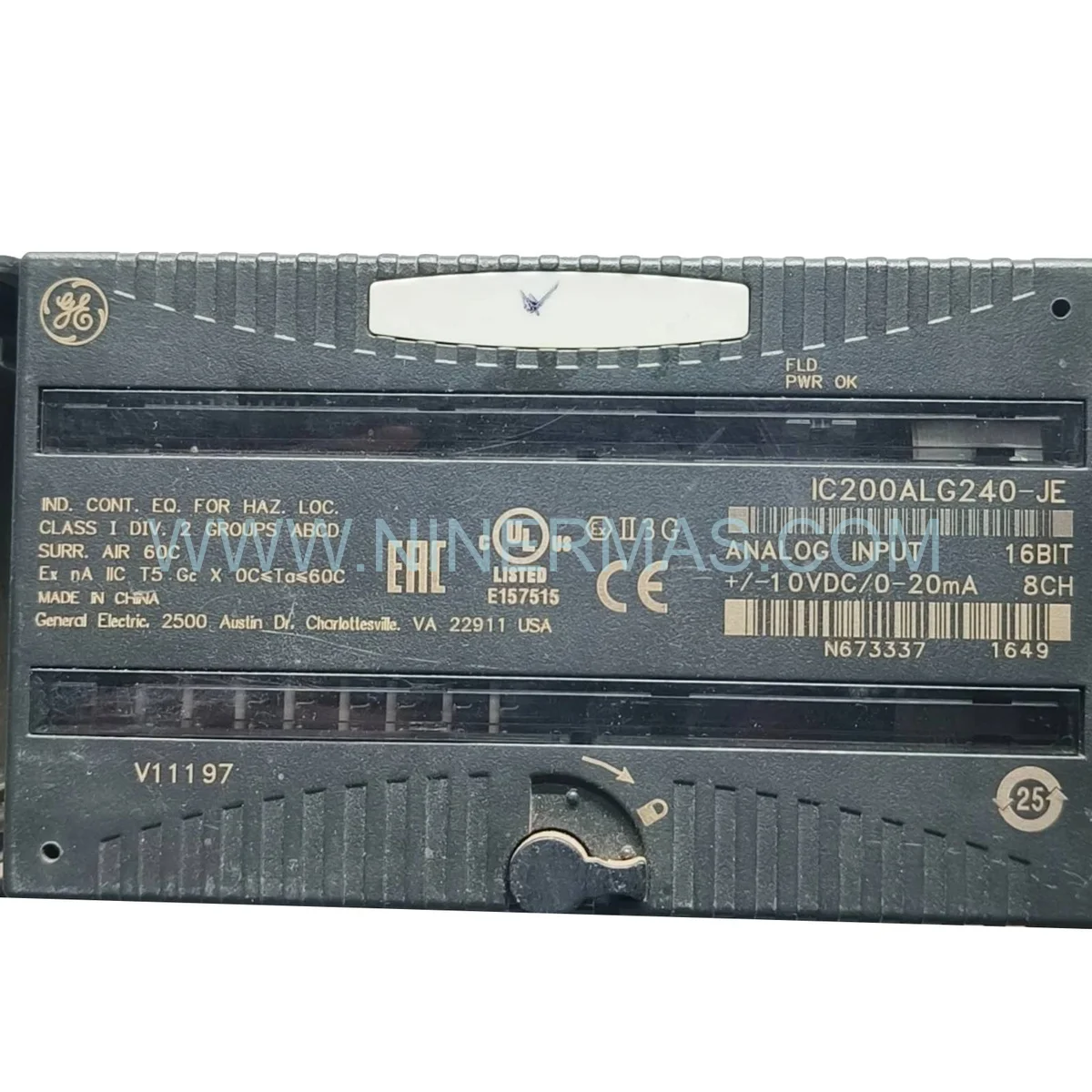

GE IC200ALG240-JE — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

From the perspective of a System Migration Architect, the GE IC200ALG240-JE occupies a mission-critical position in any industrial modernization roadmap. As aging DCS and SCADA infrastructures approach end-of-service thresholds, this 8-channel analog input module serves as the cornerstone of performance enhancement strategies — enabling facilities to extend operational lifespan, reduce unplanned downtime, and bridge the gap between legacy signal architectures and contemporary process control demands. The GE IC200ALG240-JE delivers 16-bit resolution across configurable voltage and current input ranges, ensuring that precision measurement capabilities are preserved — or significantly elevated — during system transition phases.

A defining advantage of this module within retrofit engagements is its robust backward compatibility with the broader VersaMax I/O ecosystem. Whether your facility operates on first-generation VersaMax carriers or mid-lifecycle expansion racks, the IC200ALG240-JE integrates without requiring backplane redesign or carrier replacement. This seamless integration capability dramatically reduces the engineering complexity of hardware upgrade projects, allowing retrofit teams to swap aging analog modules in-place while maintaining existing wiring infrastructure and software tag mappings.

From a total cost of migration perspective, deploying the IC200ALG240-JE as a drop-in retrofit solution minimizes both capital expenditure and project risk. Facilities avoid the prohibitive costs of full-panel redesigns, and the module’s hot-swap capability ensures that production continuity is maintained throughout the upgrade cycle. For operations teams managing phased modernization programs, this translates directly into reduced migration risk, faster commissioning timelines, and measurable ROI from day one of deployment.

Upgrade Highlights & Compatibility

✅ Seamless Legacy Integration: Direct drop-in replacement for aging VersaMax analog input modules — no carrier modification required, preserving existing wiring and I/O addressing.

16-Bit Resolution Performance Gain: Delivers 1-in-65,536 measurement granularity, a significant performance enhancement over lower-resolution legacy modules in precision-critical processes.

✅ Multi-Range Input Flexibility: Independently configurable channels support ±10V, 0-10V, 0-20mA, and 4-20mA — eliminating the need for external signal conditioning hardware during system migration.

500V Channel-to-Backplane Isolation: Industrial-grade isolation protects both the module and the control network from ground faults and transient surges common in legacy plant environments.

✅ Future-Proof Architecture: Fully compatible with VersaMax expansion systems, enabling scalable I/O growth as modernization programs evolve beyond initial retrofit scope.

Integrated Diagnostics: Real-time LED status indicators and software-accessible fault registers accelerate troubleshooting during commissioning and post-migration validation.

Modernization Use Cases & Success Stories

DCS Analog Front-End Modernization — Chemical Processing Plant:
A regional chemical facility operating a 15-year-old distributed control system faced chronic signal drift and calibration failures across its legacy analog input tier. By deploying the IC200ALG240-JE as a direct retrofit solution across 12 I/O racks, the engineering team achieved a 40% reduction in calibration maintenance hours and eliminated recurring process upsets caused by degraded signal accuracy. The module’s 16-bit resolution provided the performance enhancement needed to meet tightened regulatory measurement tolerances without modifying the existing DCS software layer.

Turbine Supervisory Instrumentation (TSI) System Upgrade — Power Generation:
A gas turbine operator required a hardware upgrade path for its TSI analog acquisition tier following OEM end-of-life notification on legacy modules. The IC200ALG240-JE was selected for its legacy compatibility with existing VersaMax carriers and its ability to maintain 4-20mA loop integrity for critical vibration and temperature transmitters. The retrofit was completed during a scheduled outage window with zero wiring changes, demonstrating the module’s value as a low-disruption performance upgrade in high-availability environments.

Pharmaceutical Batch Process Retrofit — Regulated Manufacturing:
A pharmaceutical manufacturer undertaking a 21 CFR Part 11 compliance upgrade integrated the IC200ALG240-JE to replace obsolete analog input hardware within its validated batch control system. The module’s consistent channel-to-channel accuracy (±0.1% of full scale) supported re-validation efforts, while its seamless integration with the existing VersaMax backplane minimized the scope of the change control documentation package.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every GE IC200ALG240-JE unit is sourced as genuine OEM hardware, factory sealed and fully traceable. No refurbished, reconditioned, or counterfeit components — critical for regulated industries and warranty-sensitive retrofit programs.

Expedited Global Logistics: Recognizing that unplanned outages and retrofit project timelines cannot wait, we maintain ready stock with expedited international shipping to manufacturing hubs across Asia, Europe, the Americas, and the Middle East. Emergency dispatch available for critical plant situations.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy VersaMax system architecture. From pre-retrofit compatibility assessments to post-installation commissioning guidance, we provide end-to-end technical support that generic distributors cannot match. Documentation packages, configuration files, and application engineering consultation are available upon request.

12-Month Hardware Warranty: All modules carry a comprehensive 12-month warranty covering manufacturing defects and workmanship, providing procurement teams with the confidence required for capital project approvals.

Retrofit FAQ — Upgrade Guide

Q: Will the GE IC200ALG240-JE physically fit my existing VersaMax I/O carrier without modification?
A: Yes. The IC200ALG240-JE is designed for direct installation on all standard VersaMax I/O carriers. No mechanical modification, adapter bracket, or carrier replacement is required. The module slots into the existing carrier position, preserving your panel layout and wiring terminations — a key advantage for space-constrained retrofit projects.

Q: How does the IC200ALG240-JE communicate with both legacy and modern control platforms during a phased migration?
A: The module communicates via the VersaMax backplane bus, which is supported by GE VersaMax CPUs across multiple generations. During phased migrations where legacy CPUs remain temporarily in service, the IC200ALG240-JE operates transparently within the existing I/O map. When the CPU tier is subsequently upgraded, the module’s I/O addressing is preserved, eliminating the need for software re-mapping at the analog input layer.

Q: Are there validated substitute or alternative part numbers if IC200ALG240-JE stock is constrained?
A: For applications requiring expanded channel density, the IC200ALG240 series includes higher-channel variants within the VersaMax family. Our technical team can advise on validated substitution paths based on your specific application requirements, signal types, and carrier configuration — contact us with your system details for a tailored retrofit recommendation.

Q: What wiring changes are required when replacing an older analog input module with the IC200ALG240-JE?
A: In most retrofit scenarios, no wiring changes are required. The IC200ALG240-JE uses the same terminal block interface as predecessor VersaMax analog modules. Field wiring — including shielded twisted-pair cables for 4-20mA and voltage signals — connects directly to the existing carrier terminals. This zero-rewiring retrofit capability is a primary driver of reduced installation labor costs.

Q: Does the IC200ALG240-JE support loop-powered (2-wire) transmitters without an external power supply?
A: Yes. The module provides integrated loop power for 2-wire 4-20mA transmitters directly from the backplane supply. This eliminates the need for external transmitter power supplies in retrofit installations, simplifying panel design and reducing component count in upgraded control cabinets.

Q: What documentation is available to support a retrofit validation or change control package?
A: We can provide GE OEM datasheets, installation guides, and hardware revision documentation for the IC200ALG240-JE. For regulated industries requiring formal change control or re-validation support, our technical team can assist in assembling the documentation package. Contact us directly with your project requirements.
