GE IC200ALG240-EB Analog Input Module | 8-Channel Voltage/Current I/O for VersaMax PLC

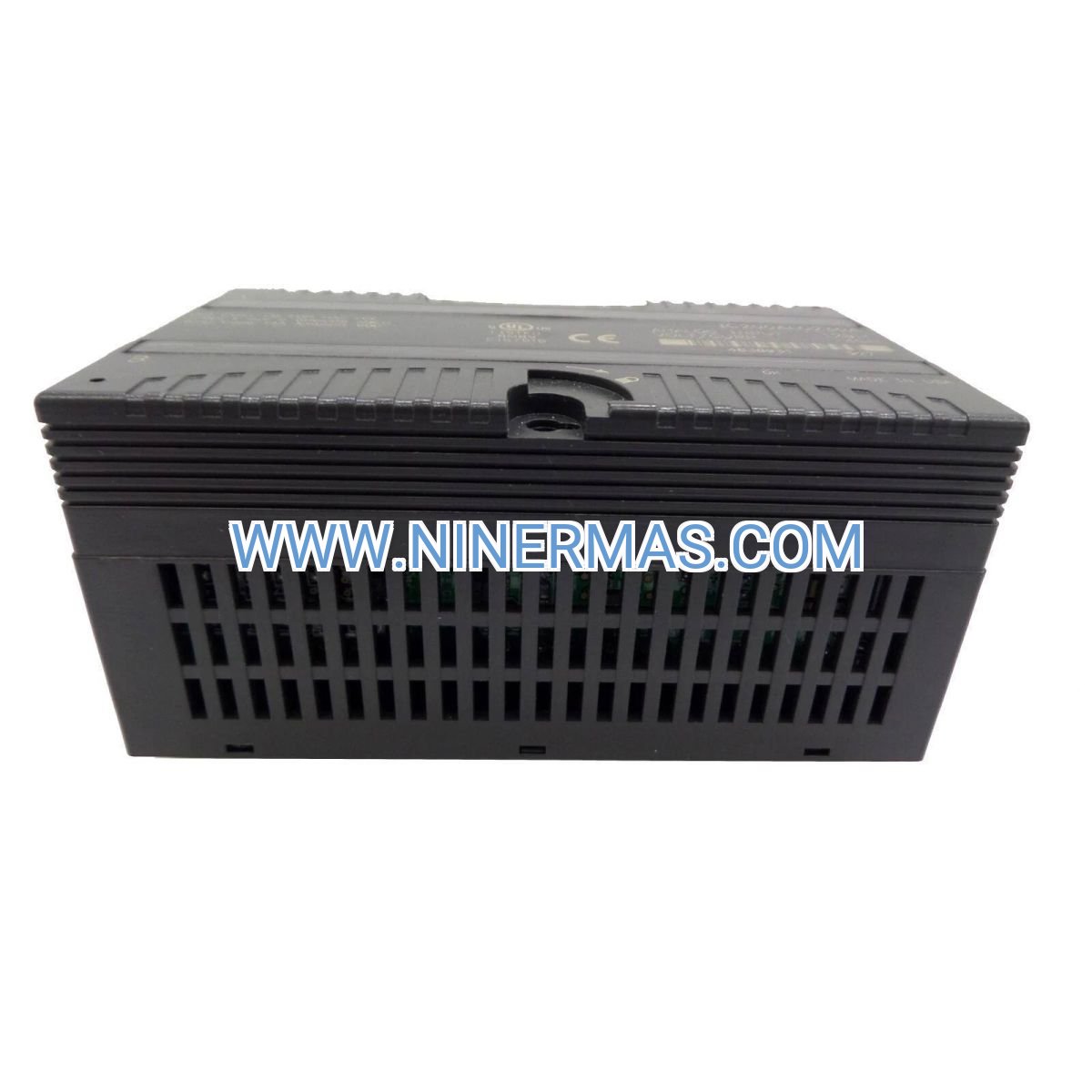

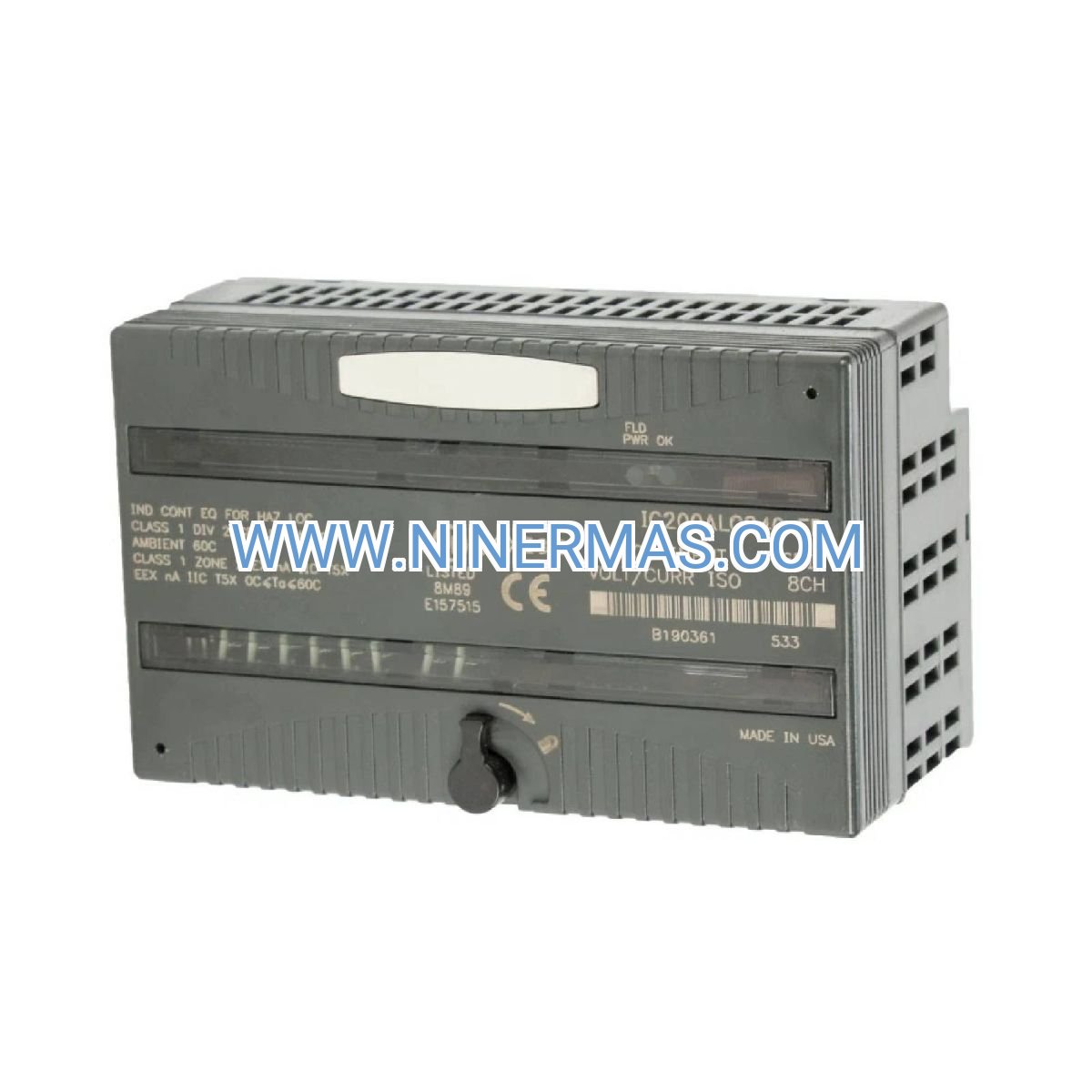

GE IC200ALG240-EB Analog Input Module (Industrial-Grade 8-Channel I/O System)

The GE IC200ALG240-EB is a high-performance analog input module designed for VersaMax PLC systems, delivering precise voltage and current signal acquisition through advanced 12-bit A/D conversion technology. This module enables real-time monitoring of process variables including temperature, pressure, flow rate, and level measurement across industrial automation applications.

Engineered for demanding industrial environments including chemical processing plants, water treatment facilities, manufacturing production lines, and energy management systems, this module addresses critical challenges such as signal drift, measurement inaccuracy, limited channel capacity, and integration complexity with legacy control systems.

Through standardized design and flexible configuration options, the IC200ALG240-EB delivers exceptional signal accuracy, robust EMI immunity, hot-swappable capability, and seamless compatibility with GE PACSystems controllers. Ideal for system integrators, control panel builders, OEM manufacturers, and plant maintenance teams. Contact our application engineers for customized I/O configuration and technical specifications.

Core Features & Technical Advantages

• Dual-Mode Signal Acquisition
  Supports both voltage (±10V, ±5V, 0-10V) and current (4-20mA, 0-20mA) inputs with software-selectable ranges per channel, eliminating the need for external signal conditioning in most applications.
• High-Resolution Conversion
  12-bit A/D resolution provides 4096 discrete measurement points across the full scale, ensuring precise process control with ±0.1% accuracy for critical parameter monitoring.
• Multi-Channel Parallel Processing
  Eight independent input channels with simultaneous sampling capability reduce scan time and improve system response for time-sensitive control loops.
• Comprehensive Diagnostics & Protection
  Built-in channel fault detection, open-wire detection, over-range indication, and reverse polarity protection minimize downtime and simplify troubleshooting during commissioning and operation.
• Industrial-Grade Reliability
  Conformal-coated PCB, wide operating temperature range (-40°C to +70°C), and 2000V channel-to-bus isolation ensure stable performance in harsh industrial environments.
• Intuitive Configuration Interface
  Compatible with Proficy Machine Edition software for drag-and-drop configuration, real-time channel monitoring, and calibration management without requiring specialized programming knowledge.

Typical Application Scenarios

This module is specifically designed for applications requiring high signal integrity, multi-point measurement, and long-term stability:

• Process Control & SCADA Systems
  Acquire analog signals from pressure transmitters, temperature sensors (RTD/TC with transmitters), and flow meters in chemical reactors, distillation columns, and batch processing equipment.
• Water & Wastewater Treatment
  Monitor pH levels, turbidity, dissolved oxygen, and chemical dosing rates in municipal water plants, ensuring regulatory compliance and optimized treatment efficiency.
• Energy Management & Building Automation
  Interface with power meters, HVAC sensors, and environmental monitoring devices to enable real-time energy consumption tracking and demand-response control strategies.
• Manufacturing Quality Control
  Integrate with vision systems, load cells, and dimensional measurement instruments for in-line inspection and statistical process control in automotive, electronics, and packaging industries.
• Oil & Gas Production Monitoring
  Collect data from wellhead pressure sensors, tank level transmitters, and pipeline flow meters for remote asset monitoring and predictive maintenance applications.

Technical Specifications & Selection Guide

To facilitate system design and procurement, we provide comprehensive technical parameters for the IC200ALG240-EB module. Custom configurations are available for specialized applications.

Selection Considerations: When specifying this module, evaluate maximum signal count requirements, sensor output types (2-wire vs. 4-wire transmitters), required update rate for control loops, environmental conditions (temperature/humidity/vibration), and available rack slot positions. For applications requiring thermocouple/RTD direct connection, consider the IC200ALG430 series. Our engineering team can provide I/O mapping templates and wiring diagrams upon request.

Advanced Configuration Options

• Software-Selectable Input Ranges: Configure each channel independently via Proficy Machine Edition for mixed-signal applications
• Scaling & Engineering Units: Apply linear/square-root scaling and custom engineering unit conversion within the controller logic
• Alarm Threshold Management: Set high/low alarm limits with hysteresis for predictive maintenance notifications
• Data Logging Integration: Export channel data to historians (OSI PI, Wonderware, FactoryTalk) via OPC UA/DA protocols
• Redundancy Support: Compatible with VersaMax redundant controller configurations for mission-critical applications

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days; custom-configured modules require 7-14 days lead time. All products include a minimum 12-month manufacturer warranty covering defects in materials and workmanship. We provide remote technical consultation for installation planning, I/O commissioning support, and on-site startup assistance (subject to location and project scope).

Each module ships with complete documentation package including: electrical specifications datasheet, terminal block wiring diagrams, Proficy Machine Edition configuration guide, and RoHS/CE compliance certificates. Replacement modules are available for emergency shipment to minimize production downtime.

Frequently Asked Questions (FAQ)

Q: How do I connect 2-wire 4-20mA transmitters to the IC200ALG240-EB analog input module?
A: The module provides internal 24VDC loop power for 2-wire transmitters. Connect the positive transmitter lead to the +IN terminal and negative lead to COM. Ensure total loop resistance (transmitter + wiring) does not exceed 600Ω. For 4-wire transmitters, use external power supply and connect signal wires only.

Q: What is the maximum cable length between field sensors and the analog input module?
A: For voltage inputs, recommend ≤100 meters using shielded twisted-pair cable (shield grounded at module end only). For current inputs, up to 300 meters is acceptable with proper wire gauge (18-22 AWG) to minimize voltage drop. In high-EMI environments, use conduit and maintain separation from power cables.

Q: Can this module be hot-swapped during system operation without shutting down the PLC?
A: Yes, the IC200ALG240-EB supports hot-swap capability when used with VersaMax redundant power supplies (IC200PWR series). The controller automatically detects module removal/insertion and resumes I/O scanning. However, ensure proper ESD precautions and avoid contact with live terminals.

Q: What diagnostic features help troubleshoot signal quality issues?
A: The module provides per-channel status bits indicating: open-wire detection (for current inputs), over-range/under-range conditions, and module health status. Proficy Machine Edition displays real-time raw counts and scaled values for comparison with expected sensor outputs. Built-in LED indicators show power status and communication health.

Q: Is the IC200ALG240-EB compatible with third-party VersaMax-compatible racks?
A: While the module is designed for GE VersaMax IC200CHS racks, some third-party racks claiming VersaMax compatibility may have backplane timing or power distribution differences. We recommend using genuine GE racks to ensure full functionality and warranty coverage. Contact us for compatibility verification if using non-GE hardware.

Q: Does this module support HART protocol communication with smart transmitters?
A: No, the IC200ALG240-EB is a standard analog I/O module without HART modem capability. For HART-enabled transmitters, consider the IC200ALG240H variant or use external HART multiplexers with Ethernet/IP connectivity to the VersaMax controller.

Request Technical Support & Quotation

For detailed application engineering support, custom I/O panel design, or project-specific pricing, please provide the following information: project name and industry sector, number of analog input points required, sensor types and signal ranges, environmental conditions (temperature/hazardous area classification), preferred delivery timeline, and any special certifications needed (ATEX, IECEx, SIL-rated). Our application engineers will respond within 24 hours with tailored recommendations and budget quotations.
