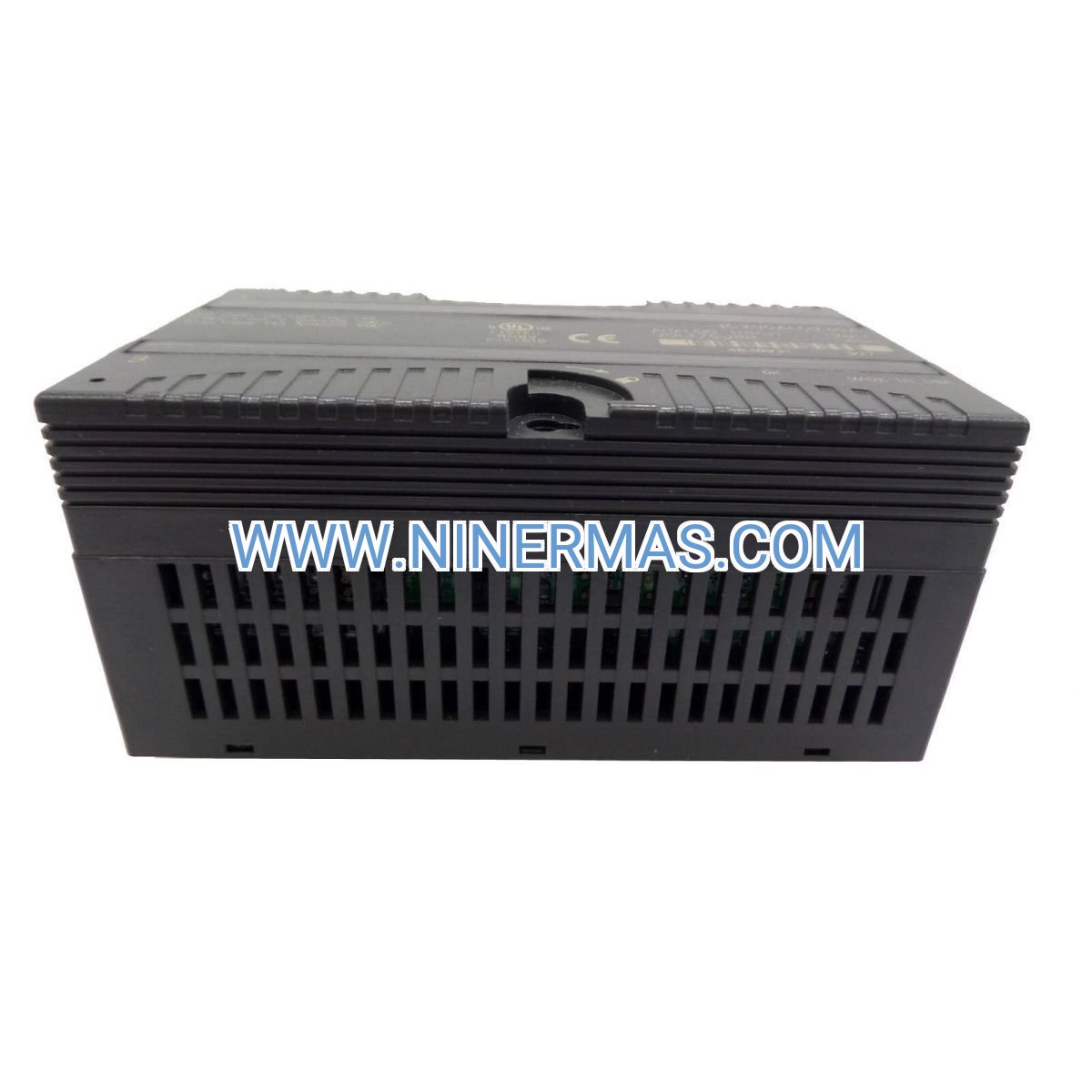

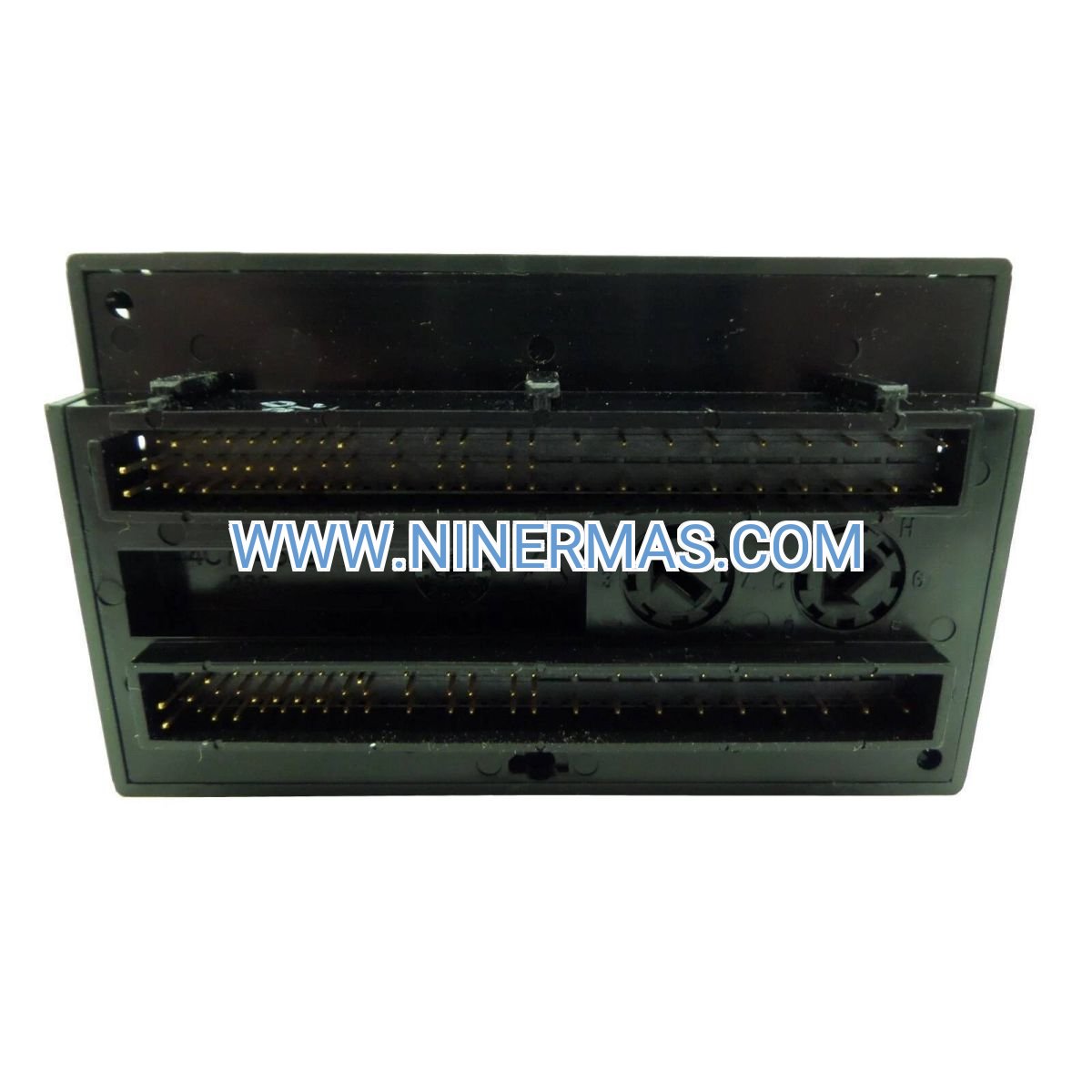

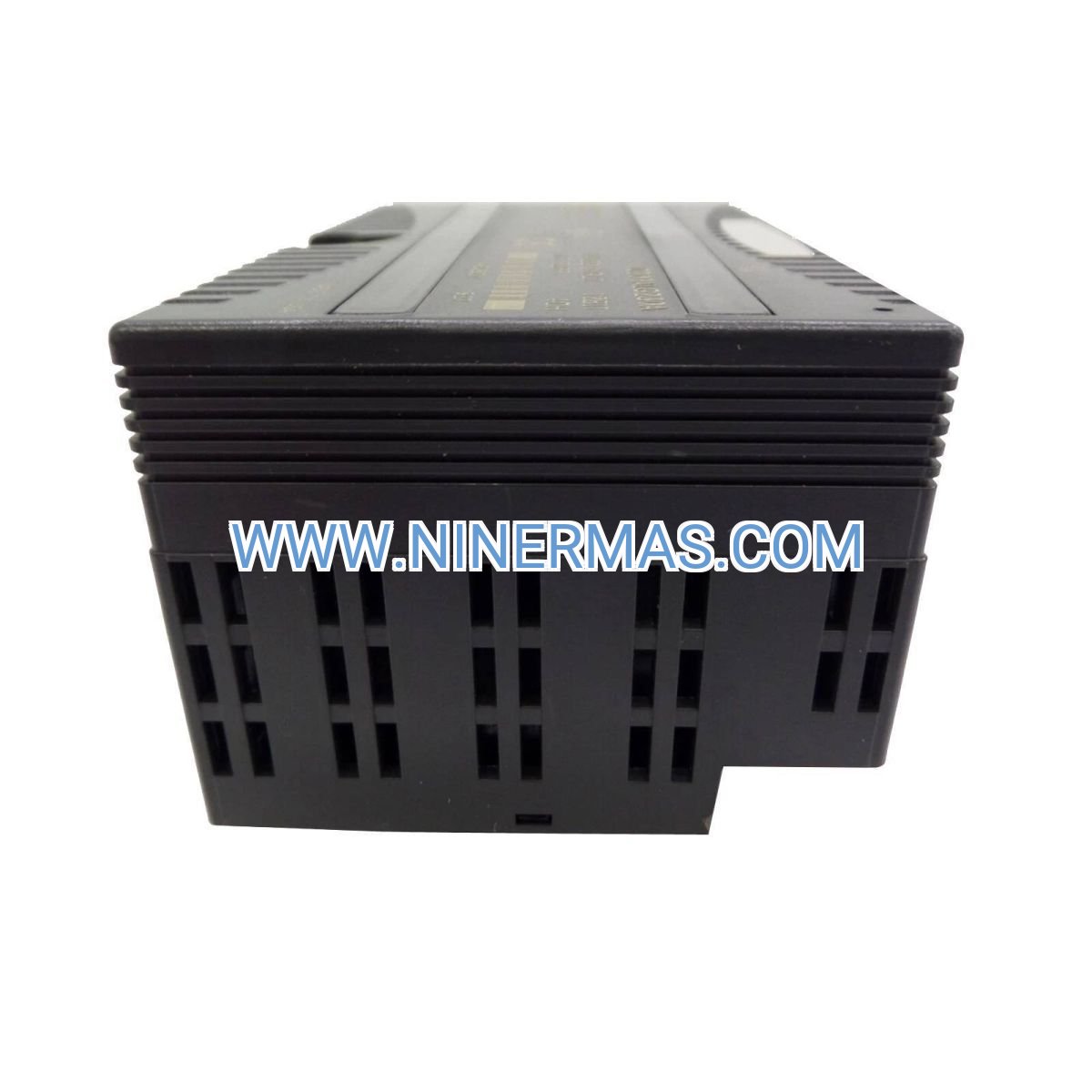

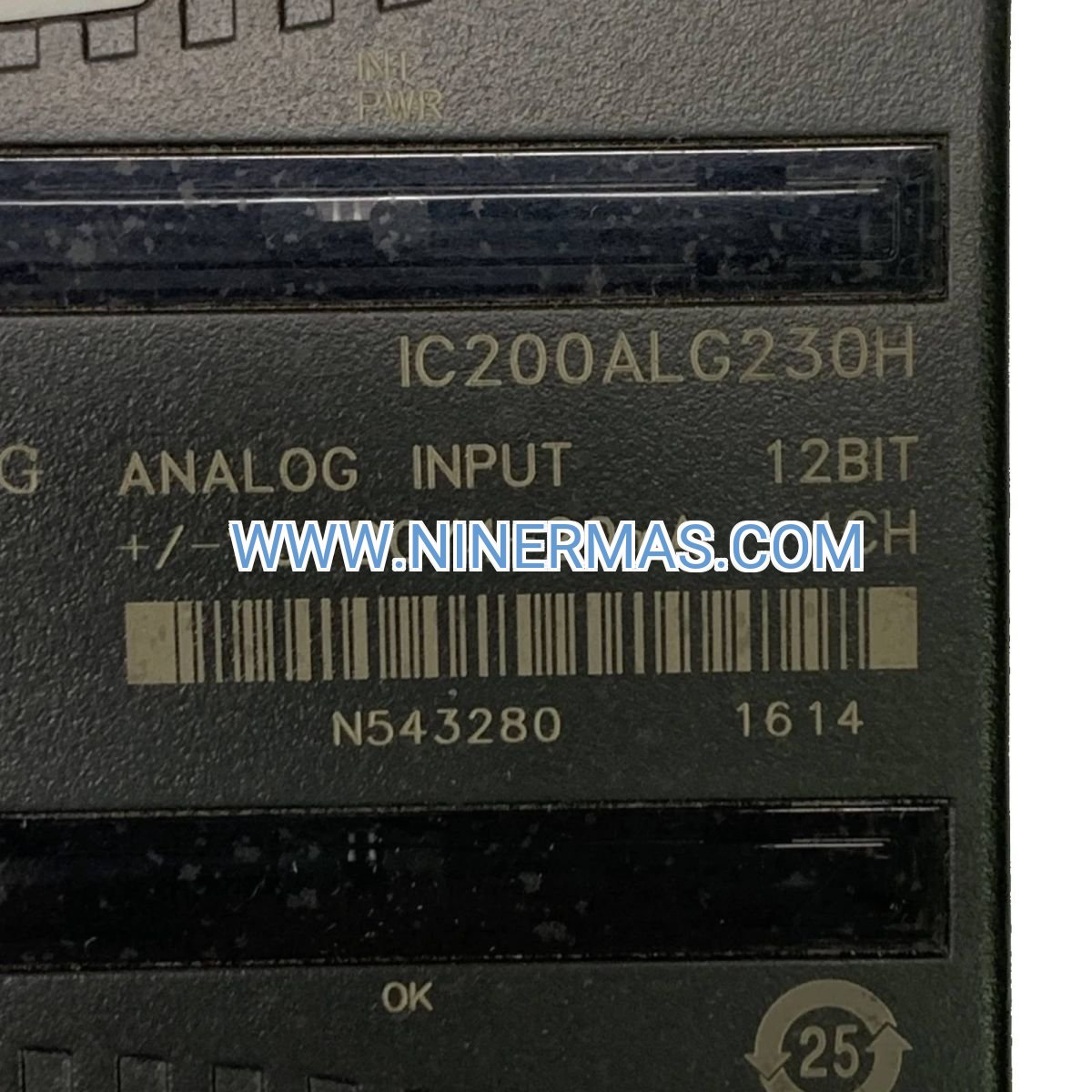

GE IC200ALG230H Analog Current Input Module (Industrial-Grade 4-20mA Signal Acquisition System)

The GE IC200ALG230H is a precision 4-channel analog current input module designed for industrial process control and automation systems. Through advanced 12-bit A/D conversion technology and isolated 4-20mA current loop interfaces, it delivers accurate real-time signal acquisition from field transmitters, sensors, and process instruments. This module enables reliable data collection for critical monitoring and control applications.

Ideal for chemical processing plants, water treatment facilities, power generation stations, oil & gas refineries, and manufacturing automation systems, this module addresses common challenges including signal noise interference, ground loop issues, installation complexity, and system downtime during maintenance. It provides robust solutions for applications requiring precise analog signal monitoring with minimal drift.

Featuring hot-swappable design and standardized VersaMax platform compatibility, the IC200ALG230H offers exceptional reliability, simplified maintenance, seamless integration with GE PACSystems controllers, and field-proven durability in harsh industrial environments. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for customized I/O configuration recommendations and technical specifications.

Core Features & Technical Advantages

• Precision 4-20mA Current Loop Acquisition
  Equipped with four independent isolated current input channels, each supporting standard 4-20mA industrial signals with 12-bit resolution (0.024% accuracy). Built-in signal conditioning eliminates the need for external barriers in most applications.
• Hot-Swappable Modular Design
  Supports online module replacement without shutting down the entire control system, significantly reducing maintenance downtime and improving system availability. Plug-and-play architecture accelerates commissioning and troubleshooting.
• Channel-to-Channel Isolation
  Each input channel features electrical isolation up to 250V AC, preventing ground loops and cross-channel interference. This design ensures signal integrity in electrically noisy industrial environments with multiple grounding points.
• Diagnostic & Status Indication
  Integrated LED indicators provide real-time channel status, fault detection, and module health monitoring. Advanced diagnostics include open-circuit detection, over-range alarms, and communication error reporting for proactive maintenance.
• Wide Operating Temperature Range
  Rated for -40°C to +70°C ambient operation with conformal coating protection, suitable for harsh environments including outdoor enclosures, high-humidity areas, and temperature-cycling applications common in process industries.
• Seamless VersaMax Platform Integration
  Fully compatible with GE VersaMax carrier systems and PACSystems controllers (RX3i, RX7i series). Supports standard Ethernet/IP, Profibus, and serial communication protocols for flexible network architectures.

Typical Application Scenarios

This module is engineered for applications demanding high signal accuracy, continuous operation reliability, and robust environmental performance, particularly in:

• Chemical & Petrochemical Process Control
  Monitors reactor pressure, flow rates, tank levels, and temperature transmitters in continuous production processes. Ensures precise control loop feedback for batch processing, distillation columns, and blending operations where signal accuracy directly impacts product quality.
• Water & Wastewater Treatment Systems
  Acquires signals from pH sensors, turbidity meters, dissolved oxygen probes, and flow transmitters in municipal and industrial treatment plants. Supports SCADA integration for remote monitoring of multi-stage filtration, chemical dosing, and effluent quality control.
• Power Generation & Distribution
  Interfaces with current transformers, pressure transducers, and vibration sensors in turbine control systems, boiler management, and substation automation. Provides critical input data for load balancing, protective relaying, and condition-based maintenance programs.
• Oil & Gas Production Facilities
  Collects data from wellhead pressure sensors, pipeline flow meters, and separator level transmitters in upstream and midstream operations. Withstands harsh offshore and desert environments while maintaining measurement integrity for safety-critical applications.
• Manufacturing Automation & Machine Control
  Monitors hydraulic pressure, pneumatic actuator positions, and motor current feedback in packaging lines, material handling systems, and CNC machine tools. Enables predictive maintenance through continuous vibration and load monitoring.

Technical Specifications & Selection Guide

To facilitate system design and module selection, we provide comprehensive technical parameters for integration planning. Custom configurations are available based on specific project requirements.

Selection Recommendations: When specifying this module, consider: maximum loop resistance of field wiring (ensure transmitter supply voltage supports total loop impedance), required update speed for control loops, environmental conditions (temperature extremes, vibration, EMI exposure), and integration with existing GE or third-party control platforms. For applications requiring HART communication pass-through or higher channel density, consult our engineering team for alternative VersaMax I/O solutions.

Extended Capabilities

• Redundancy Support: Compatible with VersaMax redundant carrier configurations for mission-critical applications requiring fault-tolerant I/O systems
• Calibration & Scaling: Software-configurable input scaling, offset adjustment, and linearization for non-standard transmitter ranges
• Alarm Management: Programmable high/low alarm thresholds with latching or non-latching behavior for process deviation detection
• Data Logging: Integration with GE Proficy historians and third-party SCADA platforms for trend analysis and regulatory compliance reporting

Delivery, Service & Quality Assurance

Standard catalog modules ship from stock within 3-5 business days; custom-configured or quantity orders typically deliver within 10-15 business days. All units include a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Technical support includes remote diagnostics assistance, configuration file review, and on-site commissioning services (subject to location and project scope).

Each module ships with complete documentation package: installation quick-start guide, detailed user manual (PDF), electrical wiring diagrams, and GE Machine Edition configuration files. Modules undergo factory acceptance testing with calibration certificates available upon request for applications requiring traceable metrology.

Frequently Asked Questions (FAQ)

Q: How does the GE IC200ALG230H analog current input module integrate with non-GE control systems?
A: The module communicates via the VersaMax carrier backplane, which supports multiple fieldbus protocols including Ethernet/IP, Profibus-DP, and DeviceNet through appropriate communication adapters. For integration with Siemens, Allen-Bradley, or Schneider controllers, select the corresponding VersaMax carrier with protocol gateway functionality. Detailed interoperability guides are available for common third-party platforms.

Q: What is the maximum number of IC200ALG230H modules supported in a single VersaMax system?
A: A standard VersaMax carrier supports up to 10 I/O modules, allowing a maximum of 40 analog current input channels per carrier. For larger systems, multiple carriers can be networked via Ethernet/IP or serial links, with practical limits determined by controller scan time and network bandwidth requirements.

Q: Can this module be used in hazardous area (Class I Div 2 / Zone 2) installations?
A: Yes, the IC200ALG230H carries ATEX Zone 2 and IECEx certifications for installation in non-hazardous areas or Zone 2 gas/vapor environments when mounted in appropriately rated enclosures. For Zone 1 or Division 1 applications, intrinsically safe barriers or purged enclosure systems are required. Consult certification documentation for specific installation requirements.

Q: What field wiring practices are recommended to minimize signal noise and ensure accurate 4-20mA readings?
A: Use twisted-pair shielded cable (18-22 AWG) with shield grounded at one end only (typically at the module side). Maintain separation from AC power cables (minimum 300mm), use dedicated cable trays for analog signals, and verify total loop resistance does not exceed transmitter drive capability. For long cable runs (>300m), consider using 2-wire transmitters with local power supplies to reduce voltage drop.

Q: Does the module support HART communication protocol for smart transmitter configuration?
A: The standard IC200ALG230H does not include native HART pass-through capability. For applications requiring HART communication with intelligent field devices, consider the GE IC200ALG430 series or implement external HART multiplexers. Our engineering team can recommend suitable alternatives based on your specific smart device integration requirements.

Q: What is the typical calibration interval, and can field calibration be performed without returning the module?
A: GE recommends annual calibration verification for critical measurement applications. The module supports software-based offset and gain adjustments through the programming software, allowing field calibration using precision current sources without module removal. For applications requiring NIST-traceable calibration, factory recalibration services are available with 5-7 day turnaround.

Request Technical Support & Custom Solutions

For detailed application engineering support, custom I/O configuration design, or project-specific quotations, please provide the following information: project name and industry sector, process application description, number of analog input points required, field device specifications (transmitter types, signal ranges, loop power requirements), environmental conditions (temperature range, enclosure type, hazardous area classification), and control system platform (GE PACSystems model or third-party controller). Our certified application engineers will deliver tailored selection recommendations and budgetary pricing within 24-48 hours.
