GE IC200ALG230D Analog Current Input Module | VersaMax 4-20mA 4-Channel PLC I/O

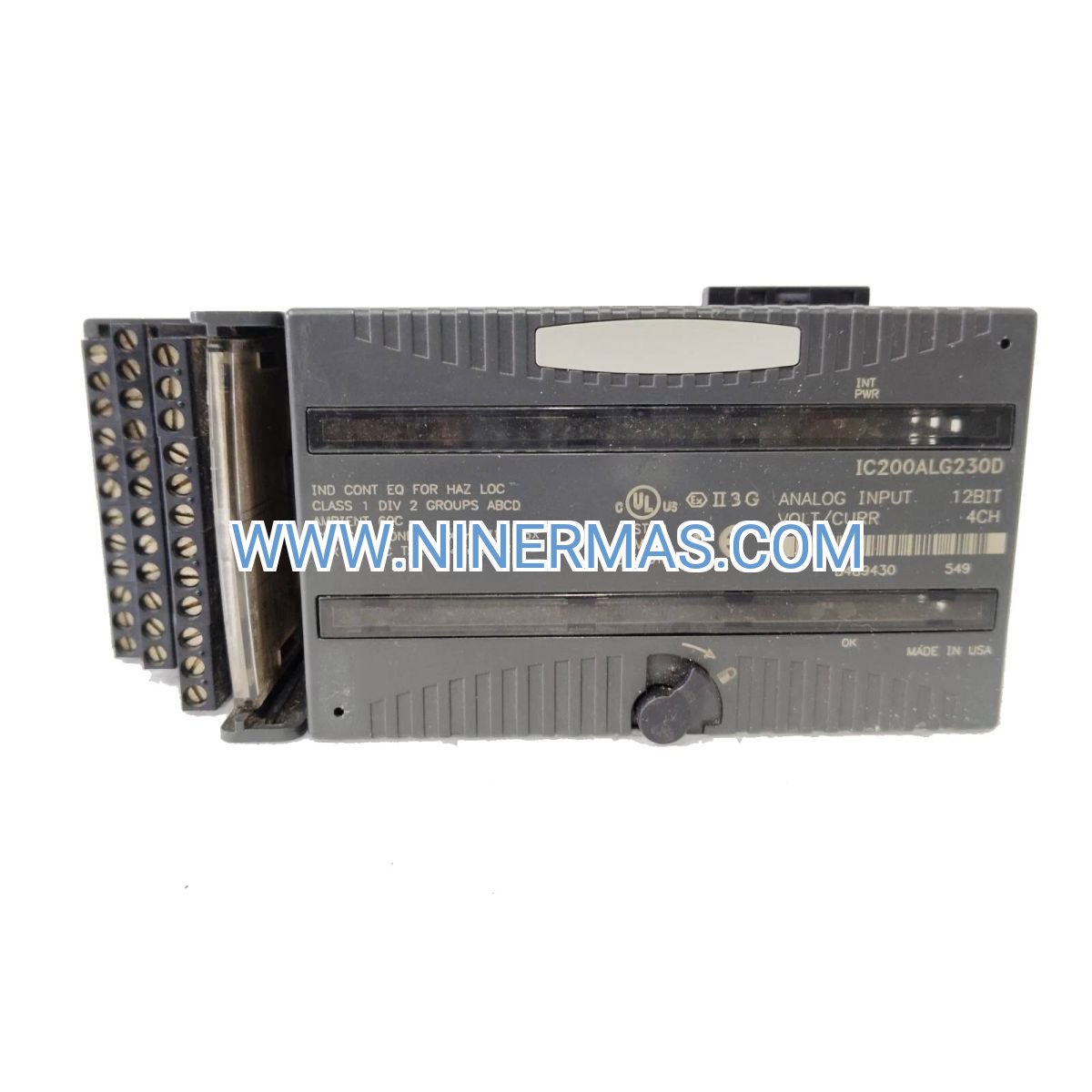

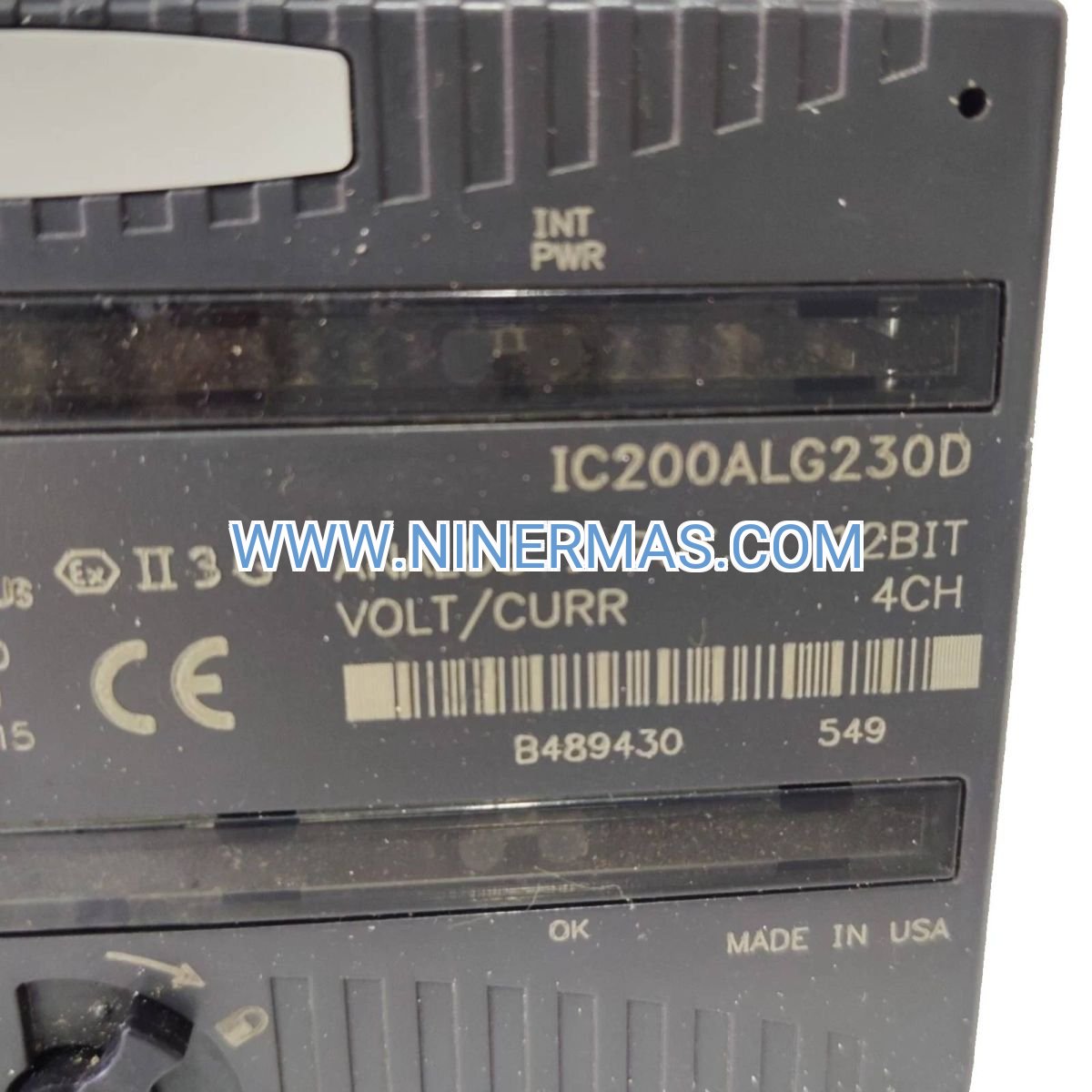

GE IC200ALG230D Analog Current Input Module (Industrial-Grade 4-20mA Signal Acquisition)

The GE IC200ALG230D is a precision 4-channel analog current input module designed for industrial PLC and DCS control systems. Through high-resolution 16-bit A/D conversion and channel-to-channel isolation technology, it enables accurate acquisition of 4-20mA current signals from field transmitters (pressure, temperature, flow, level sensors), ensuring stable process monitoring and control in harsh industrial environments.

Ideal for applications in chemical processing, water treatment, HVAC systems, energy management, and manufacturing automation, this module addresses common challenges such as signal interference, measurement drift, wiring complexity, and diagnostic difficulties. It helps engineers achieve reliable data acquisition with minimal installation effort and maintenance overhead.

With standardized VersaMax platform compatibility and flexible configuration options, the IC200ALG230D offers fast integration, proven reliability, and comprehensive protection features. Suitable for design institutes, system integrators, OEM equipment manufacturers, and end-user facilities. Contact our engineers for application-specific selection guidance and technical quotations.

Core Features & Advantages

• High-Precision 16-Bit Resolution
  Delivers accurate measurement with 0.05% full-scale accuracy, ensuring precise process control and reducing measurement errors in critical applications such as flow metering and pressure regulation.
• 4-20mA Current Loop Standard
  Supports industry-standard 4-20mA two-wire transmitters, compatible with most field instruments including pressure transducers, temperature sensors, and flow meters, simplifying system integration.
• Channel-to-Channel Isolation
  Each input channel is electrically isolated to prevent ground loops and cross-talk, enhancing noise immunity and system reliability in electrically noisy industrial environments.
• Hot-Swappable Design
  Allows module replacement without powering down the entire system, minimizing downtime and maintenance costs while maintaining continuous process operation.
• Comprehensive Diagnostics
  Built-in self-diagnostics detect open-circuit, short-circuit, and out-of-range conditions, providing real-time fault indication through LED status and PLC diagnostic registers for faster troubleshooting.
• Compact & Rugged Construction
  Industrial-grade housing with conformal coating protects against dust, moisture, and vibration. Compact form factor saves panel space and supports high-density I/O configurations.

Typical Application Scenarios

The IC200ALG230D is engineered for demanding industrial environments requiring stable, continuous signal acquisition:

• Chemical & Petrochemical Processing
  Monitors reactor pressure, temperature, and flow rates in real-time, ensuring safe operation and process optimization. Isolated inputs prevent interference from high-voltage equipment and motor drives.
• Water & Wastewater Treatment
  Acquires signals from level transmitters, pH sensors, and flow meters in pumping stations and treatment plants. Supports SCADA integration for centralized monitoring and control.
• HVAC & Building Automation
  Measures chilled water flow, differential pressure, and temperature in commercial buildings and data centers, enabling energy-efficient climate control and predictive maintenance.
• Manufacturing & Assembly Lines
  Collects process variables from hydraulic presses, coating lines, and material handling systems, providing closed-loop control for quality assurance and throughput optimization.
• Energy & Power Generation
  Interfaces with turbine sensors, boiler instrumentation, and cooling system monitors in power plants, supporting compliance with safety standards and operational efficiency targets.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide key specifications for the IC200ALG230D module. Custom configurations and extended I/O systems are available upon request.

Selection Recommendations: When specifying this module, consider the number of analog inputs required, field transmitter types (2-wire vs. 4-wire), required update speed, and environmental conditions (temperature, vibration, EMI exposure). For systems requiring more than 4 channels, multiple modules can be installed on the same VersaMax rack. Our application engineers can assist with I/O mapping, wiring diagrams, and PLC programming templates—please provide your process requirements and system architecture for tailored recommendations.

Extended Capabilities

• Flexible Configuration via Software
  Input ranges, filtering, and alarm thresholds are configurable through GE Proficy Machine Edition or compatible programming software, allowing adaptation to various sensor types without hardware changes.
• Scalable I/O Architecture
  Integrates seamlessly with other VersaMax digital, analog, and specialty modules on a common backplane, supporting mixed I/O configurations up to 256 points per rack.
• Protocol Compatibility
  Supports Ethernet/IP, Modbus TCP, and serial communication protocols for integration with SCADA, HMI, and third-party control systems.
• Redundancy Support
  Compatible with redundant controller configurations for mission-critical applications requiring high availability and fault tolerance.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days; custom-configured systems typically deliver within 10-15 business days depending on project scope.

Warranty: All modules include a 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and service contracts are available.

Technical Support: We provide remote commissioning assistance, wiring verification, and PLC integration guidance. On-site startup services are available for large-scale projects (subject to location and terms).

Documentation: Each module ships with complete technical documentation including datasheet, installation manual, wiring diagrams, and sample PLC code for common applications.

Frequently Asked Questions (FAQ)

Q: How do I connect the IC200ALG230D to my existing VersaMax PLC system?
A: The module mounts directly onto a VersaMax carrier and backplane. Connect field transmitter wiring to the removable terminal block (observe polarity), configure the module address via DIP switches or software, and map the input channels in your PLC program. Refer to the installation manual for detailed wiring diagrams and terminal assignments.

Q: Can this module handle 0-20mA signals in addition to 4-20mA?
A: Yes, the IC200ALG230D supports configurable input ranges including 0-20mA. Range selection is performed via software configuration—no hardware jumpers required.

Q: What is the maximum cable length between the module and field transmitters?
A: For 4-20mA current loops, cable runs up to 1000 meters (3280 feet) are typically acceptable, depending on cable resistance and transmitter specifications. Use shielded twisted-pair cable and proper grounding practices to minimize noise pickup.

Q: Does the module provide loop power to transmitters?
A: No, the IC200ALG230D is a passive input module and does not supply loop power. External 24VDC power supplies are required for two-wire transmitters. Ensure proper power distribution and isolation to avoid ground loops.

Q: What diagnostic features are available for troubleshooting?
A: The module provides LED indicators for power, communication, and channel status. Diagnostic registers accessible via PLC programming report open-circuit, short-circuit, and out-of-range faults for each channel, enabling rapid fault isolation.

Q: Is the module suitable for hazardous area installations?
A: The standard IC200ALG230D is designed for general industrial use (non-hazardous locations). For Class I Div 2 or ATEX Zone 2 applications, consult factory for certified versions or use approved intrinsic safety barriers.

Request a Quote or Technical Consultation

To receive detailed application engineering support, pricing, or a customized I/O system proposal, please provide the following information: project name, application description, number of analog inputs required, transmitter types and ranges, PLC platform, environmental conditions, and any special requirements (redundancy, certification, etc.). Our engineers will respond with tailored recommendations and a formal quotation within 24 hours.
