GE IC200ALG230 Analog Current Input Module | 4-20mA 4-Channel VersaMax PLC I/O

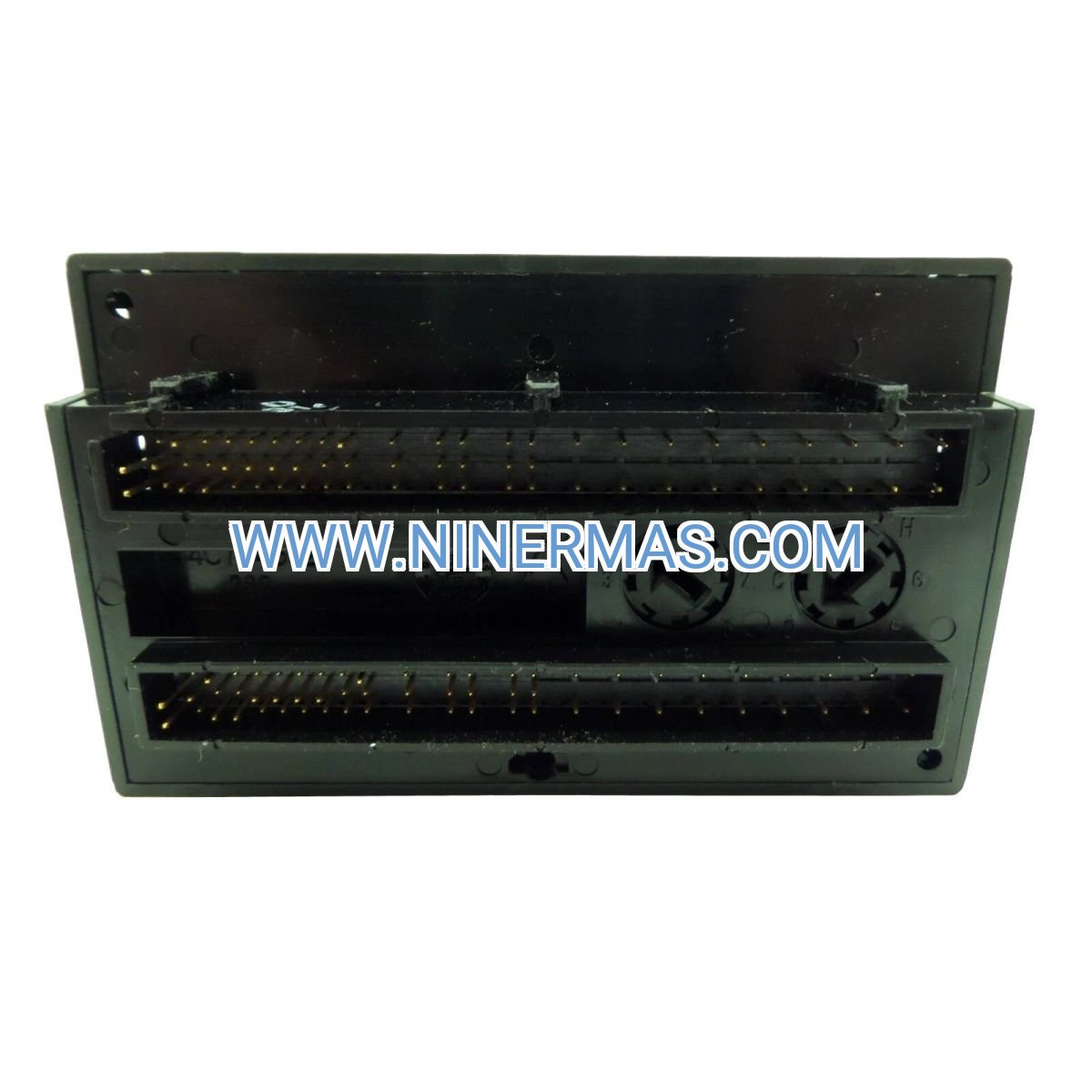

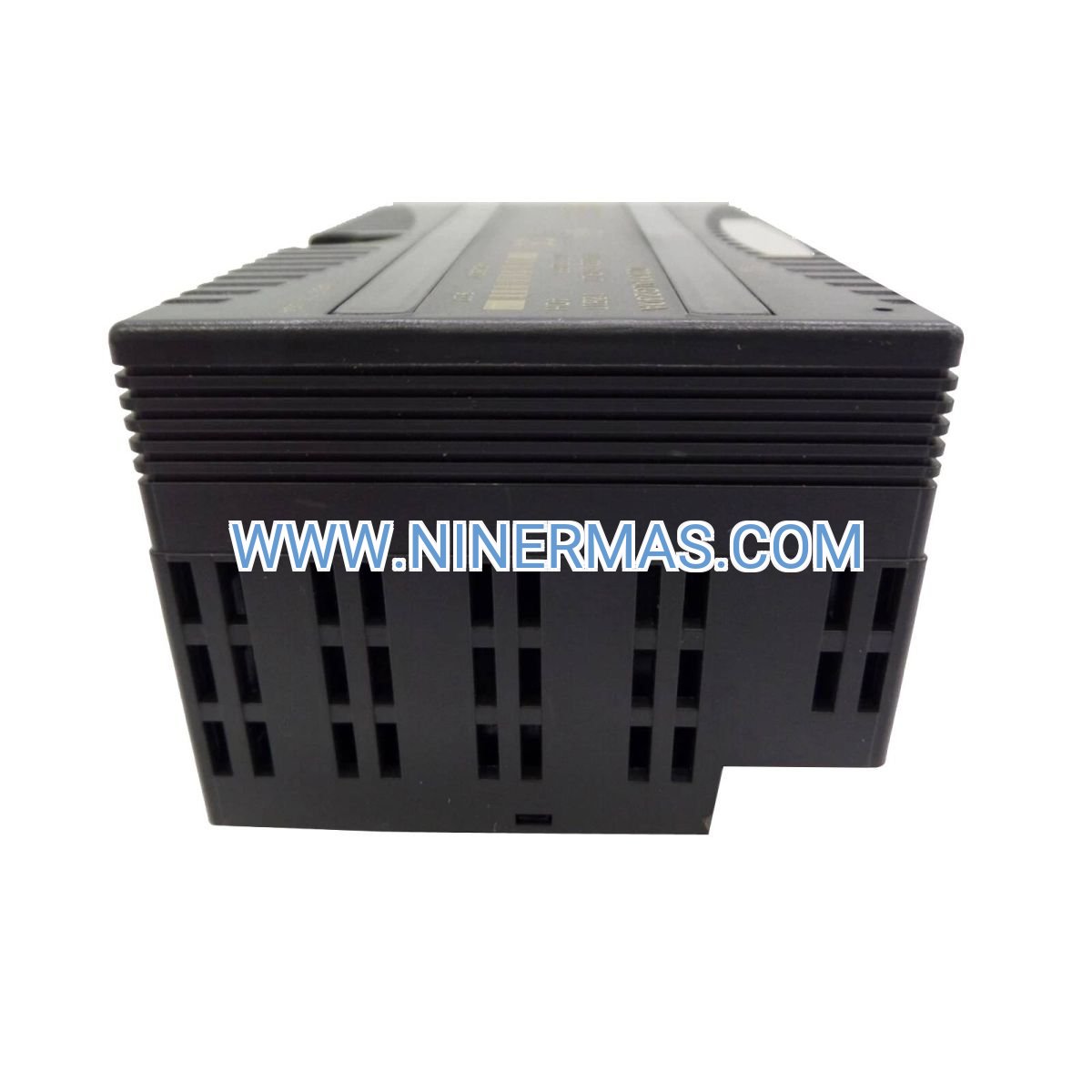

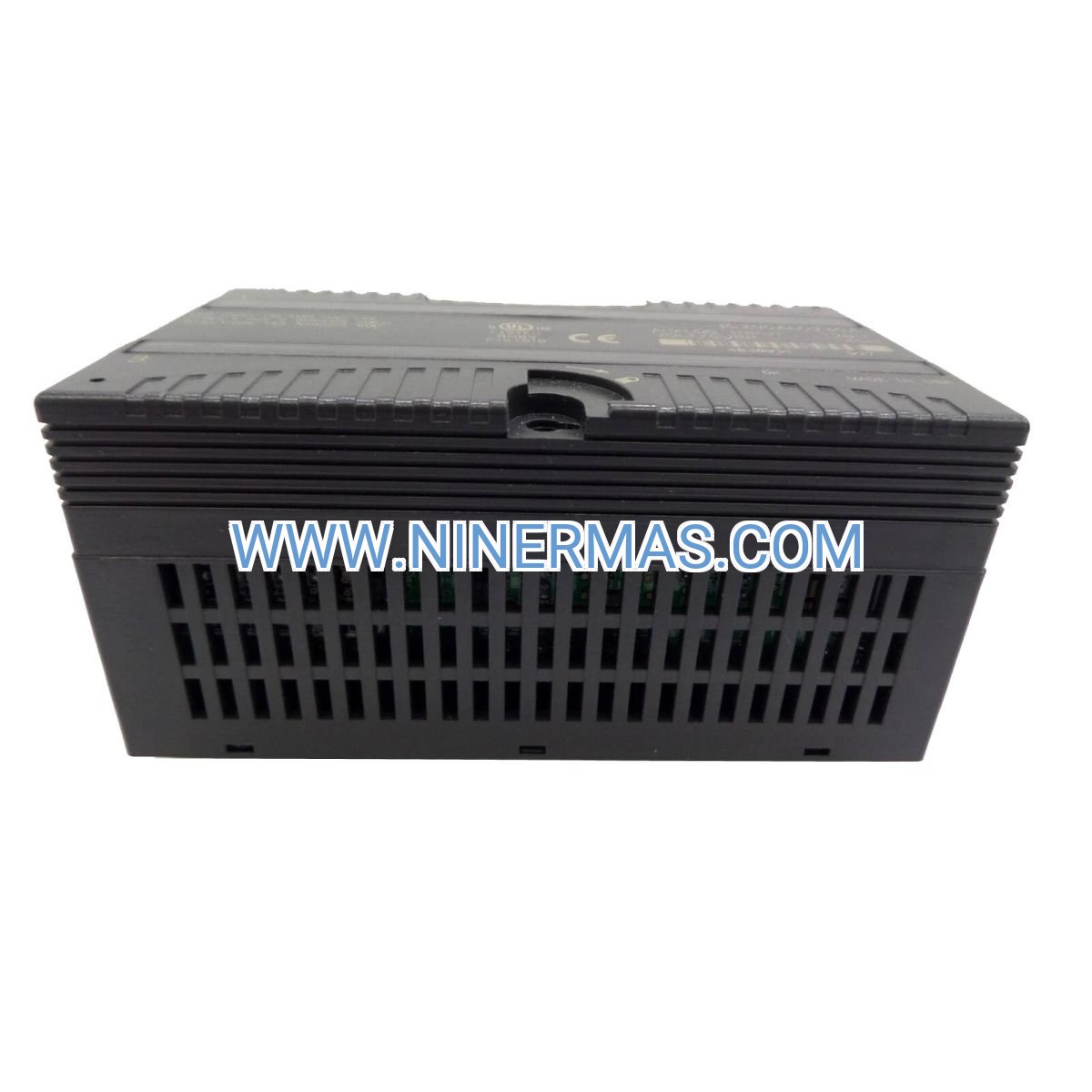

GE IC200ALG230 Analog Current Input Module (Industrial-Grade 4-20mA Signal Processing)

The GE IC200ALG230 is a high-performance 4-channel analog current input module designed for industrial process control and automation systems. Through precision 12-bit A/D conversion and 500V channel-to-backplane isolation, it delivers reliable 4-20mA signal acquisition for critical monitoring and control applications.

Ideal for process industries including chemical plants, water treatment facilities, oil & gas operations, and manufacturing automation systems, this module addresses common challenges such as signal noise interference, ground loop issues, measurement drift, and system integration complexity in harsh industrial environments.

Engineered with proven VersaMax architecture and field-tested reliability, the IC200ALG230 offers fast scan times, hot-swappable capability, and seamless integration with GE PACSystems controllers. Suitable for system integrators, control panel builders, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for configuration assistance and technical specifications.

Core Features & Advantages

• Precision 4-20mA Signal Acquisition
  Four independent current input channels with 12-bit resolution provide accurate process variable measurement from transmitters, sensors, and field instruments, ensuring reliable data for control algorithms and SCADA systems.
• Superior Electrical Isolation
  500V channel-to-backplane isolation protects sensitive control systems from ground loops, electrical noise, and transient voltage spikes common in industrial power environments, reducing false readings and equipment damage risk.
• Fast Response & Scan Performance
  Optimized conversion time enables real-time process monitoring with minimal lag, critical for closed-loop control applications requiring rapid response to changing process conditions.
• Hot-Swap Capability
  Field-replaceable design allows module replacement during system operation without shutting down the entire control rack, minimizing production downtime and maintenance costs.
• Robust Industrial Construction
  Conformal-coated circuitry and industrial-grade components withstand temperature extremes, vibration, humidity, and electromagnetic interference typical in factory floor and outdoor installations.
• Seamless VersaMax Integration
  Direct compatibility with GE PACSystems RX3i, RX7i controllers and VersaMax I/O carriers ensures plug-and-play installation with automatic configuration recognition and simplified programming.

Typical Application Scenarios

This module excels in applications demanding stable current signal measurement and continuous process monitoring, especially:

• Chemical & Petrochemical Processing
  Monitor reactor pressure, flow rates, and tank levels via 4-20mA transmitters; maintain precise control of batch processes, distillation columns, and blending operations while ensuring safety interlock integrity.
• Water & Wastewater Treatment
  Acquire signals from pH sensors, turbidity meters, flow transmitters, and level instruments; enable automated control of pumping stations, filtration systems, and chemical dosing for regulatory compliance.
• Oil & Gas Production
  Interface with wellhead pressure transmitters, separator level sensors, and pipeline flow meters; support remote monitoring and SCADA integration for upstream, midstream, and downstream operations.
• Manufacturing & Assembly Lines
  Collect data from pressure regulators, temperature transmitters, and position sensors; facilitate quality control, predictive maintenance, and production optimization in automotive, food processing, and packaging industries.
• HVAC & Building Automation
  Integrate with air pressure sensors, valve actuators, and energy meters; enable efficient climate control, energy management, and equipment performance monitoring in commercial and industrial facilities.

Technical Parameters & Selection Guide

To facilitate system design and module selection, we provide key specifications for the IC200ALG230:

Selection Considerations: When specifying this module, verify transmitter output compatibility (4-20mA standard), loop power supply requirements (typically 24VDC external), controller I/O capacity, and environmental conditions. For applications requiring voltage inputs, thermocouple/RTD signals, or higher channel density, consult our product line or contact engineering support for alternative module recommendations.

Integration & Configuration Support

• Software Compatibility: Fully supported by GE Proficy Machine Edition programming software with pre-built function blocks for scaling, alarming, and diagnostics
• Wiring & Termination: Removable terminal blocks with clear channel labeling; supports shielded twisted-pair cable for noise immunity
• Diagnostics: Built-in channel fault detection, open-circuit detection, and module health status reporting to controller
• Documentation: Complete technical manuals, wiring diagrams, and configuration examples available for download

Delivery, Service & Quality Assurance

Stock & Lead Time: Factory-sealed units typically ship within 1-3 business days; custom configurations or bulk orders may require 5-10 days. All modules undergo functional testing before shipment.

Warranty & Support: Backed by 12-month manufacturer warranty covering defects in materials and workmanship. Technical support includes application assistance, troubleshooting guidance, and replacement coordination. Installation and commissioning services available upon request (region-dependent).

Documentation Package: Each module ships with installation quick-start guide, specification sheet, and wiring diagram. Complete user manuals, CAD drawings, and programming examples accessible via product support portal.

Frequently Asked Questions (FAQ)

Q: How does the IC200ALG230 analog current input module interface with existing 4-20mA transmitters?
A: The module accepts standard 4-20mA current loop signals directly. Connect the transmitter output to the module's input terminals (observe polarity), ensure external 24VDC loop power supply is provided to the transmitter, and configure the input scaling in your PLC program to match the process variable range.

Q: What is the maximum cable distance between transmitters and the IC200ALG230 module?
A: Current loop signals are highly resistant to voltage drop and noise. Typical installations support cable runs up to 1000 meters (3280 feet) using 18-22 AWG shielded twisted-pair cable, depending on loop resistance and power supply voltage. For longer distances, consult loop resistance calculations.

Q: Can this module be used in hazardous area (Class I Div 2) installations?
A: The IC200ALG230 is suitable for non-hazardous locations and Class I Division 2 environments when installed per NEC guidelines. For Class I Division 1 or ATEX Zone 1 applications, intrinsically safe barriers or approved enclosures are required. Consult local codes and GE hazardous location documentation.

Q: Does the module require external signal conditioning or can it connect directly to 4-20mA sensors?
A: The IC200ALG230 is designed for direct connection to standard 4-20mA transmitters without additional signal conditioning. The module provides the required input impedance and A/D conversion. Ensure transmitters are loop-powered or self-powered with proper common reference.

Q: What diagnostic features help troubleshoot signal issues in the field?
A: The module provides channel-level diagnostics including open-circuit detection (broken wire), out-of-range alarms (below 4mA or above 20mA), and module fault status. These diagnostics are accessible via PLC program and can trigger alarms or maintenance notifications.

Q: Is the IC200ALG230 compatible with non-GE PLC systems or only GE PACSystems?
A: This module is specifically designed for GE VersaMax I/O systems and PACSystems controllers (RX3i, RX7i). It is not compatible with third-party PLC brands. For multi-vendor integration, consider using the VersaMax I/O as a remote I/O rack via Ethernet/IP or Profibus gateways.

Request Technical Support & Quotation

For detailed application engineering, custom configuration, or project quotations, please provide: Project name, application description, number of I/O points required, signal types and ranges, environmental conditions, controller platform, and delivery timeline. Our engineering team will respond with tailored recommendations and pricing within 24 hours.
