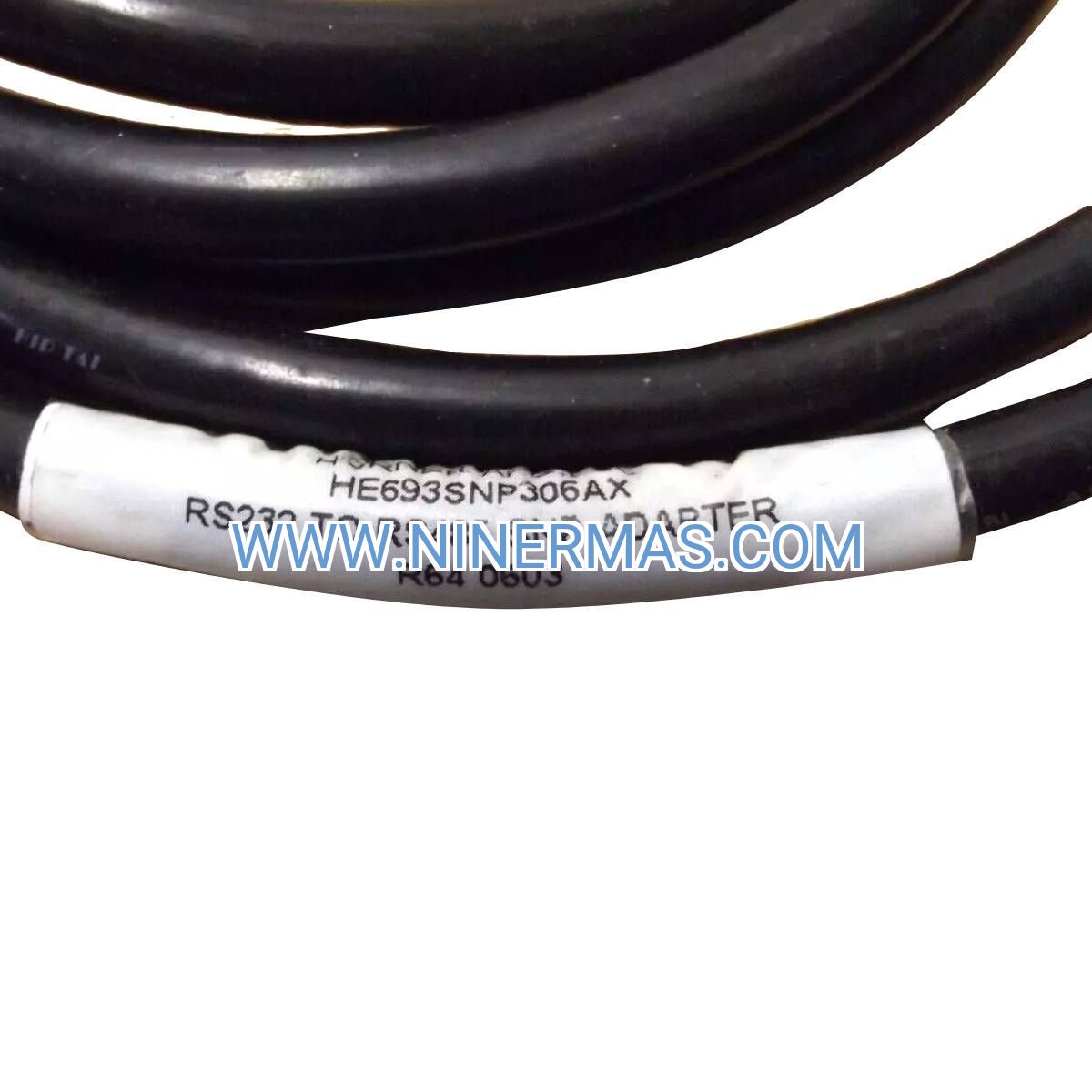

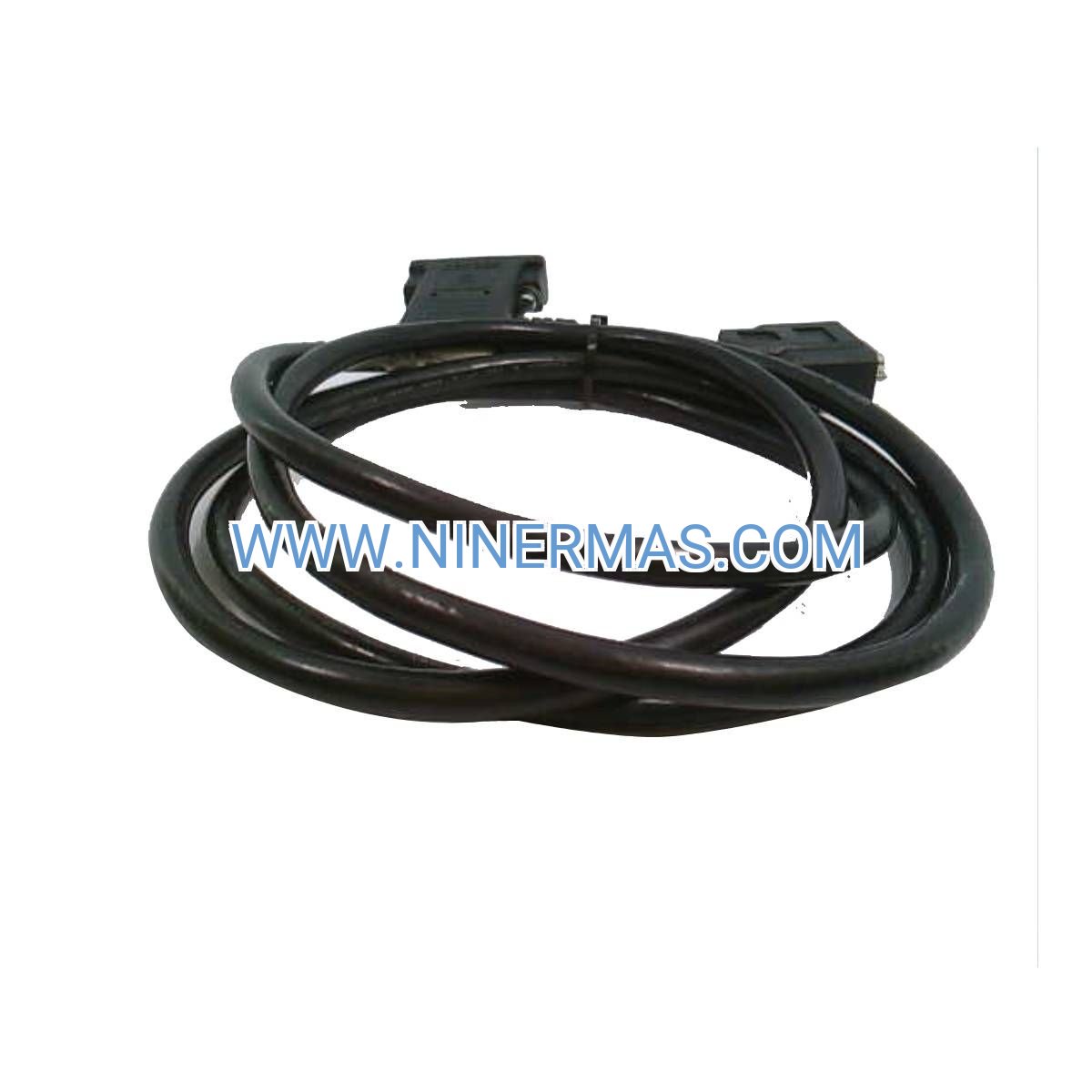

Series 90-30 SNP Programming Cable (Industrial-Grade RS-232 Interface)

The HE693SNP306AX delivers dependable serial connectivity between GE Fanuc Series 90-30 controllers and your programming workstation. Engineered by Horner Electric under GE licensing, this 3-meter shielded cable transforms standard RS-232 ports into direct SNP protocol gateways—enabling program transfers, live monitoring, and diagnostic operations across all Series 90-30 CPU platforms.

Whether you're commissioning new installations, archiving legacy programs, or troubleshooting production faults, this adapter cable provides the physical link your automation workflow demands. Shielded twisted-pair construction resists EMI interference in electrically noisy panel environments, while auto-baud detection (300–38,400 bps) eliminates manual configuration steps.

Ideal for system integrators, maintenance technicians, and plant engineers managing distributed 90-30 architectures—from standalone controllers to multi-rack configurations with analog I/O, communication co-processors, and specialty modules.

Core Capabilities & Technical Advantages

✓ Universal 90-30 CPU Compatibility
Works seamlessly with IC693CPU374, IC693CPU364-EK, IC693CPU331, IC693CPU323, IC693CPU313, and all other Series 90-30 processors equipped with SNP ports. No firmware restrictions or version dependencies.

✓ Plug-and-Play RS-232 Connectivity
DB9 female connector interfaces directly with legacy serial ports or modern USB-to-serial adapters (FTDI/Prolific chipsets recommended). No external power supply or driver installation required on the cable itself.

✓ Optimized 3-Meter Working Distance
Balances technician mobility with signal integrity—long enough to position laptops outside control cabinets, short enough to prevent RS-232 voltage drop or timing errors during high-speed transfers.

✓ EMI/RFI Shielded Construction
Foil-shielded twisted pairs with drain wire reject electrical noise from VFDs, contactors, and switching power supplies. Maintains clean data transmission in harsh industrial settings where unshielded cables fail.

✓ Automatic Baud Rate Synchronization
Detects and matches PLC communication speed without manual DIP switch settings or software configuration. Supports 300, 1200, 2400, 4800, 9600, 19200, and 38400 bps rates.

✓ Field-Service Durability
Strain-relieved connectors and PVC jacket withstand 500+ mating cycles. Minimum bend radius of 25mm prevents conductor fatigue during frequent coiling and transport in service kits.

Industrial Application Scenarios

New System Commissioning & Startup
Upload ladder logic, configure I/O addressing, and validate system parameters during initial installation of Series 90-30 control panels. Essential for integrators deploying IC693CPU323W processors with IC693CHS391 10-slot baseplates in packaging lines, material handling systems, or batch process controls.

Legacy Program Recovery & Documentation
Extract existing PLC programs from undocumented or aging systems for archival, reverse engineering, or migration planning. Critical when servicing plants where original program files were lost, corrupted, or never properly backed up—particularly systems running IC693CPU313 embedded CPUs.

Real-Time Diagnostics & Fault Analysis
Monitor live register values, force discrete I/O points, and trace program execution during production troubleshooting. Connect to controllers managing IC693MDL740 discrete outputs, IC693ALG392 analog modules, and IC693PTM101 temperature inputs to isolate sensor faults, wiring errors, or logic defects.

Production Logic Modifications
Implement recipe changes, add interlock logic, or optimize scan times in running systems with minimal downtime. Supports online edits to programs controlling IC693ALG221 analog inputs and IC693CMM311 communication co-processors in food processing, water treatment, and HVAC applications.

Multi-Site Field Service Operations
Portable solution for OEMs and service contractors supporting distributed customer bases. Compact form factor fits standard tool bags alongside IC693PWR321 power supplies, spare I/O modules, and diagnostic meters for rapid on-site repairs.

Technical Specifications & Selection Guide

Selection Criteria: Choose this cable when programming Series 90-30 CPUs via SNP protocol. For Ethernet-based programming, consider IC693CMM321 Ethernet modules instead. For multi-protocol environments requiring both SNP and Modbus access, pair with HE693RTM705C RTU Master modules. Technicians servicing mixed-vendor systems should also stock Allen-Bradley 1756-CP3 and 1747-CP3 cables for ControlLogix and SLC-500 platforms.

Extended Connectivity & System Integration

USB Adapter Compatibility
Modern laptops lacking native RS-232 ports require USB-to-serial converters. We recommend FTDI-based adapters (FT232R chipset) or Prolific PL2303-based units with current driver support. Avoid generic no-name adapters that may cause intermittent connection drops or data corruption.

Multi-Protocol Communication Architectures
Series 90-30 systems often combine SNP programming access with production-level Ethernet, Profibus, or DeviceNet networks. Integrate IC693CMM321 Ethernet modules for remote SCADA connectivity, HE693PBM101 Profibus interfaces for drive communication, or IC693DNM200 DeviceNet masters for distributed I/O—while retaining SNP cable access for local programming and diagnostics.

Backup & Disaster Recovery Workflows
Establish routine program backup schedules using this cable to download PLC programs to secure archive locations. Store backups in version-controlled repositories alongside I/O configuration spreadsheets, panel wiring diagrams, and HMI screen files for comprehensive disaster recovery capability.

Delivery Timeline & Service Commitment

Standard Lead Time: In-stock items ship within 1-2 business days via express courier (DHL, FedEx, UPS). Typical delivery to North America: 3-5 days; Europe: 4-6 days; Asia-Pacific: 5-7 days.

Warranty Coverage: 12-month manufacturer warranty against defects in materials and workmanship. Covers connector failures, conductor breaks, and shield degradation under normal industrial use.

Technical Support: Pre-sales application engineering assistance and post-sales troubleshooting support included. Our team provides cable pinout verification, software configuration guidance, and communication parameter optimization.

Documentation Package: Each cable ships with quick-start guide, pinout diagram, and software configuration checklist. Full technical manuals available for download from our support portal.

Frequently Asked Questions

Can I program Series 90-30 PLCs through USB ports on new laptops?
Yes, but you'll need a USB-to-RS232 adapter as an intermediary. The HE693SNP306AX terminates in DB9 RS-232 format. Use quality adapters with FTDI or Prolific chipsets and ensure drivers are installed before connecting to the PLC. Avoid simultaneous use of multiple USB-serial adapters on the same PC to prevent COM port conflicts.

Does this cable work with Series 90-70 or RX3i controllers?
No. Series 90-70 systems use different serial protocols and connector types. RX3i platforms primarily use Ethernet programming connections rather than legacy SNP serial interfaces. This cable is exclusively for Series 90-30 CPUs with SNP ports.

Which programming software packages support SNP communication?
Logicmaster 90-30 (legacy DOS/Windows versions), VersaPro (Windows-based), and Machine Edition (modern Proficy platform) all support SNP protocol. Ensure your software version matches your CPU firmware revision. Configure software for SNP mode rather than Modbus or Ethernet protocols.

Is external power required for cable operation?
No. The HE693SNP306AX is a passive signal adapter requiring no batteries or external power supply. It derives necessary voltage levels from RS-232 handshaking signals (DTR/RTS) provided by the PC serial port and PLC SNP interface.

Can I extend the cable beyond 3 meters for remote programming stations?
RS-232 standard theoretically supports 15 meters, but extending this cable risks signal degradation, timing errors, and communication failures. For programming stations located farther from PLCs, use Ethernet-based programming via IC693CMM321 modules or install a serial-to-Ethernet converter near the PLC.

Will this cable work with third-party Series 90-30 compatible CPUs?
Compatibility depends on how accurately third-party manufacturers replicated GE's SNP port implementation. We guarantee compatibility only with genuine GE Fanuc Series 90-30 hardware. Test with clone CPUs at your own risk and verify SNP protocol support with the CPU manufacturer.

Order Your Programming Cable Today

Ensure uninterrupted access to your Series 90-30 control systems with the HE693SNP306AX SNP Programming Cable. Whether you're commissioning new installations, maintaining legacy systems, or building field service kits, this industrial-grade adapter delivers the reliability your automation projects demand.

Contact our automation specialists for volume pricing, technical specifications, or application guidance.
