GE HE693RTD660E RTD Input Module | 6-Channel Temperature Sensor for Series 90-30 PLC

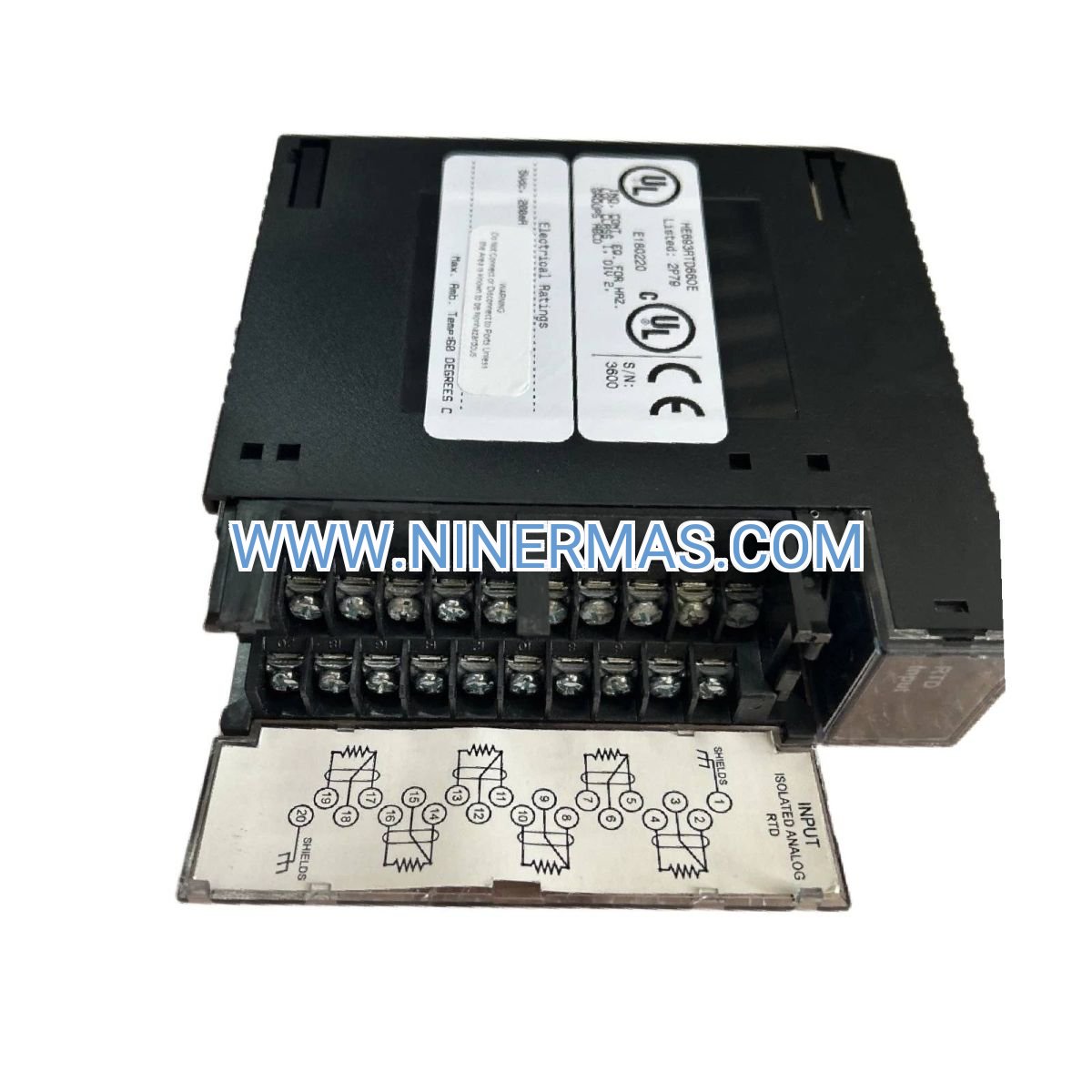

GE HE693RTD660E 6-Channel RTD Input Module (Industrial-Grade Temperature Measurement Solution)

The GE HE693RTD660E RTD Input Module is a precision temperature acquisition device designed for GE Fanuc Series 90-30 PLC systems. Through high-resolution analog-to-digital conversion and RTD (Resistance Temperature Detector) signal conditioning, it delivers accurate, stable temperature monitoring for industrial process control, HVAC systems, and manufacturing environments.

Ideal for applications requiring multi-point temperature monitoring—such as chemical reactors, heat treatment furnaces, pharmaceutical clean rooms, and building automation systems—this module addresses challenges including sensor signal drift, wiring complexity, calibration inconsistencies, and limited diagnostic visibility.

Featuring standardized design with flexible configuration options, the HE693RTD660E offers 6 independent RTD input channels, wide sensor compatibility (PT100/PT1000/Ni120), built-in cold junction compensation, and comprehensive fault diagnostics. Suitable for design engineers, system integrators, OEM equipment manufacturers, and plant maintenance teams. Contact our application engineers for configuration guidance and technical quotations.

Core Features & Advantages

• High-Precision Multi-Channel Acquisition
  6 independent RTD input channels with 16-bit resolution, supporting PT100, PT1000, and Ni120 sensor types. Temperature measurement accuracy up to ±0.1°C, ensuring reliable data for critical process control loops.
• Flexible Sensor Wiring Configuration
  Supports 2-wire, 3-wire, and 4-wire RTD connections. 3-wire and 4-wire modes eliminate lead resistance errors, ideal for long-distance sensor installations and high-accuracy applications.
• Comprehensive Fault Detection & Diagnostics
  Built-in open-circuit, short-circuit, and out-of-range detection for each channel. Real-time fault status reporting to PLC enables proactive maintenance and reduces unplanned downtime.
• Seamless Series 90-30 Integration
  Hot-swappable design with automatic PLC recognition. Configuration via GE Logicmaster or Proficy Machine Edition software. No external signal conditioners required, simplifying system architecture and reducing installation costs.
• Industrial-Grade Reliability & Protection
  Operating temperature range: -40°C to +70°C. Conformal coating protects against moisture, dust, and chemical exposure. Suitable for harsh industrial environments including foundries, petrochemical plants, and outdoor installations.
• Intuitive Status Indication
  Front-panel LED indicators display module power, communication status, and per-channel fault conditions. Enables rapid troubleshooting without specialized diagnostic tools.

Typical Application Scenarios

This module is engineered for industrial environments demanding high temperature measurement accuracy, multi-point monitoring, and continuous operation reliability, including:

• Chemical & Petrochemical Process Control
  Monitors reactor vessel temperatures, distillation column profiles, and heat exchanger performance. Ensures process safety and product quality through precise thermal management in exothermic reactions and catalytic processes.
• Heat Treatment & Metal Processing
  Controls furnace zone temperatures for annealing, quenching, and tempering operations. Maintains uniform thermal profiles critical for metallurgical properties and dimensional stability in aerospace, automotive, and tool manufacturing.
• HVAC & Building Automation Systems
  Manages chiller plant temperatures, boiler feed water monitoring, and air handling unit control. Optimizes energy efficiency while maintaining comfort conditions in commercial buildings, hospitals, and data centers.
• Food & Pharmaceutical Manufacturing
  Ensures compliance with GMP/FDA temperature validation requirements in sterilization, pasteurization, and cold chain storage. Provides audit-trail-ready temperature records for batch documentation and regulatory inspections.
• Power Generation & Utilities
  Monitors turbine bearing temperatures, generator winding thermal conditions, and cooling system performance. Supports predictive maintenance programs and prevents catastrophic equipment failures in critical infrastructure.

Technical Specifications & Selection Guide

To facilitate engineering design and procurement, we provide standardized technical parameters. Custom configurations available based on project-specific requirements.

Selection Recommendations: When specifying this module, consider: (1) total number of temperature measurement points, (2) sensor type and wiring distance, (3) required measurement accuracy and response time, (4) environmental conditions (temperature, humidity, vibration), (5) available PLC rack slots and power budget. For application assistance, provide process temperature ranges, sensor locations, and control system architecture. Our engineers will recommend optimal configuration and provide integration support.

Extended Functionality & System Integration

• Software Configuration Tools
  Compatible with GE Proficy Machine Edition, Logicmaster 90-30, and VersaPro programming environments. Supports online/offline configuration, channel scaling, alarm setpoint programming, and diagnostic data logging.
• Network Connectivity Options
  Integrates with Ethernet, Modbus RTU, and Genius I/O networks via Series 90-30 communication modules. Enables SCADA integration, remote monitoring, and enterprise-level data historian connectivity.
• Redundancy & High-Availability Configurations
  Supports dual-redundant PLC architectures for critical process applications. Hot-standby failover ensures continuous temperature monitoring during controller switchover events.
• Calibration & Validation Services
  Factory-calibrated with NIST-traceable certificates available upon request. Field calibration procedures documented for periodic verification per ISO 9001 and 21 CFR Part 11 requirements.

Delivery, Service & Quality Assurance

Lead Time: Standard catalog items ship within 3-5 business days. Custom-configured modules require 10-15 business days. Expedited delivery available for urgent project requirements.

Warranty: 12-month manufacturer warranty covering defects in materials and workmanship. Extended warranty and advance replacement programs available for critical applications.

Technical Support: Remote application engineering assistance included. On-site commissioning and training services available (region-dependent). 24/7 emergency support for mission-critical installations.

Documentation Package: Each module ships with: installation quick-start guide, detailed user manual (PDF), electrical wiring diagrams, configuration software examples, and dimensional drawings (DXF/PDF formats). Facilitates rapid deployment and simplifies maintenance documentation.

Quality Certifications: Manufactured in ISO 9001-certified facilities. RoHS and REACH compliant. UL/cUL listed for North American installations. CE marked for European markets.

Frequently Asked Questions (FAQ)

Q: How does the GE HE693RTD660E RTD input module interface with existing Series 90-30 PLC systems?
A: The module installs directly into any available slot on the Series 90-30 backplane. It is automatically recognized by the CPU upon power-up. Configuration is performed via Proficy Machine Edition or Logicmaster software, where you define sensor types, wiring modes, temperature units, and scaling parameters. No external power supply or signal conditioners are required.

Q: What is the maximum number of RTD sensors that can be connected to a single Series 90-30 rack?
A: Each HE693RTD660E module provides 6 RTD input channels. A standard 10-slot Series 90-30 rack can accommodate up to 8 I/O modules (after CPU and power supply), enabling up to 48 RTD inputs per rack. For larger systems, multiple racks can be linked via expansion cables or remote I/O networks.

Q: What energy savings or efficiency improvements can be achieved with accurate RTD temperature monitoring?
A: Precise temperature control reduces energy waste in heating/cooling processes by minimizing overshoot and oscillation. In HVAC applications, ±0.5°C tighter control can reduce energy consumption by 5-10%. In industrial furnaces, optimized thermal profiles improve product yield and reduce fuel costs by 8-15%, depending on process characteristics.

Q: What are the environmental installation requirements and protection ratings for this module?
A: The module is rated for -40°C to +70°C ambient operation and features conformal-coated circuitry for moisture and dust resistance (IP20 enclosure rating). For harsh environments (chemical exposure, outdoor installations), mount the PLC rack in a NEMA 4/4X or IP65-rated enclosure with appropriate ventilation and temperature management.

Q: Does the module support remote monitoring and data acquisition via industrial networks?
A: Yes. Temperature data is accessible via the Series 90-30 CPU's communication interfaces, including Ethernet (with SNP-X or EGD protocols), Modbus RTU/TCP, and Genius I/O networks. This enables integration with SCADA systems (Wonderware, Ignition, FactoryTalk), cloud-based IoT platforms, and enterprise historians for real-time monitoring, trending, and alarm management.

Q: What diagnostic capabilities are available for troubleshooting sensor or wiring faults?
A: Each channel provides real-time fault detection for open-circuit (broken sensor or wiring), short-circuit, and out-of-range conditions. Fault status is reported to the PLC program and indicated via front-panel LEDs. Diagnostic registers provide detailed error codes, enabling rapid identification of faulty sensors, wiring issues, or configuration errors without manual multimeter testing.
