GE HE693RTD660 RTD Input Module | 6-Channel Temperature Sensor for Series 90-30 PLC

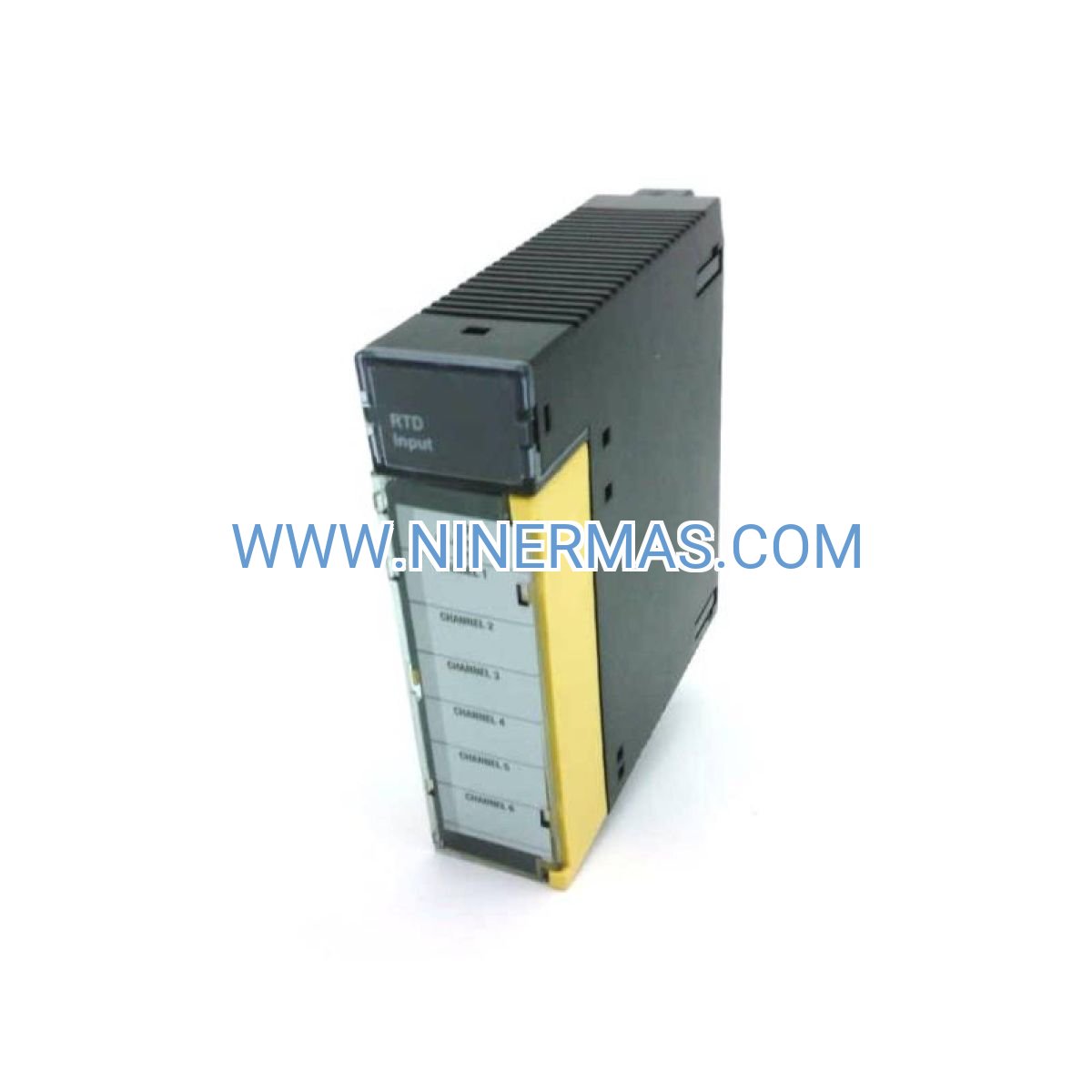

GE HE693RTD660 RTD Input Module (Industrial-Grade Temperature Measurement System)

The GE HE693RTD660 is a high-precision 6-channel RTD (Resistance Temperature Detector) input module designed for Series 90-30 PLC systems. Through advanced analog-to-digital conversion and intelligent signal processing, it delivers accurate temperature monitoring with ±0.1°C precision across industrial environments. This module enables real-time thermal data acquisition for critical process control applications.

Ideal for chemical processing plants, HVAC systems, power generation facilities, food & beverage manufacturing, and pharmaceutical production environments. It addresses common challenges including temperature drift, sensor compatibility issues, wiring complexity, and the need for multi-point monitoring in distributed control systems.

Featuring standardized design with flexible configuration options, the HE693RTD660 offers rapid installation, excellent noise immunity, hot-swappable capability, and seamless integration with existing GE automation ecosystems. Suitable for system integrators, control panel builders, plant engineers, and OEM equipment manufacturers. Contact our application engineers for customized configuration guidance and technical specifications.

Core Features & Advantages

• 6-Channel High-Precision Measurement
  Simultaneously monitors up to six independent RTD sensors with 16-bit resolution, providing accurate temperature data for multi-zone process control and reducing system wiring complexity.
• Universal RTD Sensor Compatibility
  Supports PT100, PT1000, Ni100, Ni1000, and Cu10 RTD types with 2-wire, 3-wire, or 4-wire configurations, eliminating the need for multiple input modules and simplifying inventory management.
• Superior Noise Rejection
  Integrated digital filtering and differential input design minimize electromagnetic interference in harsh industrial environments, ensuring measurement stability even near high-power equipment and VFD installations.
• Diagnostic & Self-Test Capabilities
  Built-in sensor break detection, out-of-range alarms, and module health monitoring reduce troubleshooting time by up to 60%, enabling predictive maintenance and minimizing unplanned downtime.
• Hot-Swappable Design
  Field-replaceable without powering down the entire PLC rack, maintaining process continuity during maintenance operations and reducing mean time to repair (MTTR) in critical applications.
• Seamless Series 90-30 Integration
  Direct compatibility with Logicmaster 90-30, VersaPro, and Machine Edition programming software, with pre-configured function blocks that accelerate commissioning and reduce engineering hours.

Typical Application Scenarios

This module excels in applications requiring stable, continuous temperature monitoring with high reliability:

• Chemical & Petrochemical Processing
  Monitors reactor vessel temperatures, distillation column profiles, and heat exchanger performance. Ensures process safety by detecting thermal anomalies before critical thresholds are reached, complying with SIL-rated safety systems.
• HVAC & Building Automation
  Controls chilled water systems, boiler feed temperatures, and multi-zone climate management. Optimizes energy consumption by maintaining precise setpoints across large commercial facilities and data centers.
• Food & Beverage Manufacturing
  Ensures pasteurization, sterilization, and fermentation processes meet FDA/HACCP temperature requirements. Provides audit-trail data logging for quality assurance and regulatory compliance in dairy, brewing, and canning operations.
• Power Generation & Utilities
  Tracks turbine bearing temperatures, generator winding heat, and cooling system performance in thermal, hydro, and renewable energy plants, preventing catastrophic equipment failure through early warning detection.
• Pharmaceutical & Cleanroom Environments
  Maintains GMP-compliant temperature control in lyophilization, incubation, and sterile processing. Supports 21 CFR Part 11 data integrity requirements with timestamped measurement records.

Technical Parameters & Selection Guide

To facilitate engineering design and procurement, we provide comprehensive specifications for the HE693RTD660 module. Custom configurations are available for specialized applications.

Selection Recommendations: When specifying this module, consider maximum/minimum process temperatures, RTD sensor type and wiring method, required measurement accuracy, scan rate requirements, and environmental conditions (temperature, humidity, vibration). For applications requiring SIL certification or hazardous area installation, consult our engineering team for appropriate barrier and enclosure solutions.

Advanced Configuration Options

• Programmable Alarm Thresholds: Set high/high-high and low/low-low temperature limits with configurable hysteresis and time delays
• Linearization Tables: Custom curve fitting for non-standard RTD types or thermowell compensation
• Scaling & Engineering Units: Direct output in °C, °F, or Kelvin with user-defined offset and span adjustments
• Redundancy Support: Dual-module configurations with automatic failover for critical measurement points
• Protocol Integration: Modbus RTU/TCP gateway options for SCADA connectivity and third-party HMI systems

Delivery, Service & Quality Assurance

Standard catalog items ship within 3-5 business days; custom-configured modules require 10-15 business days for factory programming and testing. All units include a 12-month manufacturer warranty covering defects in materials and workmanship.

We provide remote commissioning support via phone/email and on-site startup assistance for projects requiring system integration (availability varies by region). Each module ships with complete documentation including installation manual, wiring diagrams, programming examples, and calibration certificates traceable to NIST standards.

Our technical support team offers application engineering consultation, replacement part cross-referencing, and obsolescence management for legacy Series 90-30 systems. Expedited shipping and emergency replacement services available for critical downtime situations.

Frequently Asked Questions (FAQ)

Q: How do I connect the GE HE693RTD660 RTD input module to existing temperature sensors?
A: The module accepts 2-wire, 3-wire, or 4-wire RTD connections via removable terminal blocks. For 3-wire PT100 sensors (most common), connect one lead to the (+) terminal, one to (-), and the third to the sense (S) terminal. Refer to the wiring diagram in the user manual for proper lead compensation. Ensure sensor cable shielding is grounded at one end only to prevent ground loops.

Q: What is the maximum number of RTD input modules I can install in a single Series 90-30 rack?
A: A standard 10-slot Series 90-30 rack can accommodate up to 7 I/O modules (slots 1-2 reserved for CPU and power supply). You can install multiple HE693RTD660 modules, providing up to 42 RTD channels per rack. For larger systems, use expansion racks with remote I/O communication.

Q: What energy savings can I expect by implementing precise temperature control with this module?
A: Precision temperature monitoring typically reduces energy consumption by 8-15% in HVAC systems and 12-25% in process heating applications by eliminating temperature overshoot and minimizing cycling losses. Actual savings depend on process characteristics, control strategy, and baseline system efficiency. ROI is typically achieved within 6-18 months in continuous-operation facilities.

Q: What are the environmental requirements for installing this RTD input module?
A: Operating temperature range is 0°C to +60°C with 5-95% relative humidity (non-condensing). The module has an IP20 enclosure rating and should be mounted in a NEMA 12 or IP54 minimum control cabinet. Avoid installation near high-vibration equipment (>2G) or strong magnetic fields. Ensure adequate ventilation with minimum 50mm clearance above and below the rack.

Q: Does the HE693RTD660 support remote monitoring and data logging capabilities?
A: Yes, temperature data is accessible via the Series 90-30 CPU's communication ports (Serial, Ethernet, or Genius bus). The module supports standard Modbus RTU/TCP protocols when paired with appropriate gateway hardware. Data can be logged to SCADA systems, cloud platforms, or local historians. For IIoT applications, consider our edge gateway solutions that provide MQTT, OPC-UA, and REST API connectivity.

Q: Is the module compatible with third-party programming software or only GE tools?
A: While optimized for GE's Proficy Machine Edition and VersaPro software, the module can be configured using any programming environment that supports Series 90-30 I/O mapping. Third-party SCADA packages (Wonderware, Ignition, FactoryTalk) can read temperature values directly from the PLC data table. Configuration parameters are stored in the module's non-volatile memory and persist across power cycles.

Get Expert Selection Support

To receive a detailed configuration proposal, technical datasheet, or pricing quotation, please provide the following project information: application description, number of temperature measurement points, RTD sensor types and wiring (2/3/4-wire), required temperature range and accuracy, existing PLC system details (CPU model, rack configuration), environmental conditions, and any special certifications needed (ATEX, FM, SIL). Our application engineers will respond within 24 hours with a customized solution and budget estimate.
